PP1R5-48-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PP1R5-48-12

PP1R5-48-12: DescriptionAnalog Circuit,; CategoryPower/power management The power supply circuit; File Size186KB，4 Pages; ManufacturerTDK-LAMBDA

Download Datasheet Parametric View All

PP1R5-48-12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PP1R5-48-12	-	-	View	Buy Now

PP1R5-48-12 Overview

Analog Circuit,

PP1R5-48-12 Parametric

Parameter Name	Attribute value
Maker	TDK-LAMBDA
package instruction	,
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

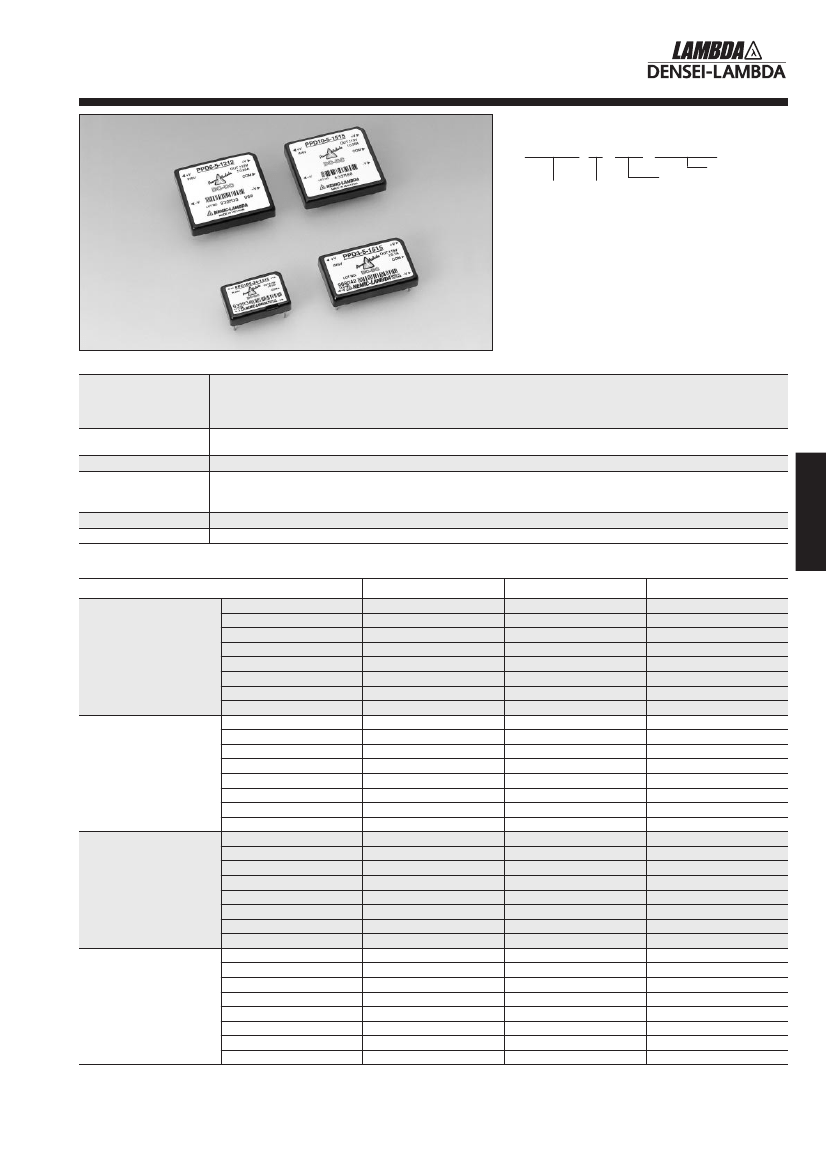

-SERIES

Single output DC-DC converter 1.5W ~ 25W

Model name

PP 15-48-5

Nominal output voltage

Nominal input voltage

Name of series

PP25

PP15

PP10

Output power

Features

Compact and single output DC-DC converter

Ultra-thin profile: 8mm

Wide input voltage range

DC5V input: DC4.5 ~ 7.2V (PP25: 4.7V ~ 7.2V)

DC12V input: DC9 ~ 18V (PP1R5 ~ PP10: 8V ~ 16.5V)

DC24V input: DC18 ~ 36V (PP1R5 ~ PP10: 18V ~ 32V)

DC48V input: DC36 ~ 72V (PP1R5 ~ PP10: 32V ~ 63V)

Operating temperature:

–

20 ~

°C

Isolation between input and output

PP15, PP25: Output voltage variable, on/off control

3 year warranty

PP6

PP3

PP1R5

3 year warranty

Specifications

1. Input voltage range

DC5V input: DC4.5 ~ 7.2V (PP25: 4.7 ~ 7.2V)

DC12V input: DC9 ~ 18V (PP1R5 ~ PP10: 8 ~ 16.5V)

DC24V input: DC18 ~ 36V (PP1R5 ~ PP10: 18 ~ 32V)

DC48V input: DC36 ~ 72V (PP1R5 ~ PP10: 32 ~ 63V)

Fixed (PP15, PP25: +5% available with external resistor)

Convection cooling

–20 ~ +71°C

PP1R5 ~ PP10: Output derating –20°C ~ +50°C: 100%, +71°C: 20%

PP15, PP25: Output derating –20°C ~ +55°C: 100%, +71°C: 50%

(5V input of PP25: Output derating –20°C ~ +50°C: 100%, +71°C: 50%)

(48V input of PP25: output derating –20°C ~ +40°C: 100%, +71°C: 40%)

Input–output, Input–case: 500VAC for 1 min.

Over current protection, PP15, PP25: Remote on/off control & Over voltage protection

2. Output voltage range

3. Cooling

4. Operating ambient

temperature

On-Board Type Power Supply

5. Withstand voltage

6. Functions

Product lineup

Model name

PP1R5-5-5

PP1R5-5-12

PP1R5-5-15

PP1R5-12-5

PP1R5-12-12

PP1R5-12-15

PP1R5-24-5

PP1R5-24-12

PP1R5-24-15

PP1R5-48-5

PP1R5-48-12

PP1R5-48-15

PP3-5-5

PP3-5-12

PP3-5-15

PP3-12-5

PP3-12-12

PP3-12-15

PP3-24-5

PP3-24-12

PP3-24-15

PP3-48-5

PP3-48-12

PP3-48-15

PP6-5-5

PP6-5-12

PP6-5-15

PP6-12-5

PP6-12-12

PP6-12-15

PP6-24-5

PP6-24-12

PP6-24-15

PP6-48-5

PP6-48-12

PP6-48-15

Output voltage

12V

15V

12V

15V

12V

15V

12V

15V

12V

15V

12V

15V

12V

15V

12V

15V

12V

15V

12V

15V

12V

15V

12V

15V

Output current

0.3A

0.12A

0.1A

0.3A

0.12A

0.1A

0.3A

0.12A

0.1A

0.3A

0.12A

0.1A

0.6A

0.24A

0.2A

0.6A

0.24A

0.2A

0.6A

0.24A

0.2A

0.6A

0.24A

0.2A

1.2A

0.5A

0.4A

1.2A

0.5A

0.4A

1.2A

0.5A

0.4A

1.2A

0.5A

0.4A

Output power UL CSA EN

1.5W

1.44W

1.5W

1.44W

1.5W

1.44W

1.5W

1.44W

1.5W

3.0W

2.88W

3.0W

2.88W

3.0W

2.88W

3.0W

2.88W

3.0W

6.0W

Model name

PP10-5-5

PP10-5-12

PP10-5-15

PP10-12-5

PP10-12-12

PP10-12-15

PP10-24-5

PP10-24-12

PP10-24-15

PP10-48-3.3

PP10-48-5

PP10-48-12

PP10-48-15

PP15-12-5

PP15-12-12

PP15-12-15

PP15-24-5

PP15-24-12

PP15-24-15

PP15-48-3.3

PP15-48-5

PP15-48-12

PP15-48-15

PP25-5-3.3

PP25-5-5.2

PP25-12-5

PP25-12-12

PP25-12-15

PP25-24-5

PP25-24-12

PP25-24-15

PP25-48-3.3

PP25-48-5

PP25-48-12

PP25-48-15

Output voltage

12V

15V

12V

15V

12V

15V

3.3V

12V

15V

12V

15V

12V

15V

3.3V

12V

15V

3.3V

5.2V

12V

15V

12V

15V

3.3V

12V

15V

Output current

1.6A

0.7A

0.6A

2.0A

0.9A

0.7A

2.0A

0.9A

0.7A

2.0V

2.0A

0.9A

0.7A

2.4A

1.3A

1.0A

2.4A

1.3A

1.0A

2.4A

1.3A

1.0A

3.0A

2.9A

4.0A

2.1A

1.7A

4.0A

2.1A

1.7A

5.0A

4.0A

2.1A

1.7A

Output power UL CSA EN

8.0W

8.4W

9.0W

10.0W

10.8W

10.5W

10.0W

10.8W

10.5W

6.6W

10.0W

10.8W

10.5W

12W

15.6W

15W

12W

15.6W

15W

7.92W

12W

15.6W

15W

9.9W

15.08W

20W

25.2W

25.5W

20W

25.2W

25.5W

16.5W

20W

25.2W

25.5W

: Safety standard approved

PP1R5

PP10

PP3

PP15

PP25

PP6

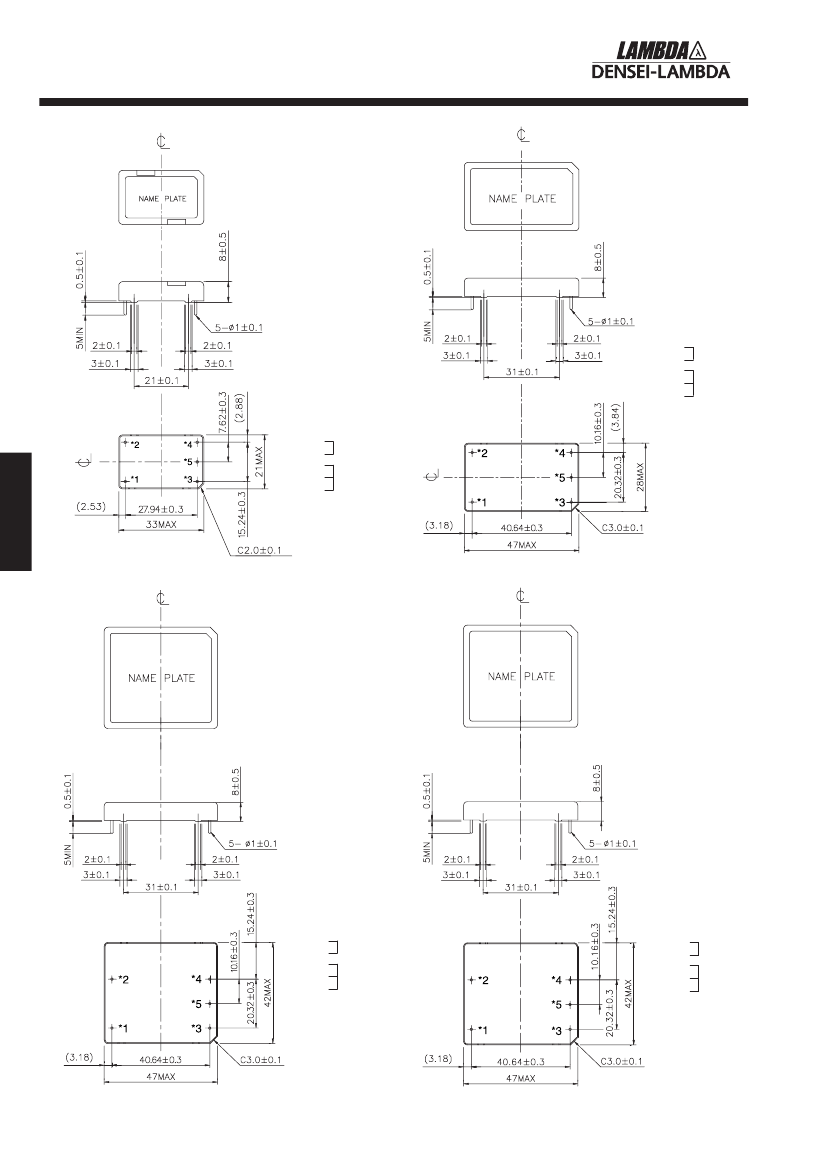

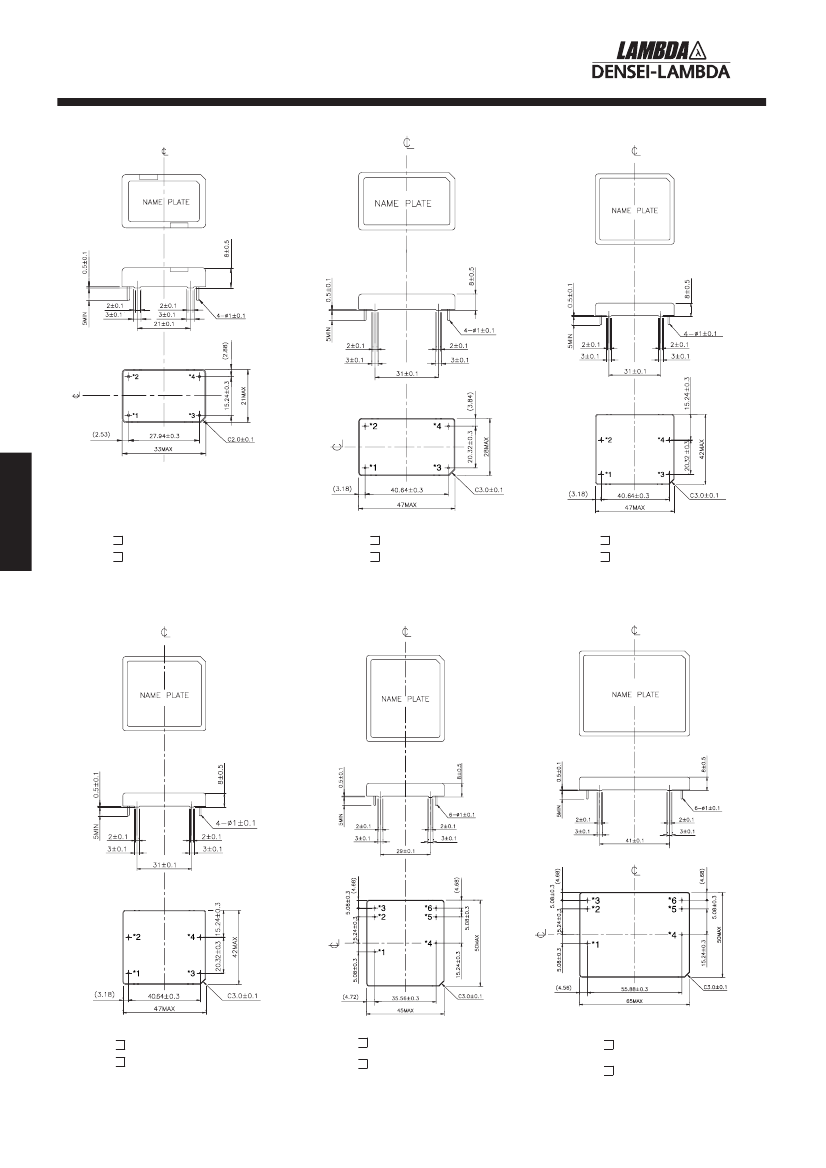

Request customer specification for further details of specifications, outline, characteristics, etc.

Read the instruction manual before usage.

119
