Pressure Sensor, 0-100kPa, Gauge, 3.3VDC, I2C signal
PS8808 Series
IOT Pressure Sensors Technical Data Sheet

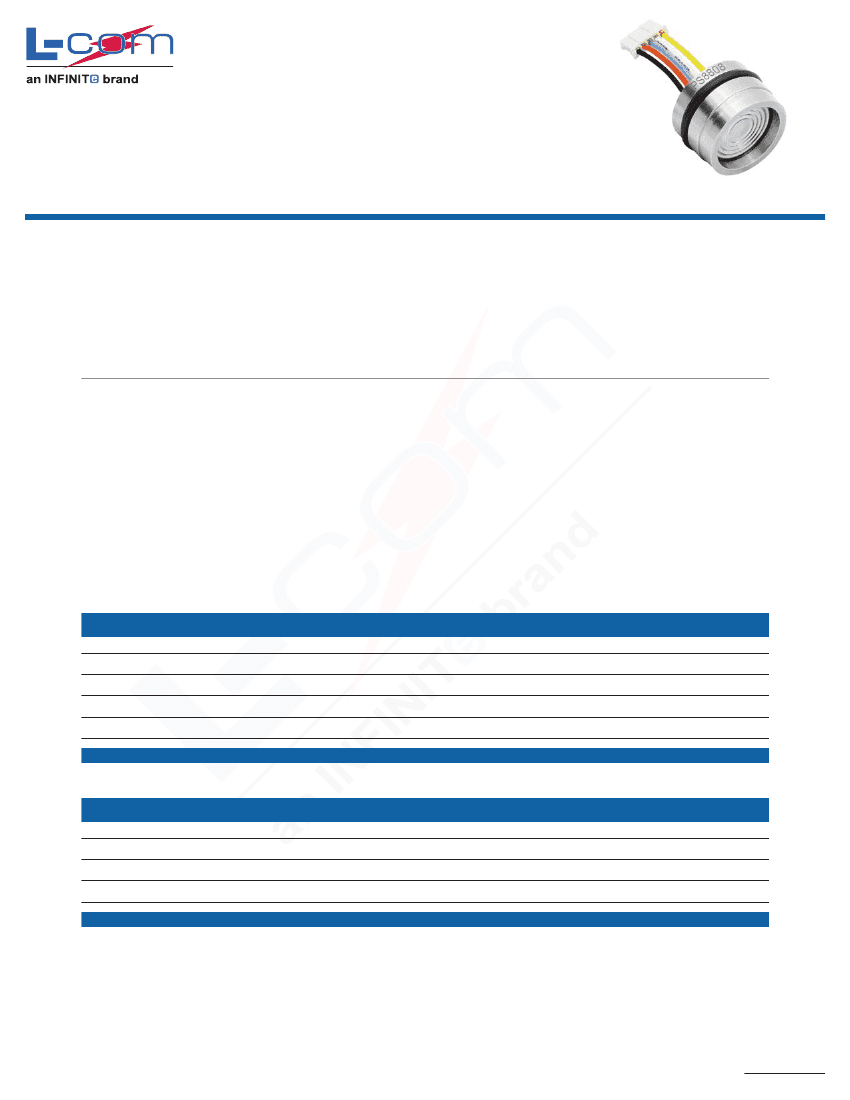

Features
• Pressure range 0-100kPa
• Gauge pressure sensor
• Constant current / Constant Voltage power supply
• Output in I²C interface and protocol
• Stainless Steel 316L
PS8808-100k3CBNG
Applications
• Industrial process control
• Gas, liquid pressure measurement
• Pressure checking meter
.
• Pressure calibrator
• Cooling equipment and air conditioning system
• Aviation and navigation inspection
Description
PS8808-100k3CBNG Digital Output Pressure Transducer is a piezoresistive pressure sensor with 316L stainless steel cor-
rugated diaphragm and isolated oil-filling construction. The sensing package utilizes silicone oil to transfer pressure from
the 316L stainless steel diaphragm to the sensing die. The pressure is transformed to an analog electrical signal. With an
integrated circuit for temperature compensation and nonlinear correction, it provides output data conforming to I²C interface
protocol. It is widely used for various liquid pressure measurements compatible with stainless steel and viton.
Product Configuration
Application:
Pressure Type:
Electrical Connector:
Pressure Sensor
Gauge
5-pin PH2.0
General Specifications
Description
Pressure Range
Accuracy (Pressure)
Accuracy (Temperature)
Long Term Stability
Overpressure
.
Minimum
0
Typical
±0.5
±1.5
±0.3
1.5
Maximum
100
Unit
kPa
%Full Scale
°C
%FullScale/year
xFull Scale
Electrical Specifications
Description
Output Signal
Power Supply/Excitation Level
Power Supply Current
Sampling Interval
.
Minimum
Typical
5%-95%
3.3±0.1
2.5
Maximum
Unit
VDC
mA
1.5
msec
L-com, Inc. • 50 High St., West Mill, 3rd Floor, Suite #30 North Andover, MA 01845
© 2019 L-com, Inc All Right Reserved
1
Phone:
1-800-343-1455 • sales@L-com.com
PS8808-100k3CBNG REV 1.0
Pressure Sensor, 0-100kPa, Gauge, 3.3VDC, I2C signal
PS8808 Series
IOT Pressure Sensors Technical Data Sheet

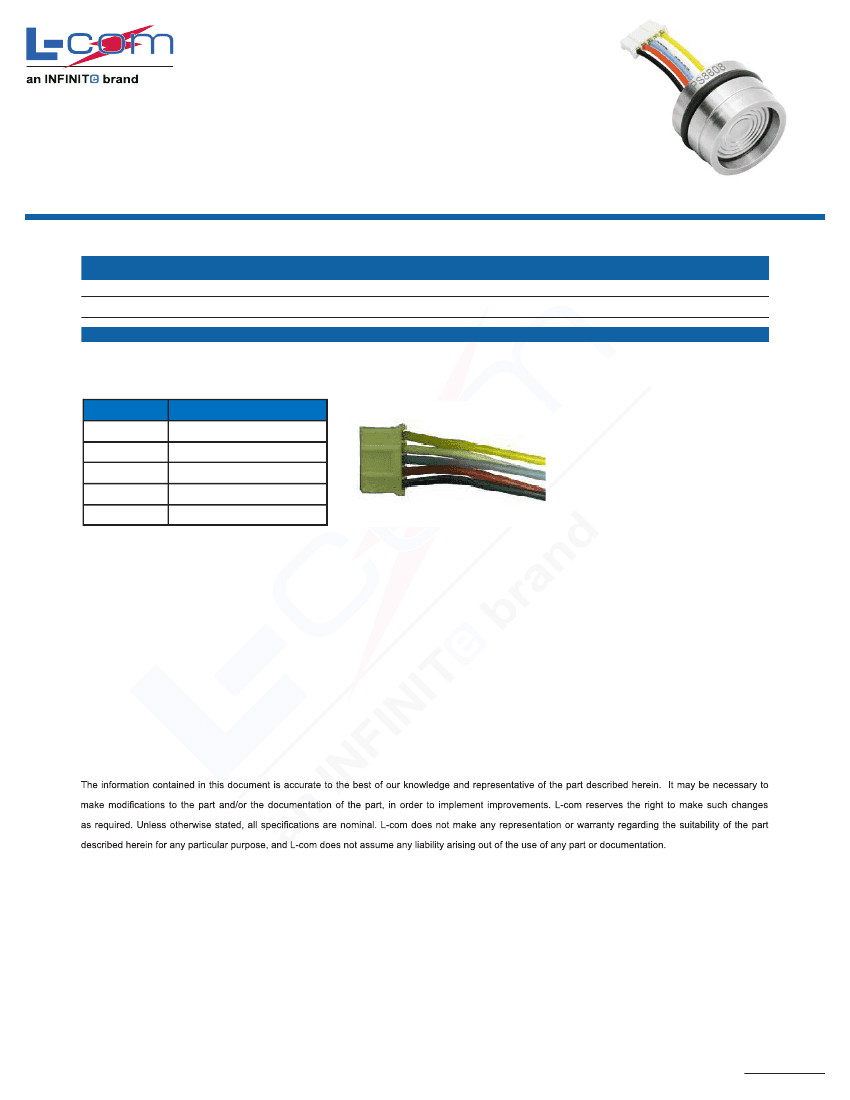

Material Specifications
Description
Diaphragm
Plug Housing
.
PS8808-100k3CBNG
Material
Stainless Steel 316L
Stainless Steel 316L
Mechanical Specifications
Electrical Connection
Wire Color
Black
Red
Blue
White
Yellow
(I²C) Standard Mode
-IN
+IN
SCL
SDA
NULL
Environmental Specifications
Temperature (Operating)
Temperature (Storage)
Shock
Impact
Certifications
-10ºC to 80ºC
-40ºC to 125ºC
10g, 20Hz-2000Hz
100g, 11ms
ROHS Compliant
CE Compliant
The Infinite Electronics portfolio includes coaxial cable assemblies, connectors, adapters and custom products, as well
as our wireless product line which includes antennas, RF amplifiers, lightning and surge protectors, and NEMA rated
enclosures.
L-com, Inc. • 50 High St., West Mill, 3rd Floor, Suite #30 North Andover, MA 01845
© 2019 L-com, Inc All Right Reserved
2
Phone:
1-800-343-1455 • sales@L-com.com
PS8808-100k3CBNG REV 1.0
REVISIONS
REV.
B
ECN 10065; DELETED DIM [4.0] & [14.5]
08/28/19
TOZA
DESCRIPTION
DATE
APPROVED
© 2019 L-com, Inc All Right Reserved
5 PIN CONNECTOR
5 WIRES
.75
19.0
B
MARK
PS8808-100K3CBNG
B
.09
2.4
.51
13.0
Pressure Sensor, 0-100kPa, Gauge, 3.3VDC, I2C signal
PS8808-100k3CBNG

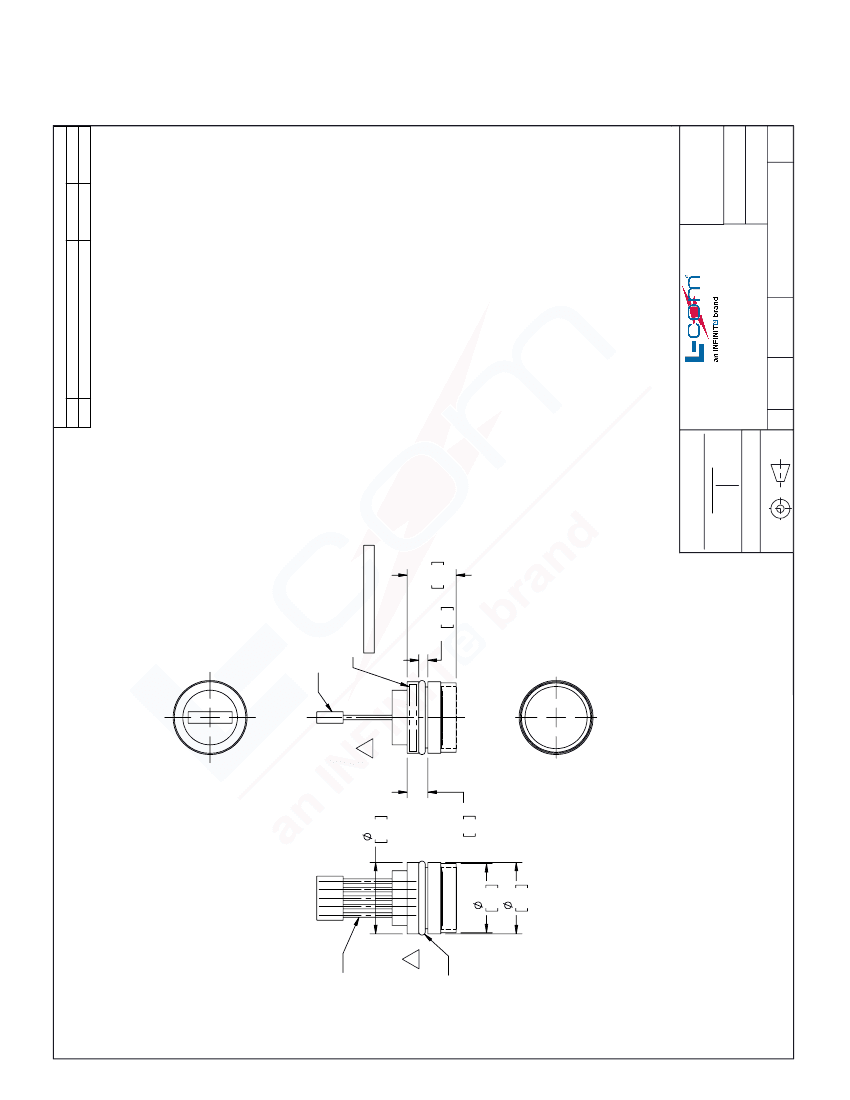

CAD Drawing
3
O-RING
.22
5.5
.72
18.4
.75
19.0
UNLESS OTHERWISE SPECIFIED
LEADING DIMENSIONS ARE INCHES
DIMENSIONS IN [ ] ARE MILLIMETERS
THE INFORMATION AND
DESIGN IN THIS DOCUMENT
IS THE PROPERTY OF
L-COM GLOBAL CONNECTIVITY.
ALL RIGHTS RESERVED.
TOLERANCES:
.X=± .2 [5.08]
FRACTIONS
.XX=± .01 [ .25 ]
± 1/32
ANGLES ± 1
°
.XXX=± .005 [ .13 ]
ALL DIMENSIONS SHOWN
ARE FOR REFERENCE ONLY.
THIRD-ANGLE PROJECTION
1
SIZE
CAGE
DRAWN BY
PART NUMBER
OF
1
N/A
A
43321
DZINN
PS8808-100K3CBNG
REV
50 High Street, West Mill, 3rd Floor, Suite #30
SHEET
North Andover, MA 01845 USA.
Phone: 1.800.341.5266 │ 1.978.682.6936
Fax: 1.978.689.9484
SCALE
www.L-com.com │e-mail: CustomerService@L-com.com
THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT
ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
B
PS8808-100k3CBNG REV 1.0
T.Rev-B
