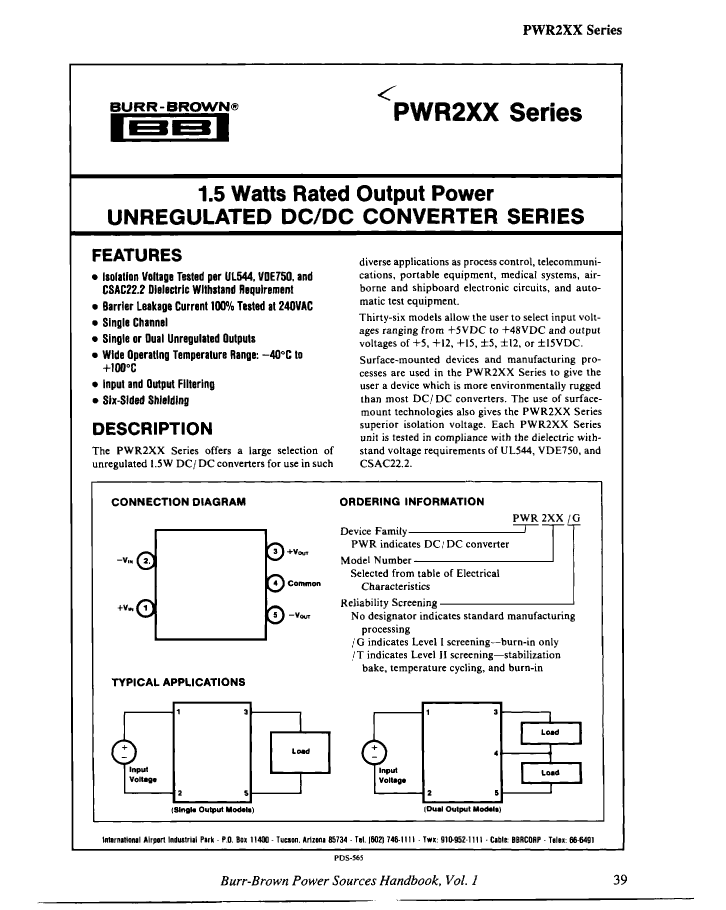

PWR224/T Overview

DC-DC Unregulated Power Supply Module, 1 Output, 1.5W, Hybrid,

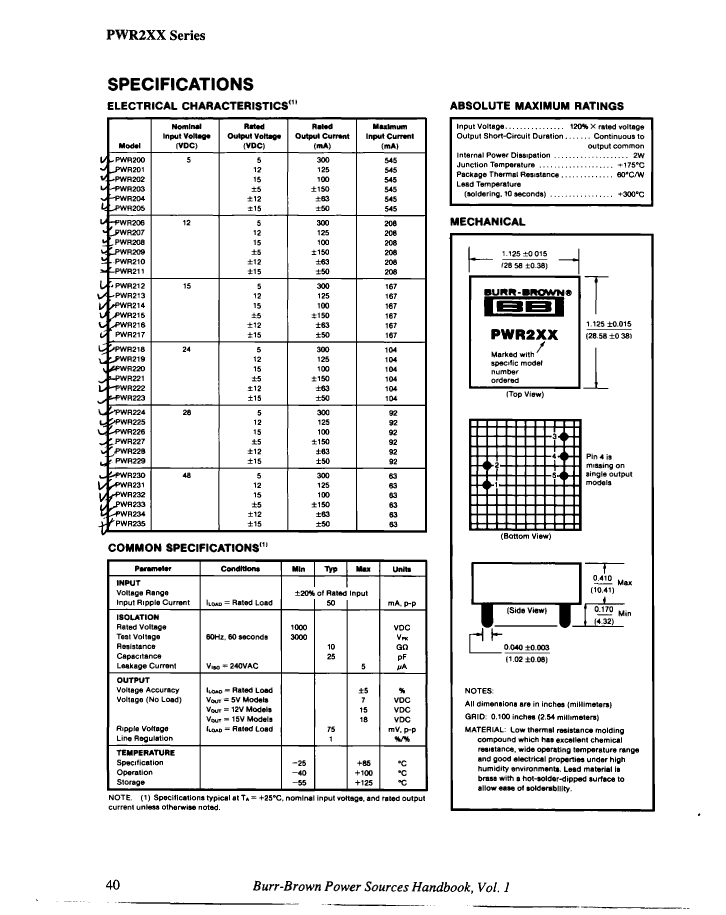

Parameter Name	Attribute value
Maker	Burr-Brown
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	33.6 V
Minimum input voltage	22.4 V
Nominal input voltage	28 V
JESD-30 code	S-MDIP-P4
Number of functions	1
Output times	1
Number of terminals	4
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.25 V
Minimum output voltage	4.75 V
Nominal output voltage	5 V
Package body material	METAL
Package shape	SQUARE
Package form	IN-LINE
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	1.5 W
Fine-tuning/adjustable output	NO
