PAL16L8JC datasheet, PDF - EEWORLD Datasheet

PAL16L8JC: DescriptionOT PLD, 35ns, TTL, CDIP20, CERAMIC, DIP-20; CategoryProgrammable logic devices Programmable logic; File Size803KB，15 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

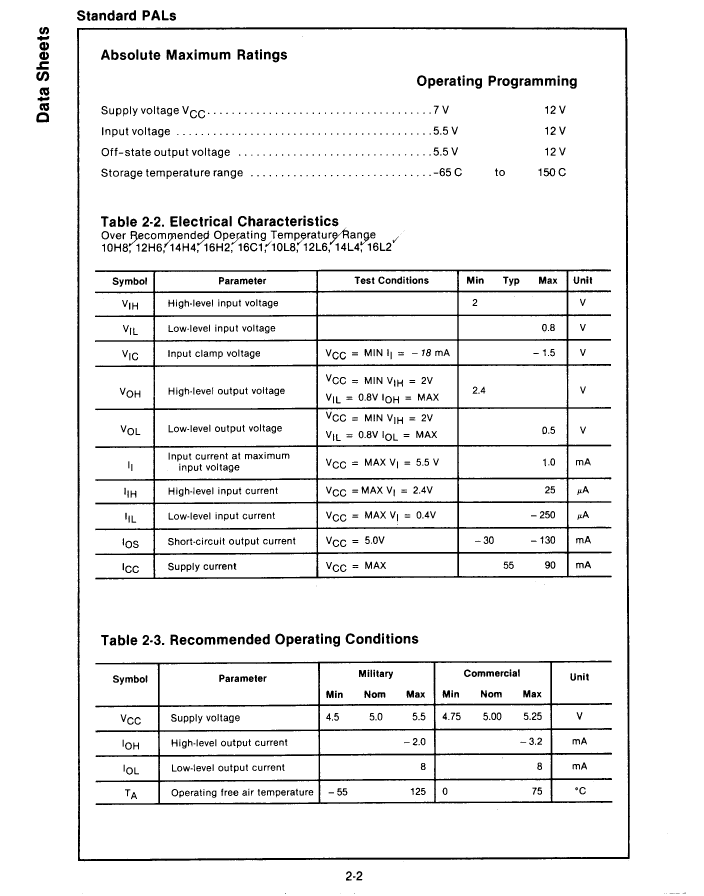

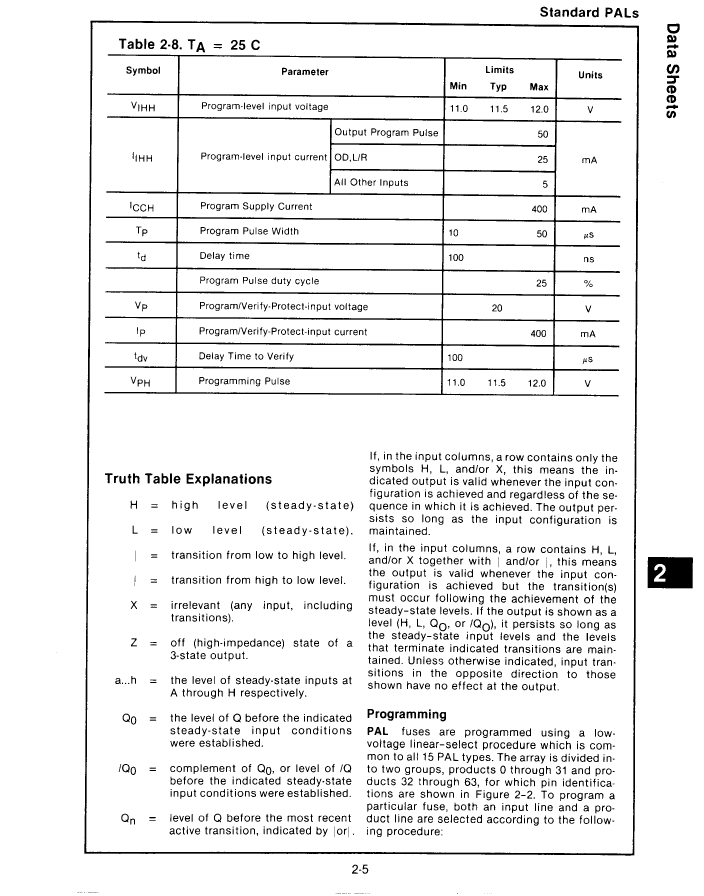

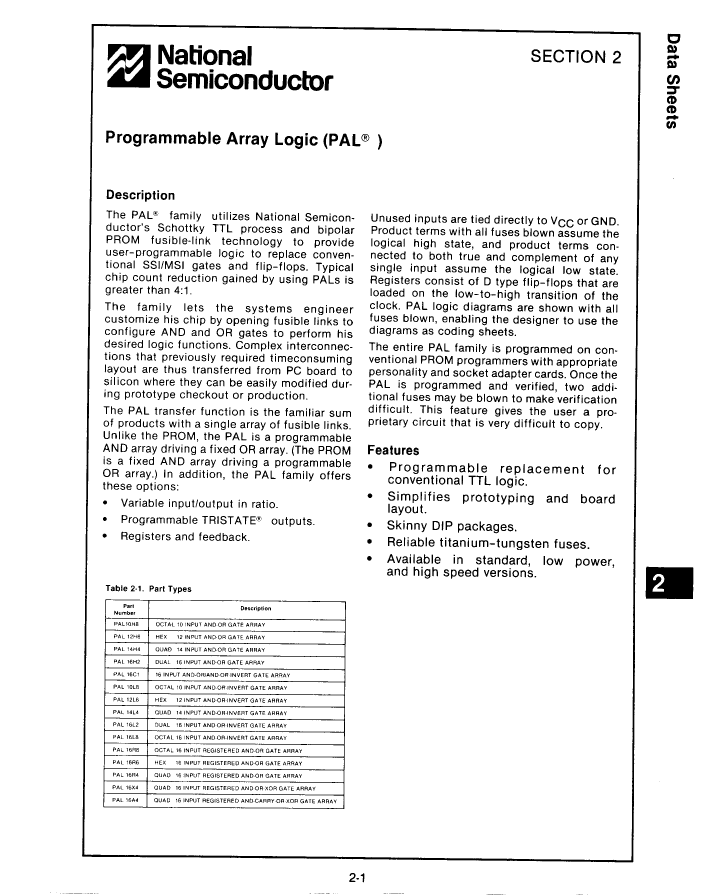

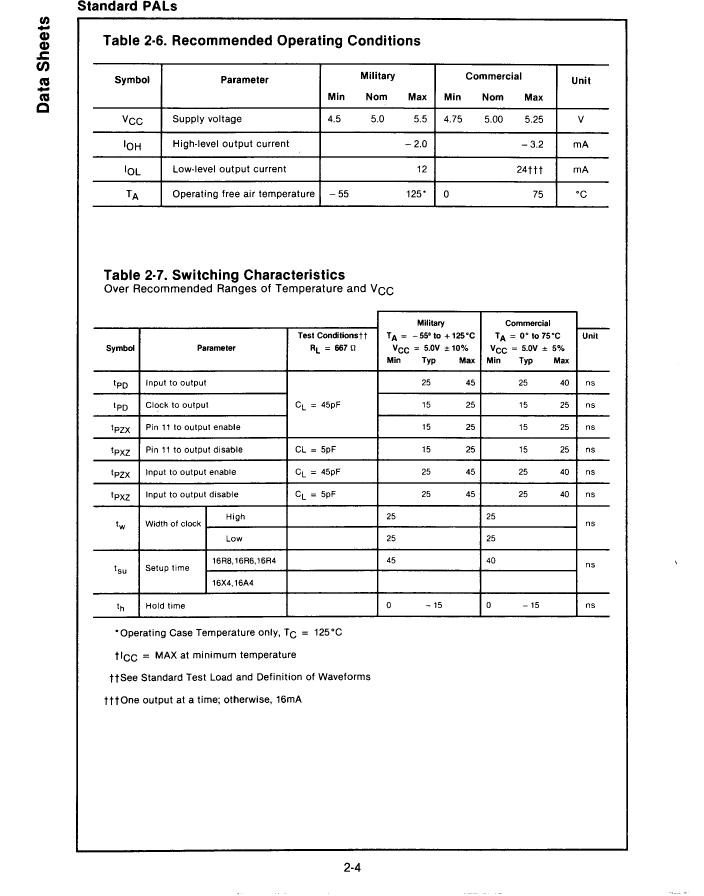

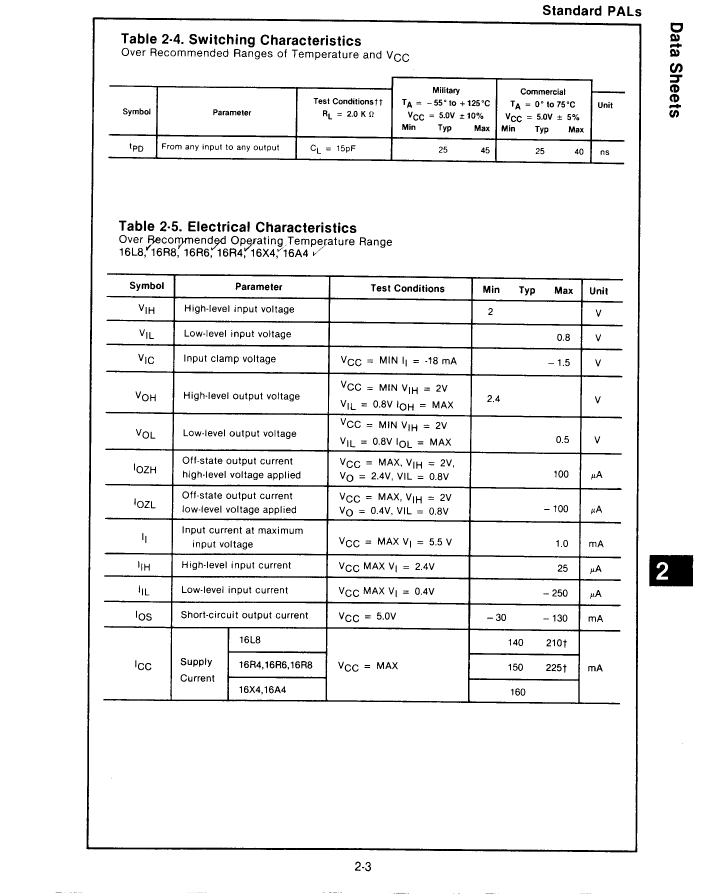

PAL16L8JC Overview

OT PLD, 35ns, TTL, CDIP20, CERAMIC, DIP-20

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Other features	ACTIVE LOW OUTPUT
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
length	24.51 mm
Dedicated input times	10
Number of I/O lines	6
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature
organize	10 DEDICATED INPUTS, 6 I/O
Output function	COMBINATORIAL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	OT PLD
propagation delay	35 ns
Maximum seat height	5.08 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
