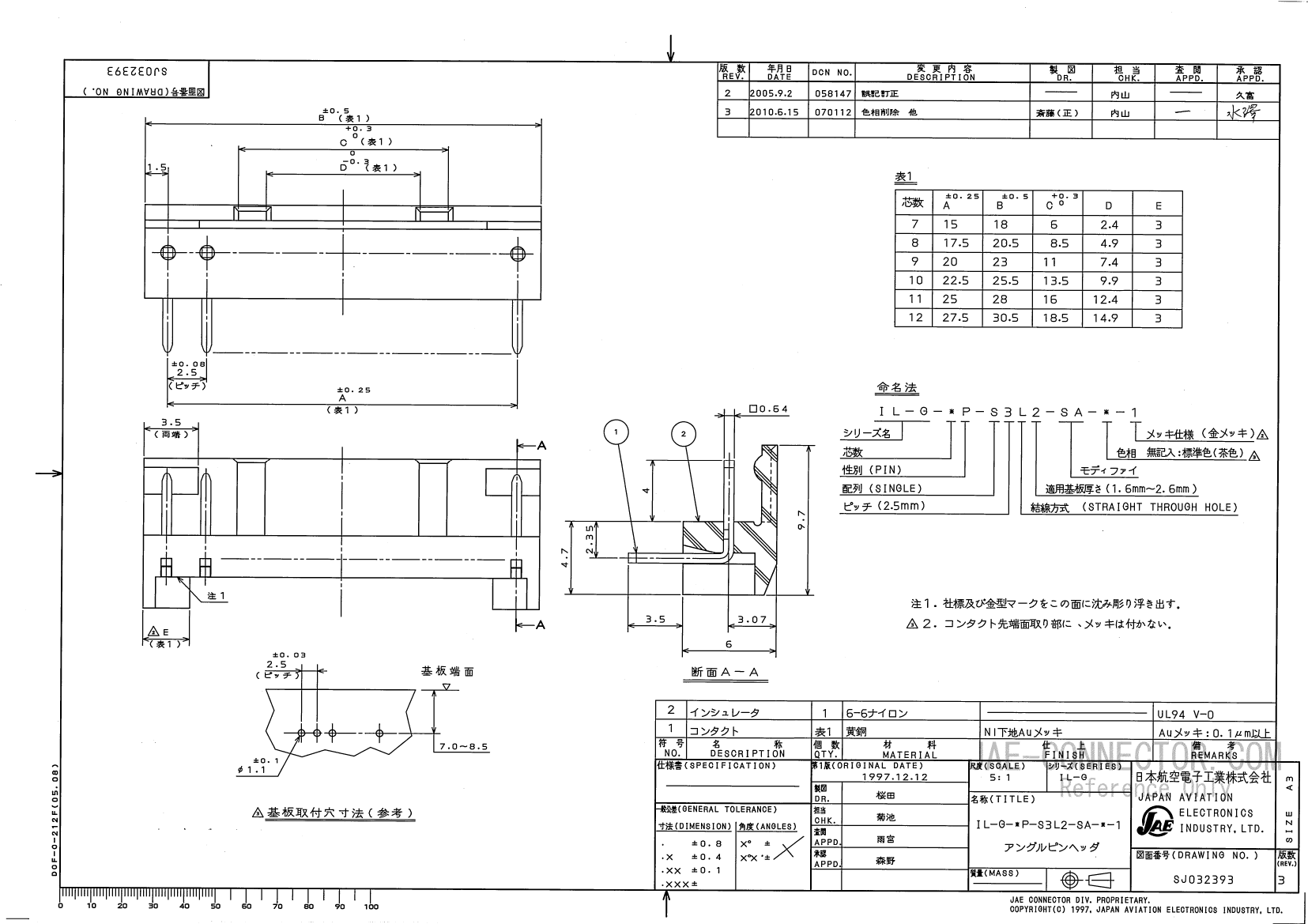

IL-G-13P-S3L2-SA-1: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

IL-G-13P-S3L2-SA-1 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE

IL-G-13P-S3L2-SA-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

IL-G-13P-S3L2-SA-1 Related Products

	IL-G-13P-S3L2-SA-1	IL-G-12P-S3L2-SA-1	IL-G-10P-S3L2-SA-1	IL-G-12P-S3T2-SA-1	IL-G-9P-S3L2-SA-1	IL-G-11P-S3L2-SA-1
Description	Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE	Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Brown Insulator,	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	-	LEAD FREE
ECCN code	EAR99	EAR99	EAR99	-	-	EAR99
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	-	LOW PROFILE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	TIN OVER NICKEL	-	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	-	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	BRASS	-	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	-	NO
Filter function	NO	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	NO	-	NO
MIL compliance	NO	NO	NO	NO	-	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	-	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	-	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	-	BOARD
Number of rows loaded	1	1	1	1	-	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	-	2.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	-	SOLDER
Total number of contacts	13	12	10	12	-	11
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	94V-0
Base Number Matches	-	1	1	1	1	-
