87433-245: DescriptionBoard Connector, 180 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size115KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

87433-245 Overview

Board Connector, 180 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

87433-245 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	87433
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	180
UL Flammability Code	94V-0

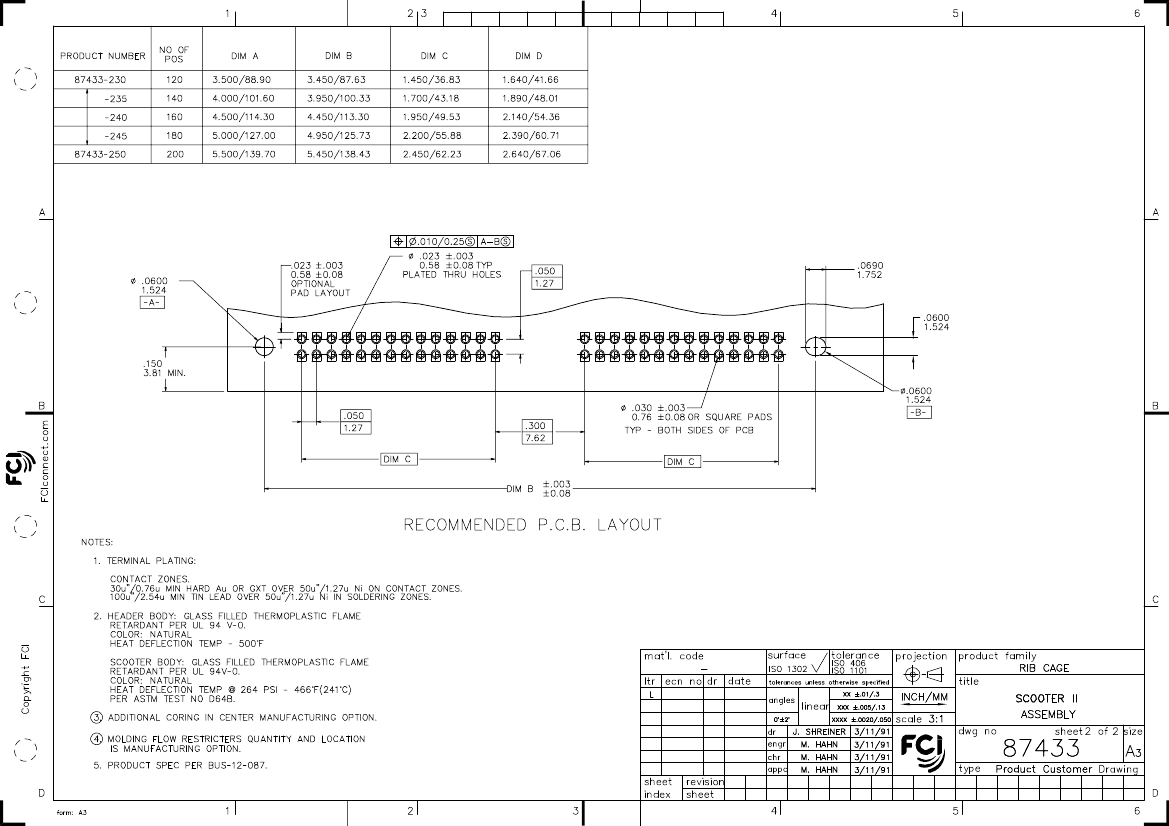

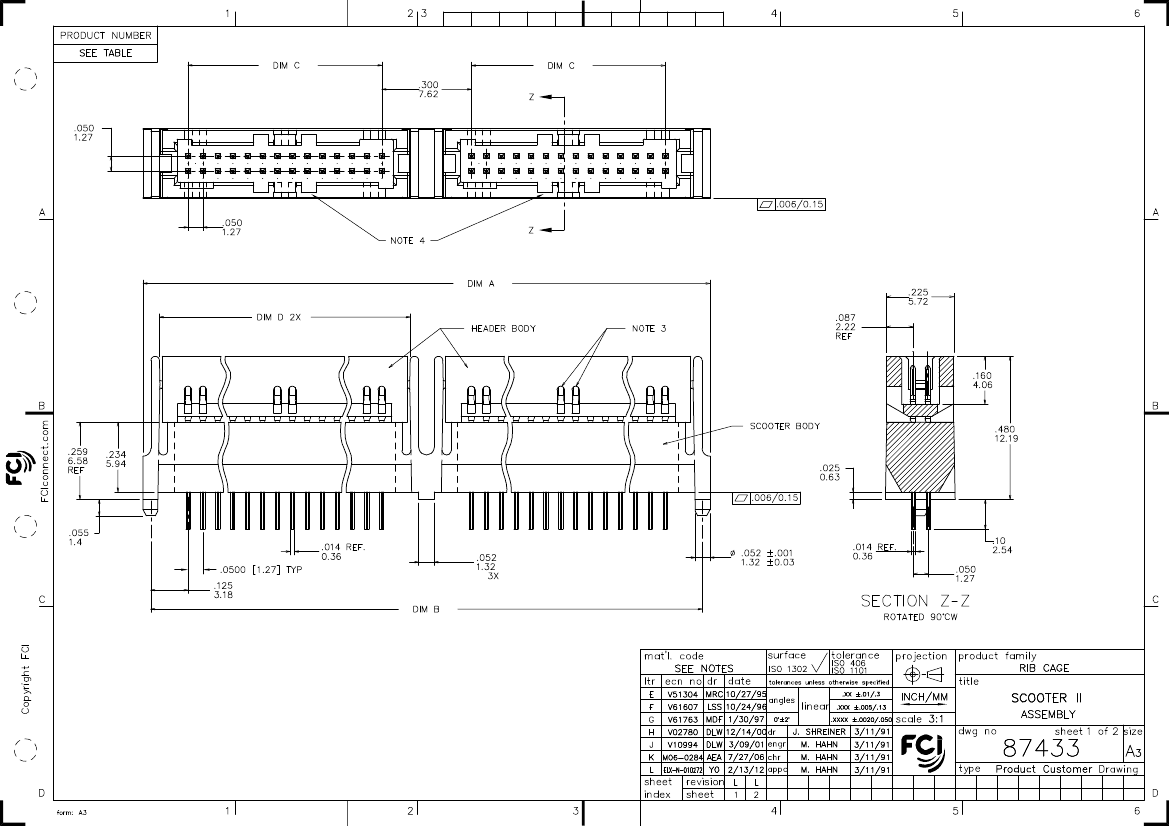

Preview

Download Datasheet

View All

PDS: Rev :L

STATUS:Released

Printed: Feb 17, 2012

87433-245 Related Products

	87433-245	87433-235	87433-250	87433-230	87433-240
Description	Board Connector, 180 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Connector, 140 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Connector, 200 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Connector, 120 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	87433	87433	87433	87433	87433
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	180	140	200	120	160
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
