D-SUB Plastic Hood
Straight cable entry – 9-50 pos.
Description
Suitable for Combination D-SUB Connectors
Large internal space for crimp, high power and coaxial contacts
Material:
- Plastic hood black: Polyester, UL 94 V-0
- Plastic hood metallized: ABS, UL 94 V-0
Fastening:
- 4-40 UNC jack screw or M3
- 4-40 UNC short screw or M3
Bulk or single packaged units
RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784

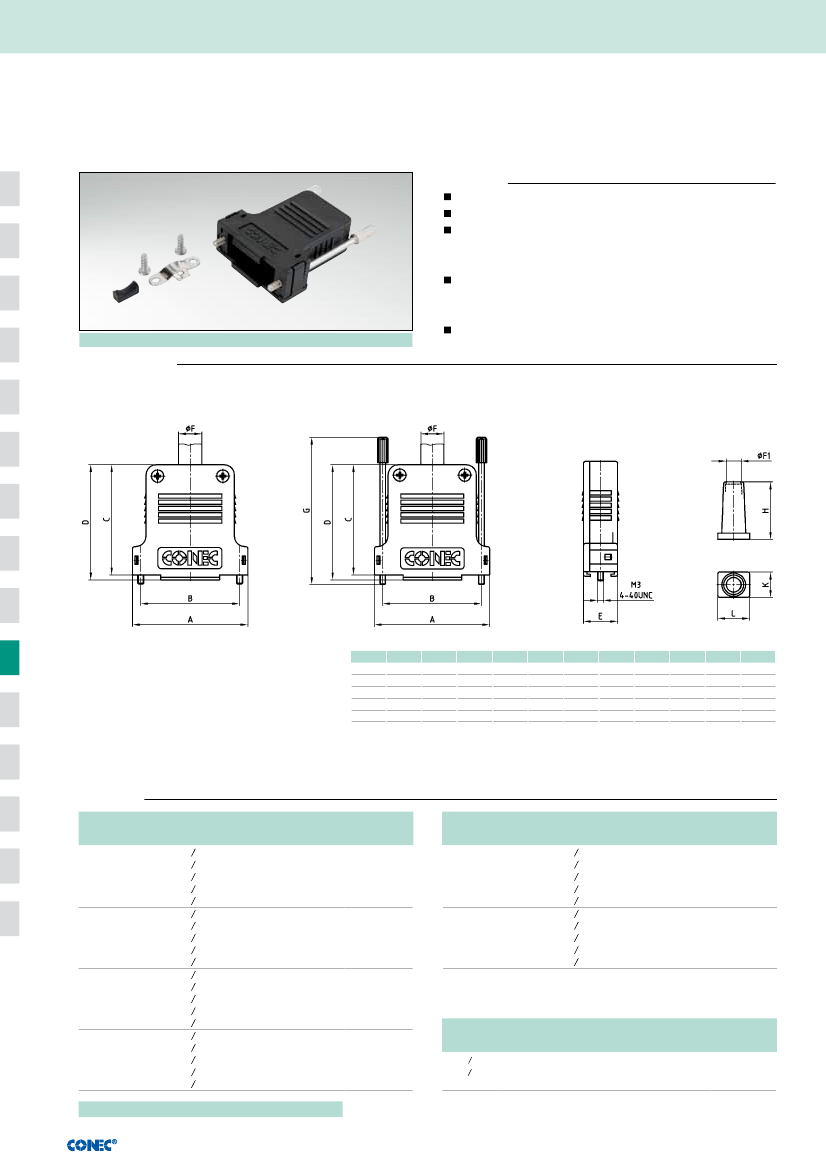

Product drawing
Short screw
Jack screw
Cable grommet
No. of pos.
09
15
25
37
50
A
32.90
41.20
54.90
71.40
69.00
B
25.00
33.30
47.00
63.50
61.10
C
39.50
45.50
52.50
55.50
55.00
D
41.80
47.80
54.80
57.80
57.80
E
16.30
16.30
16.30
18.70
19.50
ØF
11.00
11.00
12.00
15.00
14.00
Ø F1
5.00
5.00
7.00
7.00
9.30
G
60.00
60.00
70.00
70.00
70.00
H
24.50
24.50
27.50
27.50
29.20
K
11.20
11.20
12.20
12.20
15.00
L
11.20
11.20
15.00
15.00
20.00
Order data
D-SUB Plastic hood black
No. of pos. Design
09
15
25
37
50
09
15
25
37
50
09
15
25
37
50
09
15
25
37
50
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
Black housing
4-40 UNC Short screw
4-40 UNC Short screw
4-40 UNC Short screw
4-40 UNC Short screw
4-40 UNC Short screw
M3 Short screw
M3 Short screw
M3 Short screw
M3 Short screw
M3 Short screw
4-40 UNC Jack screw
4-40 UNC Jack screw
4-40 UNC Jack screw
4-40 UNC Jack screw
4-40 UNC Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
M3 Jack screw
D-SUB Plastic hood metallized
Part Number
165 X 13369 X
165 X 13379 X
165 X 13389 X
165 X 13399 X
165 X 13409 X
165 X 14509 X
165 X 14519 X
165 X 14529 X
165 X 14539 X
165 X 14549 X
165 X 03309 A
165 X 03319 A
165 X 03329 A
165 X 03339 A
165 X 03349 A
165 X 03359 A
165 X 03369 A
165 X 03379 A
165 X 03389 A
165 X 03399 A
No. of pos. Design
09
15
25
37
50
09
15
25
37
50
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
Metallized housing
4-40 UNC Short screw
4-40 UNC Short screw
4-40 UNC Short screw
4-40 UNC Short screw
4-40 UNC Short screw
M3 Short screw
M3 Short screw
M3 Short screw
M3 Short screw
M3 Short screw
Part Number
165 X 13469 X
165 X 13479 X
165 X 13489 X
165 X 13499 X
165 X 13509 X
165 X 14609 X
165 X 14619 X
165 X 14629 X
165 X 14639 X
165 X 14649 X
Cable grommet
No. of pos. Design
09 15
25 37
50
Cable grommet for 9 and 15 pos. hood
Cable grommet for 25 and 37 pos. hood
Cable grommet for 50 pos. hood
Part Number
795-907600
795-907700
795-907800
For single packaged add the letter „E“ at the end of the part number.
