MA17502

Radiation Hard MIL-STD-1750A Control Unit

Replaces June 1999 version,

DS3565-4.0

DS3565-5.0 January 2000

The MA17502 Control Unit is a component of the MAS281

chip set. Other chips in the set include the MA17501 Execution

Unit and the MA17503 Interrupt Unit. Also available is the

peripheral MA31751 Memory Management Unit/Block

Protection Unit. In conjunction these chips implement the full

MIL-STD-1750A Instruction Set Architecture.

The MA17502 consisting of a microsequencer, a microcode

storage ROM, and an instruction mapping ROM - controls all

chip set operations. Table 1 provides brief signal definitions.

The MA17502 is offered in several speed and screening

grades, and in dual in-line, flatpack or leadless chip carrier

packaging. Screening options are described in this document.

For availability of speed grades, please contact Dynex

Semiconductor.

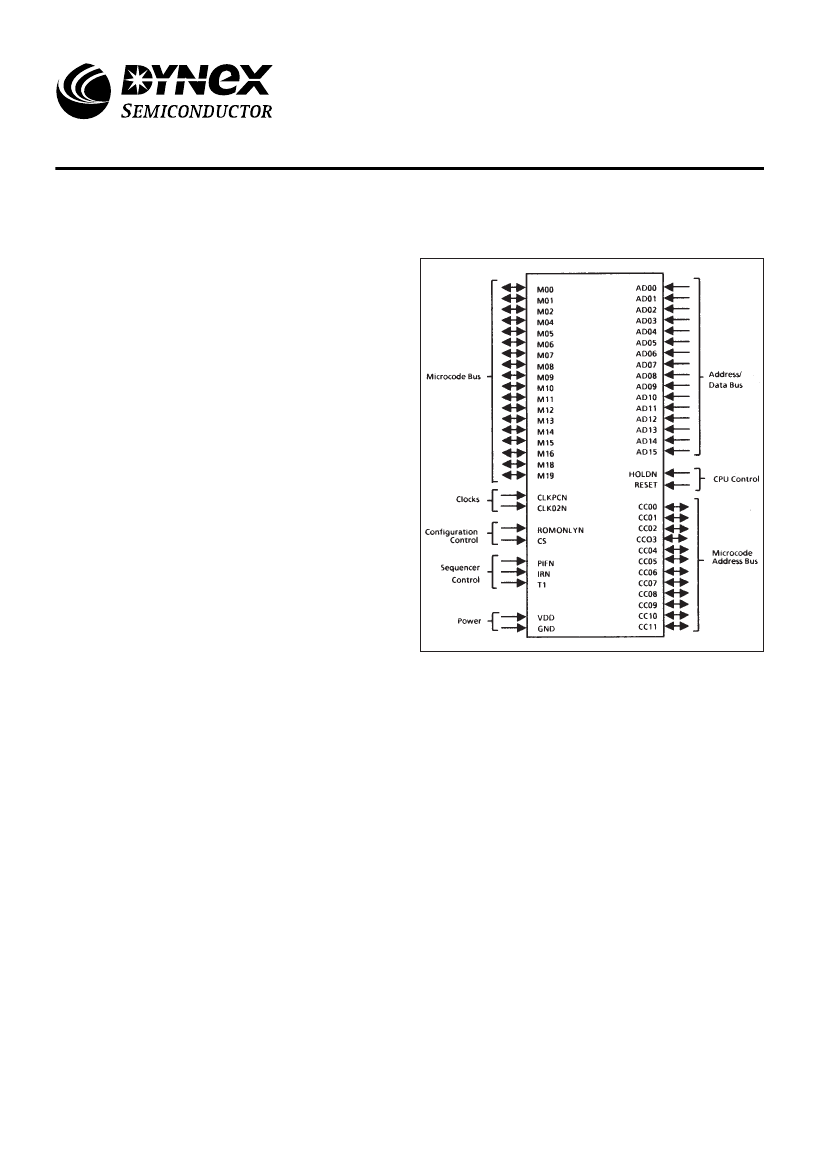

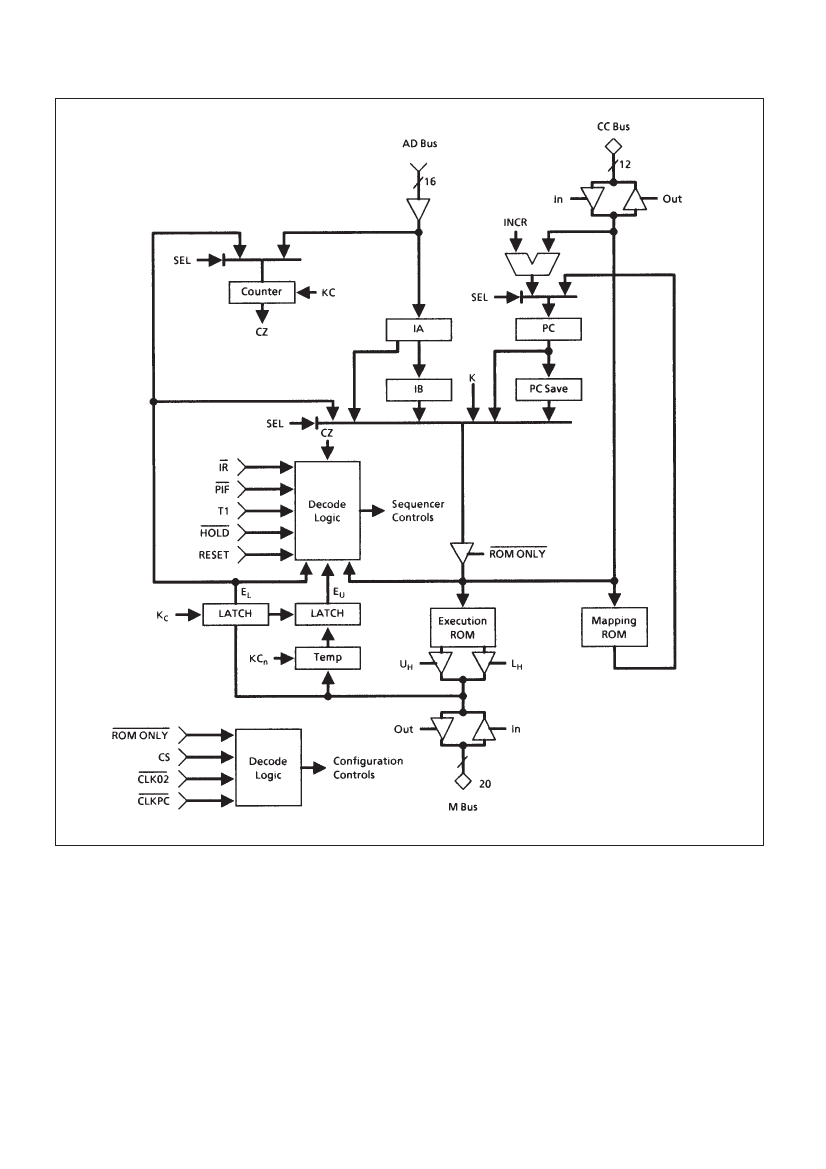

BLOCK DIAGRAM

FEATURES

MIL-STD-1750A Instruction Set Architecture

Full Performance Over Military Temperature Range

12-Bit Microsequencer

- Instruction Prefetch

- Pipelined Operation

- Subroutine Capability

On-Chip ROM

- 2K x 40-Bit Microcode Store

- 512 x 8-Bit Instruction Map

MAS281 Integrated Built-In Self Test

TTL Compatible System Interface

Low Power CMOS/SOS Technology

1.0 SYSTEM CONSIDERATIONS

The MA17502 Control Unit (CU) is a component of the

Dynex Semiconductor MAS281 chip set. The other chips in the

set are the MA17501 Execution Unit (EU) and the MA17503

lnterrupt Unit (lU). Also available is the peripheral MA31751

Memory Management Unit/Block Protection Unit (MMU(BPU)).

The Control Unit, in conjunction with these chips, implements

the full MIL-STD-1750A lnstruction Set Architecture. Figure 1

depicts the relationship between the chip set components.

The CU provides the microprogram storage and

sequencing resources for the chip set. The EU provides the

MAS281’s system synchronizing and arithmetic/logic

computational resources. The lU provides interrupt and fault

handling resources, DMA interface control signals, and the

three MIL-STD-1750A timers. The MMU/BPU may be

configured to provide 1M-word memory management (MMU)

and/or 1K-word memory block write protection (BPU) functions.

1/30
