BT139X500G datasheet, PDF - EEWORLD Datasheet

BT139X500G: DescriptionTRIAC, 500V V(DRM), 16A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size296KB，6 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

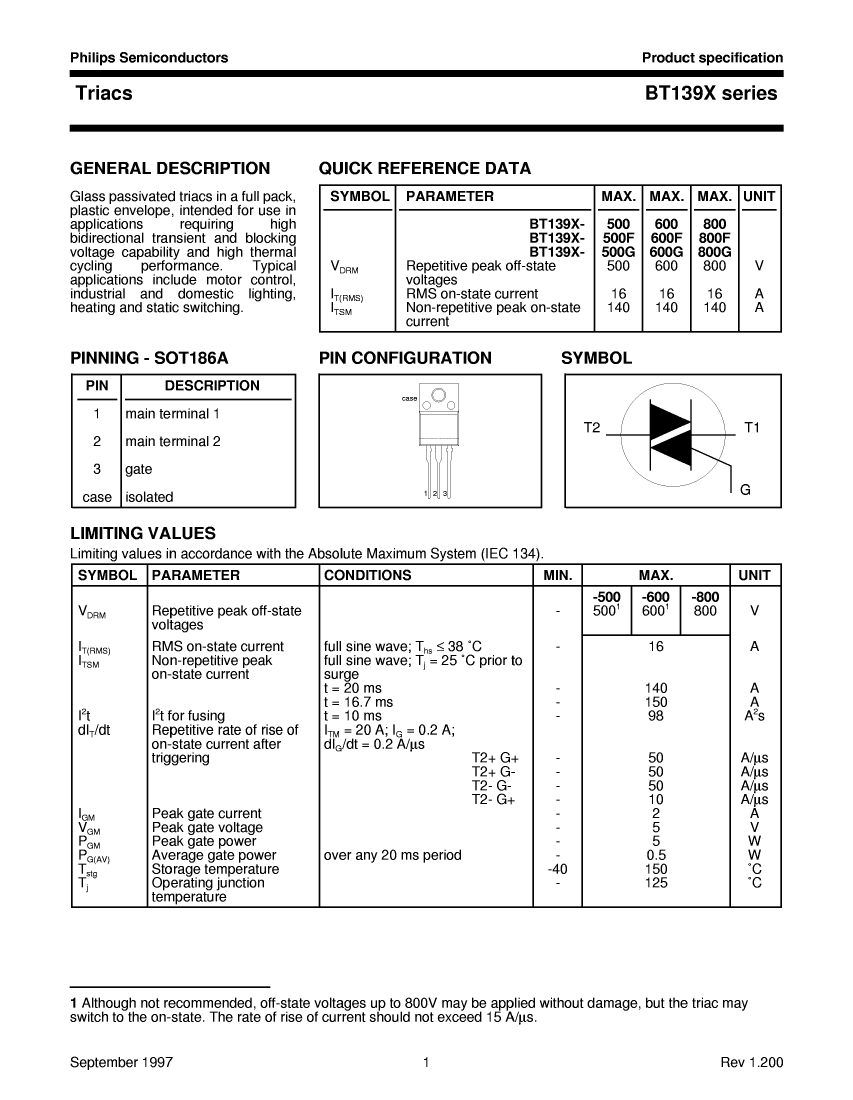

BT139X500G Overview

TRIAC, 500V V(DRM), 16A I(T)RMS

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown

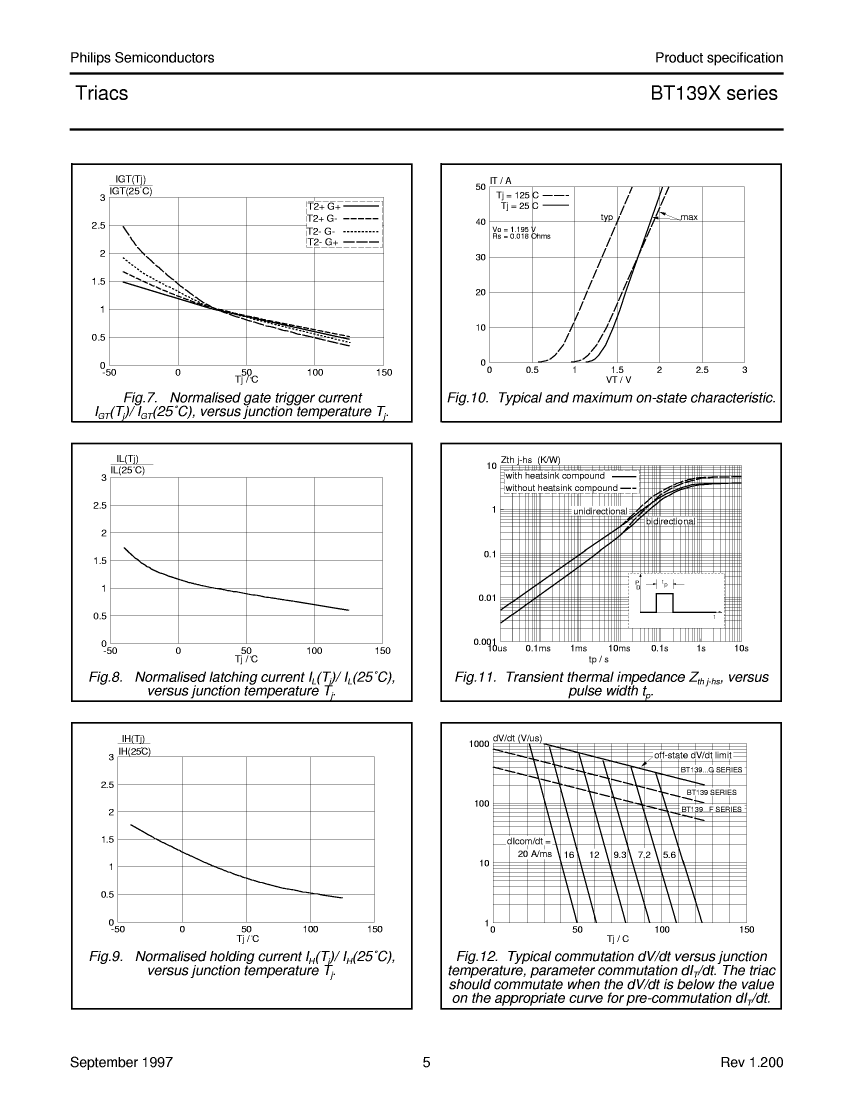

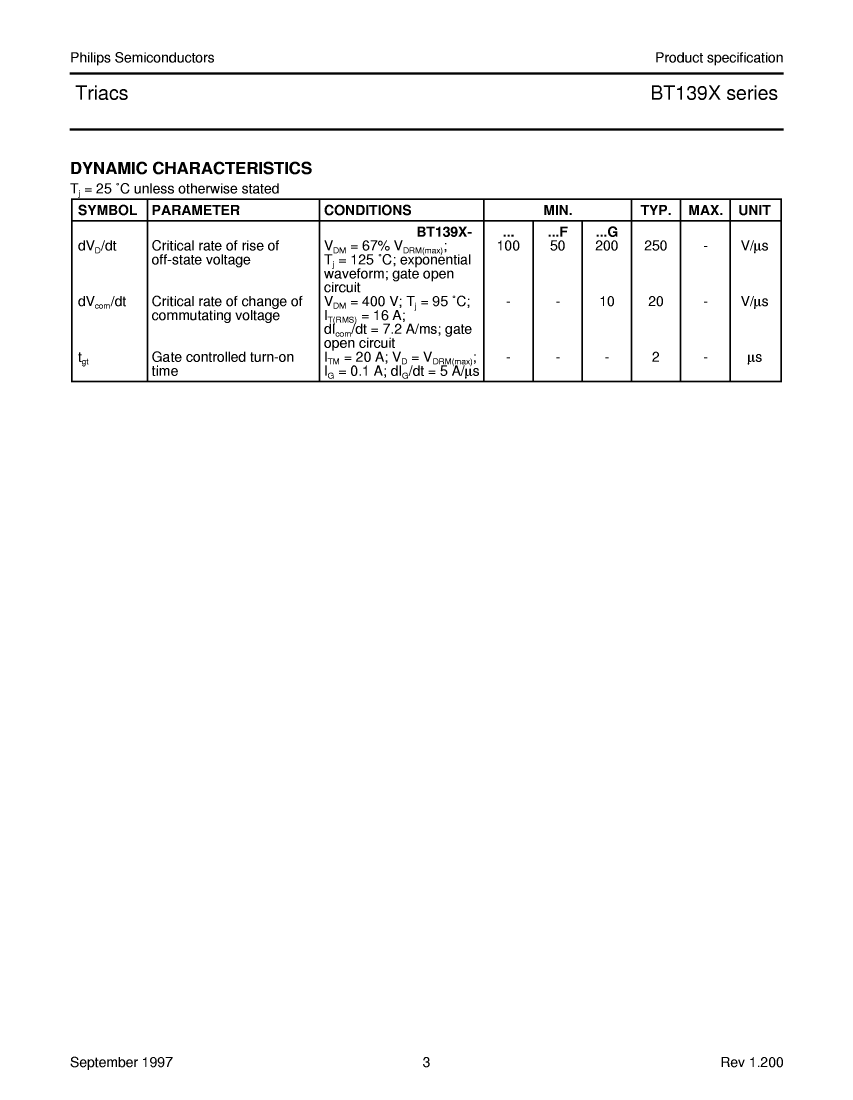

Critical rise rate of minimum off-state voltage	200 V/us

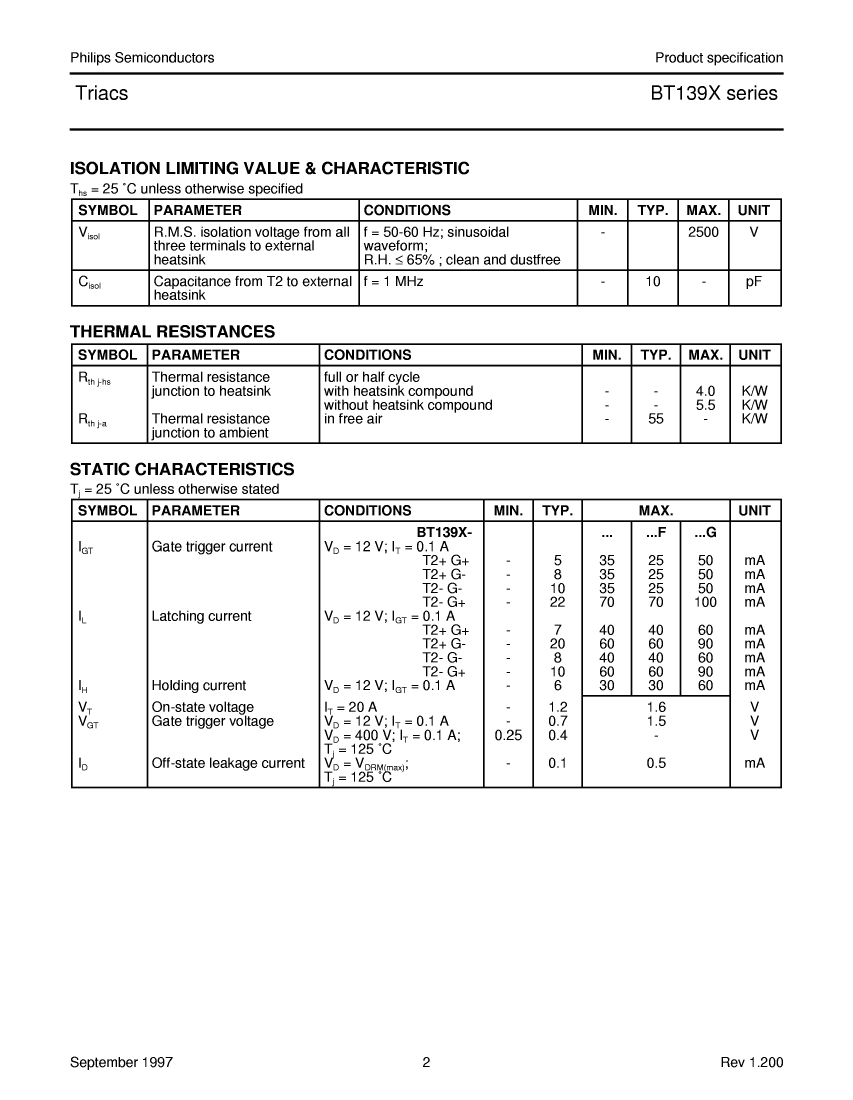

Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	60 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.6 V
Maximum operating temperature	125 °C

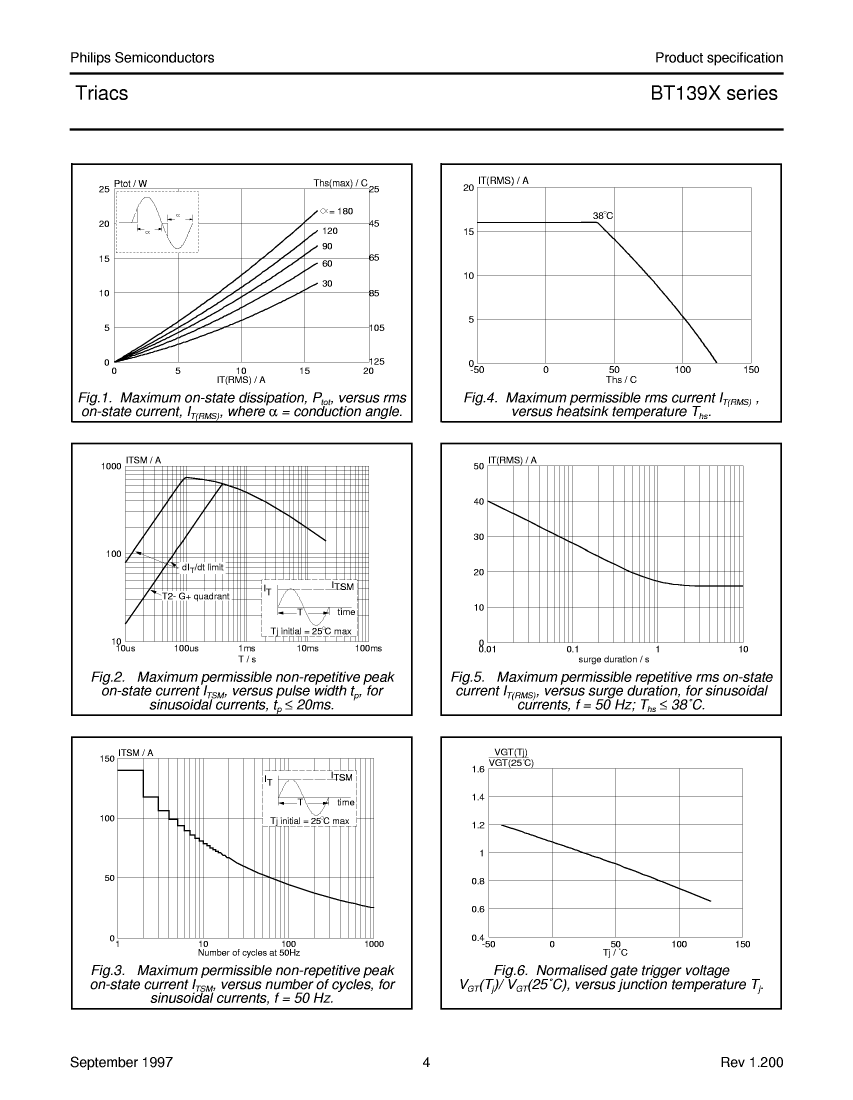

Maximum rms on-state current	16 A
Off-state repetitive peak voltage	500 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

	BT139X500G	BT139X800G	BT139X800F	BT139X500F	BT139X500
Description	TRIAC, 500V V(DRM), 16A I(T)RMS	TRIAC, 800V V(DRM), 16A I(T)RMS	TRIAC, 800V V(DRM), 16A I(T)RMS	TRIAC, 500V V(DRM), 16A I(T)RMS	TRIAC, 500V V(DRM), 16A I(T)RMS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	50 V/us	50 V/us	100 V/us
Maximum DC gate trigger current	100 mA	100 mA	70 mA	70 mA	70 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	60 mA	60 mA	30 mA	30 mA	30 mA
JESD-609 code	e0	e0	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA
Maximum on-state voltage	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum rms on-state current	16 A	16 A	16 A	16 A	16 A
Off-state repetitive peak voltage	500 V	800 V	800 V	500 V	500 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
