BYV74-400 datasheet, PDF - EEWORLD Datasheet

BYV74-400: DescriptionDIODE 30 A, 400 V, SILICON, RECTIFIER DIODE, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size109KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

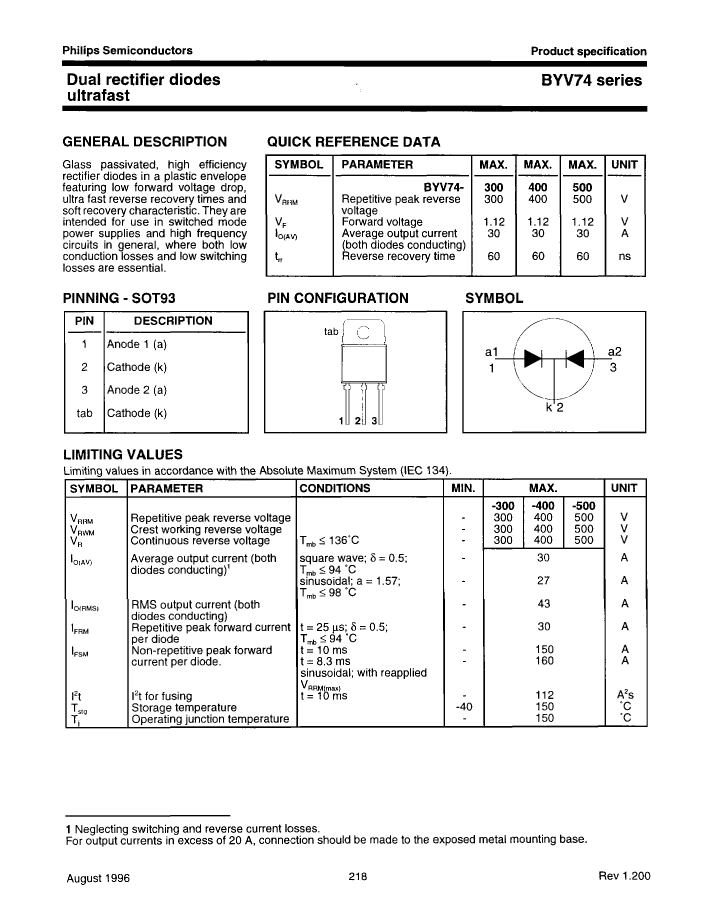

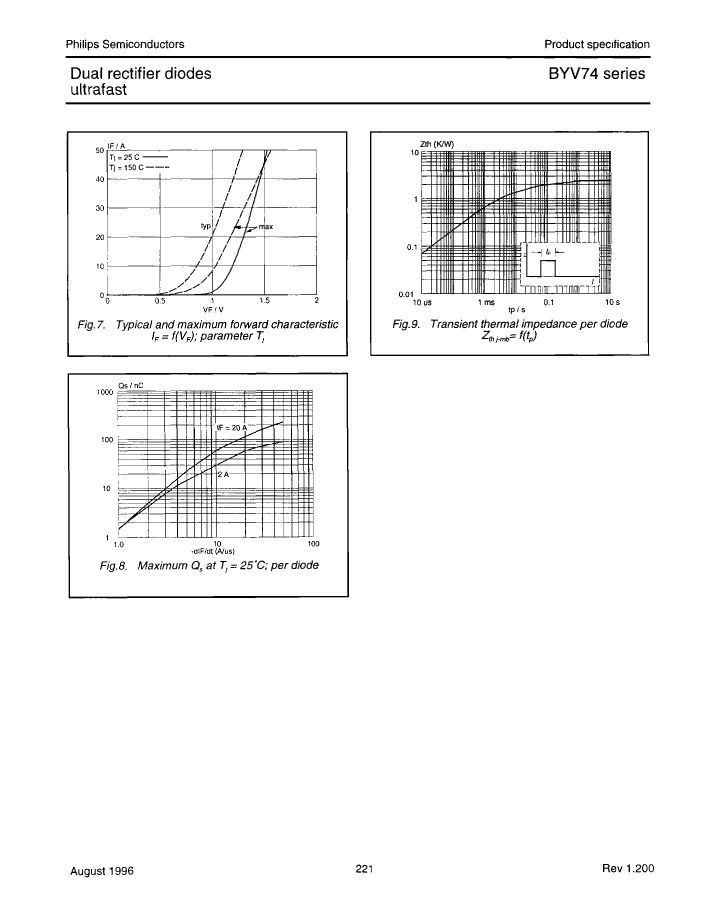

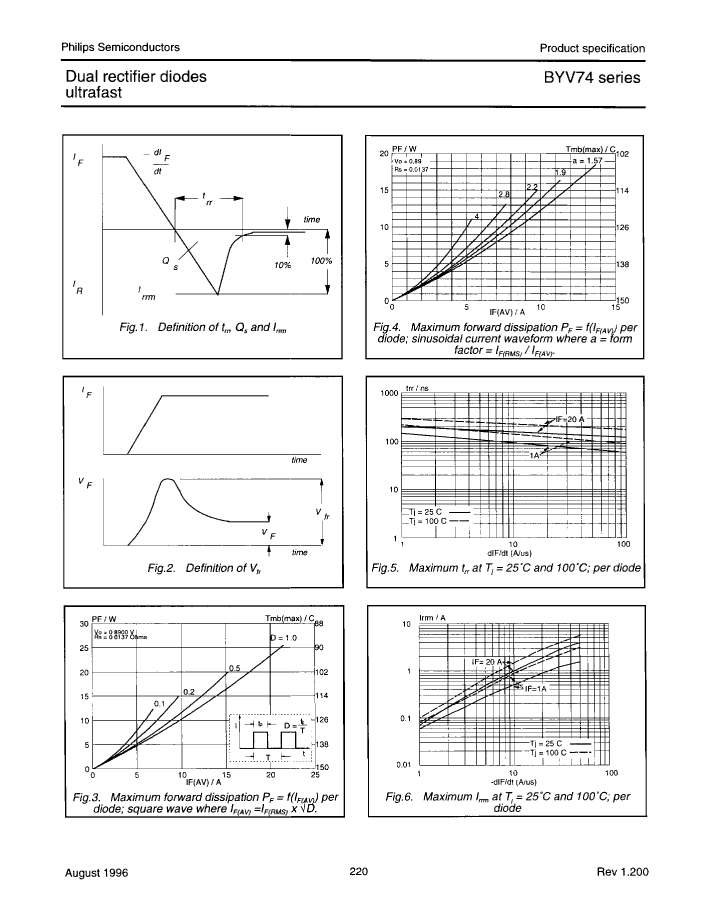

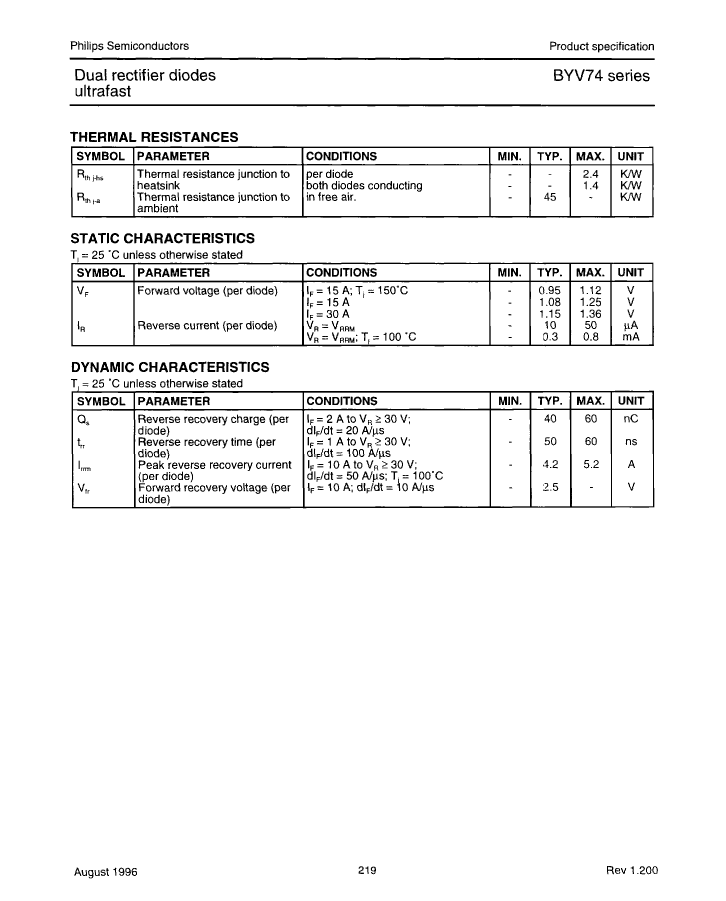

BYV74-400 Overview

DIODE 30 A, 400 V, SILICON, RECTIFIER DIODE, Rectifier Diode

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	160 A
Number of components	2
Phase	1
Number of terminals	3
Maximum output current	30 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.06 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	BYV74-400	BYV74-500	BYV74-300
Description	DIODE 30 A, 400 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 30 A, 500 V, SILICON, RECTIFIER DIODE, Rectifier Diode	DIODE 30 A, 300 V, SILICON, RECTIFIER DIODE, Rectifier Diode
Maker	NXP	NXP	NXP
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown
application	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	160 A	160 A	160 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	3	3	3
Maximum output current	30 A	30 A	30 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	500 V	300 V
Maximum reverse recovery time	0.06 µs	0.06 µs	0.06 µs
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
