BYV74-500 datasheet, PDF - EEWORLD Datasheet

BYV74-500: DescriptionRectifier Diode, 1 Phase, 2 Element, 15A, 500V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size221KB，9 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

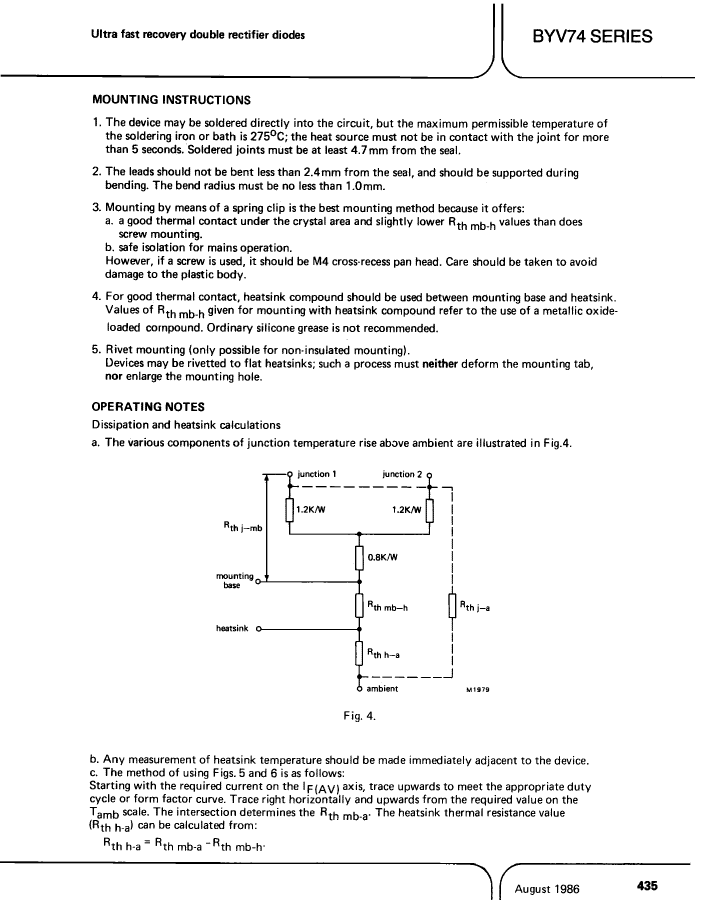

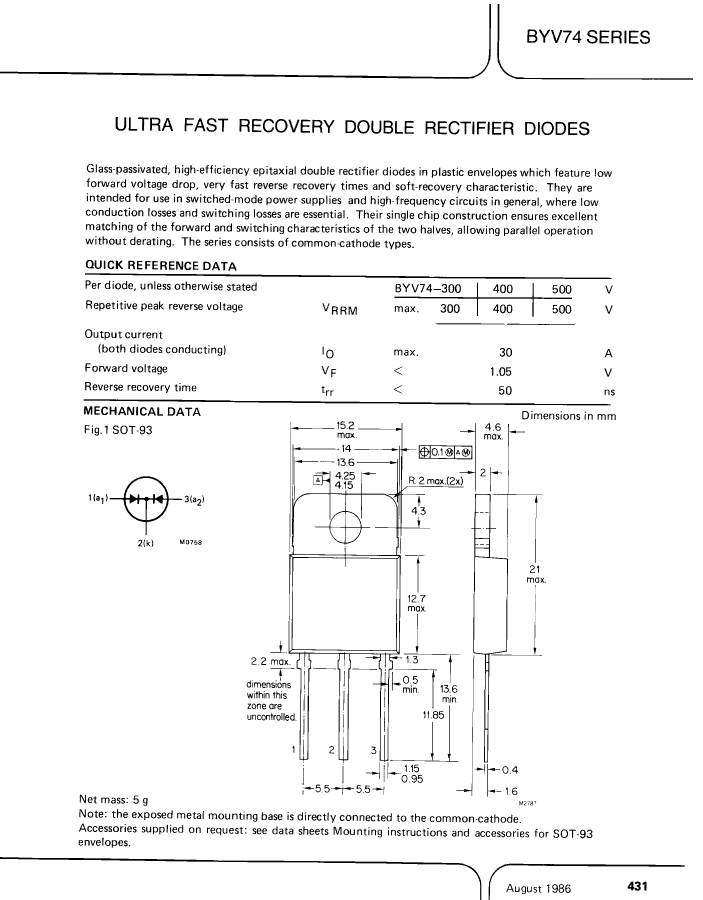

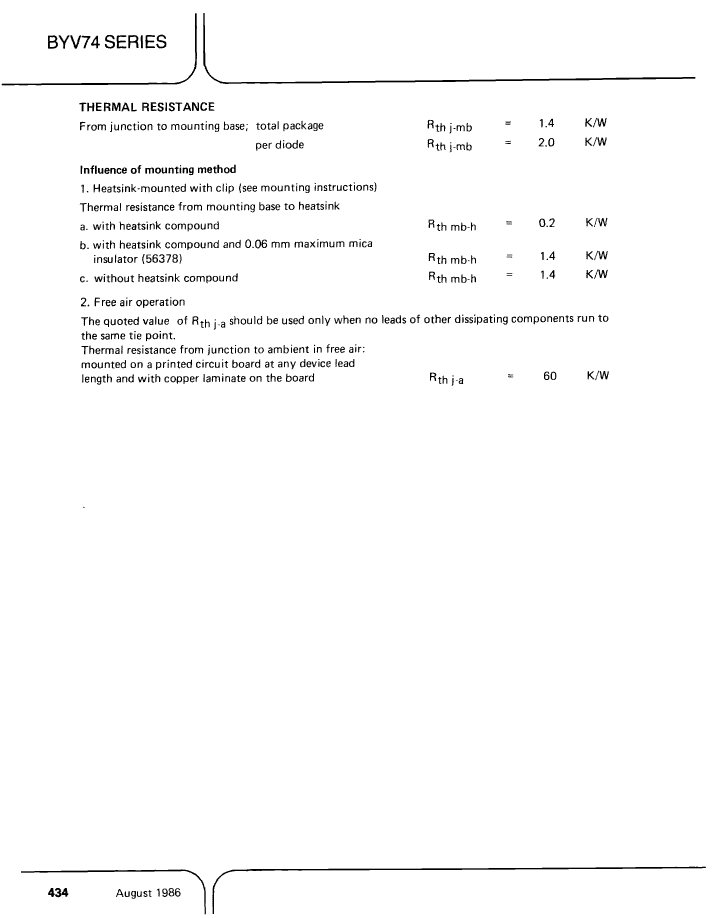

BYV74-500 Overview

Rectifier Diode, 1 Phase, 2 Element, 15A, 500V V(RRM), Silicon,

Parameter Name	Attribute value
Maker	YAGEO
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

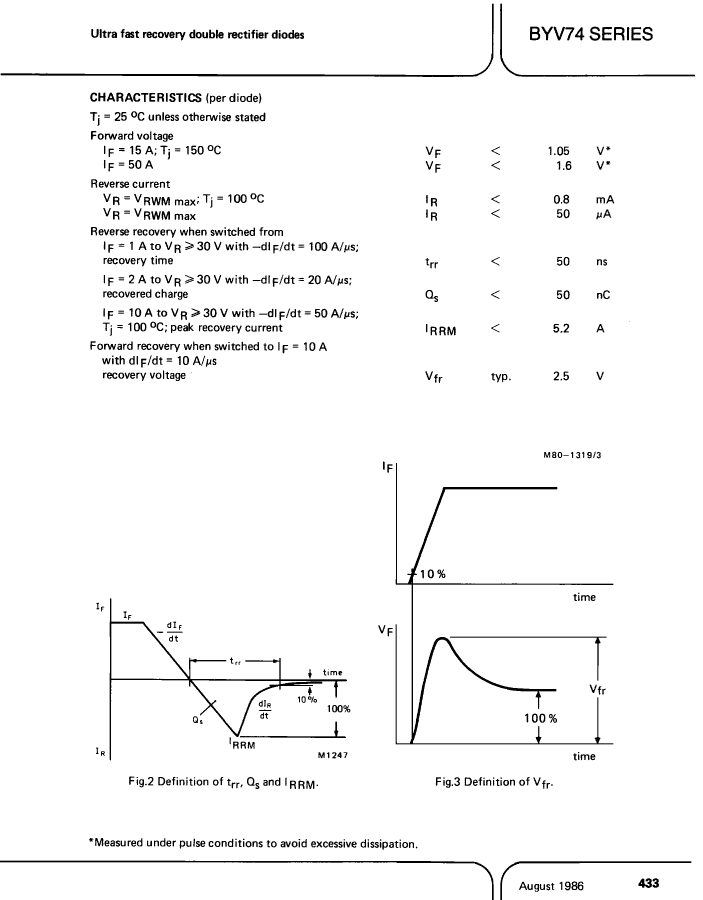

Maximum forward voltage (VF)	1.6 V
JESD-30 code	R-PSFM-T3

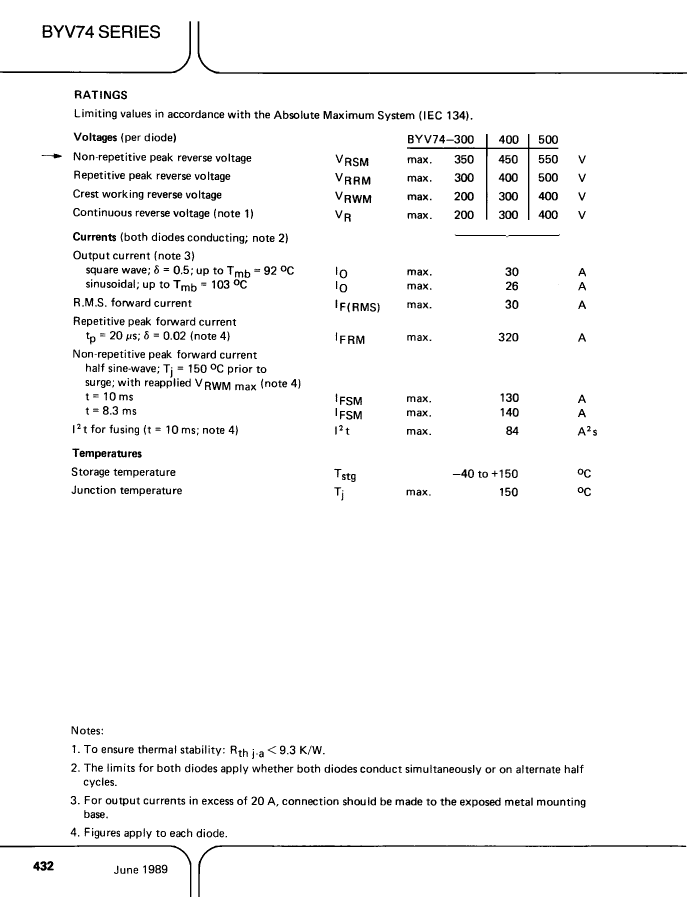

Maximum non-repetitive peak forward current	140 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	500 V
Maximum reverse current	50 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	BYV74-500	BYV74-400	BYV74-300
Description	Rectifier Diode, 1 Phase, 2 Element, 15A, 500V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 15A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 15A, 300V V(RRM), Silicon
Maker	YAGEO	YAGEO	YAGEO
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.6 V	1.6 V	1.6 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	140 A	140 A	140 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Maximum output current	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	500 V	400 V	300 V
Maximum reverse current	50 µA	50 µA	50 µA
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
ECCN code	EAR99	EAR99	-
