BYV79-150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYV79-150

BYV79-150: DescriptionRectifier Diode, 1 Phase, 1 Element, 14A, 150V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size245KB，10 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYV79-150 Overview

Rectifier Diode, 1 Phase, 1 Element, 14A, 150V V(RRM), Silicon,

BYV79-150 Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	R-PSFM-T2
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	200 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	14 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	50 µA
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

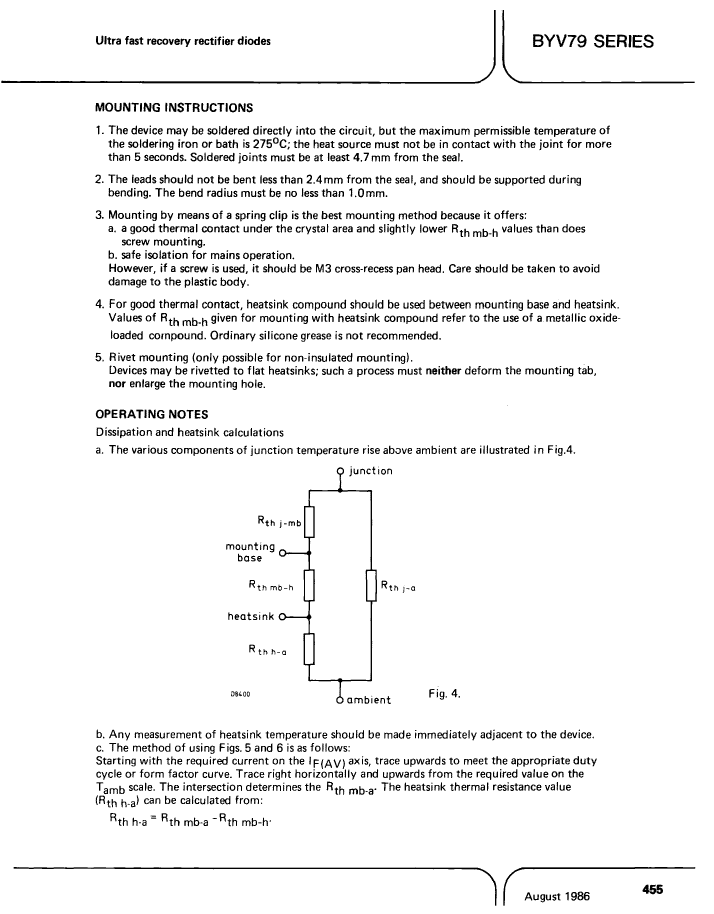

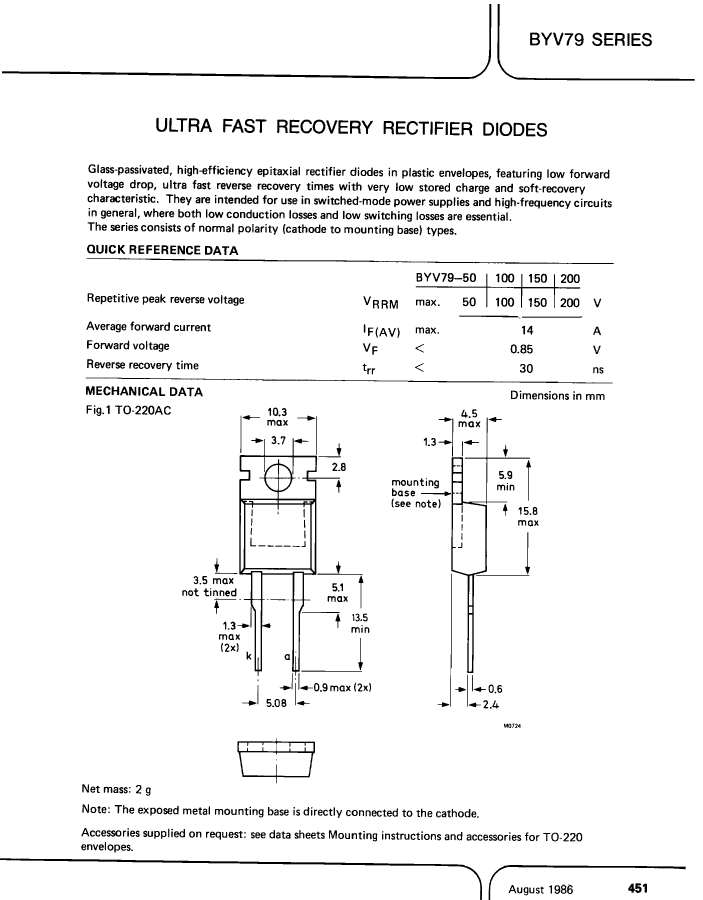

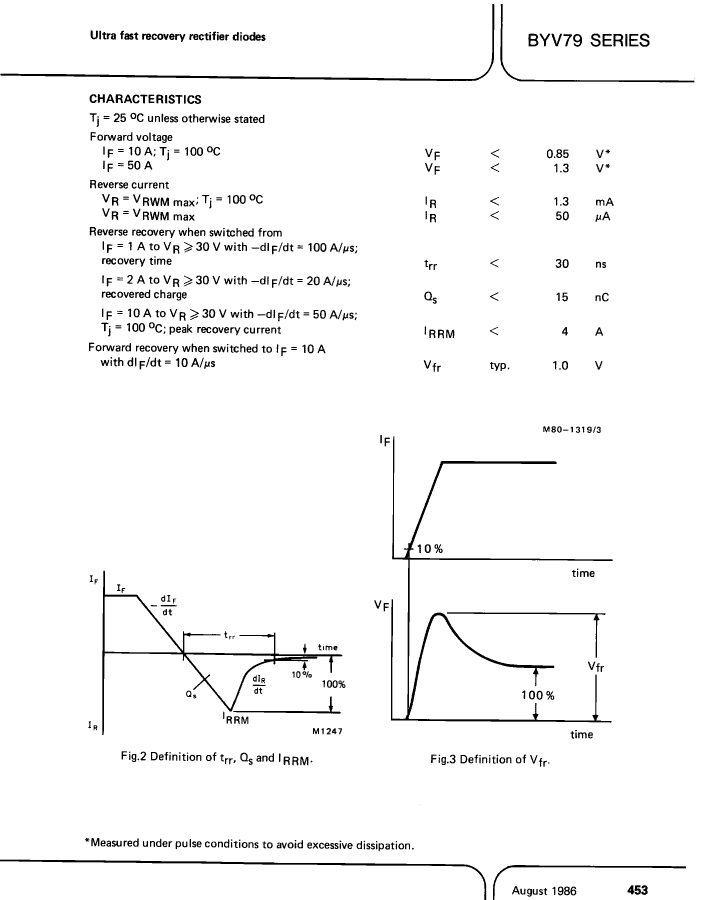

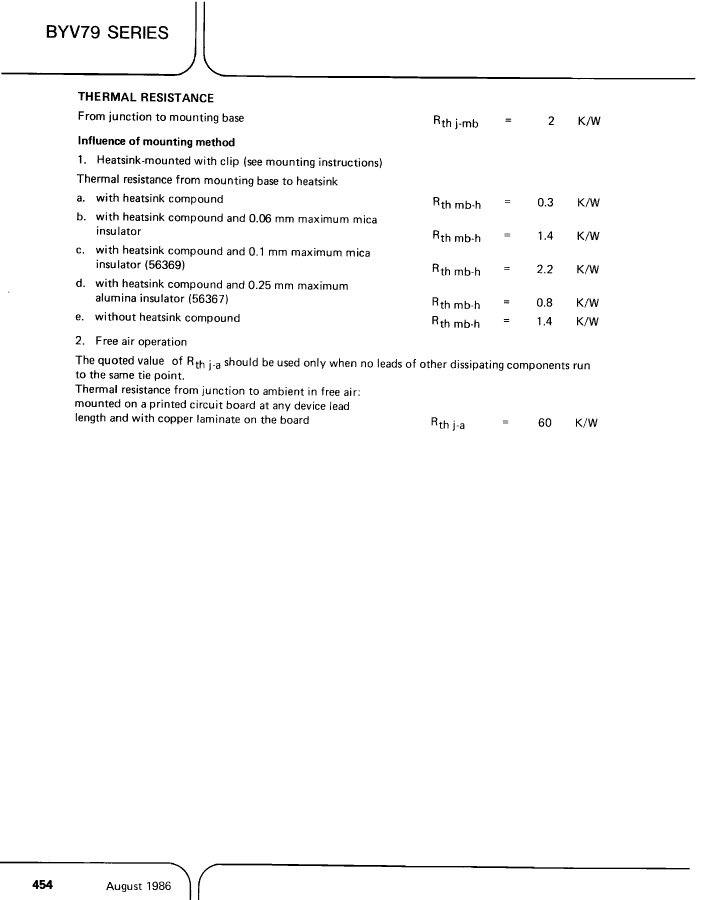

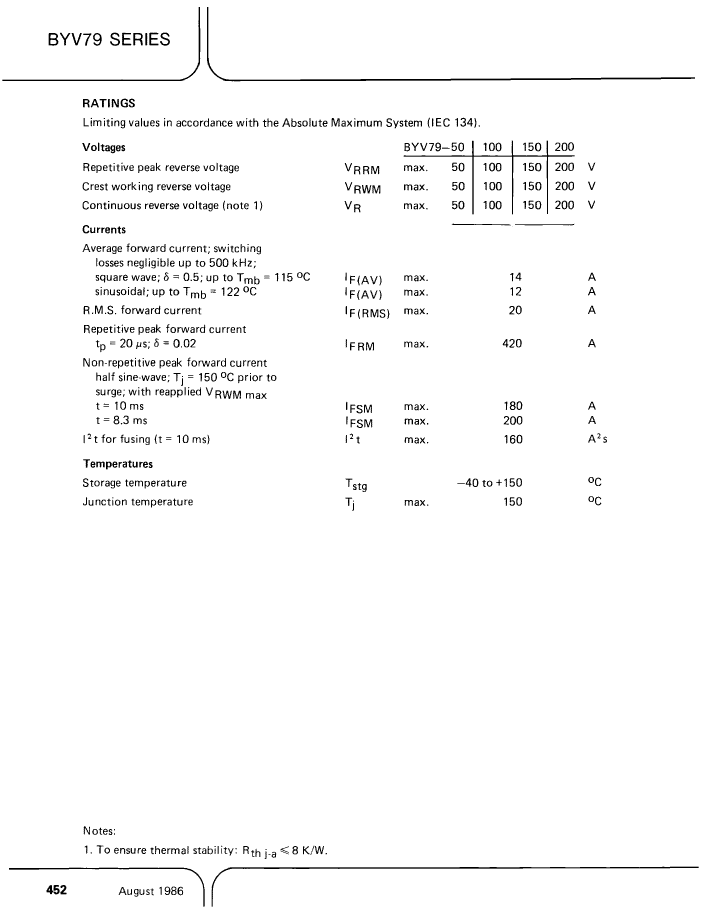

Preview

Download Datasheet

View All

BYV79-150 Related Products

	BYV79-150	BYV79-50	BYV79-200	BYV79-100
Description	Rectifier Diode, 1 Phase, 1 Element, 14A, 150V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 14A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 14A, 200V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 14A, 100V V(RRM), Silicon,
package instruction	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Reach Compliance Code	unknown	unknown	unknown	unknown
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	200 A	200 A	200 A	200 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	14 A	14 A	14 A	14 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	50 V	200 V	100 V
Maximum reverse current	50 µA	50 µA	50 µA	50 µA
Maximum reverse recovery time	0.03 µs	0.03 µs	0.03 µs	0.03 µs
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maker	YAGEO	-	YAGEO	YAGEO
ECCN code	EAR99	EAR99	-	EAR99
