Part Number

Search

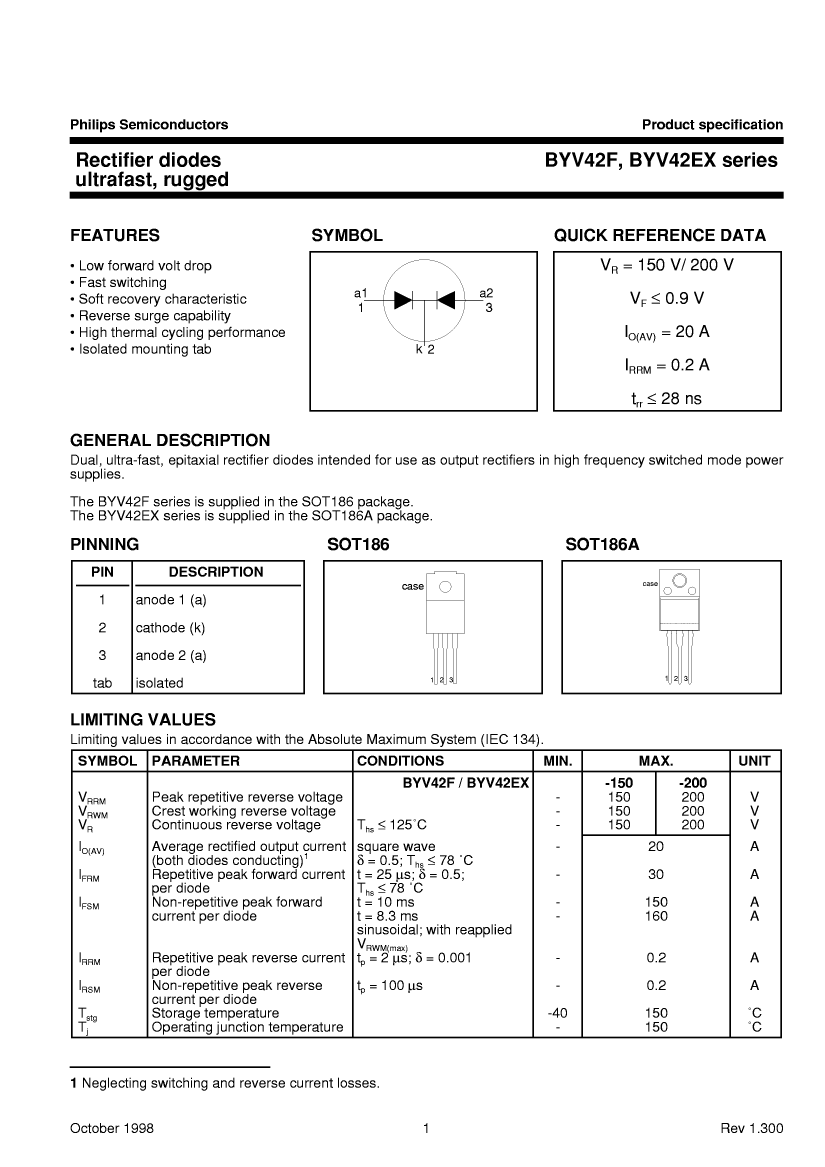

BYV42F

Description
DIODE 20 A, 200 V, SILICON, RECTIFIER DIODE, Rectifier Diode
CategoryDiscrete semiconductor    diode
File Size211KB,7 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

BYV42F Overview

DIODE 20 A, 200 V, SILICON, RECTIFIER DIODE, Rectifier Diode

BYV42F Parametric

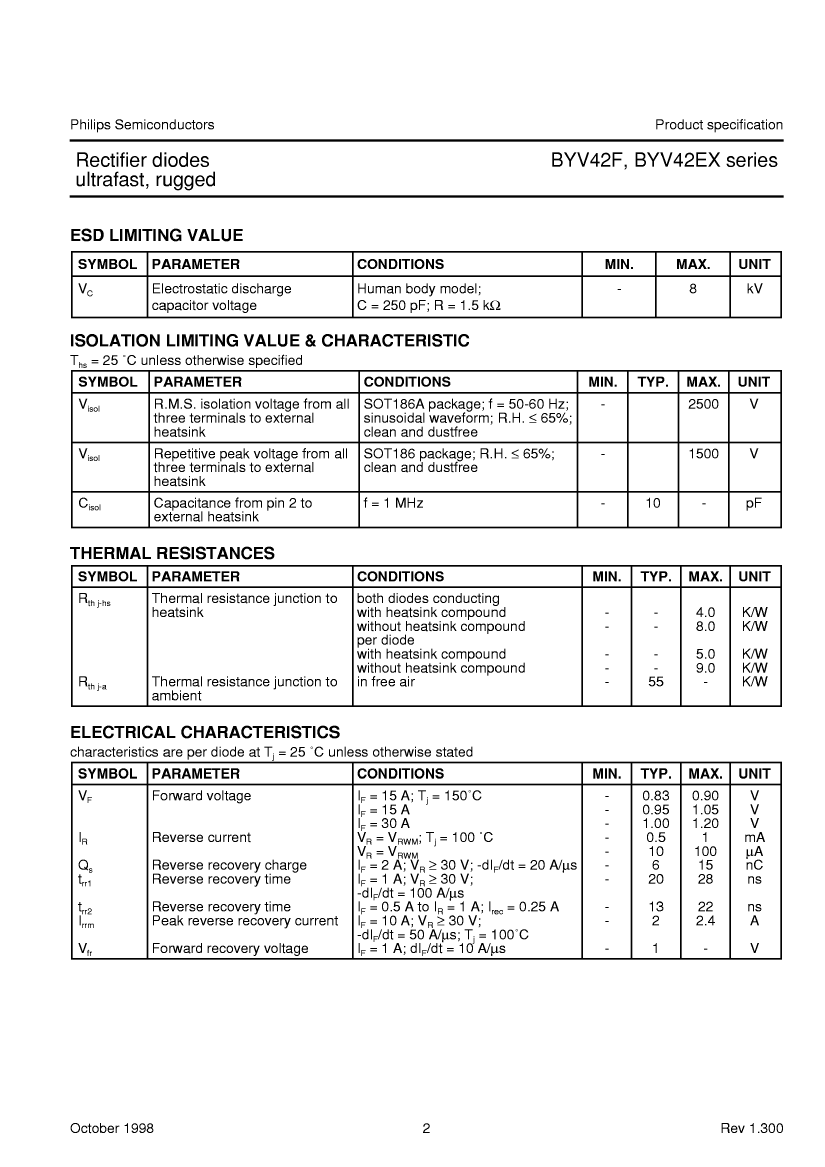

Parameter NameAttribute value
MakerNXP
Reach Compliance Codeunknown
ECCN codeEAR99
applicationULTRA FAST SOFT RECOVERY
Shell connectionISOLATED
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-PSFM-T3
Maximum non-repetitive peak forward current160 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature150 °C
Maximum output current20 A

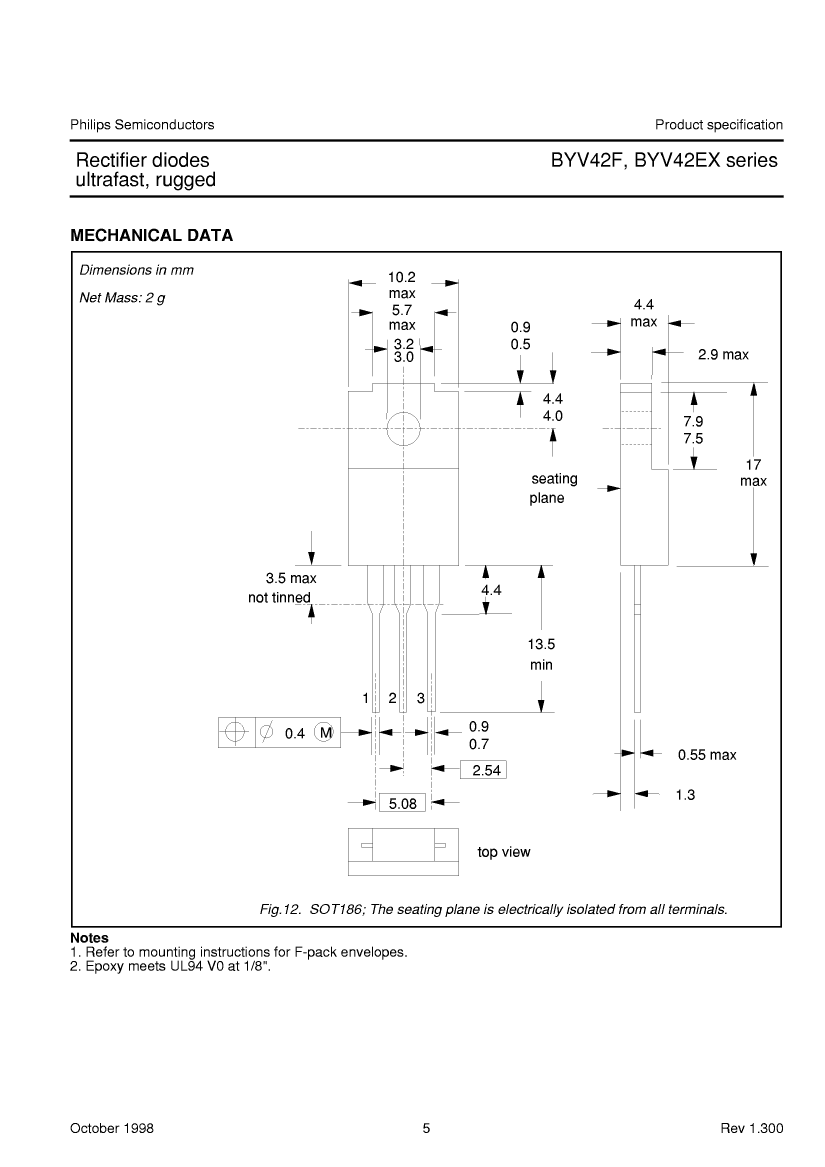

Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage200 V

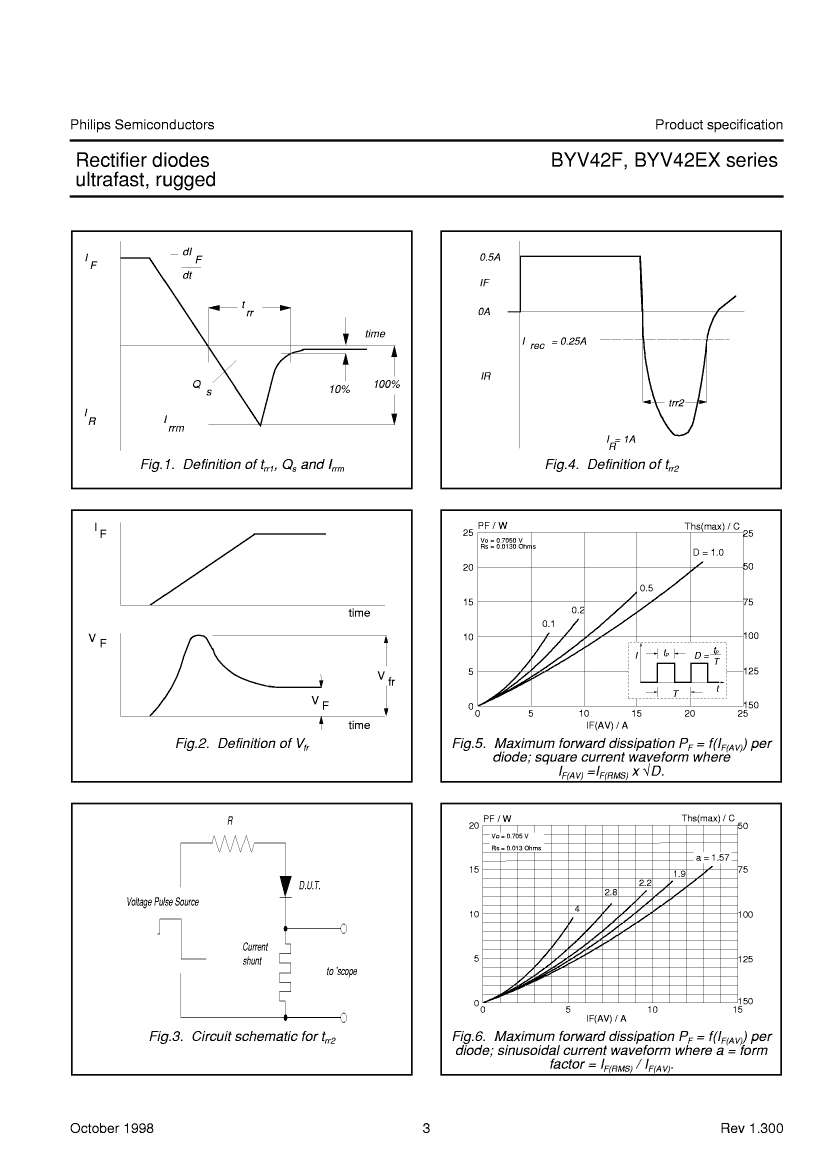

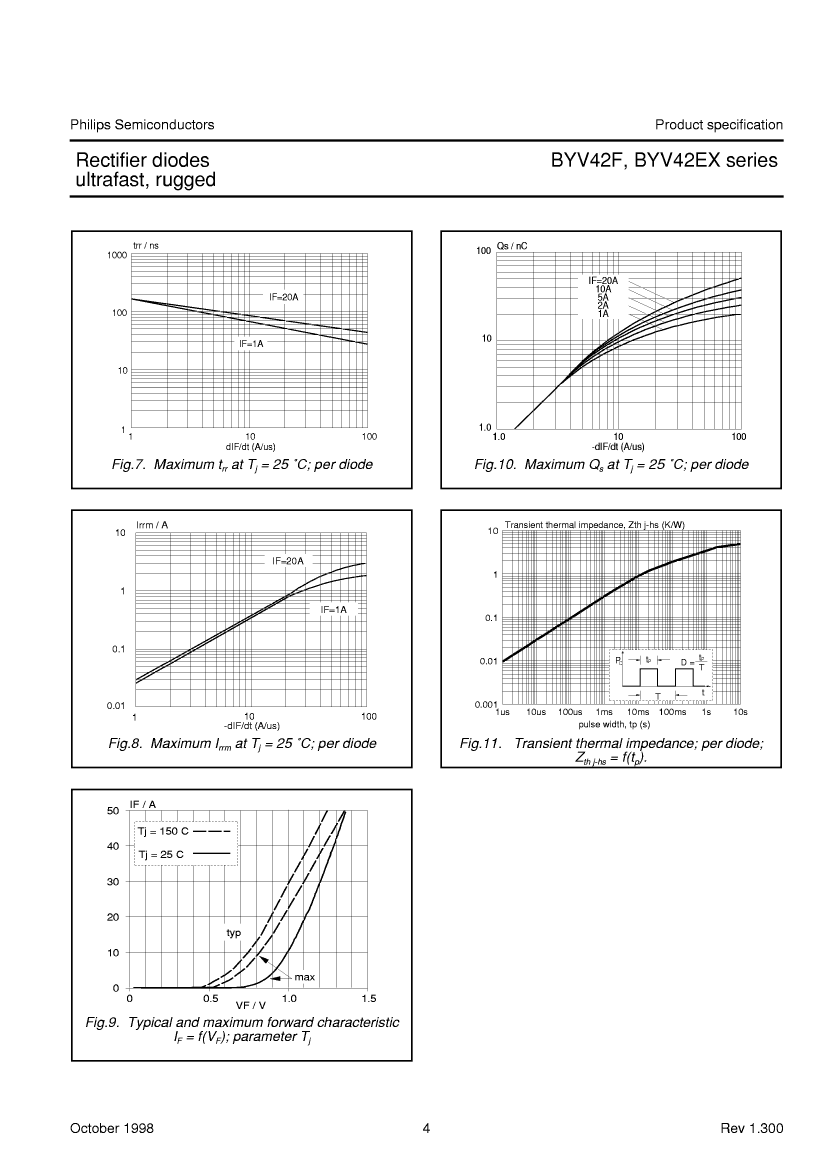

Maximum reverse recovery time0.028 µs
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE

BYV42F Related Products

BYV42F BYV42EX
Description DIODE 20 A, 200 V, SILICON, RECTIFIER DIODE, Rectifier Diode DIODE 20 A, 200 V, SILICON, RECTIFIER DIODE, Rectifier Diode
Maker NXP NXP
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
application ULTRA FAST SOFT RECOVERY ULTRA FAST SOFT RECOVERY
Shell connection ISOLATED ISOLATED
Configuration COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
JESD-30 code R-PSFM-T3 R-PSFM-T3
Maximum non-repetitive peak forward current 160 A 160 A
Number of components 2 2
Phase 1 1
Number of terminals 3 3
Maximum operating temperature 150 °C 150 °C
Maximum output current 20 A 20 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 200 V 200 V
Maximum reverse recovery time 0.028 µs 0.028 µs
surface mount NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
