Z2.803.2428.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> Z2.803.2428.0

Z2.803.2428.0: DescriptionModular Terminal Block, 16mm2; CategoryThe connector terminals; File Size78KB，2 Pages; ManufacturerWieland Electric GmbH; Websitehttps://www.wieland-electric.com/

Download Datasheet Parametric Compare View All

Z2.803.2428.0 Overview

Modular Terminal Block, 16mm2

Z2.803.2428.0 Parametric

Parameter Name	Attribute value
Maker	Wieland Electric GmbH
Reach Compliance Code	compli
ECCN code	EAR99
Fastening method	SCREW
Manufacturer's serial number	SK
Installation type	C RAIL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	16 mm2
Wire gauge	4 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

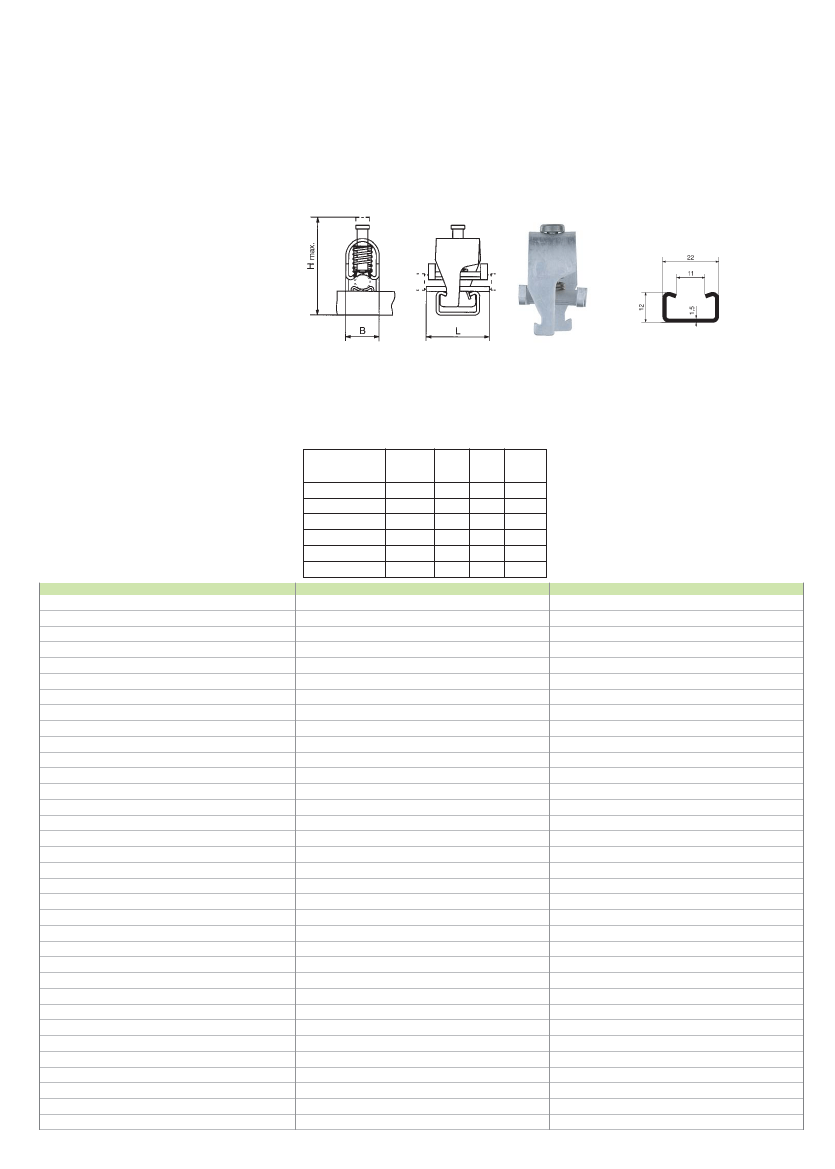

selos

Shielded cable terminals, type

System advantages

❐

Easy and safe contacting without

damage to the braided shield

❐

Stainless Steel pressure spring ensures

excellent contact

❐

Corrosion resistant due to anticorodal

contact material

❐

spring terminal available in three

different sizes (5 – 34 mm diameter)

❐

Potential commoning via the mounting

rail

❐

Insulated mounting of the rail via the

plastic (duroplast) mounting feet

Material: Anticorodal

SK...

Type

Clamping

max

(shielded cable diameter) Force

SK5-11

SK9,5-13,5

SK12,5-16,5

SK15,5-20,5

SK19-27

SK26-34

Type

14-24 N

20-35 N

28-47 N

70-95 N

85-107 N

105-130 N

Part no.

17 mm

22 mm

26 mm

32 mm

39 mm

48 mm

32 mm

49 mm

54 mm

58,5 mm

66,5 mm

73 mm

84 mm

Type

Part no.

Std. pack

Shielded cable terminals

SK 5-11

SK 9,5-13,5

SK 12,5-16,5

SK 15,5-20,5

SK 19-27

SK 26-34

Z2.803.0228.0

Z2.803.0328.0

Z2.803.0428.0

Z2.803.2228.0

Z2.803.2328.0

Z2.803.2428.0

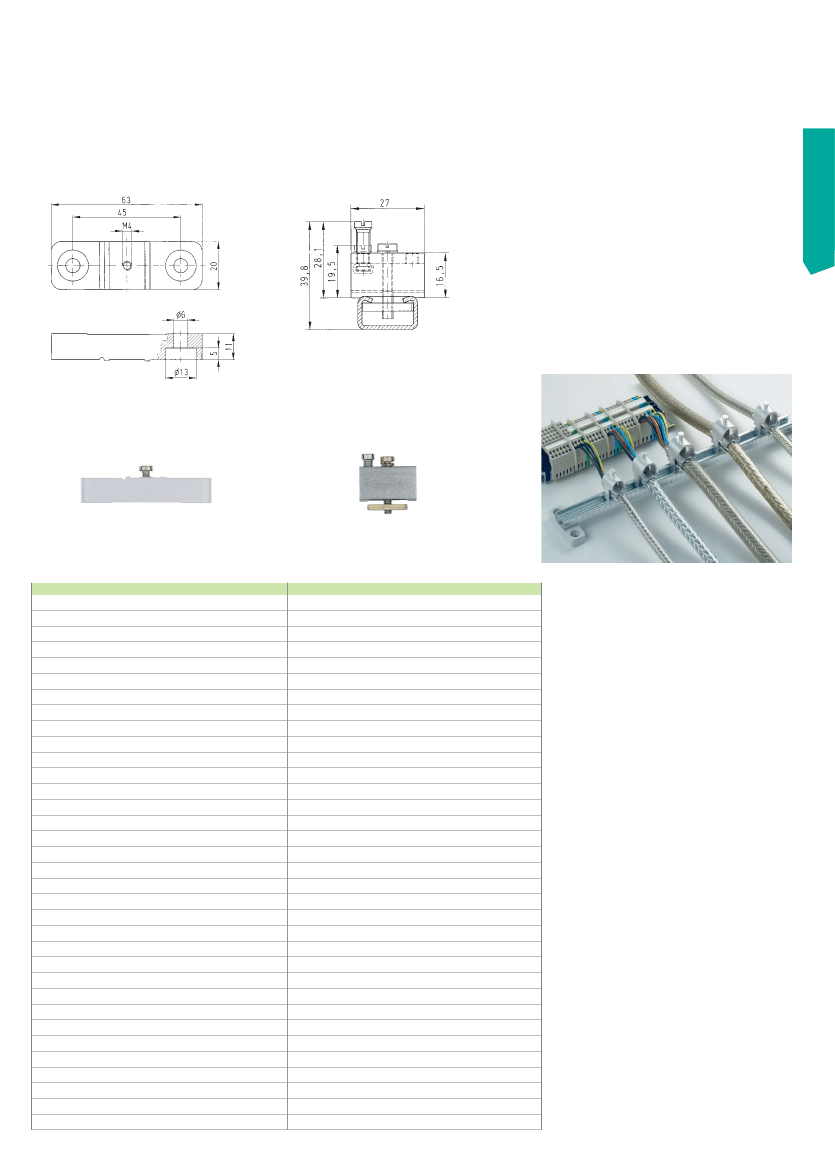

Accessories

1. Mounting rail (galvanized steel)

2. Mounting feet

3. Ground terminal

L=2m

Color: light gray

98.400.0000.0

210

Z2.803.2428.0 Related Products

	Z2.803.2428.0	Z2.803.0328.0	Z2.803.0228.0	Z2.803.0428.0	Z2.803.2228.0	Z2.803.2328.0
Description	Modular Terminal Block, 16mm2	Modular Terminal Block, 16mm2	Modular Terminal Block, 16mm2	Modular Terminal Block, 16mm2	Modular Terminal Block, 16mm2	Modular Terminal Block, 16mm2
Reach Compliance Code	compli	compli	compli	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fastening method	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Manufacturer's serial number	SK	SK	SK	SK	SK	SK
Installation type	C RAIL	C RAIL	C RAIL	C RAIL	C RAIL	C RAIL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK
Conductor cross section	16 mm2	16 mm2	16 mm2	16 mm2	16 mm2	16 mm2
Wire gauge	4 AWG	4 AWG	4 AWG	4 AWG	4 AWG	4 AWG
Base Number Matches	1	1	1	1	1	1
