SMTSDR453226S-681N: DescriptionGeneral Purpose Inductor, 680uH, 30%, 1 Element, SMD, CHIP, 1917; CategoryPassive components inductor; File Size81KB，3 Pages; Manufacturer3L Electronic Corporation

Download Datasheet Parametric View All

SMTSDR453226S-681N Overview

General Purpose Inductor, 680uH, 30%, 1 Element, SMD, CHIP, 1917

SMTSDR453226S-681N Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	6.8 Ω
Nominal inductance(L)	680 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SMTSDR453226S
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Maximum rated current	0.06 A
self resonant frequency	1.4 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

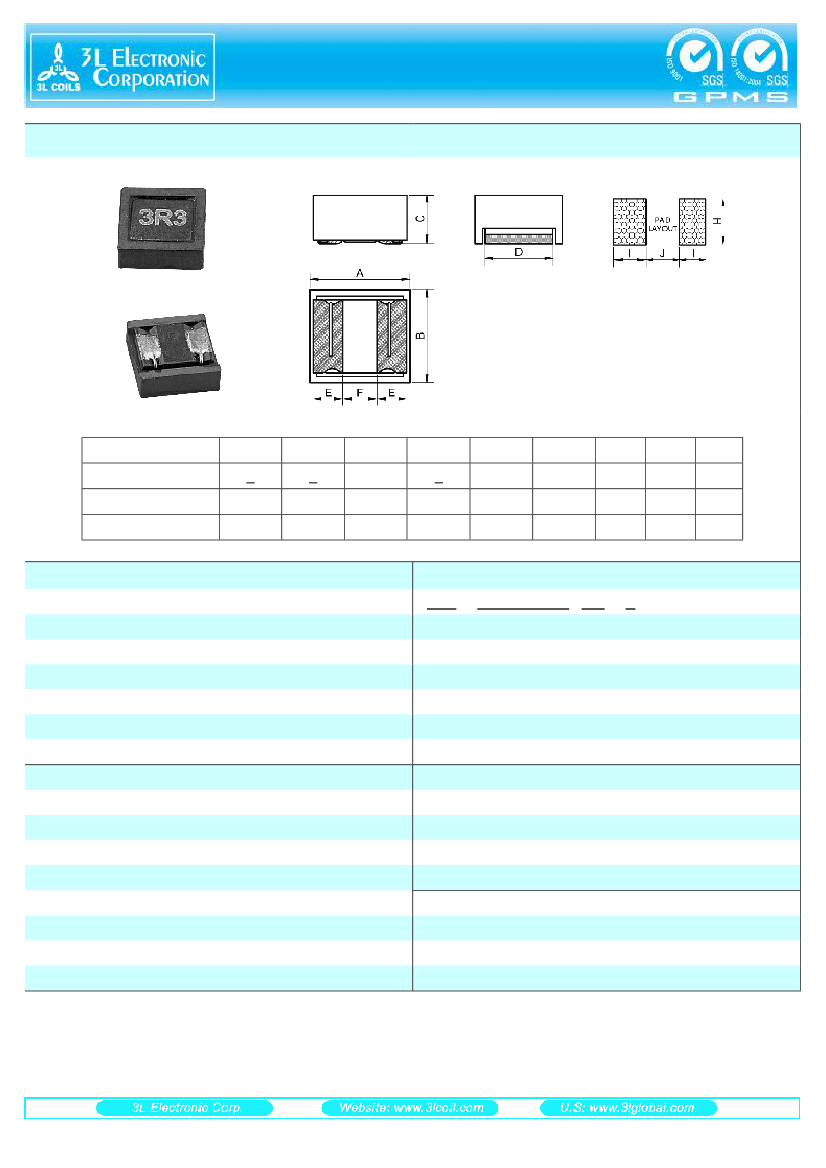

SHIELDED SMT POWER INDUCTORS

SMTSDR322515S / 322520S TYPE

Shape and size: (Dimensions are in mm)

ITEM

SMTSDR322515S

SMTSDR322520S

SMTSDR453226S

3.5+0.2

3.5±0.2

4.9±0.3

3.6+0.2

3.6±0.2

4.2±0.3

1.7+0.2

2.1±0.2

2.8±0.3

2.5+0.2

2.5±0.2

3.2±0.2

0.7min

1.0min

0.7min

1.0min

2.0

3.0

1.5

2.0

1.0

1.2

Features:

．Low

profile dimension and small size, suitable for portable

equipment.

．

Low DC resistance,high rated current and high inductance

．Magnetically

shielded structure prevents interference

occurring between peripheral components.

Ordering information:

SMT

(1)

SDR322515S - 220

(2)

(3)

(4)

(1) Type:

Surface Mounting Type.

(2) Style:

SDR

Type core;

L=3.2mm W=2.5mm H=1.5mm

Magnetically shielded structure

(3) Inductance:

220for 22uH.

(4) Inductance tolerance:

30%;

Inductance and rated current ranges:

．SMTSDR322515S

．SMTSDR322520S

3.3~820uH

320~20mA

3.3uH~2200uH 500~20mA

Characteristics:

．

Rated DC Current: It is either the inductance is 20% lower than its

initial value in D.C. saturation characteristics or temperature raise

becomes

△T=40℃

(Ta=20℃), whichever is lower.

．SMTSDR453226S

0.82uH~4700uH 1000~20mA

．Test

equipments :

L tested by Agilent 4284A Precision LCR meter.

SRF tested by Agilent 4291B RF Impedance Analyzer.

DCR tested by Milli-ohm meter.

．Electrical

specifications at 25℃.

．Operating

temperature : -30

℃

to 105

℃.

Applications:

．EL

display drive.

．Portable

equipment.
