292D475X9010P2T010P2T datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 292D475X9010P2T010P2T

292D475X9010P2T010P2T: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 4.7uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size78KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Related ProductsFound6parts with similar functions to 292D475X9010P2T010P2T

Download Datasheet Parametric Compare View All

292D475X9010P2T010P2T Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 4.7uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT

292D475X9010P2T010P2T Parametric

Parameter Name	Attribute value
Maker	Vishay
package instruction	, 0805
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	4.7 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
leakage current	0.0005 mA
Manufacturer's serial number	292D
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	10 V
ripple current	71 mA
size code	0805
surface mount	YES
Delta tangent	0.08
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

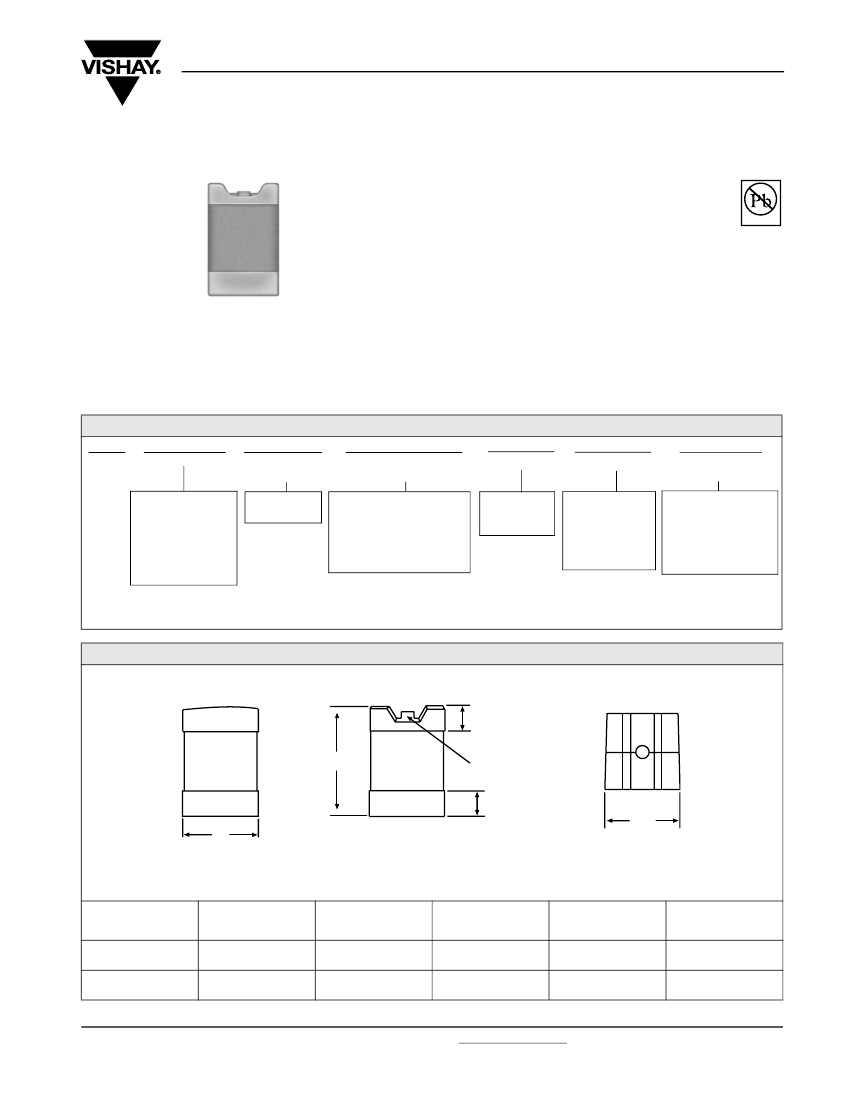

292D

Vishay Sprague

Solid Tantalum Chip Capacitors,

ANTAMOUNT

Lead Frameless Molded

FEATURES

•

0805 Footprint

•

Wraparound lead (Pb)-free terminations:

P and R Cases

•

8 mm, 12 mm, 16 mm tape and reel packaging

available per EIA-481-1 and reeling per IEC

286-3, 7" [178 mm] standard

13" [330 mm] available

Pb-free

Available

RoHS*

COMPLIANT

P and R Cases

Image is not to scale

PERFORMANCE CHARACTERISTICS

Operating Temperature:

- 55 °C to + 85 °C

(To + 125 °C with voltage derating)

Note:

Refer to Doc. 40088

Capacitance Range:

1.0 µF to 47 µF

Capacitance Tolerance:

± 10 %, ± 20 % standard

Voltage Rating:

3 WVDC to 20 WVDC

ORDERING INFORMATION

292D

TYPE

106

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

010

DC VOLTAGE RATING

AT + 85 °C

This is expressed in volts.

To complete the three-digit

block, zeros precede the

voltage rating. A decimal

point is indicated by an “R”

(6R3 = 6.3 volts).

CASE CODE

TERMINATION

REEL SIZE AND

PACKAGING

T = Tape and reel*

7" [178 mm] reel

W = 13" [330 mm] reel

*Cathode nearest

sprocket hole

This is expressed in

picofarads. The first

two digits are the

significant figures.

The third is the

number of zeros to

follow.

See Ratings

and Case

Codes Table

2 = 100 % Tin

4 = Gold plated

8 = Solder Plated

(60/40)

Special Order

Note:

Preferred Tolerance and reel sizes are in bold.

DIMENSIONS

in inches [millimeters]

Tantalum Wire Nib

Identifies Anode (+)

Terminal

CASE

EIA

0805

[2012]

0805

[2012]

0.079 ± 0.008

[2.0 ± 0.2]

0.079 ± 0.010

[2.0 ± 0.25]

0.051 ± 0.008

[1.3 ± 0.2]

0.053 ± 0.008

[1.35 ± 0.2]

0.047 (Max.)

[1.2 Max.]

0.053 ± 0.008

[1.35 ± 0.2]

0.020 ± 0.012

[0.5 ± 0.3]

0.020 ± 0.012

[0.5 ± 0.3]

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 40042

Revision: 07-Sep-06

For technical questions, contact: tantalum@vishay.com

www.vishay.com

292D475X9010P2T010P2T Related Products

	292D475X9010P2T010P2T	292D106X9010R2T010R2T	292D106X9010P2T010P2T	292D106X0010P2T010P2T	292D106X0010R2T010R2T	292D225X9016R2T016R2T	292D226X96R3P2T0356R3P2T035	292D226X96R3P2T6R3P2T	292D475X9010R2T010R2T	292D475X9010R2T035010R2T035
Description	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 4.7uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 10uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 10uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 10uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 10uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 16V, 2.2uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3V, 22uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3V, 22uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 4.7uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 4.7uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT
package instruction	, 0805	, 0805	, 0805	, 0805	, 0805	, 0805	, 0805	, 0805	, 0805	, 0805
Reach Compliance Code	unknow	unknow	unknown	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	4.7 µF	10 µF	10 µF	10 µF	10 µF	2.2 µF	22 µF	22 µF	4.7 µF	4.7 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
leakage current	0.0005 mA	0.001 mA	0.001 mA	0.001 mA	0.001 mA	0.00035 mA	0.0009 mA	0.0013 mA	0.0005 mA	0.0005 mA
Manufacturer's serial number	292D	292D	292D	292D	292D	292D	292D	292D	292D	292D
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	10%	10%	10%	20%	20%	10%	10%	10%	10%	10%
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH	TR, 7 INCH
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	10%	10%	10%	20%	20%	10%	10%	10%	10%	10%
Rated (DC) voltage (URdc)	10 V	10 V	10 V	10 V	10 V	16 V	6.3 V	6.3 V	10 V	10 V
ripple current	71 mA	112 mA	112 mA	112 mA	112 mA	65 mA	151 mA	118 mA	71 mA	112 mA
size code	0805	0805	0805	0805	0805	0805	0805	0805	0805	0805
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Delta tangent	0.08	0.08	0.08	0.08	0.08	0.08	0.1	0.1	0.08	0.08
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Maker	Vishay	-	-	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
