SN54HC109FK: DescriptionJ-Kbar Flip-Flop, HC/UH Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, CMOS, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size222KB，8 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

SN54HC109FK Overview

J-Kbar Flip-Flop, HC/UH Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, CMOS, CQCC20, CERAMIC, LCC-20

SN54HC109FK Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QCCN,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	S-CQCC-N20
length	8.89 mm
Logic integrated circuit type	J-KBAR FLIP-FLOP
Number of digits	2
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	250 ns
Maximum seat height	2.03 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
width	8.89 mm
minfmax	25 MHz

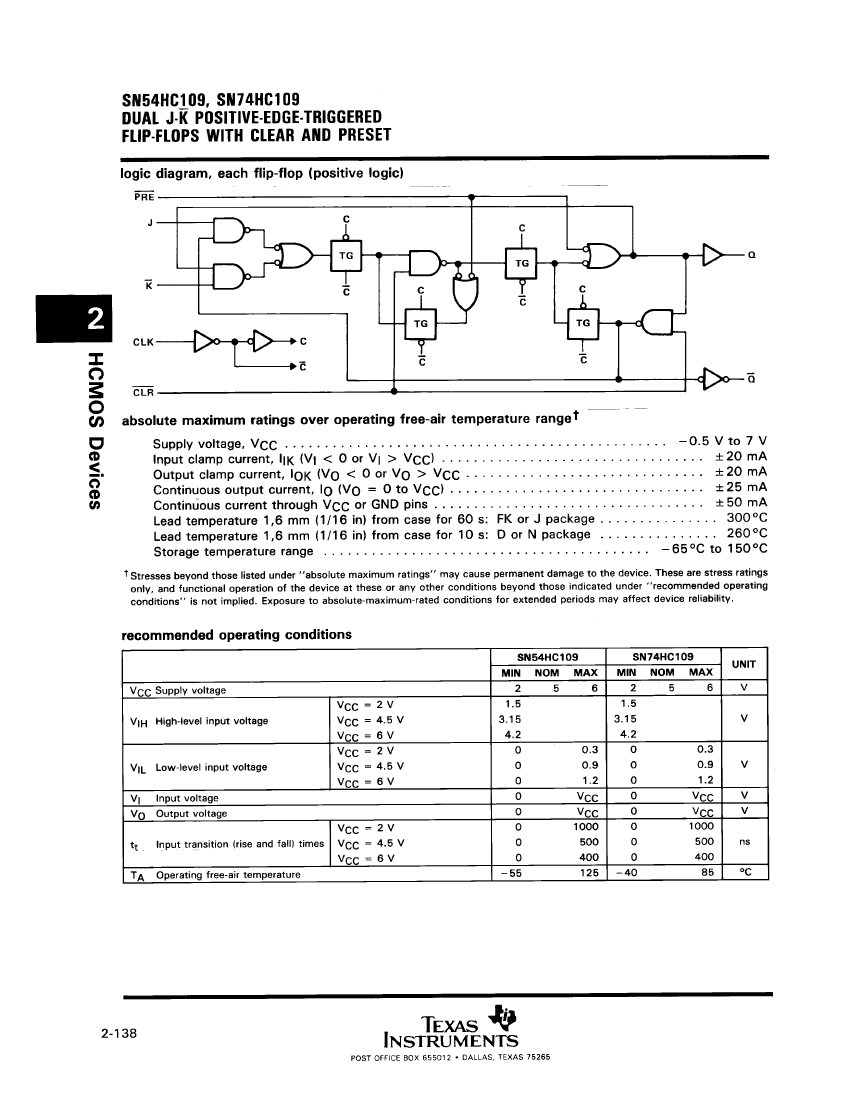

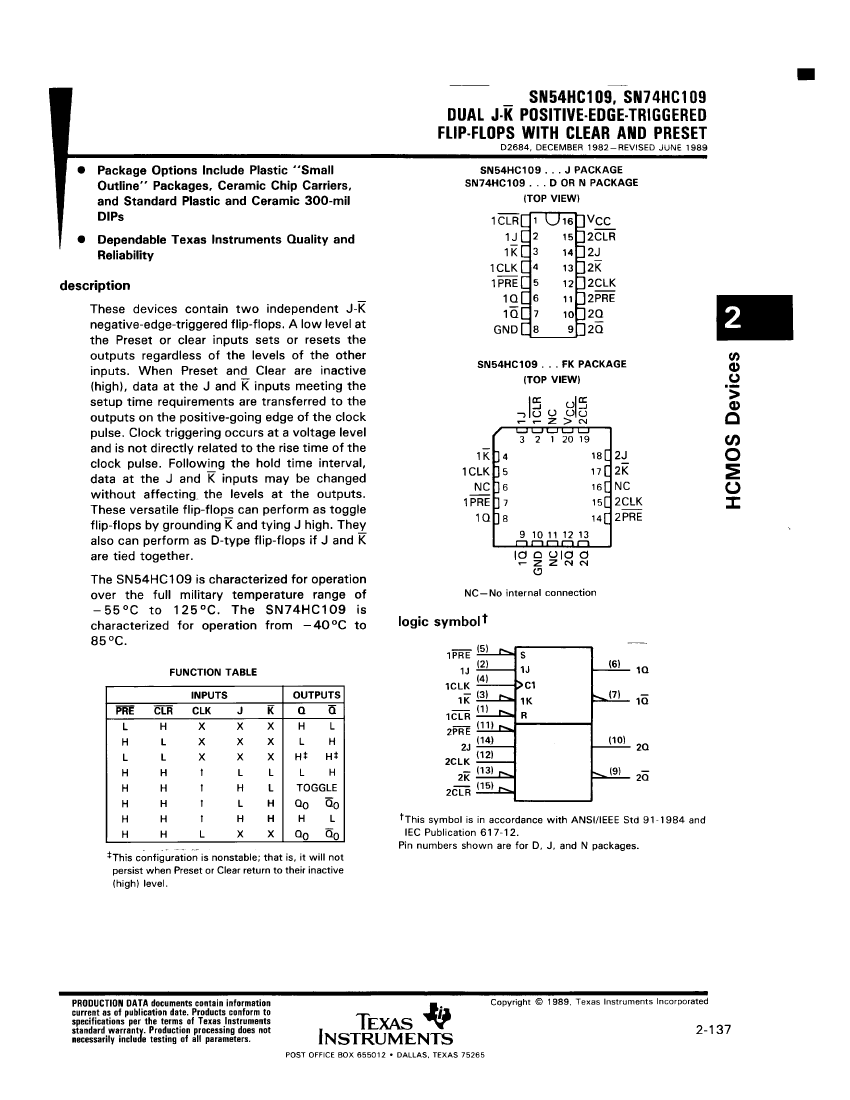

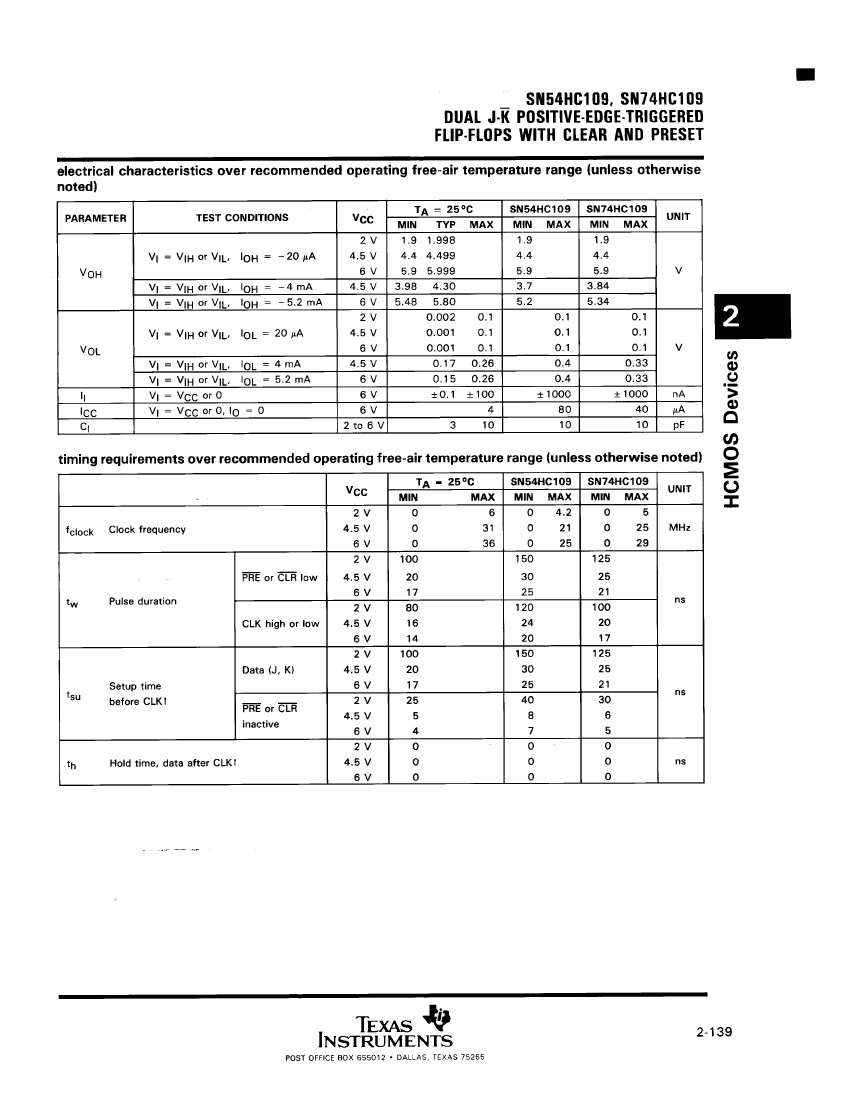

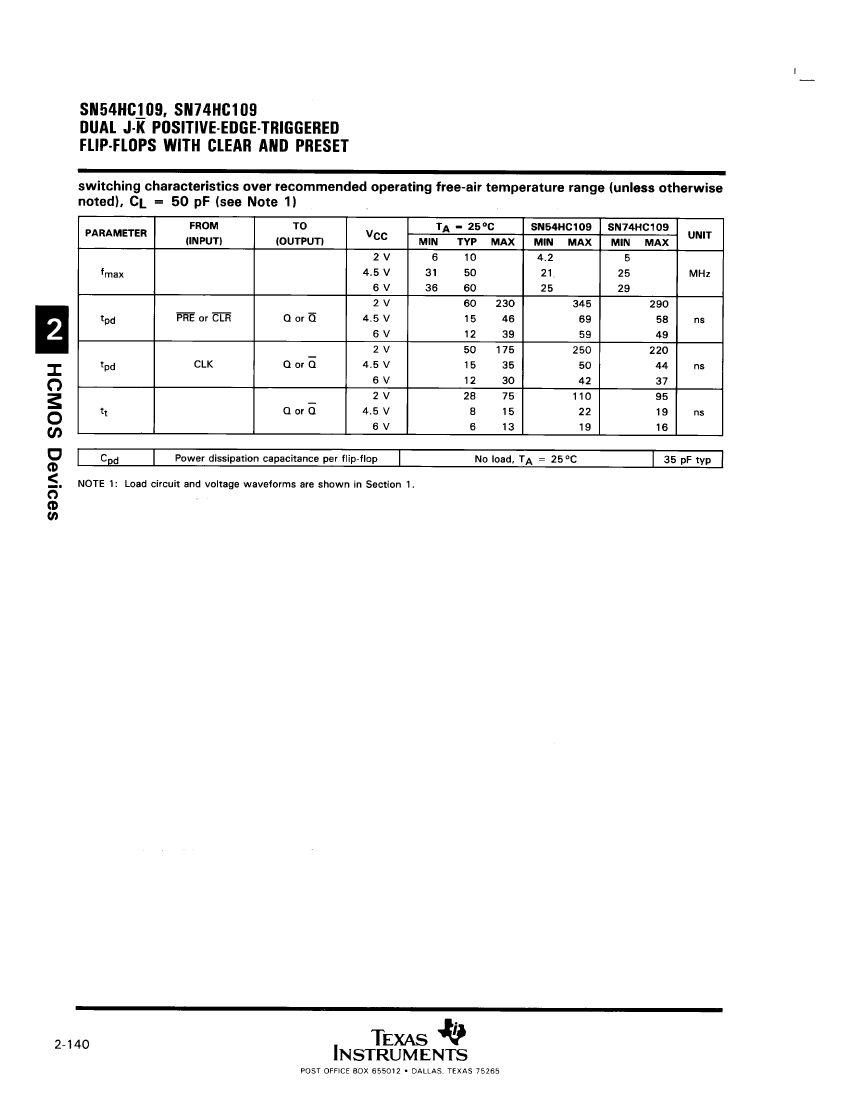

Preview

Download Datasheet

View All

IMPORTANT NOTICE

Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue

any product or service without notice, and advise customers to obtain the latest version of relevant information

to verify, before placing orders, that information being relied on is current and complete. All products are sold

subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those

pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in

accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent

TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily

performed, except those mandated by government requirements.

CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF

DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL

APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR

WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER

CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICATIONS IS UNDERSTOOD TO

BE FULLY AT THE CUSTOMER’S RISK.

In order to minimize risks associated with the customer’s applications, adequate design and operating

safeguards must be provided by the customer to minimize inherent or procedural hazards.

TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent

that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other

intellectual property right of TI covering or relating to any combination, machine, or process in which such

semiconductor products or services might be or are used. TI’s publication of information regarding any third

party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

1998, Texas Instruments Incorporated
