DO5022HC-103HC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DO5022HC-103HC

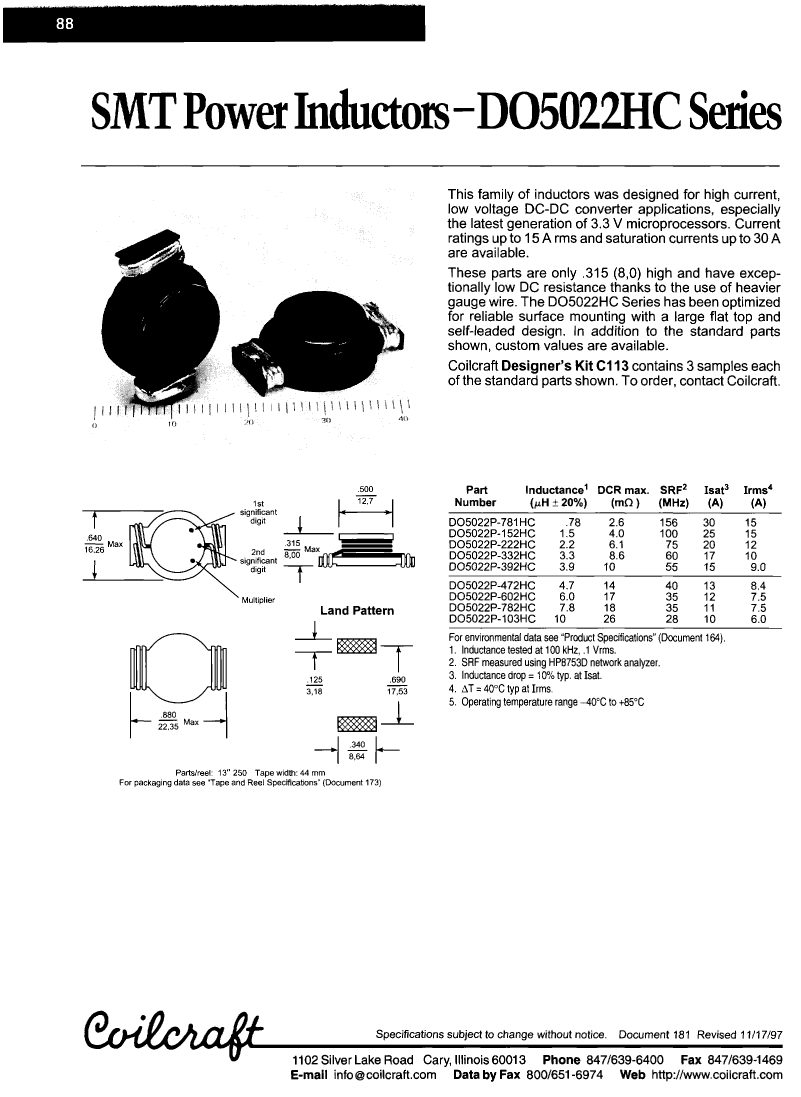

DO5022HC-103HC: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element, SMD; CategoryPassive components inductor; File Size49KB，1 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric Compare View All

DO5022HC-103HC Overview

General Purpose Inductor, 10uH, 20%, 1 Element, SMD

DO5022HC-103HC Parametric

Parameter Name	Attribute value
Maker	COILCRAFT
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.026 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	NO LEAD
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

DO5022HC-103HC Related Products

	DO5022HC-103HC	DO5022HC-152HC	DO5022HC-332HC	DO5022HC-782HC	DO5022HC-781HC	DO5022HC-602HC	DO5022HC-472HC	DO5022HC-222HC	DO5022HC-392HC
Description	General Purpose Inductor, 10uH, 20%, 1 Element, SMD	General Purpose Inductor, 1.5uH, 20%, 1 Element, SMD	General Purpose Inductor, 3.3uH, 20%, 1 Element, SMD	General Purpose Inductor, 7.8uH, 20%, 1 Element, SMD	General Purpose Inductor, 0.78uH, 20%, 1 Element, SMD	General Purpose Inductor, 6uH, 20%, 1 Element, SMD	General Purpose Inductor, 4.7uH, 20%, 1 Element, SMD	General Purpose Inductor, 2.2uH, 20%, 1 Element, SMD	General Purpose Inductor, 3.9uH, 20%, 1 Element, SMD
Maker	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.026 Ω	0.004 Ω	0.0086 Ω	0.018 Ω	0.0026 Ω	0.017 Ω	0.014 Ω	0.0061 Ω	0.01 Ω
Nominal inductance(L)	10 µH	1.5 µH	3.3 µH	7.8 µH	0.78 µH	6 µH	4.7 µH	2.2 µH	3.9 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
