P84-W28H-CW datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> P84-W28H-CW

Preview

P84-W28H-CW: DescriptionSingle Color LED, White, Water Clear, 12.6mm,; CategoryLED optoelectronic/LED photoelectric; File Size193KB，1 Pages; ManufacturerDDP Engineered LED Solutions; Environmental Compliance

Download Datasheet Parametric View All

P84-W28H-CW Overview

Single Color LED, White, Water Clear, 12.6mm,

P84-W28H-CW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	DDP Engineered LED Solutions
Reach Compliance Code	unknown
color	WHITE
Configuration	SINGLE
Maximum forward current	0.017 A
Lens type	WATER CLEAR
Nominal luminous intensity	1560.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
shape	CYLINDRICAL
size	12.6 mm
surface mount	NO
Terminal pitch	8.9 mm
perspective	50 deg

Preview

Download Datasheet

View All

Data Display Products

®

1

/

2

"

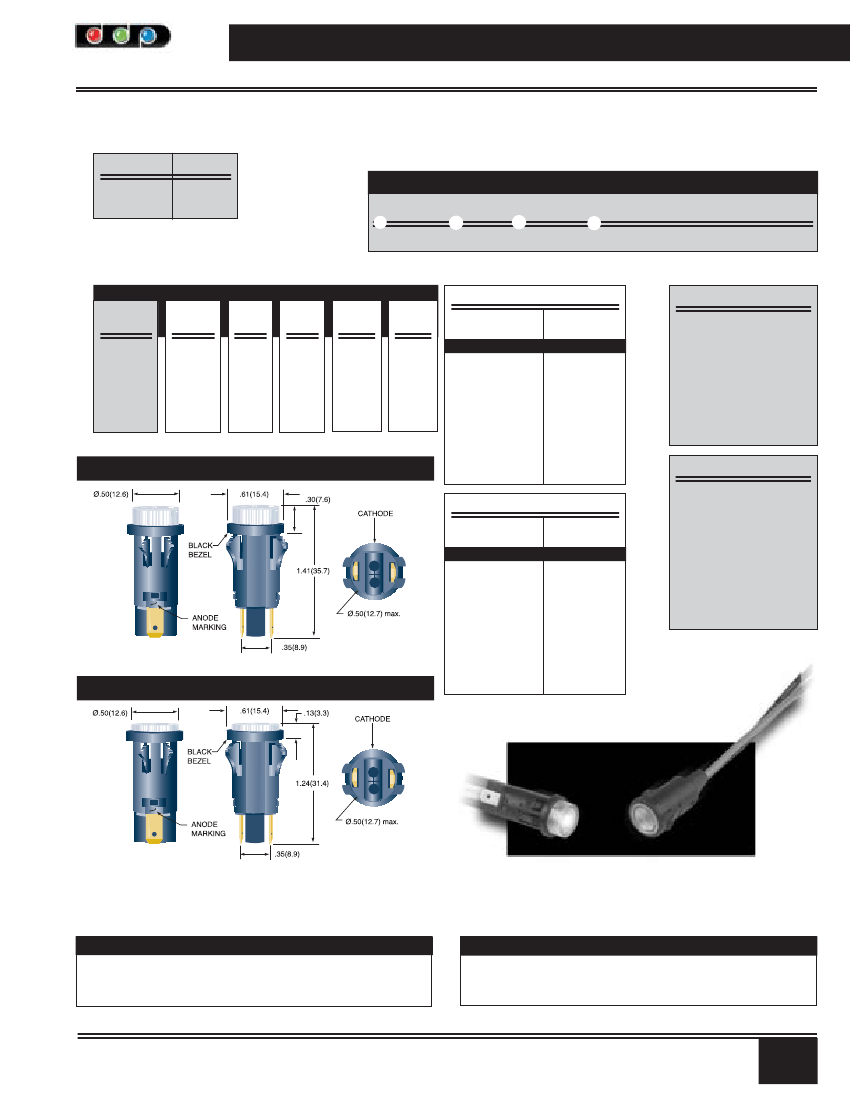

SNAP-IN PANEL LIGHT WITH LENS

P80 Series

- For Detailed LED Data, See Discrete Section, Model 200

1

Model

P81

P84

Wires

W

(optional)

TO ORDER, FOLLOW THE EXAMPLE:

Select one

BOLD

component from each numbered category in the tables below.

1

Model

2

LED

3

Voltage

4

P81

-G

24

➜

Part Number

P81-G24-CG

Voltage/Current

Design

Max

Vf/If

V/C Table I

5V/27mA

5.5V/40mA

6V/26mA

7V/33mA

12V/27mA

14V/35mA

15V/24mA

16.5V/28mA

24V/17mA

26V/20mA

28V/16.5mA

30V/18mA

48V/15mA

50V/16mA

60V/9mA

65V/10mA

120VAC/3.5mA 130VAC/4mA

Voltage/Current

Design

Max

Vf/If

V/C Table II

5V/15mA

6V/26mA

6V/15mA

7V/25mA

12V/15mA

14V/20mA

15V/15mA

16.5V/18mA

24V/15mA

26V/18mA

28V/15mA

30V/17mA

48V/9.5mA

50V/10mA

60V/7mA

65V/8mA

120VAC/3.5mA

130VAC/4mA

λpk

Lens

-CG

2

LED

-R

-O

-A

-G

-B

-W

HIGH INTENSITY - WATERCLEAR ENCAPSULATION

Iv

[1]

(mcd)

Viewing

V/C

Table

[3]

Color

RED

ORG

AMB

GRN

BLU

WHT

(nm)

Angle

30

45

50

3

Voltage

[4]

5H

6H

12H

15H

24H

28H

48H

60H

120

634

605

592

520

465

[2]

5300

2000

5300

2400

700

1560

I

II

P81

4

Lens

-CR

-CA

-CG

-CB

-CW

Red

Amber

Green

Blue

Water

Clear

P84

[1] Iv = typical luminous intensity @ If = 20mA(Ta=25°C). Iv is measured without lenses.

[2] White is identified by one of four CIE coordinates x:0.290/y:0.260, x:0.290/y:0.305,

x:0.330/y:0:365,x:0.330/y:0.320

[3] See Voltage/Current table for design specifications.

[4] Ta = 25°C. Voltages 5H through 60H are VDC. For AC operation, insert D after Voltage (e.g 24HD),

D indicates built-in rectifier; not required for 15H or less, or 120VAC. DC operation not available

for 120V.

Standard Wire Leads:

6.0" total length(nominal)/.50" stripped (nominal), red

anode/black cathode, 18 AWG TPB UL1015 insulation.

Contact factory for other lengths, gauges and colors.

All dimensions are in inches (mm)

Tolerances: .xx"(.x) ±.025"(.63) / .xxx"(.xx)±.010"(.25)

Specifications are subject to change without notice.

445 S. Douglas Street, El Segundo, CA 90245-4630 • (800) 421-6815 • (310) 640-0442 • FAX (310) 640-7639

ww w.datadisplay.com
