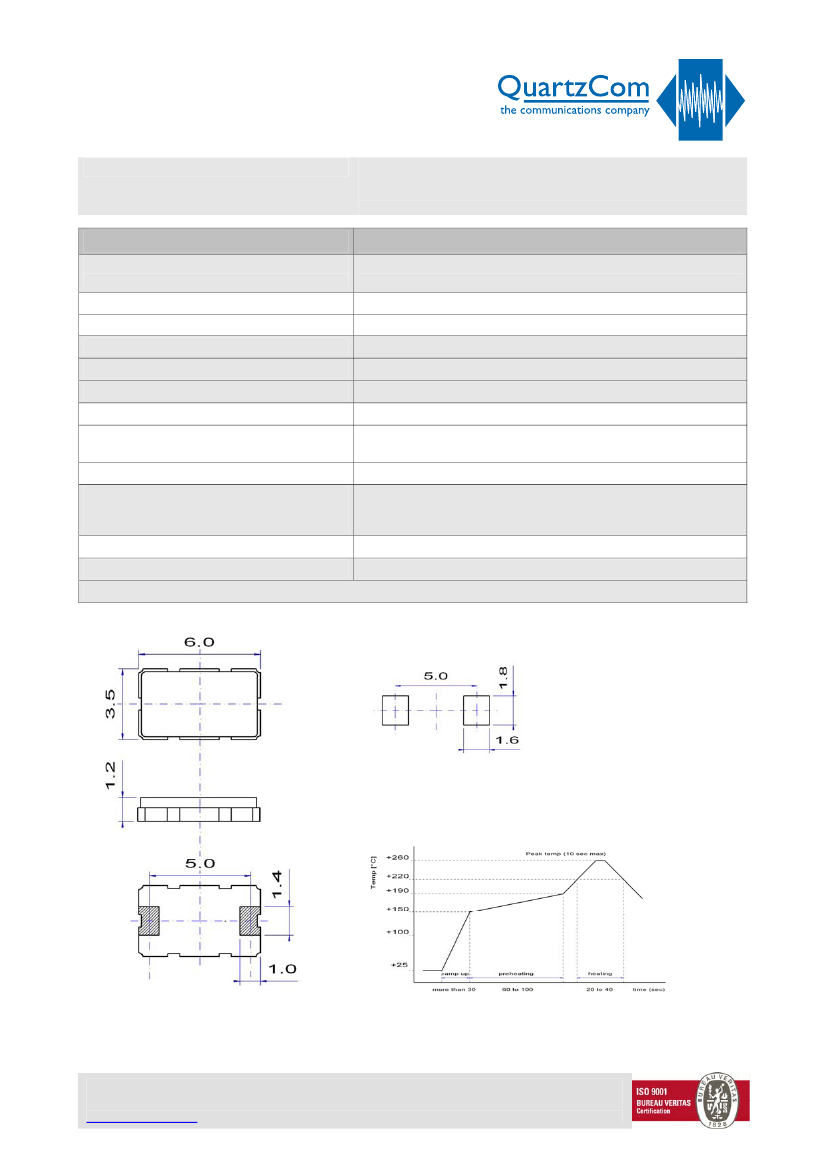

SMX-2C
Full ceramic SMD Crystal
Features
Applications: telecommunications, audio, automotive, instruments
Small package size
Reliable, low cost crystal
Reflow soldering @ 260 °C
Parameter
Frequency range
Mode of oscillation
Standard frequencies
Frequency tolerance
Frequency stability
Aging
Load capacitance
Equivalent series resistance (ESR)
Drive level
Operating temperature range
Specification
10 ~ 50 MHz
50 ~ 67 MHz
AT-cut
±25
~
±50
ppm
±10
~
±50
ppm
±2
ppm
< 25
Ω
< 15
Ω
10 ~ 100
μW
-20 ~ +70 °C
-40 ~ +85 °C
-40 ~ +125 °C
-55 ~ +125 °C
tape & reel
fundamental
3
rd
overtone
10.00, 12.00, 16.00, 27.134375, 29.4912 & 32.00 MHz
@ +25 °C
vs. operating temperature range
1
st
year
@ 13 MHz
@ 32 MHz
commercial application
industrial application
automotive application
1’000 or 2’000 pieces
series or parallel resonance (CL = 8 ~ 32 pF)
Storage temperature range
Packaging unit
Customer specifications on request
Example for soldering pattern
Do not design any conductive path between the pattern
Example for IR reflow soldering temperature
2002/95/EC RoHS compliant
