PI64B20R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PI64B20R

PI64B20R: DescriptionBoard Euro Connector, Female, Straight, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size84KB，2 Pages; ManufacturerHubbell

Download Datasheet Parametric Compare View All

PI64B20R Overview

Board Euro Connector, Female, Straight, Solder Terminal, Receptacle,

PI64B20R Parametric

Parameter Name	Attribute value
Maker	Hubbell
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=64, MAX ROWS (SERIES)=2
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
UL Flammability Code	94V-0

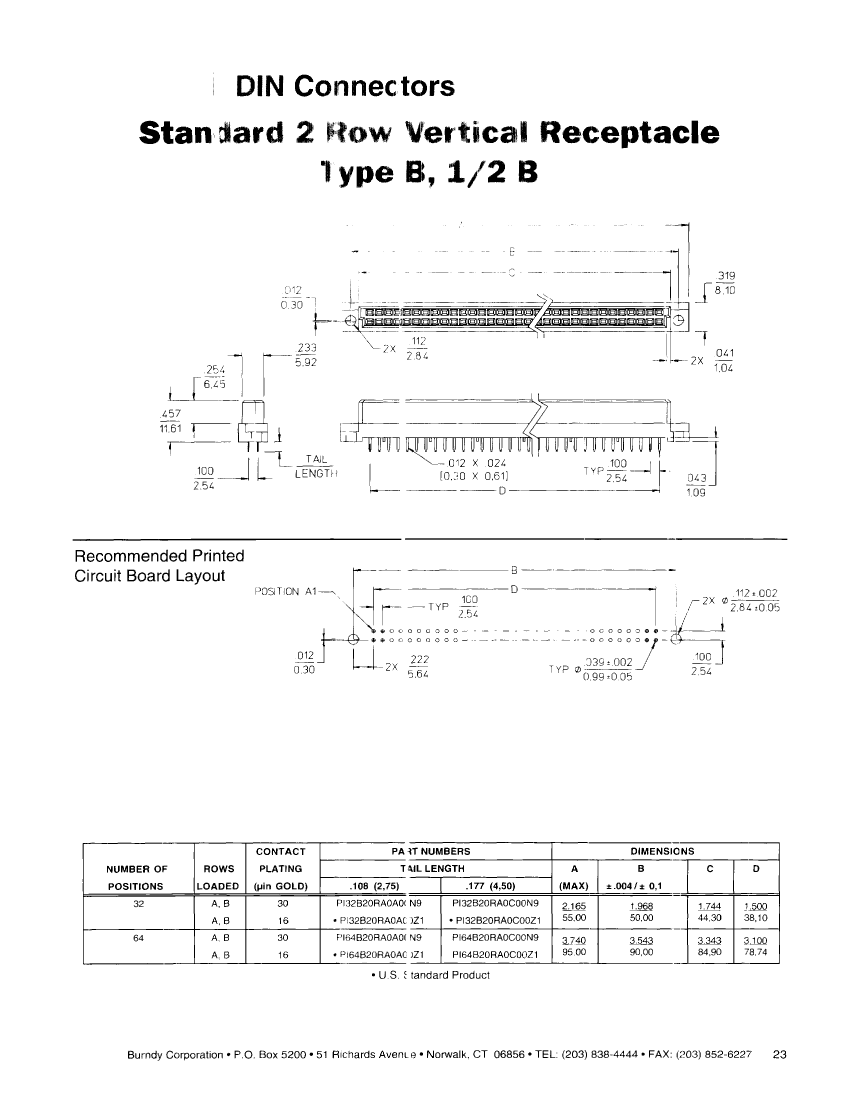

Preview

Download Datasheet

View All

PI64B20R Related Products

	PI64B20R	PI64B80R	PI32B20R	PI32B80R
Description	Board Euro Connector, Female, Straight, Solder Terminal, Receptacle,	Board Euro Connector, Female, Straight, Solder Terminal, Receptacle,	Board Euro Connector, Female, Straight, Solder Terminal, Receptacle,	Board Euro Connector, Female, Straight, Solder Terminal, Receptacle,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=64, MAX ROWS (SERIES)=2	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=64, MAX ROWS (SERIES)=2	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=32, MAX ROWS (SERIES)=2	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-2, MAX CONTACTS (SERIES)=32, MAX ROWS (SERIES)=2
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES
Filter function	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES
MIL compliance	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Maker	Hubbell	-	Hubbell	Hubbell
