BRT13M datasheet, PDF - EEWORLD Datasheet

BRT13M: DescriptionTrigger Output Optocoupler, 1-Element, 5300V Isolation, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size111KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

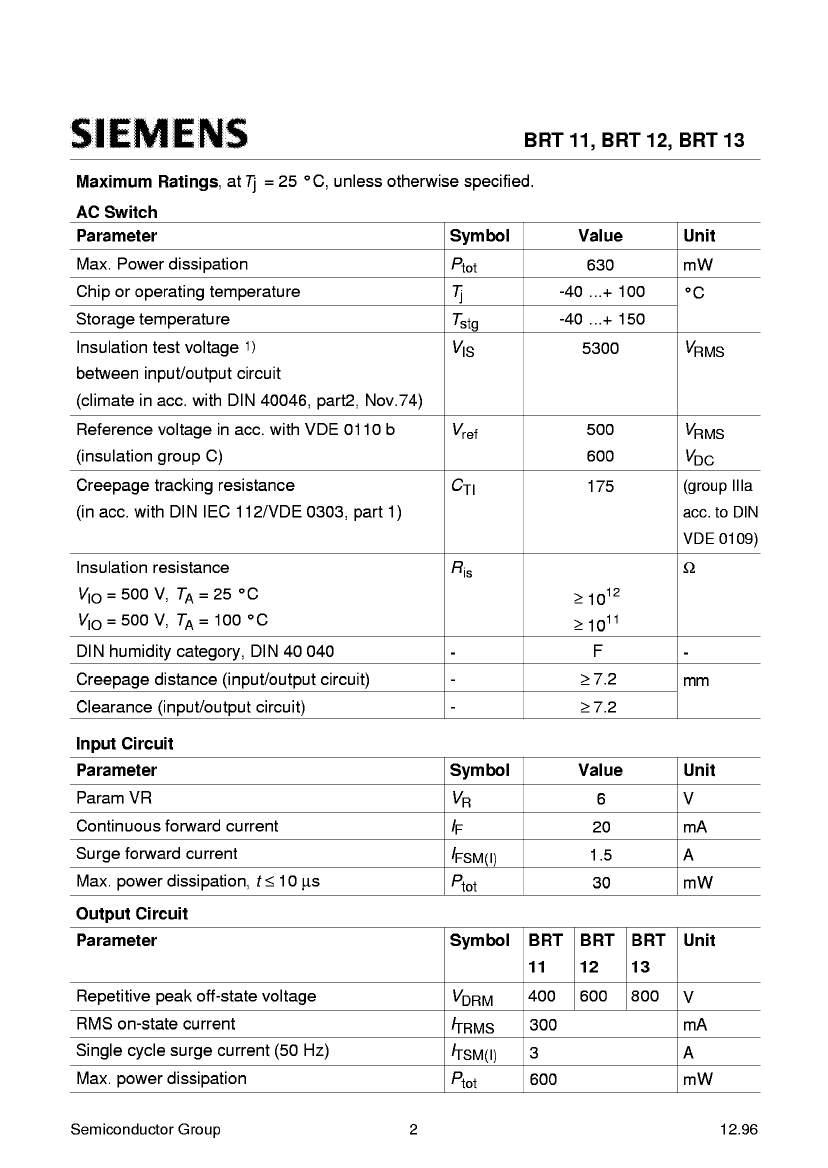

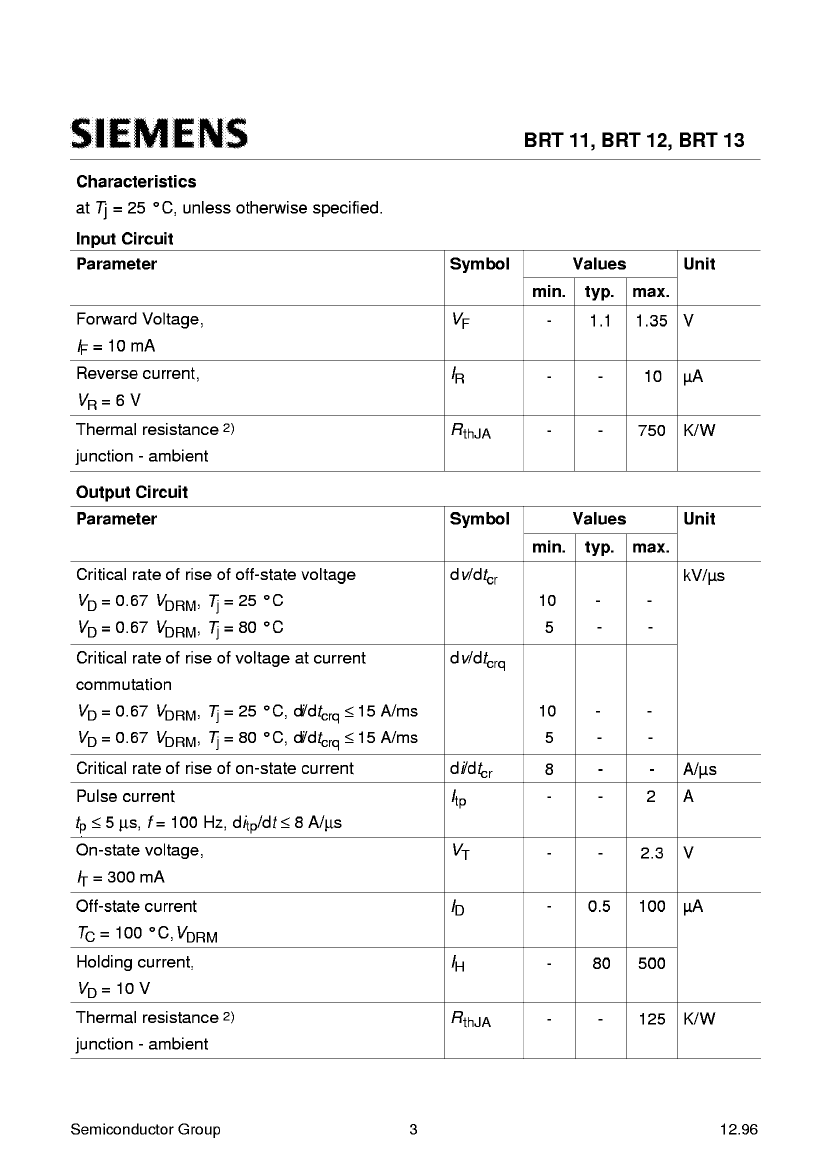

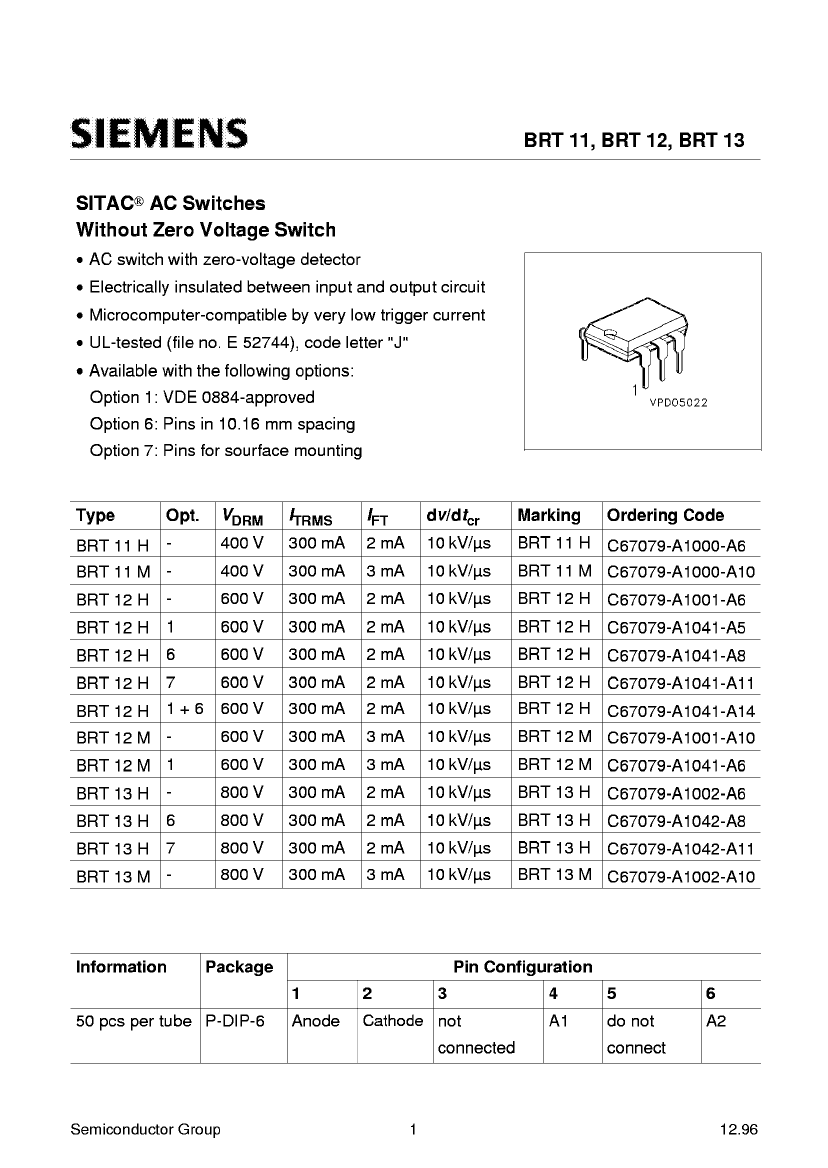

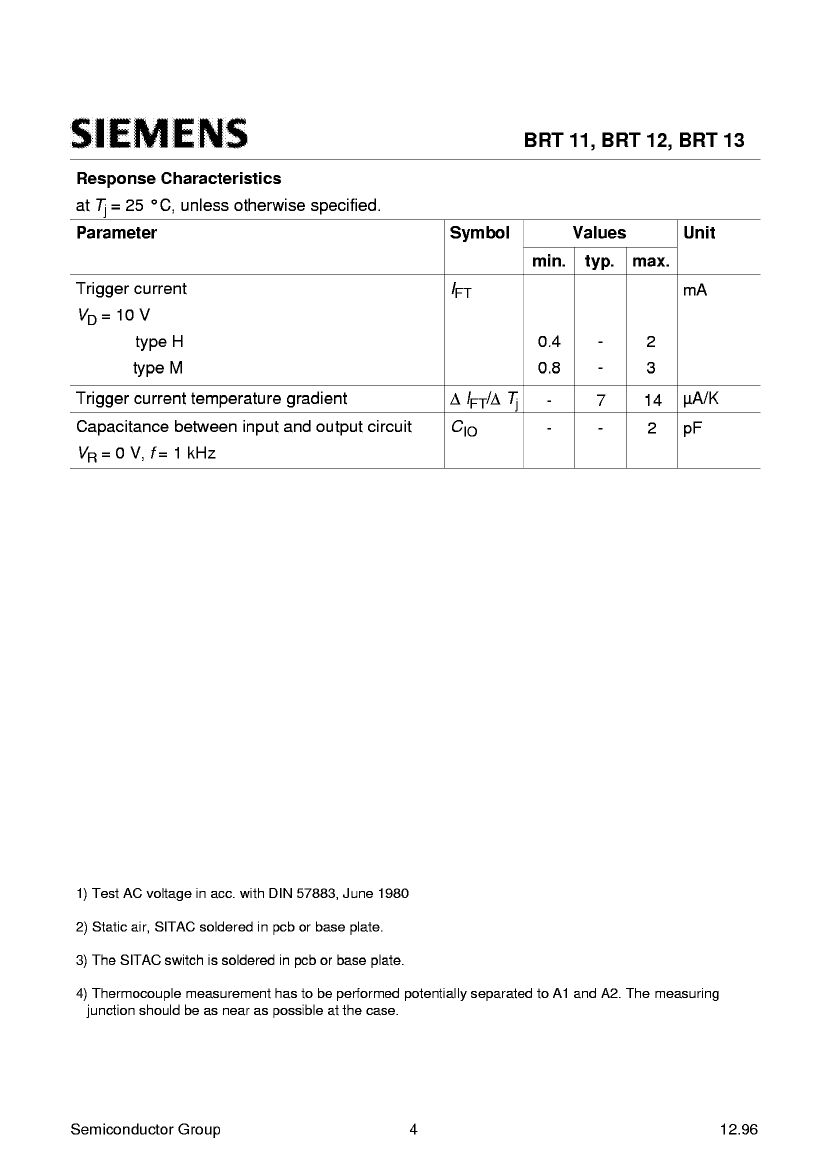

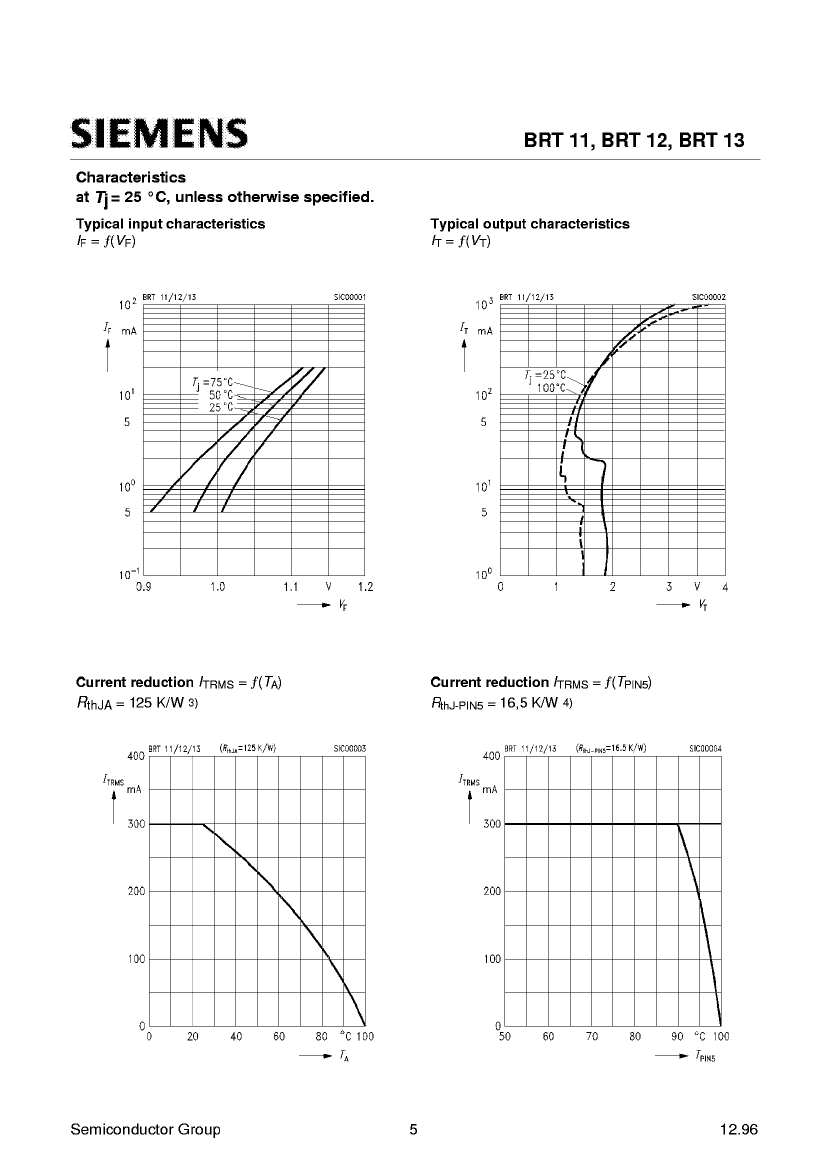

BRT13M Overview

Trigger Output Optocoupler, 1-Element, 5300V Isolation, DIP-6

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	DIP-6
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Configuration	SINGLE
Maximum forward current	0.02 A
Nominal input trigger current	3 mA
Maximum insulation voltage	5300 V
JESD-609 code	e3
Number of components	1
Maximum on-state current	0.3 A
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIGGER OUTPUT OPTOCOUPLER
Minimum off-state peak voltage	800 V
Terminal surface	Matte Tin (Sn)

	BRT13M	BRT11H	BRT11M
Description	Trigger Output Optocoupler, 1-Element, 5300V Isolation, DIP-6	Trigger Output Optocoupler, 1-Element, 5300V Isolation, DIP-6	Trigger Output Optocoupler, 1-Element, 5300V Isolation, DIP-6
Is it Rohs certified?	conform to	conform to	conform to
Maker	Vishay	Vishay	Vishay
package instruction	DIP-6	DIP-6	DIP-6
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.02 A
Nominal input trigger current	3 mA	2 mA	3 mA
Maximum insulation voltage	5300 V	5300 V	5300 V
JESD-609 code	e3	e3	e3
Number of components	1	1	1
Maximum on-state current	0.3 A	0.3 A	0.3 A
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRIGGER OUTPUT OPTOCOUPLER	TRIGGER OUTPUT OPTOCOUPLER	TRIGGER OUTPUT OPTOCOUPLER
Minimum off-state peak voltage	800 V	400 V	400 V
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Is it lead-free?	Lead free	Lead free	-
