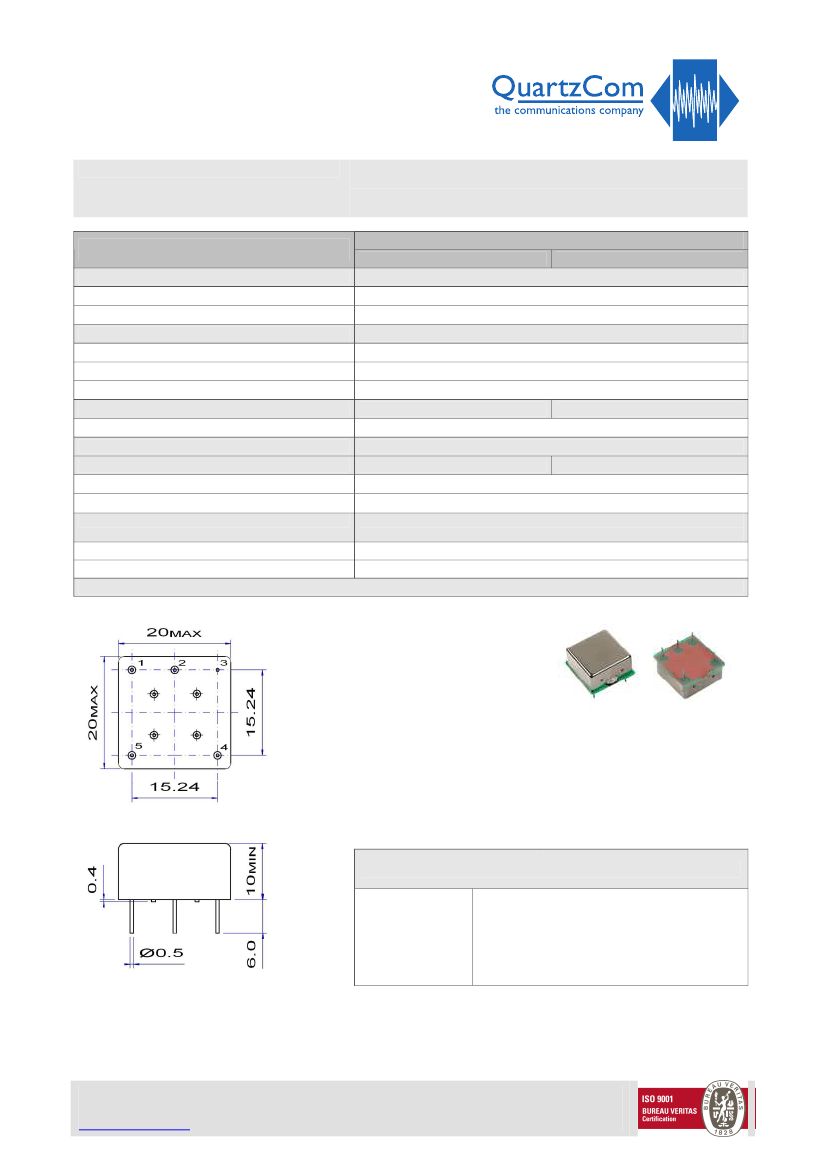

TXE-205S
Through hole TCXO
Sine wave
Features
Applications: mobile communications, instrumentation
Frequency range up to 200 MHz
Tight frequency stability vs. temperature
Low phase noise
Parameter
Frequency range
Standard frequencies
Frequency stability:
vs. temperature
vs. supply & load change
vs. aging
Frequency tolerance ex. factory
Supply voltage
Supply current
Output signal
Output level
Output load
Frequency adjustment (optional)
Operating temperature range
Storage temperature range
Packaging unit
Customer specifications on request
Specification
TXE-205S3
TXE-205S5
9.6 ~ 200 MHz
10.00, 12.80, 13.00, 16.384, 20.00, 25.00, 38.40 & 40.00 MHz
≤ ±0.5
~
±2.5
ppm
≤ ±0.2
ppm
≤ ±1.0
ppm
≤ ±0.5
ppm
+3.3 V
±5
%
3 ~ 30 mA
sine wave
3 dBm ±3 dBm
50
> ±5 ppm
with internal trimmer
-30 ~ +75 °
C
commercial application
-40 ~ +85 °
C
industrial application
-55 ~ +125 °
C
cardboard box
50 pieces
9 dBm ±2 dBm
±5
%
1 year
@ +25 °
C
+5.0 V
±5
%
st
Pin function
#1
#2
#3
#4
#5
not connected
RF Output
GND
Vc Voltage control
GND
Phase noise @ 25 MHz
-100 dBc/Hz
-130 dBc/Hz
-145 dBc/Hz
-150 dBc/Hz
-155 dBc/Hz
@
10 Hz
@ 100 Hz
@
1 kHz
@ 10 kHz
@ 100 kHz
Environmental & Mechanical specification
Shock
Vibration
Solderability
Seal integrity
MIL-STD-883C, Method 2002, Con B
MIL-STD-883C, Method 2007, Con A
MIL-STD-883C, Method 2003
MIL-STD-883C, Method 2014, Con C&A2
2002/95/EC RoHS compliant
QuartzCom AG
sales@quartzcom.com
www.quartzcom.com
QuartzCom Asia
sales-asia@quartzcom.com
QuartzCom USA
sales-usa@quartzcom.com
30 Apr. 10
