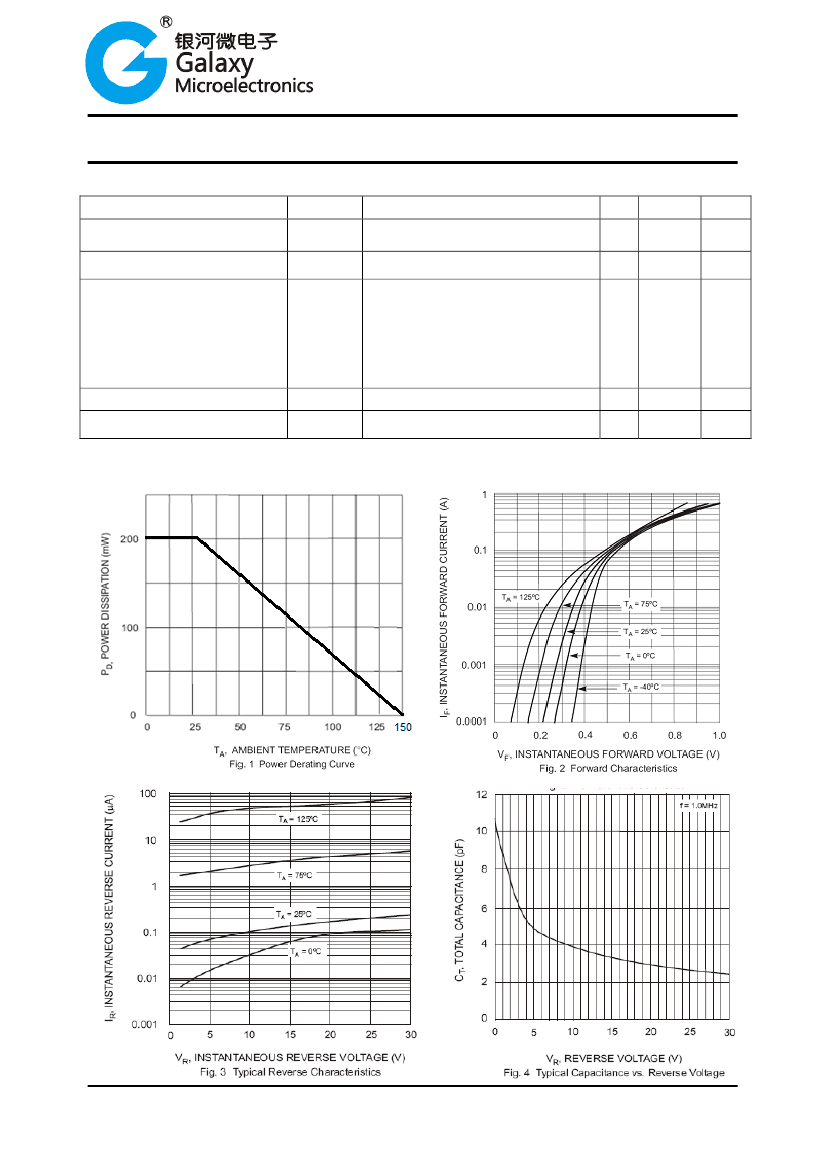

0.2A,30V,Surface Mount Small Signal Schottky Diodes, Diode, 30V, 0.2A, 1V, 0.1A, 0.6A, 2uA
| Parameter Name | Attribute value |
| Maker | Galaxy Microelectronics |
| Parts packaging code | SOT-523 |
| Reach Compliance Code | unknown |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JESD-30 code | R-PDSO-G3 |
| Number of components | 2 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 0.2 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Maximum power dissipation | 0.15 W |
| Maximum repetitive peak reverse voltage | 30 V |
| Maximum reverse recovery time | 0.005 µs |
| surface mount | YES |
| technology | SCHOTTKY |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| category | |
| VRRM (V) max | 30 |
| IF (A) max | 0.2 |
| VF (V) max | 1 |
| Condition1_IF (A) | 0.1 |
| IFSM (A) max | 0.6 |
| IR (uA) max | 2 |
| Condition2_VR (V) | 25 |
| trr (ns) max | 5 |
| AEC Qualified | No |
| Maximum operating temperature | 125 |
| Minimum operating temperature | -55 |
| MSL level | 1 |
| Is it lead-free? | Yes |
| Comply with Reach | Yes |
| RoHS compliant | Yes |
| ECCN code | EAR99 |
| Package Outlines | SOT-523 |
| BAT54ST | BAT54CT | BAT54AT | |
|---|---|---|---|
| Description | 0.2A,30V,Surface Mount Small Signal Schottky Diodes, Diode, 30V, 0.2A, 1V, 0.1A, 0.6A, 2uA | 0.2A,30V,Surface Mount Small Signal Schottky Diodes, Diode, 30V, 0.2A, 1V, 0.1A, 0.6A, 2uA | 0.2A,30V,Surface Mount Small Signal Schottky Diodes, Diode, 30V, 0.2A, 1V, 0.1A, 0.6A, 2uA |
| Maker | Galaxy Microelectronics | Galaxy Microelectronics | Galaxy Microelectronics |
| Parts packaging code | SOT-523 | SOT-523 | SOT-523 |
| Reach Compliance Code | unknown | unknown | unknown |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON ANODE, 2 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JESD-30 code | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 |
| Number of components | 2 | 2 | 2 |
| Number of terminals | 3 | 3 | 3 |
| Maximum output current | 0.2 A | 0.2 A | 0.2 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Maximum power dissipation | 0.15 W | 0.15 W | 0.15 W |
| Maximum repetitive peak reverse voltage | 30 V | 30 V | 30 V |
| Maximum reverse recovery time | 0.005 µs | 0.005 µs | 0.005 µs |
| surface mount | YES | YES | YES |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL |
| VRRM (V) max | 30 | 30 | 30 |
| IF (A) max | 0.2 | 0.2 | 0.2 |
| VF (V) max | 1 | 1 | 1 |
| Condition1_IF (A) | 0.1 | 0.1 | 0.1 |
| IFSM (A) max | 0.6 | 0.6 | 0.6 |
| IR (uA) max | 2 | 2 | 2 |
| Condition2_VR (V) | 25 | 25 | 25 |
| trr (ns) max | 5 | 5 | 5 |
| AEC Qualified | No | No | No |
| MSL level | 1 | 1 | 1 |
| Is it lead-free? | Yes | Yes | Yes |
| Comply with Reach | Yes | Yes | Yes |
| RoHS compliant | Yes | Yes | Yes |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Package Outlines | SOT-523 | SOT-523 | SOT-523 |
| Maximum operating temperature | 125 | 125 | 125 |
| Minimum operating temperature | -55 | -55 | -55 |
