BAS70DW-04: DescriptionRectifier Diode, Schottky, 4 Element, 0.07A, 70V V(RRM), Silicon, LEAD FREE, SC-88, 6 PIN; CategoryDiscrete semiconductor diode; File Size439KB，4 Pages; ManufacturerWeitron Technology; Websitehttp://weitron.com.tw/

Download Datasheet Parametric Compare View All

BAS70DW-04 Overview

Rectifier Diode, Schottky, 4 Element, 0.07A, 70V V(RRM), Silicon, LEAD FREE, SC-88, 6 PIN

BAS70DW-04 Parametric

Parameter Name	Attribute value
Maker	Weitron Technology
Parts packaging code	SC-88
package instruction	R-PDSO-G6
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G6
Number of components	4
Number of terminals	6
Maximum operating temperature	125 °C
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	70 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

WEITRON

Surface Mount Schottky Barrier Diodes Arrays

Features:

* Low Forward voltage drop

* Fast switching

BAS70TDW/BAS70DW-04

BAS70DW-05/BAS70DW-06

BAS70BRW

SMALL SIGNAL

SCHOTTKY DIODES

70m AMPERES

70 VOLTS

6 5

SOT-363(SC-88)

SOT-363 Outline Dimensions

Unit:mm

SOT-363

B C

Dim

Min

Max

0.10

0.30

1.15

1.35

2.00

2.20

0.65 REF

0.30

0.40

1.80

2.20

0.10

0.80

1.10

0.25

0.40

0.10

0.25

WEITRON

hpp://www.weitron.com.tw

1/4

22-Apr-2011

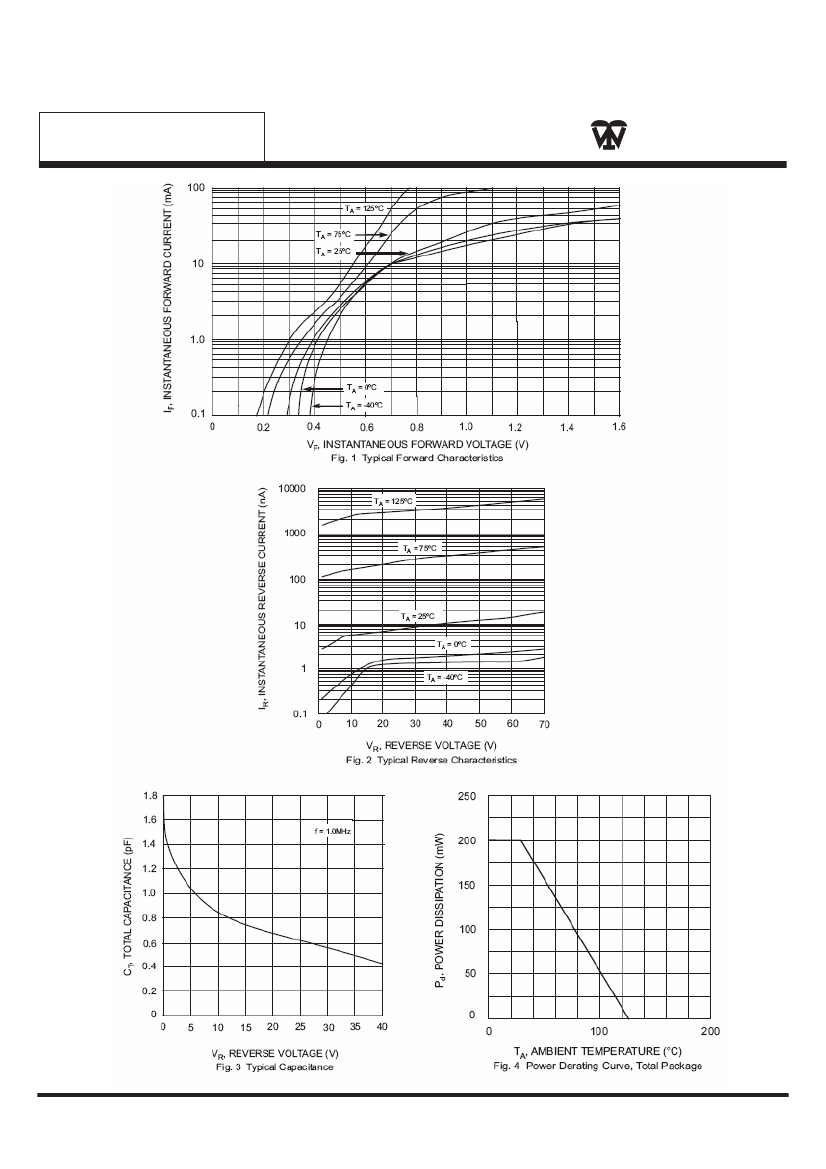

BAS70DW-04 Related Products

	BAS70DW-04	BAS70BRW	BAS70DW-05	BAS70DW-06
Description	Rectifier Diode, Schottky, 4 Element, 0.07A, 70V V(RRM), Silicon, LEAD FREE, SC-88, 6 PIN	Rectifier Diode, Schottky, 4 Element, 0.07A, 70V V(RRM), Silicon, LEAD FREE, SC-88, 6 PIN	Rectifier Diode, Schottky, 4 Element, 0.07A, 70V V(RRM), Silicon, LEAD FREE, SC-88, 6 PIN	Rectifier Diode, Schottky, 4 Element, 0.07A, 70V V(RRM), Silicon, LEAD FREE, SC-88, 6 PIN
Maker	Weitron Technology	Weitron Technology	Weitron Technology	Weitron Technology
Parts packaging code	SC-88	SC-88	SC-88	SC-88
package instruction	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6
Contacts	6	6	6	6
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	2 BANKS, COMMON CATHODE, 2 ELEMENTS	2 BANKS, COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6
Number of components	4	4	4	4
Number of terminals	6	6	6	6
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Maximum output current	0.07 A	0.07 A	0.07 A	0.07 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.2 W	0.2 W	0.2 W	0.2 W
Maximum repetitive peak reverse voltage	70 V	70 V	70 V	70 V
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
