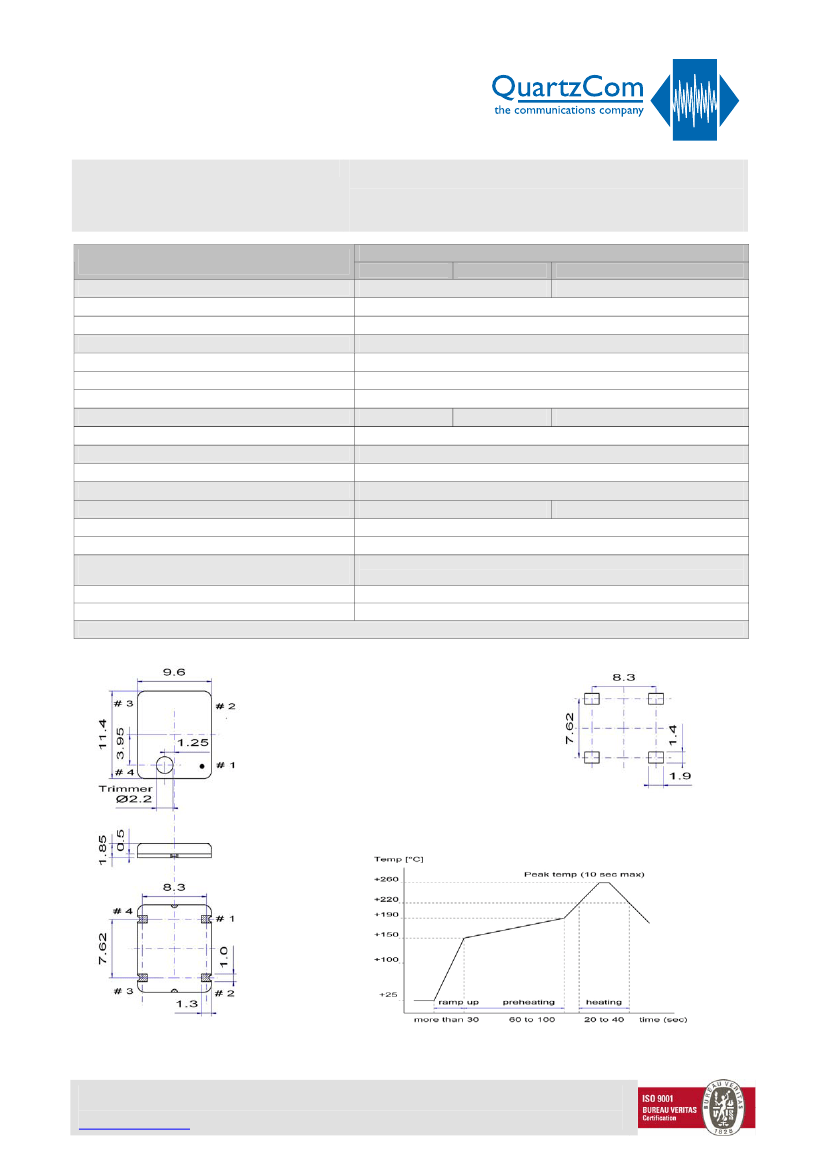

VT3-801HTF
SMD VC-TCXO
HCMOS
Features
Applications: mobile communications, instrumentation,
microwave
Frequency range up to 50 MHz
Tight frequency stability vs. temperature
Low phase noise
Parameter
Frequency range
Standard frequencies
Frequency stability:
vs. temperature
vs. supply & load change
vs. aging
Frequency tolerance ex. factory
Supply voltage
Supply current
Output signal
Output load
Frequency pulling range
Voltage control
Frequency adjustment
Phase noise @ 13.0 MHz carrier frequency
Operating temperature range
Storage temperature range
Packaging units
Customer specifications on request
Specification
VT3-801HTFL VT3-801HTFM
VT3-801HTFS
10 ~ 30 MHz
10 ~ 50 MHz
10.00, 13.00, 16.384, 19.20, 19.44, 20.00, 20.48 & 27.00 MHz
≤ ±1.0
~
±
2.5 ppm
≤ ±0.2
ppm
±5
%
st
≤ ±1.0
ppm
1 year
≤ ±0.5
ppm
@ +25 °C
3.3 V
±5
%
5.0 V
±5
%
4 ~ 15 mA
HCMOS
15 pF
±10
~
±15
ppm
+1.65 V
±1.0
V
+2.5 V
±1.0
V
> ± 3 ppm
by internal trimmer
-140 dBc/Hz
@ 1 kHz
-30 ~ +75 °C
commercial application
-40 ~ +85 °C
industrial application
-55 ~ +125 °C
tape & reel
500 or 1’000 pieces
3.0 V
±5
%
Pin function
#1
#2
#3
#4
Vc Voltage control
GND
Output
Vdc
Example for solder pattern
Do not design any conductive path between the pattern
Example for IR reflow soldering temperature
2002/95/EC RoHS compliant
