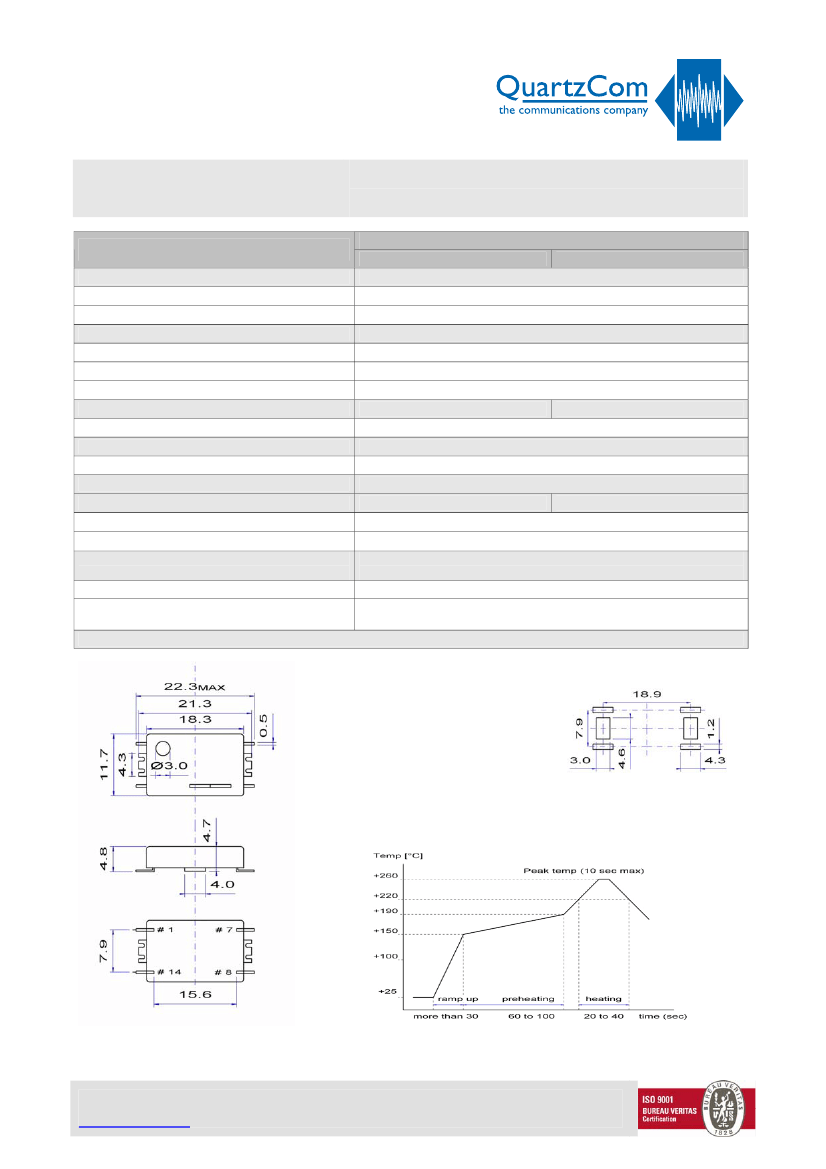

VT5-256AL

SMD VC-TCXO

Clipped sine wave

Features

Applications: mobile communications, instrumentation, broadcast

Frequency range up to 200 MHz

Tight frequency stability vs. temperature

Low phase noise

Parameter

Frequency range

Standard frequencies

Frequency stability:

vs. temperature

vs. supply & load change

vs. aging

Frequency tolerance ex. factory

Supply voltage

Supply current

Output signal

Output load

Frequency pulling range

Voltage control

Frequency adjustment

Phase noise @ 20.0 MHz carrier frequency

Operating temperature range

Storage temperature range

Packaging units

Customer specifications on request

Specification

VT5-256AL3

9.6 ~ 200 MHz

10.00, 12.80, 15.36, 16.384, 20.00, 26.00 & 27.00 MHz

≤ ±0.5

±2.5

ppm

≤ ±0.2

ppm

≤ ±1.0

ppm

≤ ±0.5

ppm

+3.3 V

±5

1.5 ~ 20 mA

> 1.0 Vp-p

clipped sine wave

10 kΩ // 10 pF

±5

±40

ppm

+1.65 V

±1.50

> ±5 ppm

-142 dBc/Hz

-20 ~ +70 °C

-40 ~ +85 °C

tape & reel

tray

+2.5 V

±2.0

with internal trimmer

@ 1 kHz

commercial application

industrial application

-55 ~ +125 °C

500 pieces

50 pieces

±5

year

@ +25 °C

+5.0 V

±5

VT5-256AL5

Pin function

# 1

# 7

# 8

# 14

Vc Voltage control

GND

Output

Vdc

Example for solder pattern

Do not design any conductive path between the pattern

Example for IR reflow soldering temperature

2002/95/EC RoHS compliant

QuartzCom AG

sales@quartzcom.com

www.quartzcom.com

QuartzCom Asia

sales-asia@quartzcom.com

QuartzCom USA

sales-usa@quartzcom.com

02 May. 10
