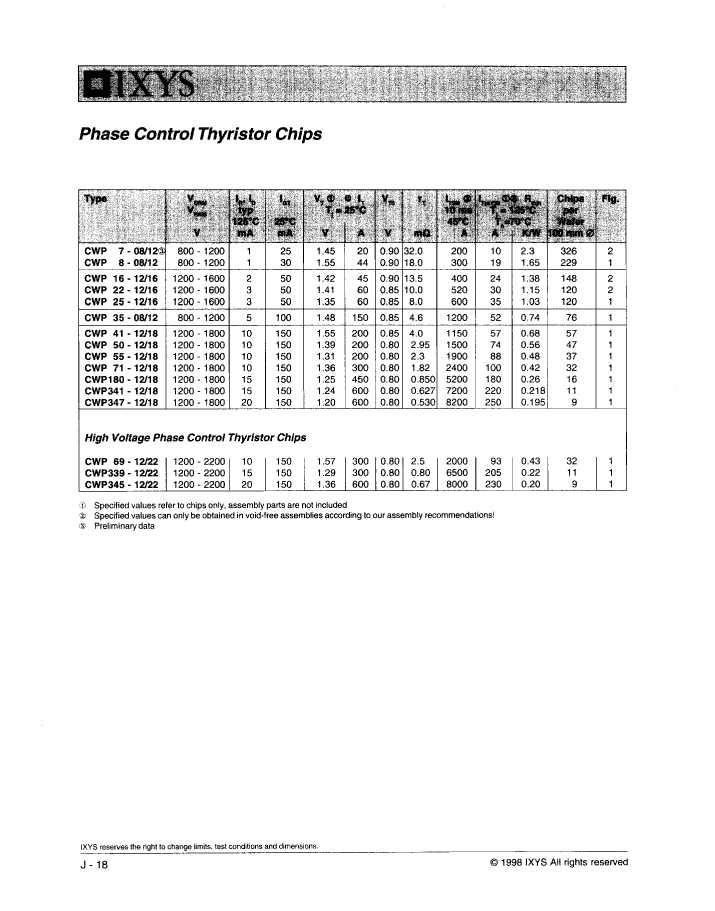

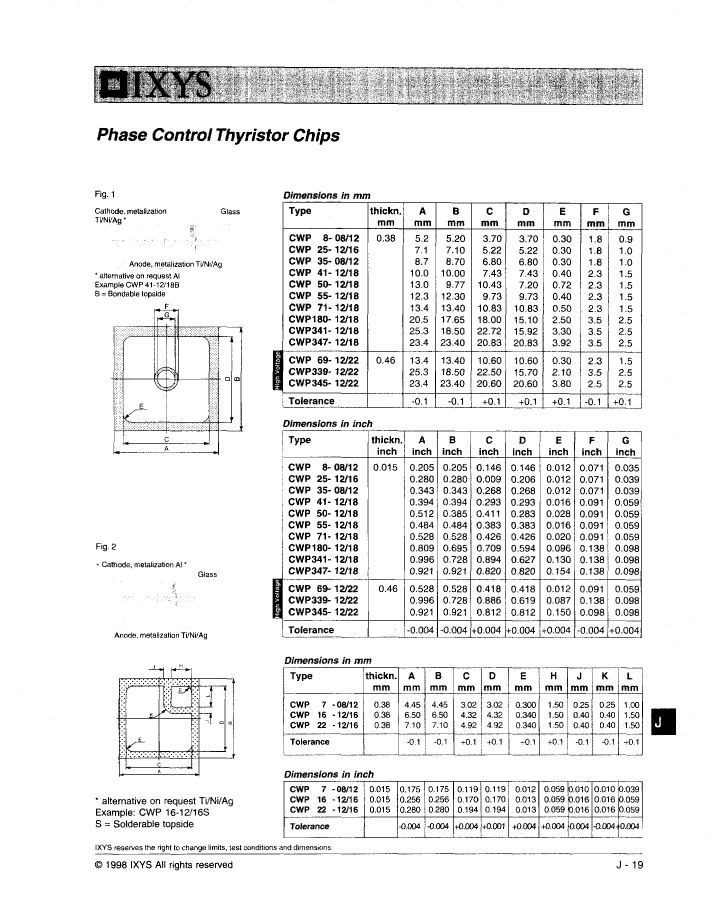

T-CWP345-12 Overview

Silicon Controlled Rectifier, 361.1A I(T)RMS, 1200V V(DRM), 1200V V(RRM), 1 Element,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IXYS
Reach Compliance Code	compliant
Configuration	SINGLE
Maximum DC gate trigger current	150 mA
JESD-30 code	S-XUUC-N3
Number of components	1
Number of terminals	3
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum rms on-state current	361.1 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	35
Trigger device type	SCR
