LC-204MD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LC-204MD

LC-204MD: DescriptionSmart/Normal 7 Seg Numeric LED Display, 4-Character, Green, 6mm; CategoryLED optoelectronic/LED photoelectric; File Size204KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

LC-204MD Overview

Smart/Normal 7 Seg Numeric LED Display, 4-Character, Green, 6mm

LC-204MD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
Reach Compliance Code	compliant
color	GREEN
color@wavelength	Green
Configuration	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT
Display height	6 mm
Maximum forward voltage	2.8 V
JESD-609 code	e0
Number of characters	4
Number of functions	4
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Terminal surface	Tin/Lead (Sn/Pb)

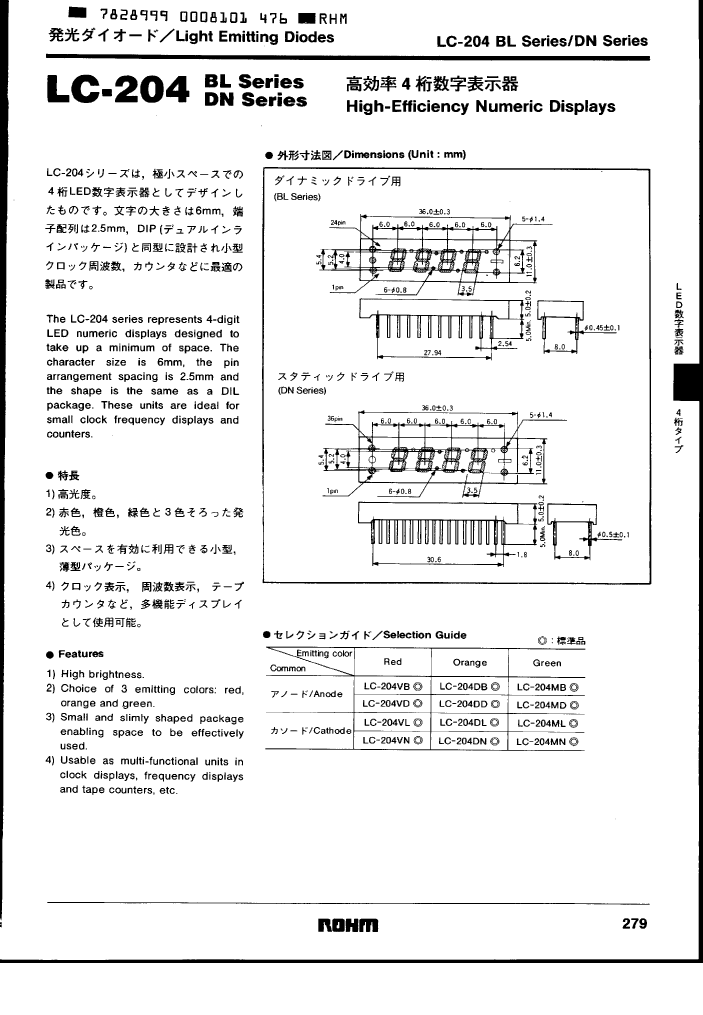

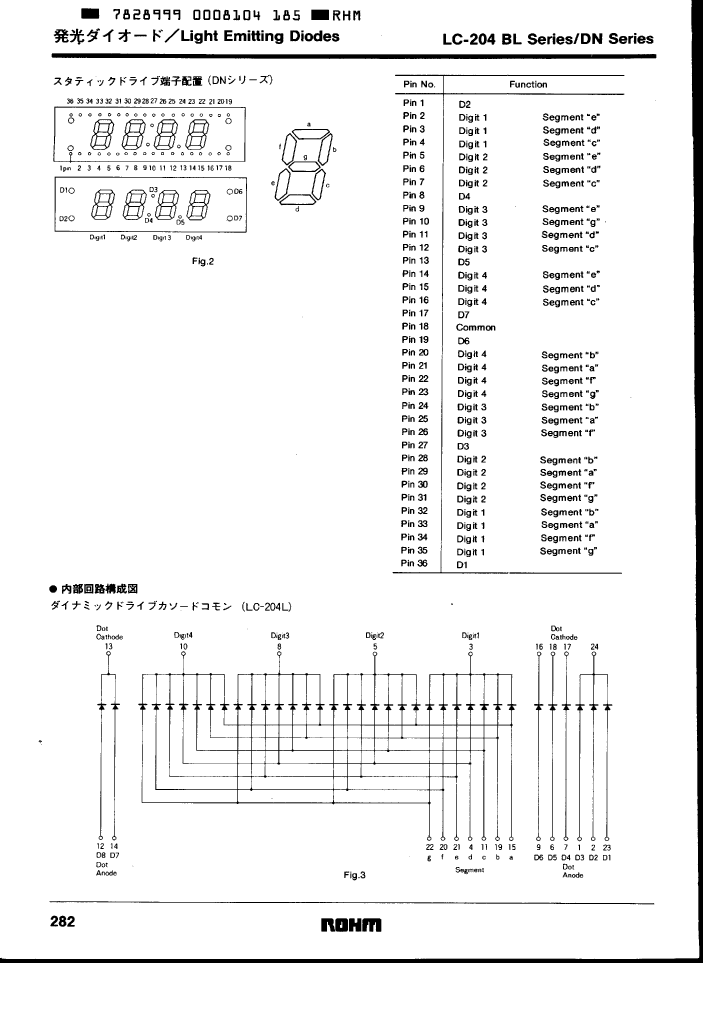

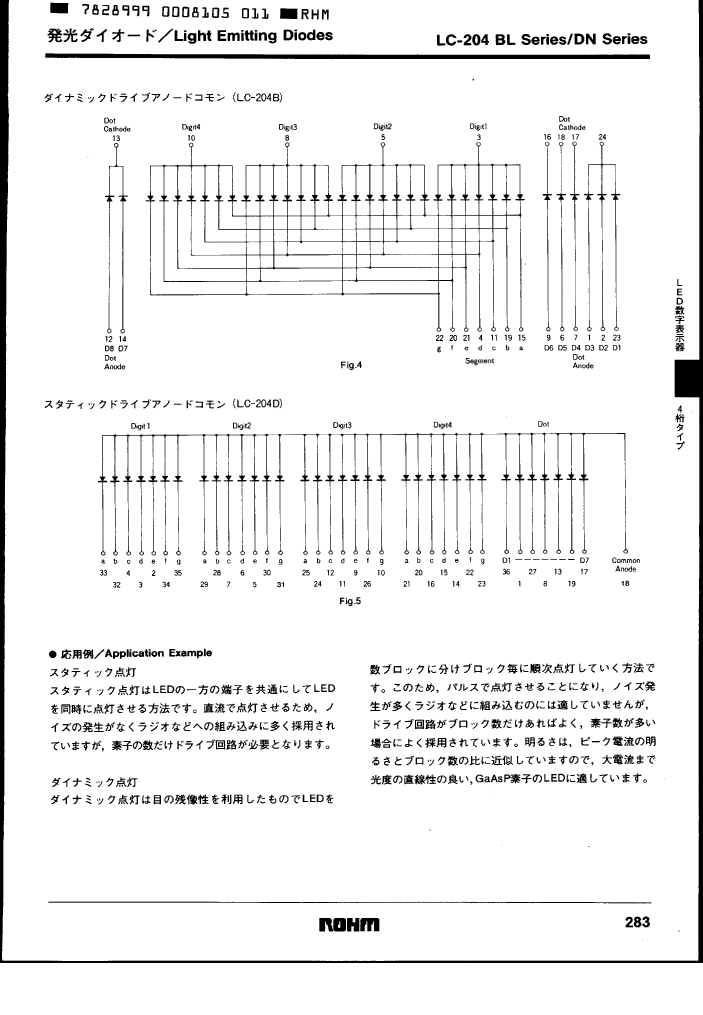

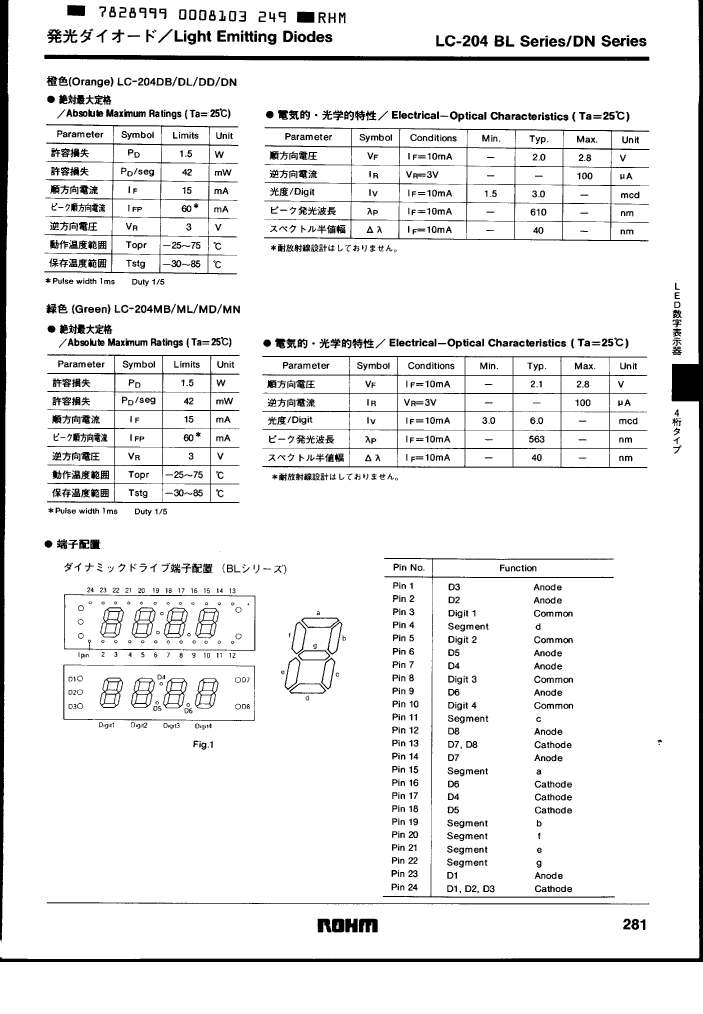

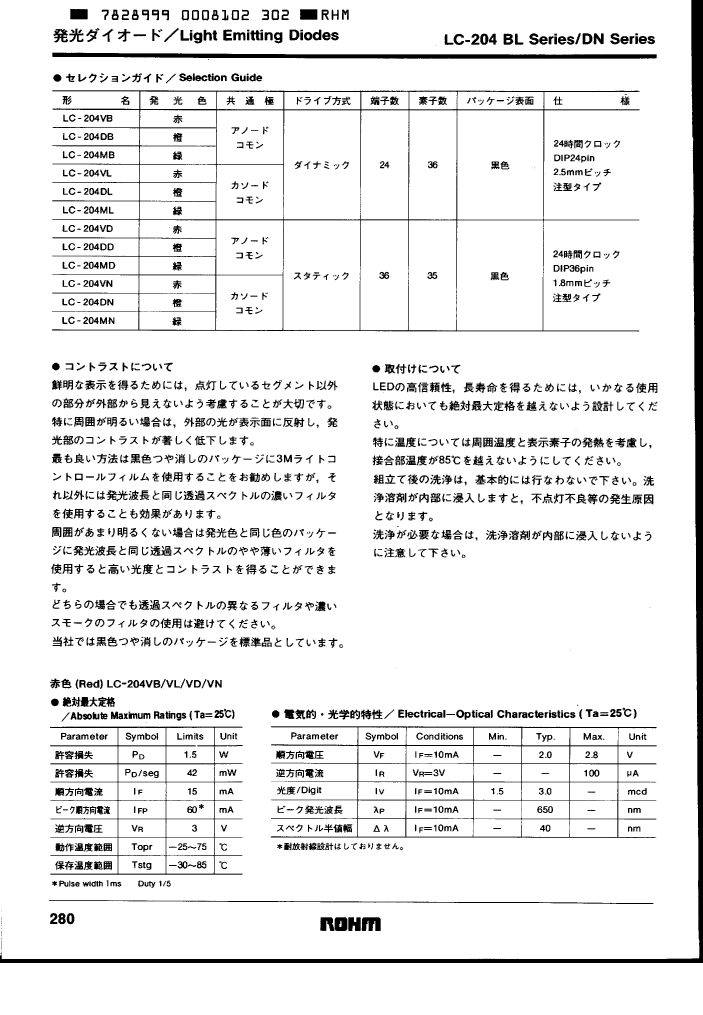

Preview

Download Datasheet

View All

LC-204MD Related Products

	LC-204MD	LC-204MB	LC-204VD	LC-204VL	LC-204DB	LC-204DD	LC-204DL	LC-204DN	LC-204ML	LC-204MN
Description	Smart/Normal 7 Seg Numeric LED Display, 4-Character, Green, 6mm	Smart/Normal 7 Seg Numeric LED Display, 4-Character, Green, 6mm	Smart/Normal 7 Seg Numeric LED Display, 4-Character, Red, 6mm	Smart/Normal 7 Seg Numeric LED Display, 4-Character, Red, 6mm	Smart/Normal 7 Seg Numeric LED Display, 4-Character, Orange, 6mm	Smart/Normal 7 Seg Numeric LED Display, 4-Character, Orange, 6mm	Smart/Normal 7 Seg Numeric LED Display, 4-Character, Orange, 6mm	Smart/Normal 7 Seg Numeric LED Display, 4-Character, Orange, 6mm	Smart/Normal 7 Seg Numeric LED Display, 4-Character, Green, 6mm	Smart/Normal 7 Seg Numeric LED Display, 4-Character, Green, 6mm
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	GREEN	GREEN	RED	RED	ORANGE	ORANGE	ORANGE	ORANGE	GREEN	GREEN
color@wavelength	Green	Green	Red	Red	Orange	Orange	Orange	Orange	Green	Green
Configuration	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	Common Anode	Common Cathode	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT
Display height	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm	6 mm
Maximum forward voltage	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of characters	4	4	4	4	4	4	4	4	4	4
Number of functions	4	4	4	4	4	4	4	4	4	4
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	ROHM Semiconductor	ROHM Semiconductor	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
