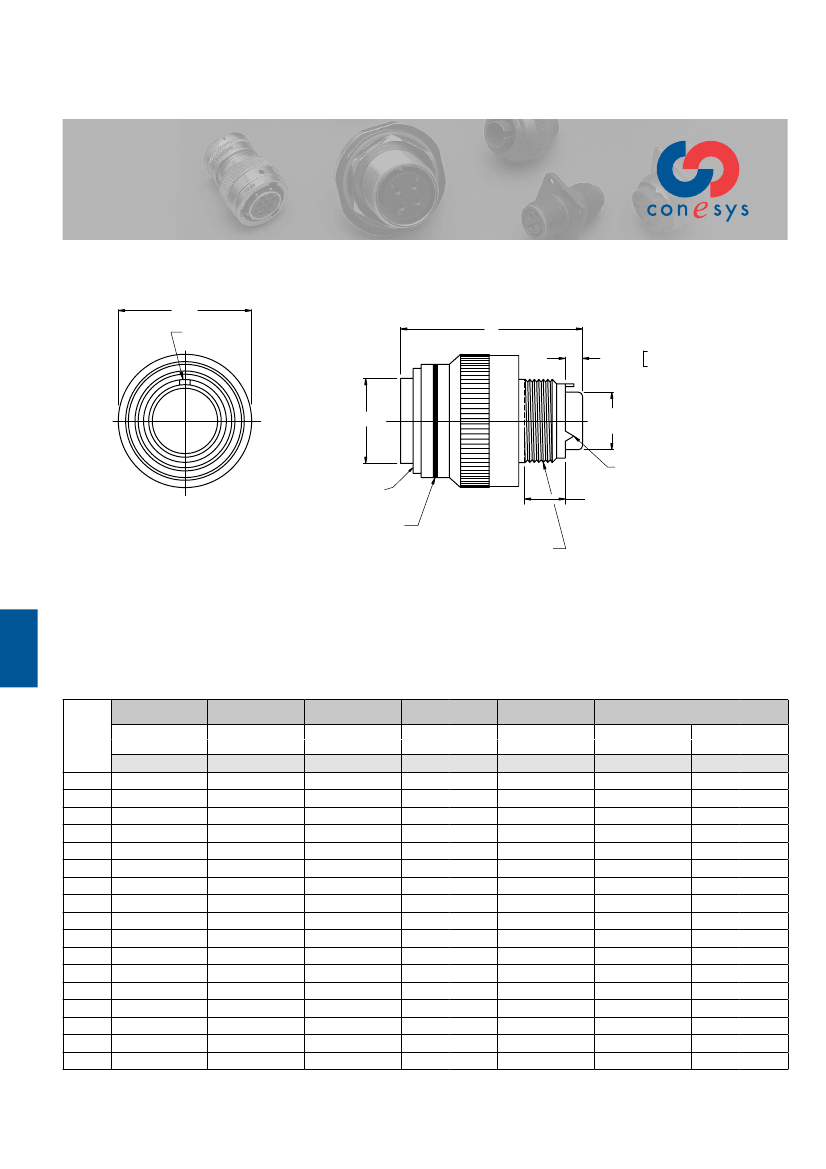

MS3459 per AS34591
Self-Locking Plug
AE559
Threaded Coupling, Crimp Removable, Rear Release
MAX
POLARIZING
KEYWAY
C
MAX
L
GROMMET
EXTENSION .190(4.83)
.130(3.30)
FOR 16 AND 12 CONTACTS
.340(8.64)
.130(3.30)
FOR 8,4, AND 0 CONTACTS
D
MAX
GROMMET
E
3
ACCESSORY TEETH
A
MATING THREAD
BLUE COLOR BAND
MIN FULL THREAD
.290(7.37) FOR 8S-24
.467(11.86) FOR 28-40
B
ACCESSORY THREAD
Page 65
Page 75
Pages 82–87
Page 64
Pages 77–81
Page 77
Completed Part Number
Contacts, Sealing Plugs and Tools
Insert Arrangements
Performance Specifications
Insert Availability and Contact Information
Polarization
A
B
Accessory Thread
Class 2A
1/2-20UNF
5/8-24UNEF
5/8-24UNEF
3/4-20UNEF
3/4-20UNEF
7/8-20UNEF
7/8-20UNEF
1-20UNEF
1-20UNEF
1-1/16-18UNEF
1-3/16-18UNEF
1-5/16-18UNEF
1-7/16-18UNEF
1-3/4-18UNS
2-18UNS
2-1/4-16UN
2-1/2-16UN
Ø
C
Maximum
inch
mm
.963
1.088
1.088
1.213
1.213
1.358
1.358
1.463
1.463
1.588
1.713
1.788
1.963
2.213
2.463
2.713
2.963
24.46
27.64
27.64
30.81
30.81
34.49
34.49
37.16
37.16
40.34
43.51
45.42
49.86
56.21
62.56
68.91
75.26
±.005
inch
.360
.435
.443*
.550
.550
.670
.670
.800
.800
.925
1.045
1.170
1.295
1.515
1.765
1.975
2.225
Ø
D
±.13
mm
9.14
11.05
11.25*
13.97
13.97
17.02
17.02
20.32
20.32
23.50
26.54
29.72
32.89
38.48
44.83
50.17
56.52
Ø
E
Maximum
inch
mm
.305
.405
.405
.549
.549
.665
.665
.790
.790
.869
.994
1.119
1.244
1.465
1.715
1.930
2.145
7.75
10.29
10.29
13.94
13.94
16.89
16.89
20.07
20.07
22.07
25.25
28.42
31.60
37.21
43.56
49.02
54.48
5015 S III
L
MAX
16 & 12
Contacts
inch
mm
2.031
2.031
2.031
2.125
2.031
2.125
2.031
2.125
2.031
2.125
2.125
2.125
2.125
2.125
2.125
2.125
2.125
51.59
51.59
51.59
53.98
51.59
53.98
51.59
53.98
51.59
53.98
53.98
53.98
53.98
53.98
53.98
53.98
53.98
8, 4 & 0
Contacts
inch
mm
–
–
–
–
–
–
–
2.500
–
2.500
2.500
2.500
2.500
2.500
2.500
2.500
2.500
–
–
–
–
–
–
–
63.50
–
63.50
63.50
63.50
63.50
63.50
63.50
63.50
63.50
Shell
Size
8S
10S
10SL
12
12S
14
14S
16
16S
18
20
22
24
28
32
36
40
Mating Thread
Class 2B
1/2-28 UNEF
5/8-24 UNEF
5/8-24 UNEF
3/4-20 UNEF
3/4-20 UNEF
7/8-20 UNEF
7/8-20 UNEF
1-20 UNEF
1-20 UNEF
1 1/8-18 UNEF
1 1/4-18 UNEF
1 3/8-18 UNEF
1 1/2-18 UNEF
1 3/4-18 UNS
2-18 UNS
2 1/4-16 UN
2 1/2-16 UN
* Tolerance for this dimension is ± .003(.08)
www.conesys.com
– 71 –
