DS2064S datasheet, PDF - EEWORLD Datasheet

DS2064S: DescriptionStandard SRAM, 8KX8, 150ns, CMOS, PDSO28, 0.330 INCH, SOIC-28; Categorystorage storage; File Size39KB，1 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

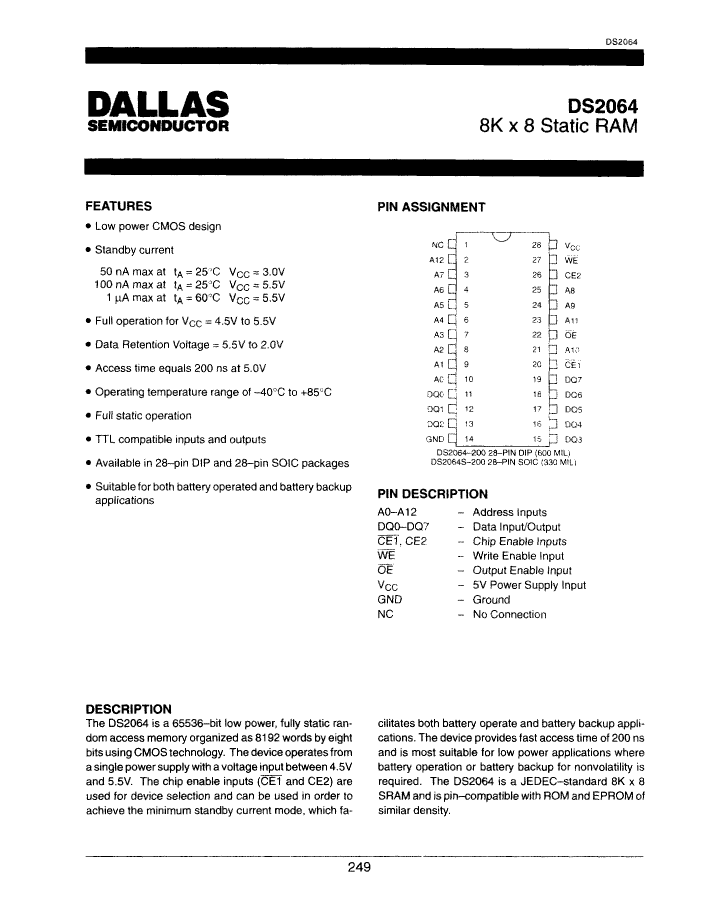

DS2064S Overview

Standard SRAM, 8KX8, 150ns, CMOS, PDSO28, 0.330 INCH, SOIC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
package instruction	0.330 INCH, SOIC-28
Contacts	28
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	150 ns
Other features	DATA RETENTION VOLTAGE=5.5V TO 2.0V/TTL COMPATIBLE INPUT AND OUTPUT
I/O type	COMMON
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	17.9 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.5
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum standby current	0.000001 A
Minimum standby current	2 V
Maximum slew rate	0.07 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

	DS2064S	DS2064
Description	Standard SRAM, 8KX8, 150ns, CMOS, PDSO28, 0.330 INCH, SOIC-28	Standard SRAM, 8KX8, 200ns, CMOS, PDIP28,
Is it Rohs certified?	incompatible	incompatible
Maker	Maxim	Maxim
Reach Compliance Code	not_compliant	not_compliant
Maximum access time	150 ns	200 ns
I/O type	COMMON	COMMON
JESD-30 code	R-PDSO-G28	R-PDIP-T28
JESD-609 code	e0	e0
memory density	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	8	8
Number of terminals	28	28
word count	8192 words	8192 words
character code	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
organize	8KX8	8KX8
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP28,.5	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum standby current	0.000001 A	0.000001 A
Minimum standby current	2 V	2 V
Maximum slew rate	0.07 mA	0.07 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
