BC807-25D87Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC807-25D87Z

BC807-25D87Z: DescriptionSmall Signal Bipolar Transistor, 1.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size121KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

BC807-25D87Z Overview

Small Signal Bipolar Transistor, 1.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN

BC807-25D87Z Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SOT-23
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	1.2 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	160
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

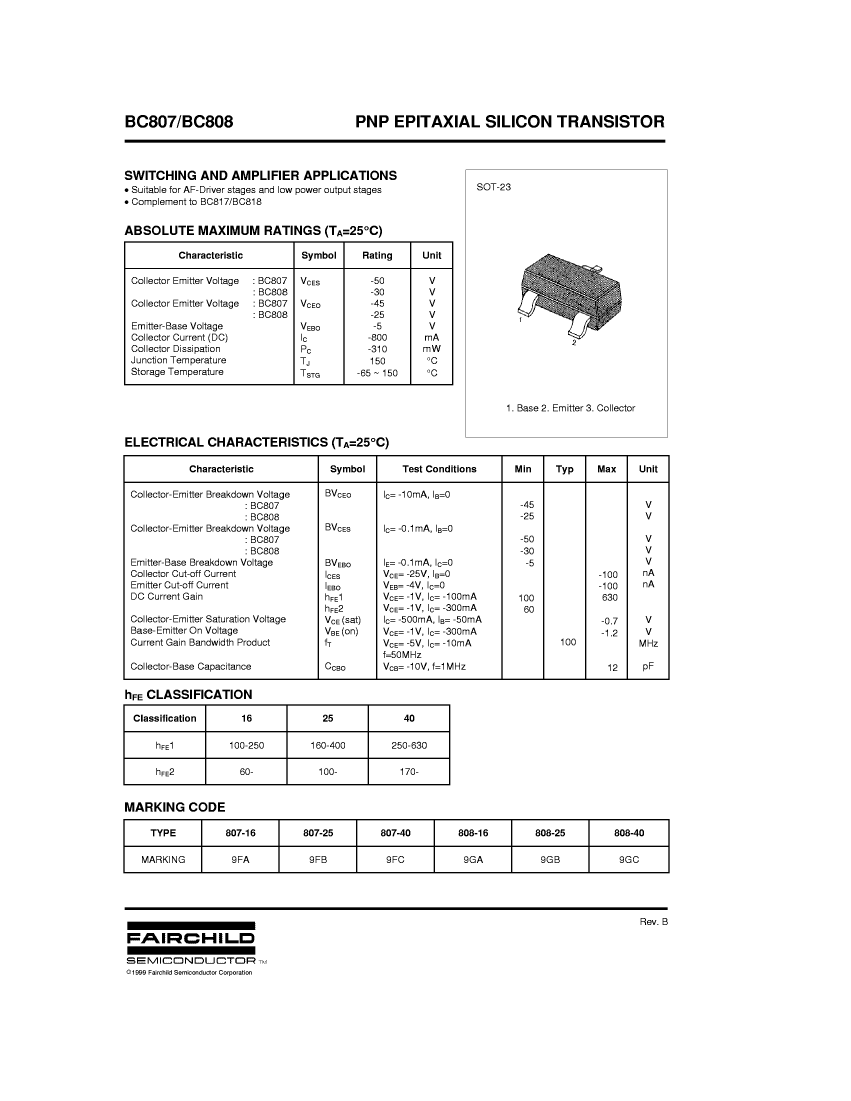

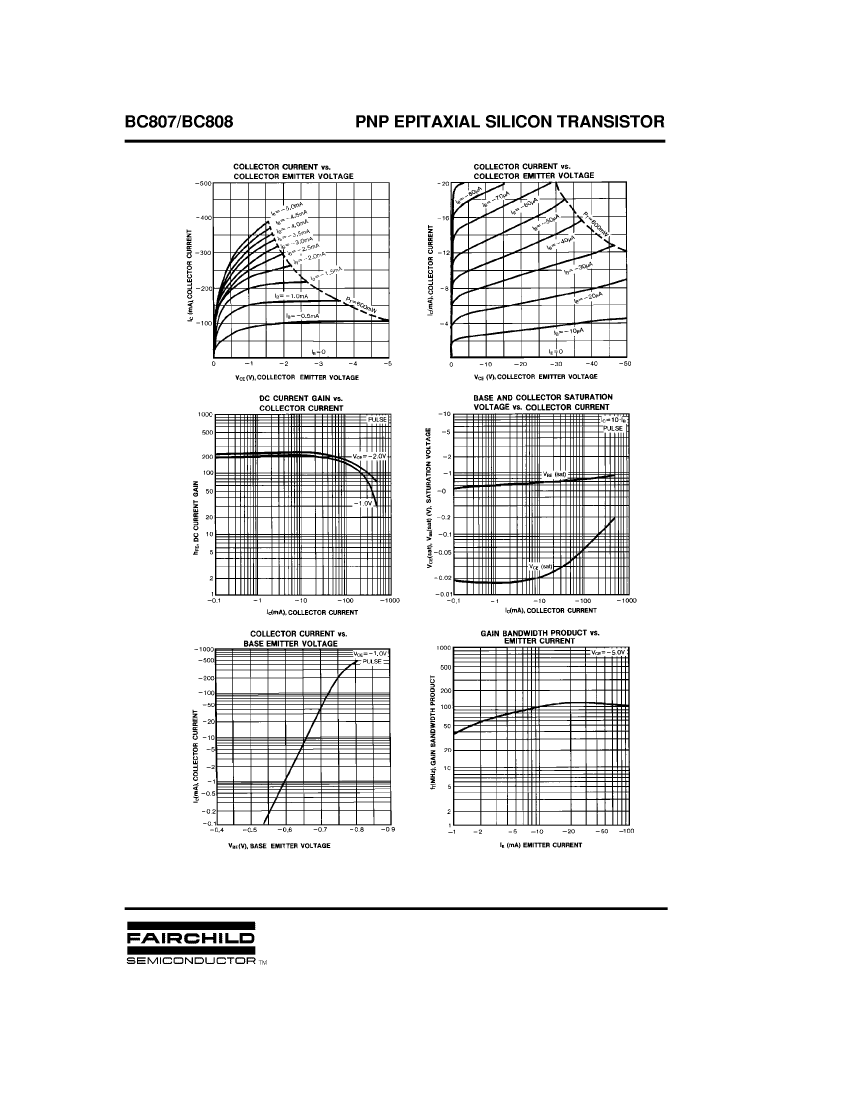

Preview

Download Datasheet

View All

BC807-25D87Z Related Products

	BC807-25D87Z	BC807-16L99Z	BC807-25L99Z	BC807-40L99Z	BC807-16S62Z	BC807-25S62Z	BC807-40D87Z	BC807-16D87Z	BC807D87Z	BC807-40S62Z
Description	Small Signal Bipolar Transistor, 1.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 1.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 1.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Parts packaging code	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	SOT-23	-	SOT-23
Contacts	3	3	3	3	3	3	3	3	-	3
Maximum collector current (IC)	1.2 A	0.8 A	0.8 A	-	0.8 A	0.8 A	-	1.2 A	0.8 A	0.8 A
Collector-emitter maximum voltage	45 V	45 V	45 V	-	45 V	45 V	-	45 V	45 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	160	60	100	-	60	100	-	100	60	170
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-	R-PDSO-G3	R-PDSO-G3	-	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	-	1	1	-	1	1	1
Number of terminals	3	3	3	-	3	3	-	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C	150 °C	-	150 °C	-	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	-	PNP	PNP	-	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	-	YES	YES	-	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	-	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	-	SWITCHING	SWITCHING	-	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	-	SILICON	SILICON	-	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	-	100 MHz	100 MHz	-	100 MHz	100 MHz	100 MHz
Base Number Matches	-	1	1	1	1	1	1	-	-	-
