DFM1MA4 datasheet, PDF - EEWORLD Datasheet

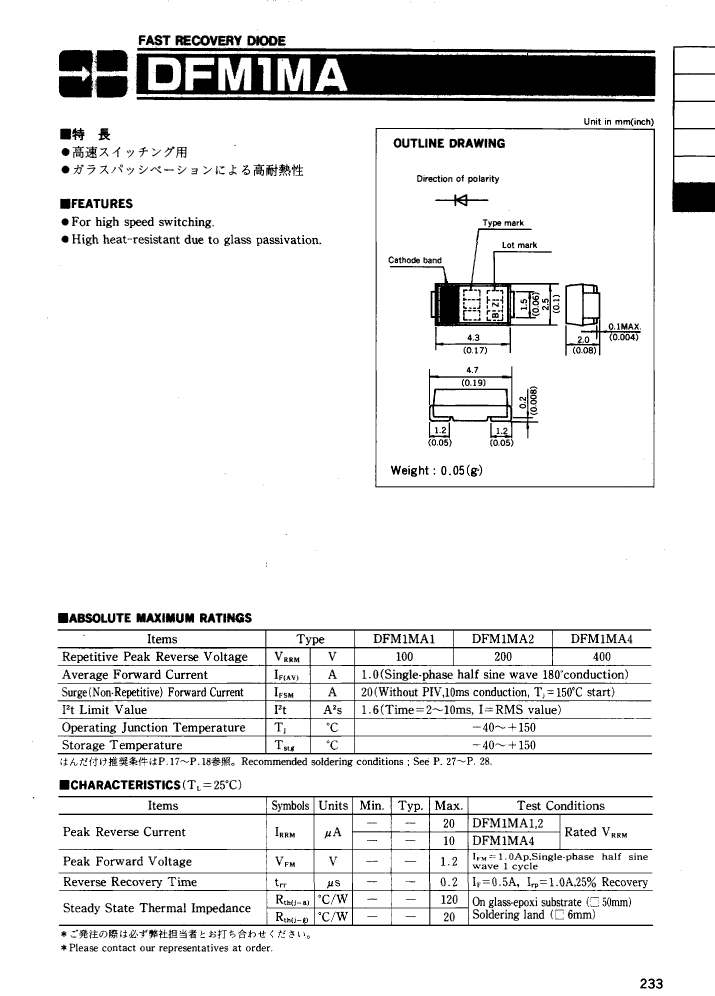

DFM1MA4: Description1A, 400V, SILICON, SIGNAL DIODE, SURFACE MOUNT PACKAGE-2; CategoryDiscrete semiconductor diode; File Size37KB，1 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

DFM1MA4 Overview

1A, 400V, SILICON, SIGNAL DIODE, SURFACE MOUNT PACKAGE-2

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2
Number of components	1
Number of terminals	2
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.2 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL

	DFM1MA4	DFM1MA1	DFM1MA2
Description	1A, 400V, SILICON, SIGNAL DIODE, SURFACE MOUNT PACKAGE-2	1A, 100V, SILICON, SIGNAL DIODE, SURFACE MOUNT PACKAGE-2	1A, 200V, SILICON, SIGNAL DIODE, SURFACE MOUNT PACKAGE-2
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Contacts	2	2	2
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Number of components	1	1	1
Number of terminals	2	2	2
Maximum output current	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	100 V	200 V
Maximum reverse recovery time	0.2 µs	0.2 µs	0.2 µs
surface mount	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation
