EDI5M32128C120GC datasheet, PDF

Datasheet> All Categories > storage> storage> EDI5M32128C120GC

EDI5M32128C120GC: DescriptionEEPROM Module, 512KX8, 120ns, Parallel, CMOS,; Categorystorage storage; File Size266KB，9 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

EDI5M32128C120GC Overview

EEPROM Module, 512KX8, 120ns, Parallel, CMOS,

EDI5M32128C120GC Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
Reach Compliance Code	unknown
Maximum access time	120 ns
Other features	CONFIGURABLE AS 128K X 32
Spare memory width	16
JESD-30 code	S-XHIP-P66
memory density	4194304 bit
Memory IC Type	EEPROM MODULE
memory width	8
Number of functions	1
Number of terminals	66
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	IN-LINE
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal location	HEX

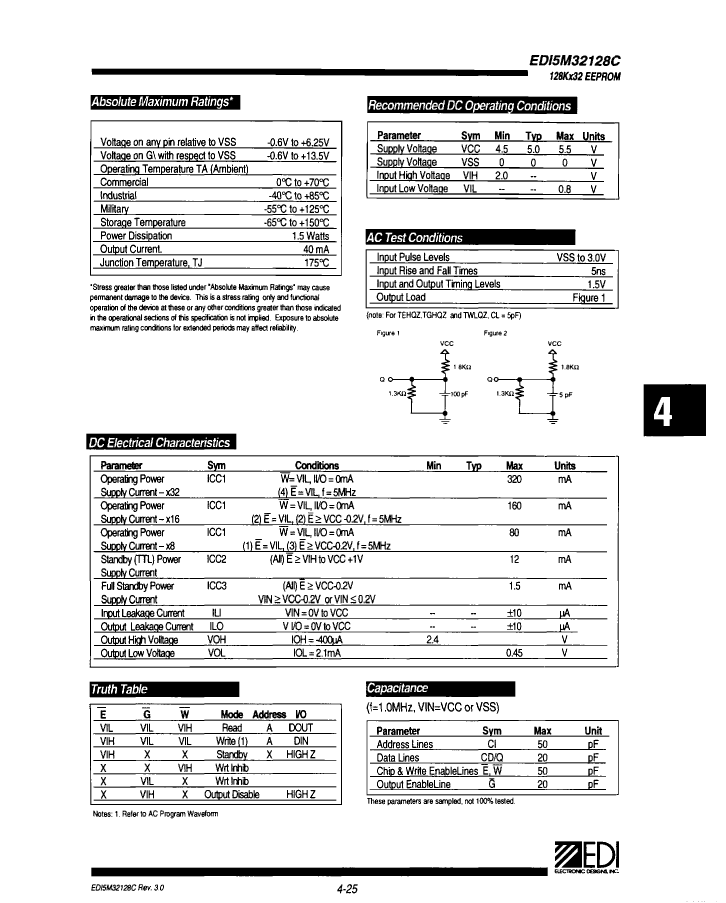

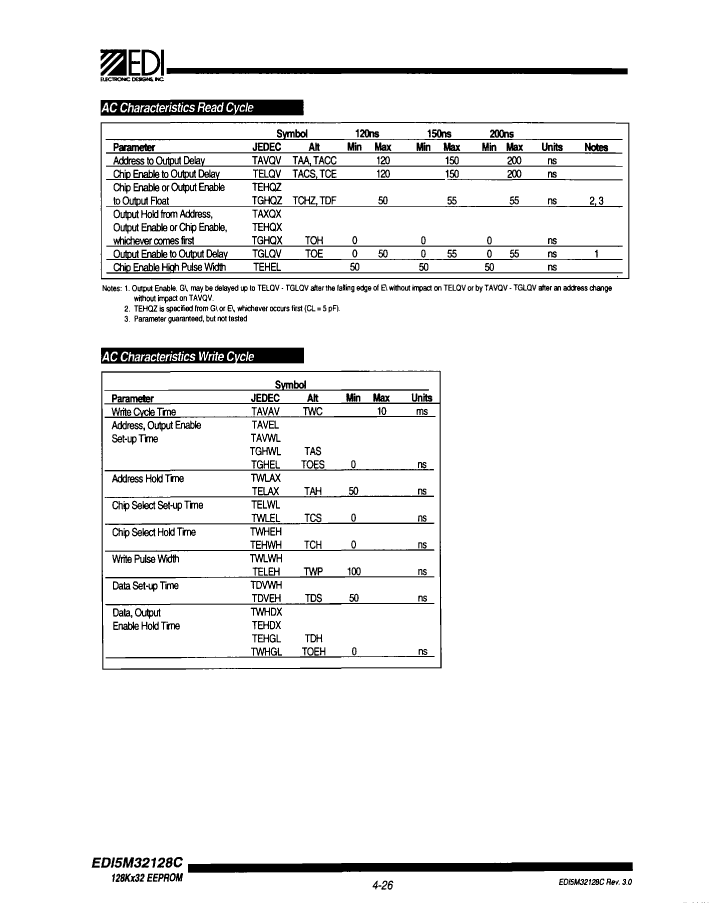

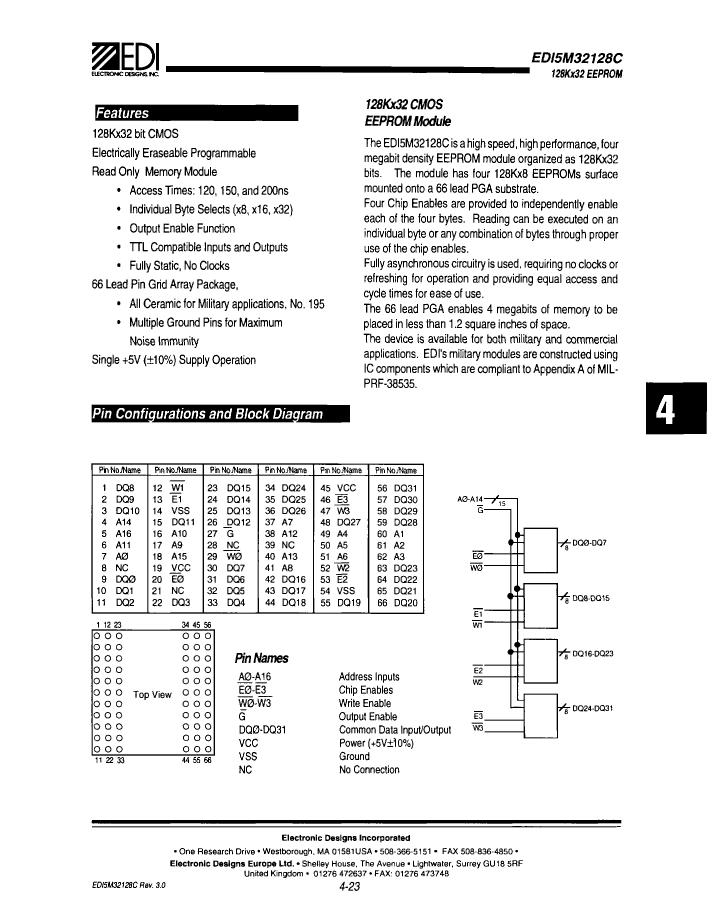

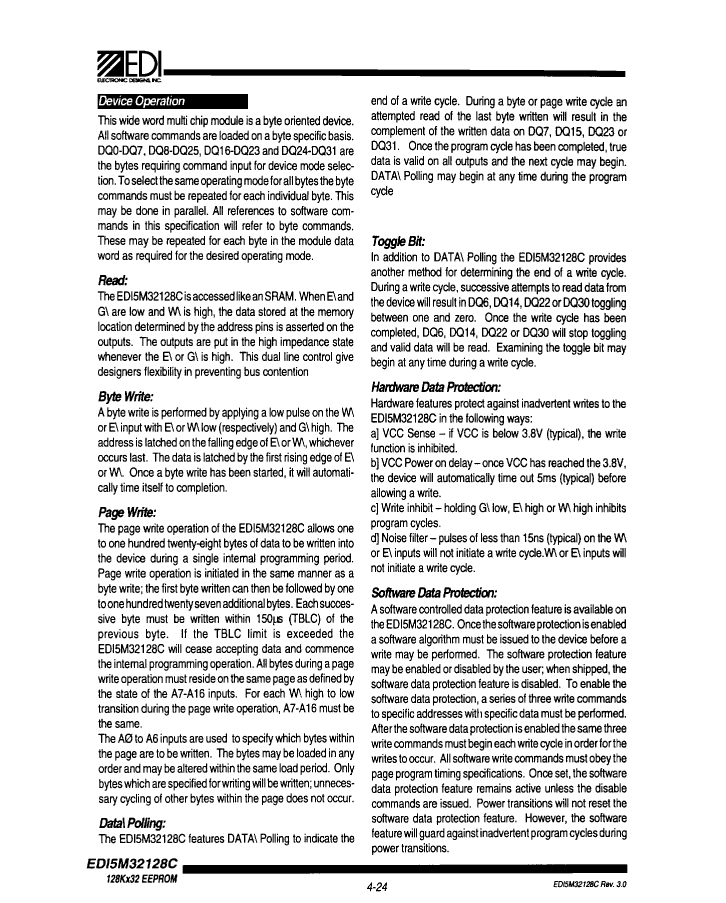

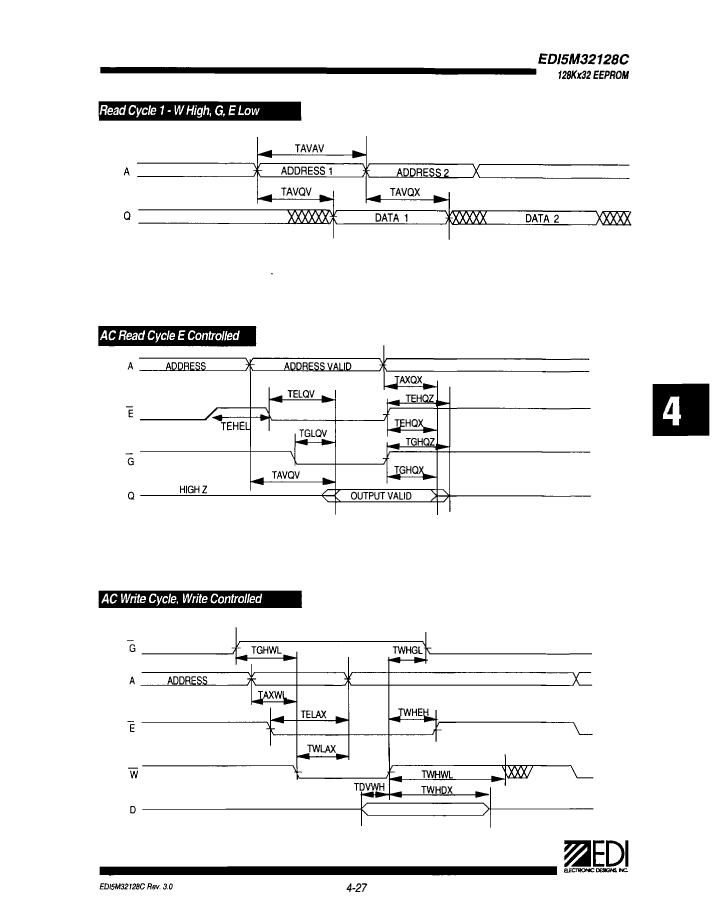

Preview

Download Datasheet

View All

EDI5M32128C120GC Related Products

	EDI5M32128C120GC	EDI5M32128C120GI	EDI5M32128C150GC	EDI5M32128C150GI	EDI5M32128C200GI	EDI5M32128C200GC
Description	EEPROM Module, 512KX8, 120ns, Parallel, CMOS,	EEPROM Module, 512KX8, 120ns, Parallel, CMOS,	EEPROM Module, 512KX8, 150ns, Parallel, CMOS,	EEPROM Module, 512KX8, 150ns, Parallel, CMOS,	EEPROM Module, 512KX8, 200ns, Parallel, CMOS,	EEPROM Module, 512KX8, 200ns, Parallel, CMOS,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	120 ns	120 ns	150 ns	150 ns	200 ns	200 ns
Other features	CONFIGURABLE AS 128K X 32	CONFIGURABLE AS 128K X 32	CONFIGURABLE AS 128K X 32	CONFIGURABLE AS 128K X 32	CONFIGURABLE AS 128K X 32	CONFIGURABLE AS 128K X 32
Spare memory width	16	16	16	16	16	16
JESD-30 code	S-XHIP-P66	S-XHIP-P66	S-XHIP-P66	S-XHIP-P66	S-XHIP-P66	S-XHIP-P66
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE	EEPROM MODULE
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	66	66	66	66	66	66
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C	85 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	HEX	HEX	HEX	HEX	HEX	HEX
Maker	EDI [Electronic devices inc.]	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
