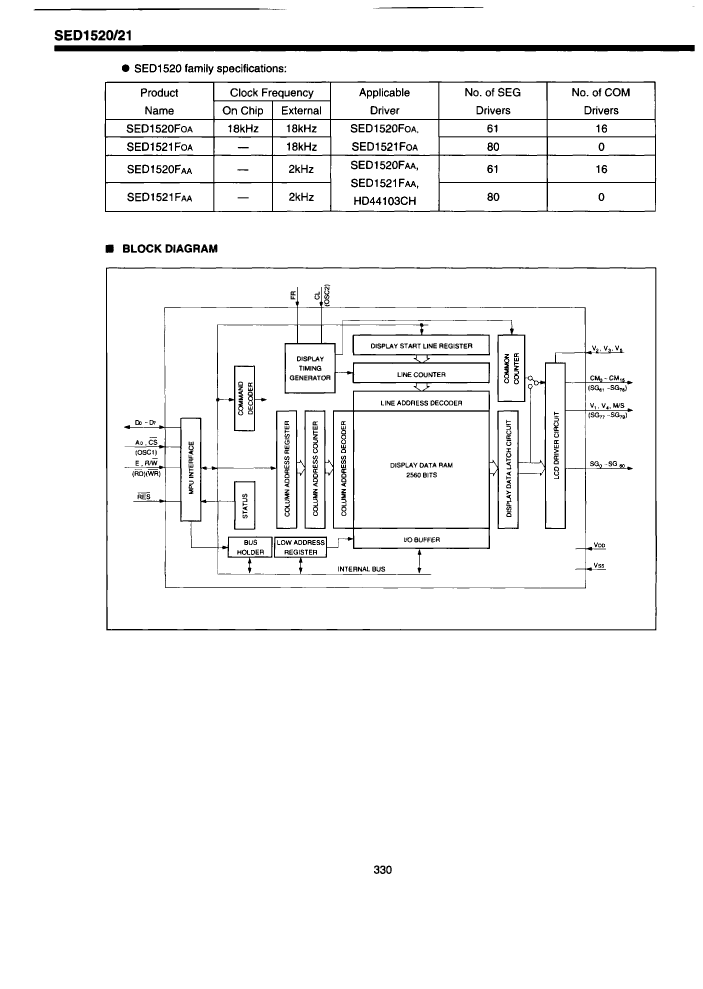

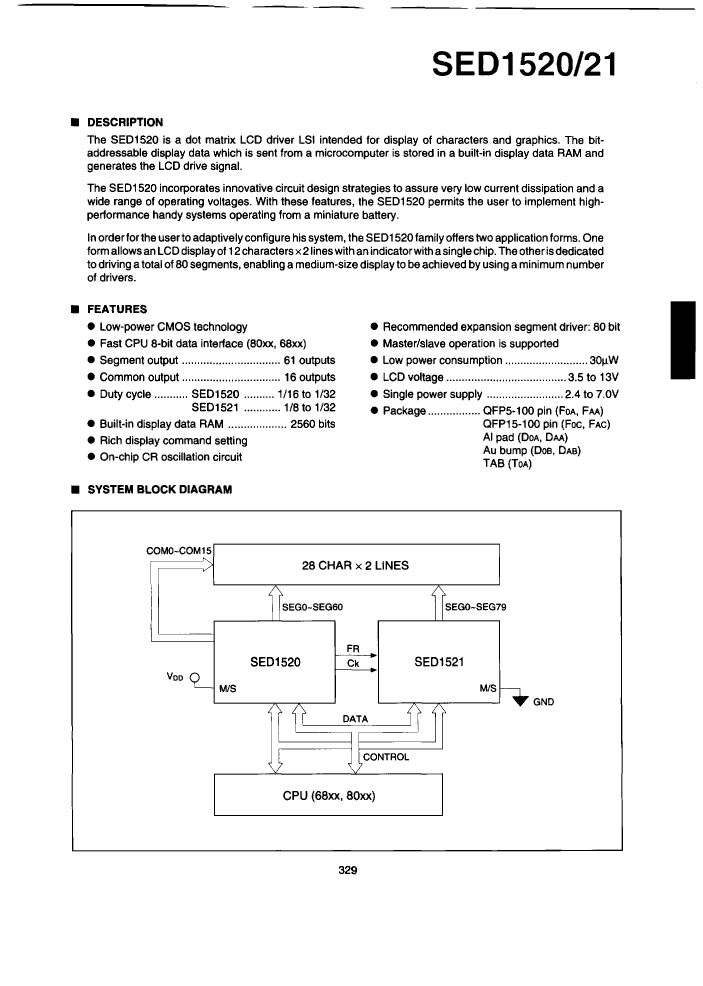

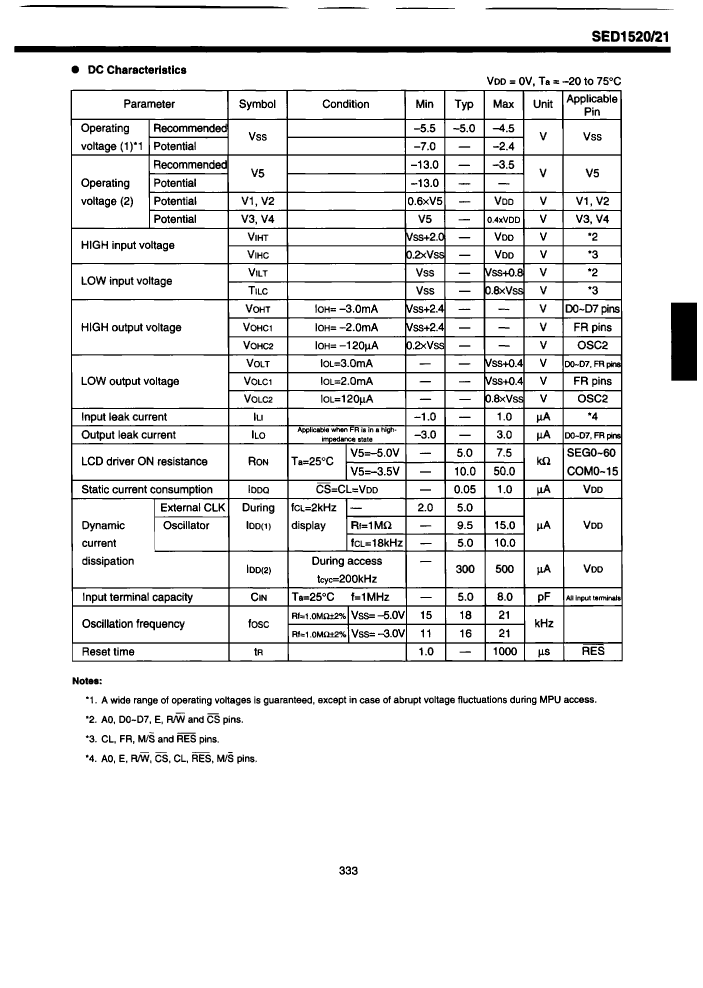

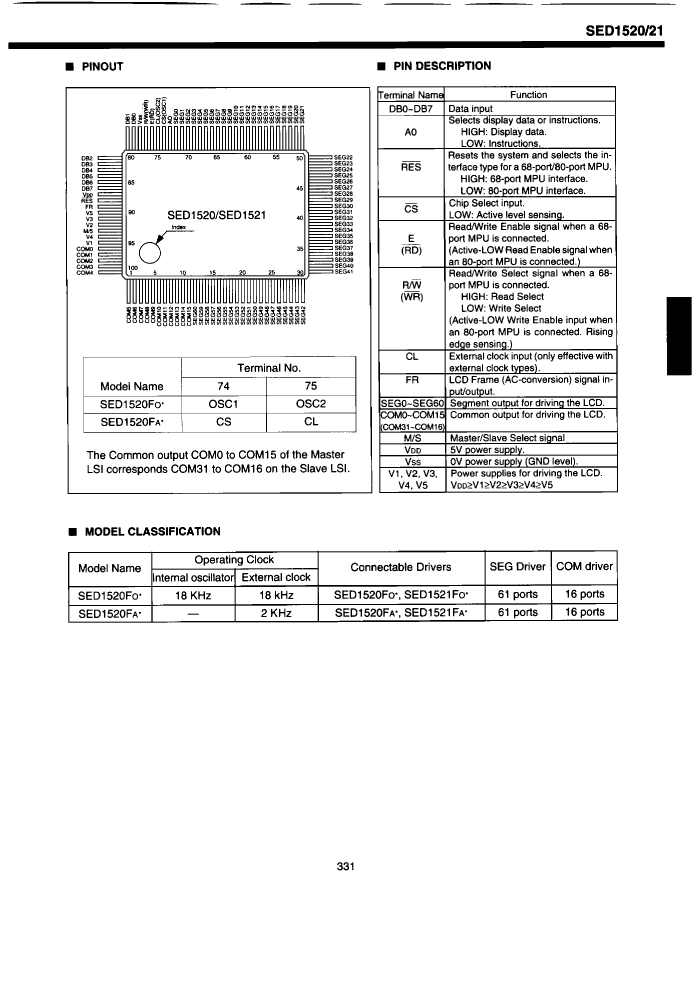

Preview

SED1521TOA: DescriptionLiquid Crystal Driver, 80-Segment, CMOS, DIE; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size293KB，12 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

SED1521TOA Overview

Liquid Crystal Driver, 80-Segment, CMOS, DIE

SED1521TOA Parametric

Parameter Name	Attribute value
Maker	Seiko Epson Corporation
Parts packaging code	DIE
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	PARALLEL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
Multiplex display function	NO
Number of functions	1
Number of segments	80
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13 V
Mains voltage 1-minute	3.5 V
technology	CMOS
Temperature level	OTHER

Preview

Download Datasheet

View All

SED1521TOA Related Products

	SED1521TOA	SED1521FOC	SED1521DOB	SED1520TOA	SED1521DOA
Description	Liquid Crystal Driver, 80-Segment, CMOS, DIE	Liquid Crystal Driver, 80-Segment, CMOS, PQFP100, QFP15-100	Liquid Crystal Driver, 80-Segment, CMOS, DIE	Liquid Crystal Driver, 77-Segment, CMOS, DIE	Liquid Crystal Driver, 80-Segment, CMOS, DIE
Parts packaging code	DIE	QFP	DIE	DIE	DIE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
data entry mode	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
Multiplex display function	NO	NO	NO	NO	NO
Number of functions	1	1	1	1	1
Number of segments	80	80	80	77	80
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
Supply voltage 1-max	13 V	13 V	13 V	13 V	13 V
Mains voltage 1-minute	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Maker	Seiko Epson Corporation	Seiko Epson Corporation	-	Seiko Epson Corporation	Seiko Epson Corporation
Contacts	-	100	100	-	100
JESD-30 code	-	S-PQFP-G100	X-XUUC-N100	-	X-XUUC-N100
Number of terminals	-	100	100	-	100
Package body material	-	PLASTIC/EPOXY	UNSPECIFIED	-	UNSPECIFIED
Package shape	-	SQUARE	UNSPECIFIED	-	UNSPECIFIED
Package form	-	FLATPACK	UNCASED CHIP	-	UNCASED CHIP
surface mount	-	YES	YES	-	YES
Terminal form	-	GULL WING	NO LEAD	-	NO LEAD
Terminal location	-	QUAD	UPPER	-	UPPER
