848B-156.25-BM0 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 848B-156.25-BM0

848B-156.25-BM0: DescriptionLVDS Output Clock Oscillator, 156.25MHz Nom; CategoryPassive components oscillator; File Size660KB，3 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

848B-156.25-BM0 Overview

LVDS Output Clock Oscillator, 156.25MHz Nom

848B-156.25-BM0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ENABLE/DISABLE FUNCTION; TR, 13 INCH
maximum descent time	0.6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e3
Installation features	SURFACE MOUNT
Nominal operating frequency	156.25 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
Output load	100 OHM
physical size	7.0mm x 5.0mm x 0.9mm
longest rise time	0.6 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	48/52 %
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

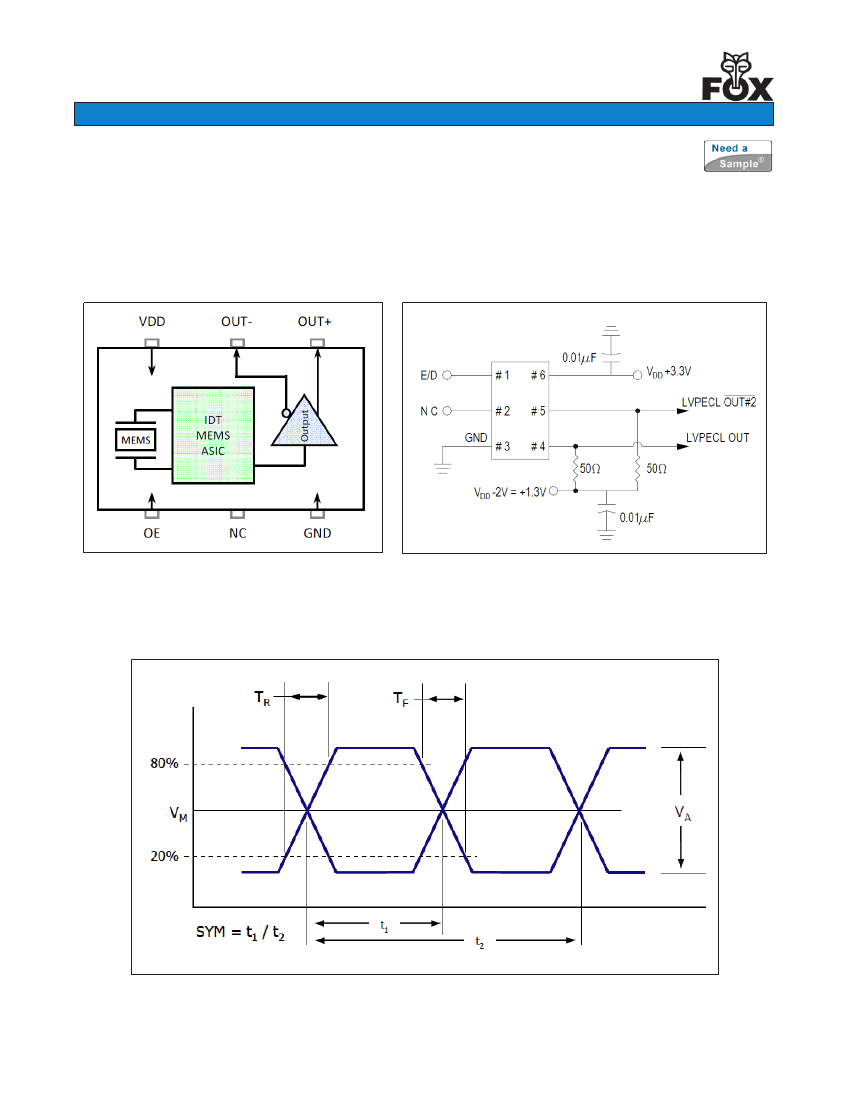

3.3V, MEMS, lVDS oscillator

Page 1 of 3

Model: 4MA_Z4AAcUGi8

RoHS Compliant / Pb Free/REACH Compliant

http://www.foxonline.com/need_a_sample.htm

Rev. 4/2/2013

• MEMS Technology

• 3.3V Supply Voltage

• -40 to +85ºC Operating Temperature

FEATURES

• 7x5mm Plastic Package

• Low Phase Jitter (0.6pS RMS Typical - 12kHz to 20MHz)

• LVDS Output

• Developed Frequencies and Part number Selection

Frequency

100.000 MHz

125.000 MHz

148.500 MHz

150.000 MHz

156.250 MHz

200.000 MHz

±0 . 0 5

Model Number

4MA100000Z4AACUGI8

4MA125000Z4AACUGI8

4MA148500Z4AACUGI8

4MA150000Z4AACUGI8

4MA156250Z4AACUGI8

4MA200000Z4AACUGI8

Part Number

848B-100-xxxxx

848B-125-xxxxx

848B-148.5-xxxxx

848B-150-xxxxx

848B-156.25-xxxxx

848B-200-xxxxx

T op

V ie w

±0 . 0 5

Dot de note s

p in 1 .

0 . 9

±0 . 0 5

• ElEcTRicAl cHARAcTERiSTicS

PARAMETERS

MAX

(unless otherwise noted)

50.000 ~ 625.000 MHz

-40 ~ +85ºC

±50 PPM

3.3V ± 10%

100mA Typical

48/52%

600 pS

1.05V Typical

1.4V Typical

0.35Vp-p Typical

1.22V Typical

100 Ohms Typical

10ms

1 uS

±5 PPM Typical

0.6 pS RMS Typical

3.9 pS RMS Typical

30 pS Peak Typical

260ºC / 10 Seconds

Matte Sn

1 . 5

±0 . 0 5

1 . 3

±0 . 0 5

Frequency

)

Operating Temperature Range (T

OPR

)

Frequency Stability

Supply Voltage

)

Input Current

) (no load)

Output Symmetry (50% V

)

Rise Time (T

) (20% ~ 80% V

)

Fall Time (T

) (80% ~ 20% V

)

Output Voltage

)

Output Amplitude (Single Ended) (V

)

Mid Level (V

)

Output Load

Start-up Time

)

Output Disable Time

Output Enable Time

Aging

(10 years @ 25ºC)

Phase Jitter (12kHz to 20MHz)

Period Jitter

Cycle-to-Cycle Jitter (1,000 cycles)

Maximum Soldering Temp / Time

Termination Finish

B ottom

V ie w

2.54

5.08

R e c om m e nde d

S o ld e r P a d L a y o u t

5.08

3.6

T op

V ie w

1.6

All dimensions are in millimeters.

1.6

P in C o n n e c t io n s

# 1 E /D

# 2 N /C

#3 GND

# 4 O u t pu t 1

# 5 O u t pu t 2

# 6 V

All dimensions are in millimeters.

Check for available frequencies.

Inclusive of 25ºC tolerance after reflow, operating temperature range, supply voltage change and

aging.

An internal pull-up resistor from pin 1 to pin 6 allows active output if pin 1 is left open.

Note: A 0.01µF bypass capacitor should be placed between V

(Pin 6) and GND (Pin 3) to

minimize power supply line noise.

All specifications subject to change without notice.

• EnAblE / DiSAblE FUncTion

(Pin 1)

OUT (Pin 4, Pin 5)

OPEN

ACTIVE

'1' Level V

≥ 70%V

ACTIVE

'0' Level V

≤ 30%V

High Z

F O X E l e c t r o n i c s 5 5 7 0 E n t e r p r i s e P a r k w a y F o r t M y e r s , F l o r i d a 3 3 9 0 5 U S A + 1 . 2 3 9 . 6 9 3 . 0 0 9 9 FA X + 1 . 2 3 9 . 6 9 3 . 1 5 5 4 w w w. f o x o n l i n e . c o m

E M E A Te l : + 4 4 . 1 2 8 3 . 5 6 8 1 5 3 | C a n a d a + 1 . 8 8 8 . 4 3 8 . 2 3 6 9 | A s i a H o n g K o n g Te l : + 8 5 2 . 2 8 5 4 . 4 2 8 5 | J a p a n Te l : + 8 1 . 3 . 3 3 7 4 . 2 0 7 9

3.3V, MEMS, lVDS oscillator

Page 3 of 3

Model: 4MA_Z4AAcUGi8

RoHS Compliant / Pb Free/REACH Compliant

http://www.foxonline.com/need_a_sample.htm

Rev. 4/2/2013

• TAPE SPEciFicATionS

(millimeters)

∅1.5

4.0

8.0

7.5

16.0

1.1

• REEl SPEciFicATionS

(millimeters)

2.0

∅13

∅21

∅180

∅332

18.4

2.0

DISCLAIMER FOX and Integrated Device Technology, Inc. (IDT) reserve the right to modify the products and/or

specifications described herein at any time and at FOX/IDT’s sole discretion. All information in this document,

including descriptions of product features and performance, is subject to change without notice. Performance

specifications and the operating parameters of the described products are determined in the independent state

and are not guaranteed to perform the same way when installed in customer products. The information contained

herein is provided without representation or warranty of any kind, whether express or implied, including, but not

limited to, the suitability of FOX/IDT’s products for any particular purpose, an implied warranty of merchantabil-

ity, or non-infringement of the intellectual property rights of others. This document is presented only as a guide

and does not convey any license under intellectual property rights of FOX/IDT or any third parties. FOX/IDT’s

products are not intended for use in life support systems or similar devices where the failure or malfunction

of a FOX/IDT product can be reasonably expected to significantly affect the health or safety of users. Anyone

using a FOX/IDT product in such a manner does so at their own risk, absent an express, written agreement by

FOX/IDT.

E M E A Te l : + 4 4 . 1 2 8 3 . 5 6 8 1 5 3 | C a n a d a + 1 . 8 8 8 . 4 3 8 . 2 3 6 9 | A s i a H o n g K o n g Te l : + 8 5 2 . 2 8 5 4 . 4 2 8 5 | J a p a n Te l : + 8 1 . 3 . 3 3 7 4 . 2 0 7 9

848B-156.25-BM0 Related Products

	848B-156.25-BM0	848B-100-BM0	848B-125-BM0	848B-150-BM0	848B-148.5-BM0	848B-200-BM0
Description	LVDS Output Clock Oscillator, 156.25MHz Nom	LVDS Output Clock Oscillator, 100MHz Nom	LVDS Output Clock Oscillator, 125MHz Nom	LVDS Output Clock Oscillator, 150MHz Nom	LVDS Output Clock Oscillator, 148.5MHz Nom	LVDS Output Clock Oscillator, 200MHz Nom
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ENABLE/DISABLE FUNCTION; TR, 13 INCH	ENABLE/DISABLE FUNCTION; TR, 13 INCH	ENABLE/DISABLE FUNCTION; TR, 13 INCH	ENABLE/DISABLE FUNCTION; TR, 13 INCH	ENABLE/DISABLE FUNCTION; TR, 13 INCH	ENABLE/DISABLE FUNCTION; TR, 13 INCH
maximum descent time	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO
frequency stability	50%	50%	50%	50%	50%	50%
JESD-609 code	e3	e3	e3	e3	e3	e3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	156.25 MHz	100 MHz	125 MHz	150 MHz	148.5 MHz	200 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Oscillator type	LVDS	LVDS	LVDS	LVDS	LVDS	LVDS
Output load	100 OHM	100 OHM	100 OHM	100 OHM	100 OHM	100 OHM
physical size	7.0mm x 5.0mm x 0.9mm	7.0mm x 5.0mm x 0.9mm	7.0mm x 5.0mm x 0.9mm	7.0mm x 5.0mm x 0.9mm	7.0mm x 5.0mm x 0.9mm	7.0mm x 5.0mm x 0.9mm
longest rise time	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns	0.6 ns
Maximum supply voltage	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
maximum symmetry	48/52 %	48/52 %	48/52 %	48/52 %	48/52 %	48/52 %
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
