HMC951LP4E

Description
RF/MICROWAVE DOWN CONVERTER
CategoryTopical application    Wireless rf/communication
File Size695KB,10 Pages
ManufacturerHittite Microwave(ADI)
Websitehttp://www.hittite.com/
Download Datasheet Parametric View All

HMC951LP4E Online Shopping

Suppliers Part Number Price MOQ In stock
HMC951LP4E - - View Buy Now

HMC951LP4E Overview

RF/MICROWAVE DOWN CONVERTER

HMC951LP4E Parametric

Parameter NameAttribute value
Minimum IF0.0 MHz
Maximum IF3500 MHz
Minimum input power15 dBm
Minimum operating temperature-55 Cel
Maximum operating temperature85 Cel
Minimum RF input frequency5600 MHz
Maximum RF input frequency8600 MHz
Processing package description4 X 4 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 24 PIN
each_compliYes
EU RoHS regulationsYes
stateActive
Microwave RF TypeDOWN CONVERTER
Impedance characteristics50 ohm
structureCOMPONENT
Minimum downconversion gain10 dB
jesd_609_codee3
LO adjustableYES
terminal coatingMATTE TIN (394) OVER COPPER
HMC951LP4E
v00.0910
GaAs MMIC I/Q DOWNCONVERTER
5.6 - 8.6 GHz
Features
Conversion Gain: 13 dB
Image Rejection: 20 dB
LO to RF Isolation: 48 dB
Noise Figure: 2.3 dB
Input IP3: 3 dBm
24 Lead 4x4 mm SMT Package: 16 mm²
9
MIXERS - I/Q MIXERS, IRMS & RECEIVERS - SMT
Typical Applications
The HMC951LP4E is ideal for:
• Point-to-Point and Point-to-Multi-Point Radio
• Military Radar, EW & ELINT
• Satellite Communications

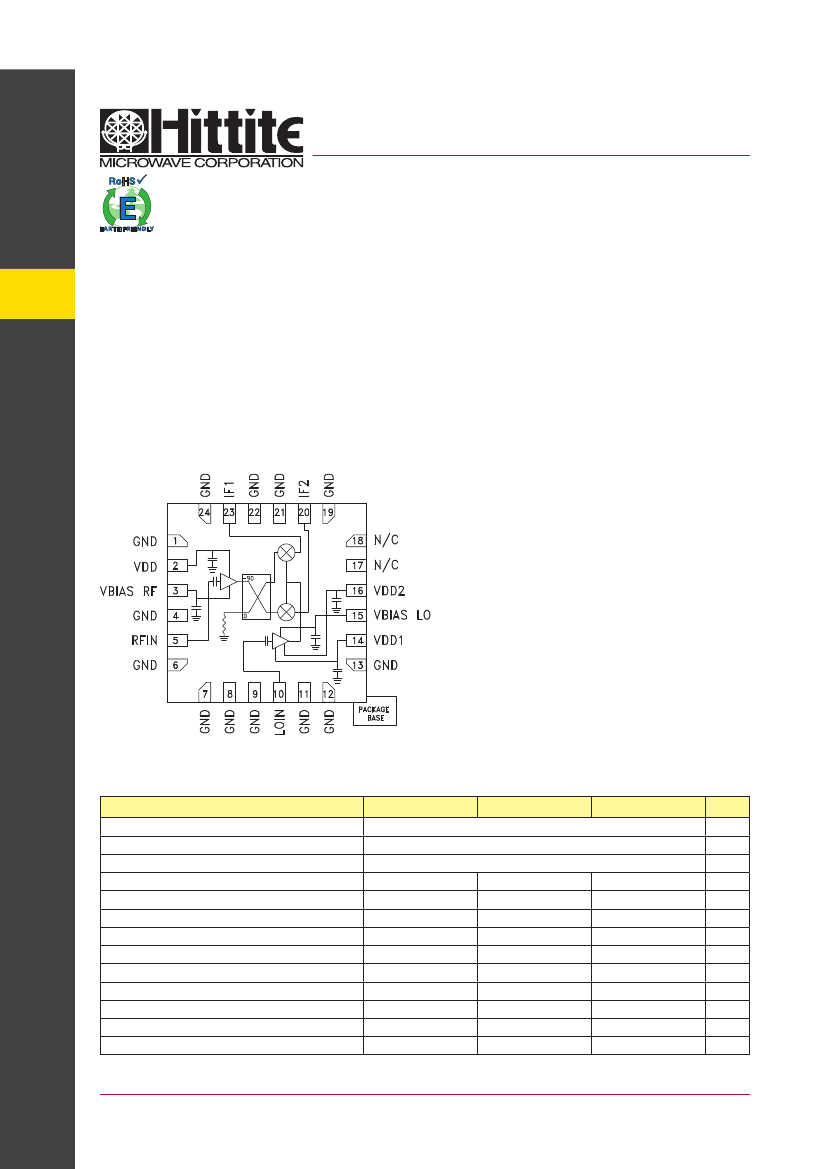

Functional Diagram
General Description
The HMC951LP4E is a compact GaAs MMIC I/Q
downconverter in a leadless RoHS compliant
SMT package. This device provides a small signal
conversion gain of 13 dB with a noise figure of 2 dB
and 25 dB of image rejection across the frequency
band. The HMC951LP4E utilizes an LNA followed by
an image reject mixer which is driven by an LO buffer
amplifier. The image reject mixer eliminates the need
for a filter following the LNA, and removes thermal
noise at the image frequency. I and Q mixer outputs
are provided and an external 90° hybrid is needed to
select the required sideband. The HMC951LP4E is a
much smaller alternative to hybrid style image reject
mixer downconverter assemblies, and is compatible
with surface mount manufacturing techniques.

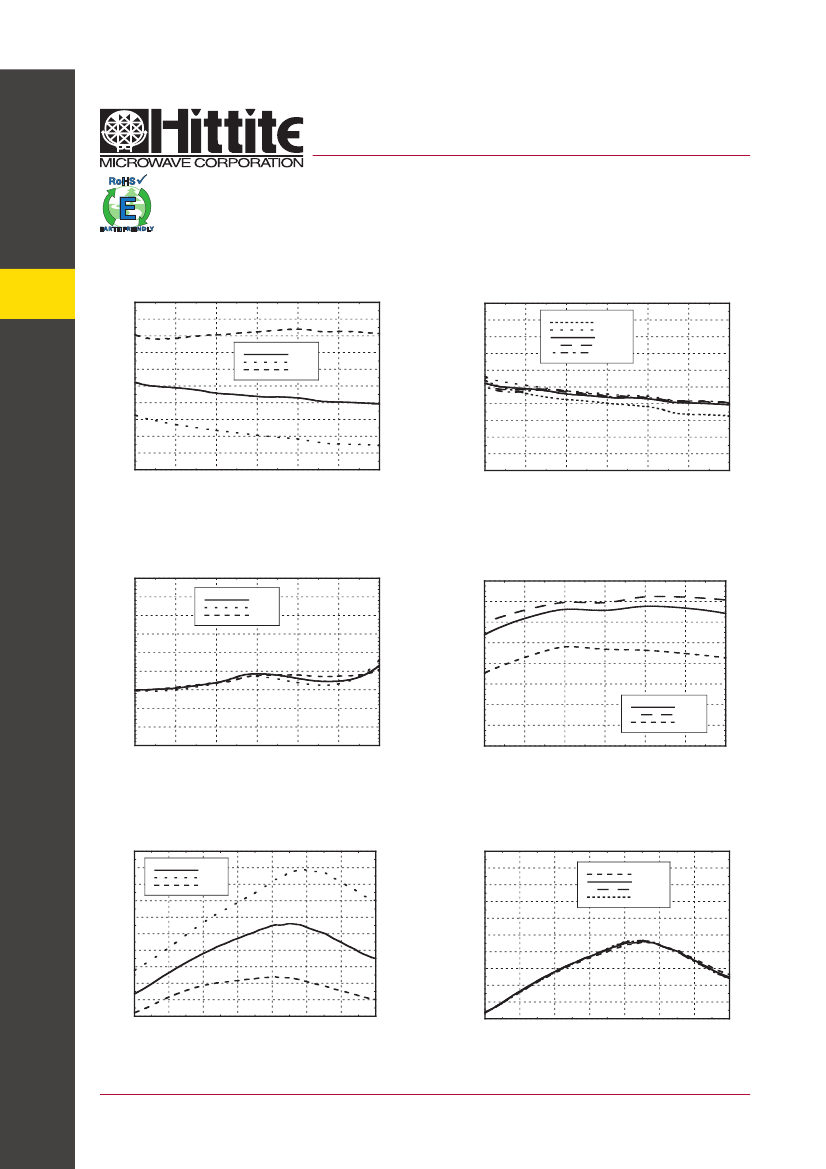

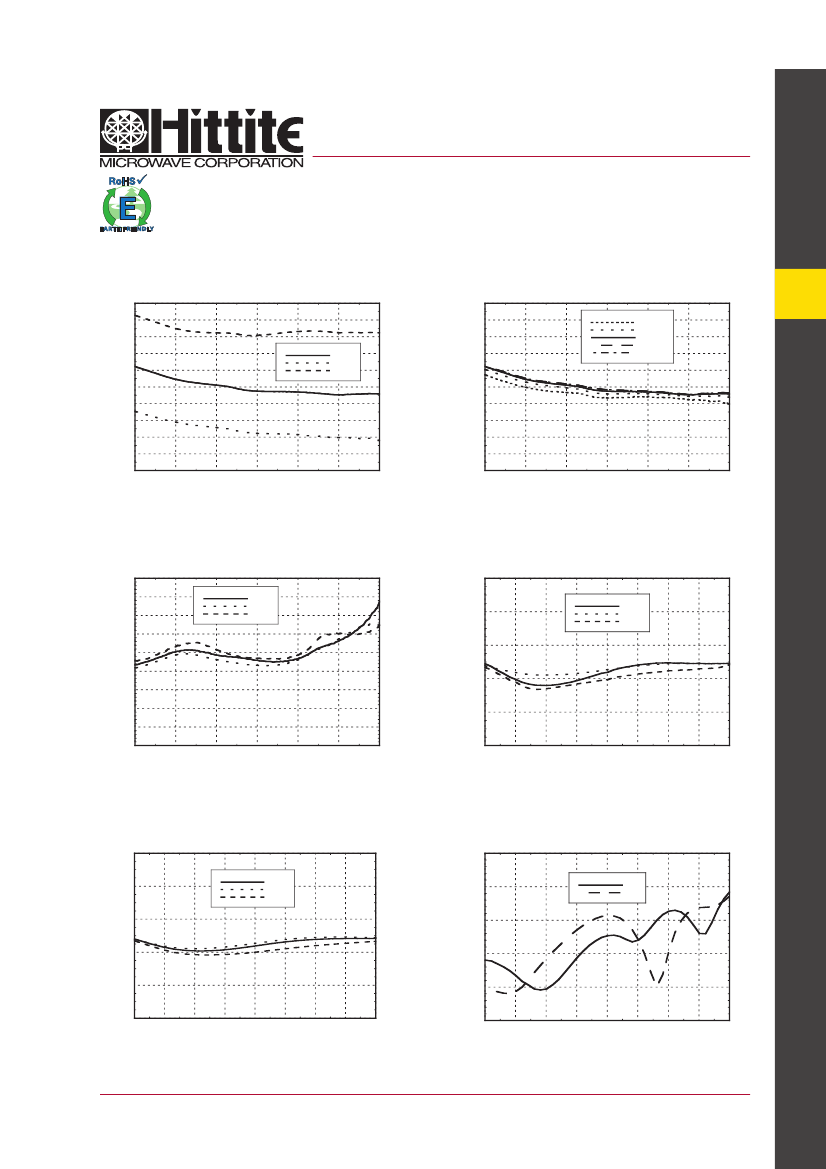

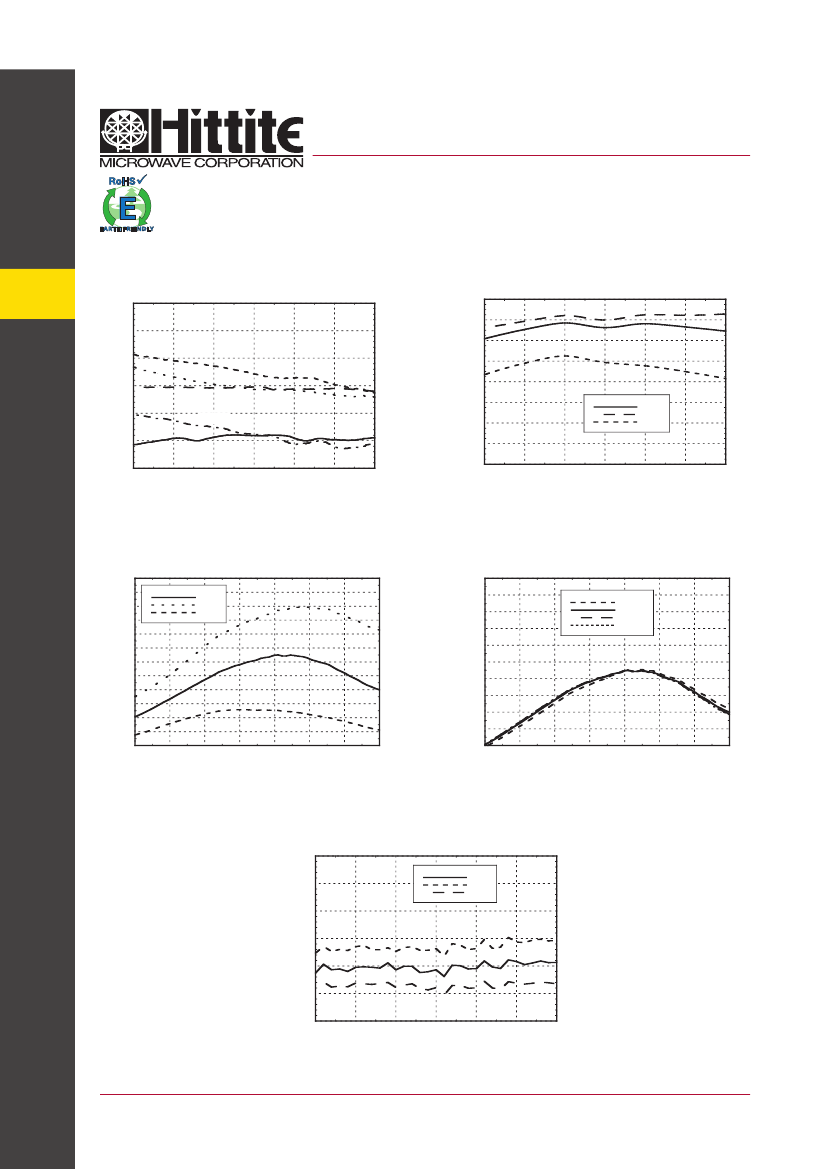

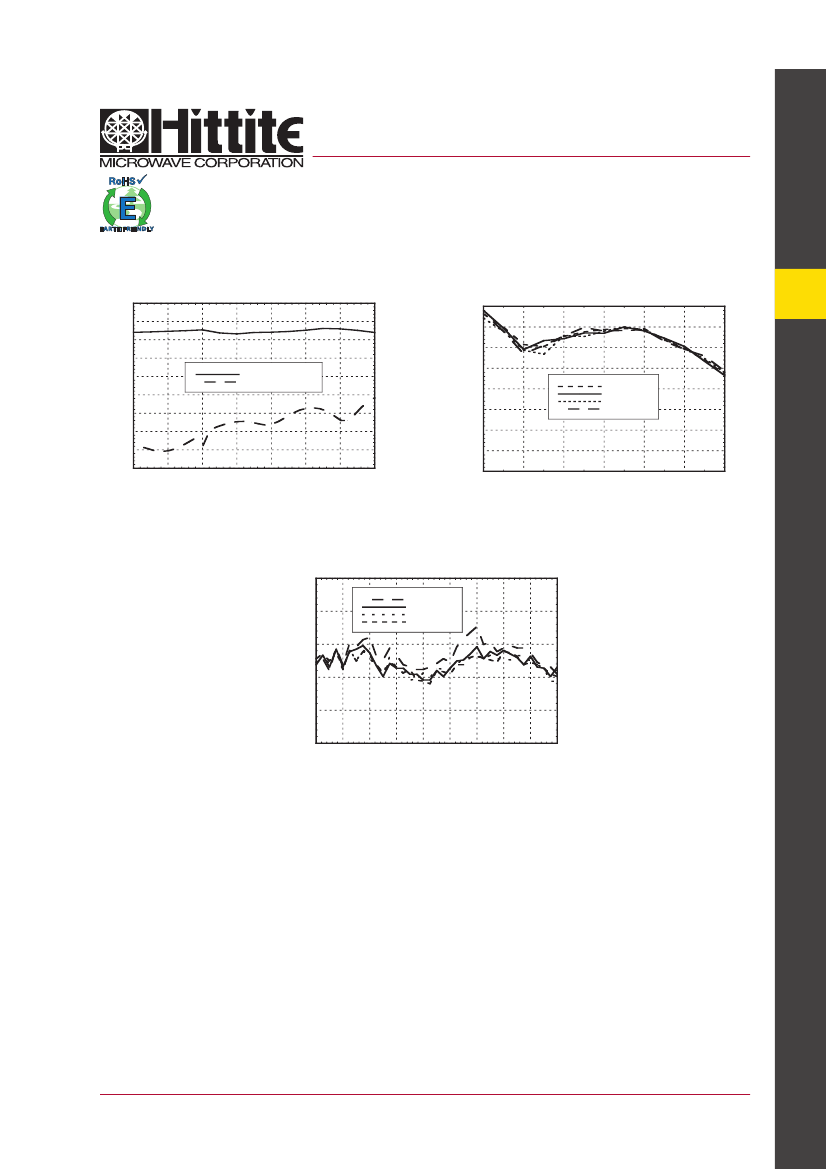

Electrical Specifications,
T
A
= +25 °C, IF = 1000 MHz, LO = 0 dBm, Vdd = 5 Vdc LSB
[1]
Parameter
Frequency Range, RF
Frequency Range, LO
Frequency Range, IF
Conversion Gain (As IRM)
Noise Figure
Image Rejection
1 dB Compression (Input)
LO to RF Isolation
LO to IF Isolation
IP3 (Input)
Amplitude Balance
[2]
Phase Balance
[2]
Total Supply Current (Idd1 + Idd2)
[1] Data taken as IRM with external IF 90° Hybrid
[2] Data taken without external 90° hybrid, IF = 1000 MHz
40
20
13
10
Min.
Typ.
5.6 - 8.6
3 - 12.1
DC - 3.5
13
2
25
-3
48
30
3
1
-7
220
250
Max.
Units
GHz
GHz
GHz
dB
dB
dB
dBm
dB
dB
dBm
dB
deg
mA
9-1
For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
