SEAF-40-06.5-L-14-2-A-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> SEAF-40-06.5-L-14-2-A-K-TR

SEAF-40-06.5-L-14-2-A-K-TR: DescriptionBoard Stacking Connector, 560 Contact(s), 14 Row(s), Female, Straight, Surface Mount Terminal, Socket,; CategoryThe connector The connector; File Size2MB，5 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SEAF-40-06.5-L-14-2-A-K-TR Overview

Board Stacking Connector, 560 Contact(s), 14 Row(s), Female, Straight, Surface Mount Terminal, Socket,

SEAF-40-06.5-L-14-2-A-K-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	14
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	560

Preview

Download Datasheet

View All

REVISION BS

DO NOT

SCALE FROM

THIS PRINT

.156 3.96 REF

.033 0.84 REF

.361 9.17 REF

"A" REF

"C" SPCS. @ .0500= "D"

.0500 1.270 (TYP)

.033 0.84

REF

No OF POSITIONS

-10, -15,

**-19,

-20

-25, -30, -40, -50

(PER ROW)

SEAF-XX-XX.X-XX-XX-X-A-XX-K-TR

TAPE & REEL

K-DOT

(SEE SHT 2, FIG 3 )

(SEE NOTE 7)

OPTION

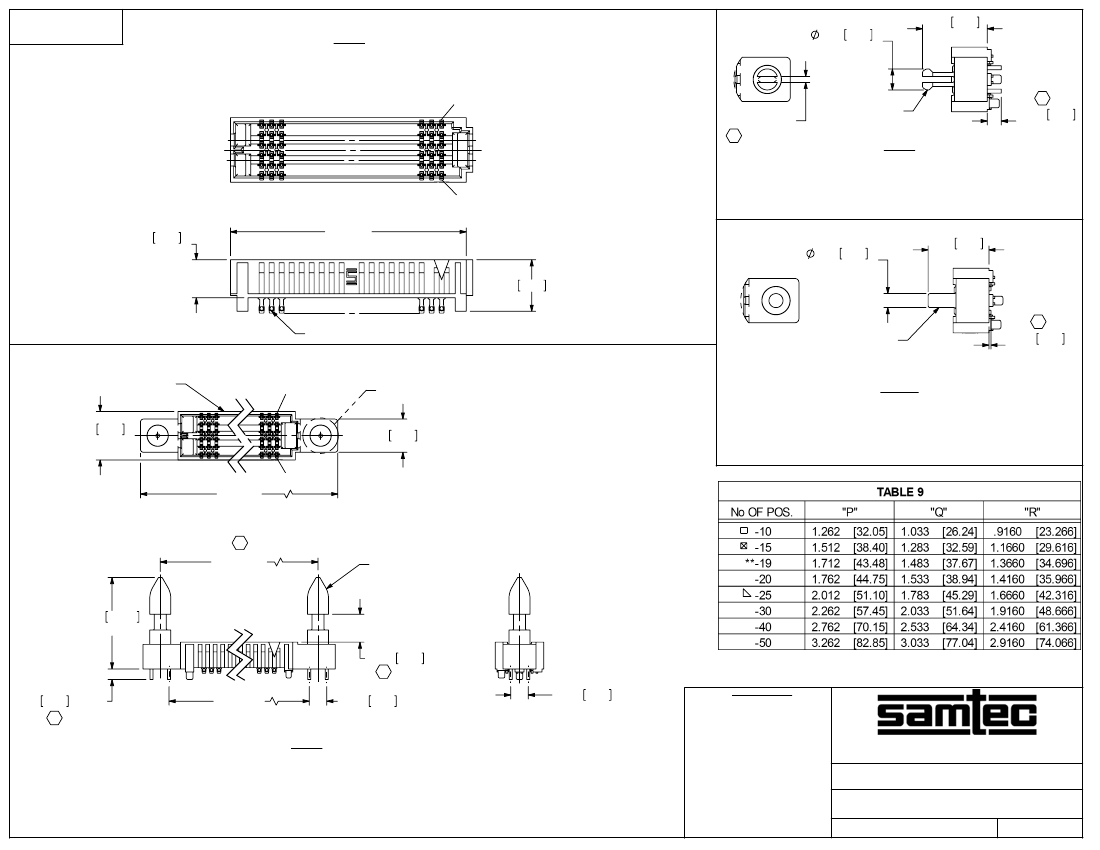

****-LP: LATCH POST OPTION

(SEE SHT 4, FIG 8 )

(ONLY AVAILABLE WITH -05.0

LEAD STYLE, -04, -06, -08 & -10 ROW)

(-K OPTION NOT AVAILABLE ON -10

OR -15 POSITION)

***** -RP: RETENTION PIN

(SEE SHT 4, FIG 9)

(ONLY AVAILABLE WITH -05.0

LEAD STYLE, 6, 8 & 10 ROWS)

-PP: POLARIZATION PIN

(SEE SHT 4, FIG 10)

(ONLY AVAILABLE WITH -05.0

LEAD STYLE, 6, 8 & 10 ROWS)

ALIGNMENT PINS

(SEE NOTES 6 & 14)

"A"

LEAD STYLE

-05.0: .199[5.05] HEIGHT

-06.0: .238[6.05] HEIGHT

-06.5: .258[6.55] HEIGHT

*** -07.5: .297[7.54] HEIGHT

(SEE TABLE 1)

PLATING SPECIFICATION

-S: SELECTIVE GOLD (30µ”) IN CONTACT AREA,

MATTE TIN ON TAIL (USE NEW-SUB-C-209-XX.X-S-X)

-L: LIGHT GOLD (10µ”) IN CONTACT AREA,

MATTE TIN ON TAIL (USE NEW-SUB-C-209-XX.X-L-X)

-SM: SELECTIVE GOLD (30µ”) IN CONTACT AREA,

MATTE TIN ON TAIL (USE NEW-SUB-C-209-XX.X-S-X)

C .423 10.74

REF

.200 5.08

REF

SEE NOTE 17

"B" REF

SEAF-XX-XX.X-08-A

C "F" REF

"A"

'C'

.050 1.27 REF

.050 1.27 (TYP)

"C" SPCS. @ .0500= "D"

.034 0.86 REF

.040 1.02

REF

.044 1.12

REF

"G" REF

SOLDER COMPOSITION & STYLE

-1: 63% TIN / 37% LEAD

CHARGE TAIL

(USE NEW-SUB-C-209-XX.X-X-1)

-2: 95.5% TIN/3.8% SILVER/.7%

COPPER

CHARGE TAIL

* = NOT TOOLED.

(USE NEW-SUB-C-209-XX.X-X-2)

= 10 POSITION ONLY AVAILABLE IN 4 ROW.

= ONLY AVAILABLE WITH -05.0 BODY HEIGHT, -10 ROW.

AVAILABLE IN -04 ROW -05.0 LEAD STYLE

= ONLY AVAILABLE WITH -05.0 AND -06.5 BODY HEIGHT AND 4 ROW.

TOOLED IN -07.5 (NOT ENGINEERING APPROVED)

** = ONLY AVAILABLE WITH -06.5 BODY HEIGHT,

AND -06 ROW.

*** = ONLY AVAILABLE WITH 30 POS & 4 ROW.

**** = ONLY AVAILABLE WITH -05.0 BODY HEIGHT,

-04, -06, -08 & -10 ROW.

***** = NOT RELEASED FOR PRODUCTION.

■

= 14 ROW ONLY AVAILABLE IN -06.5 LEAD STYLE AND -40 POS.

ROWS

-04: 4 ROWS (SEE SHT 5, FIG 11)

-05: 5 ROWS (SEE SHT 3, FIG 5)(SEE NOTE 18)

-06: 6 ROWS (SEE SHT 3, FIG 4)

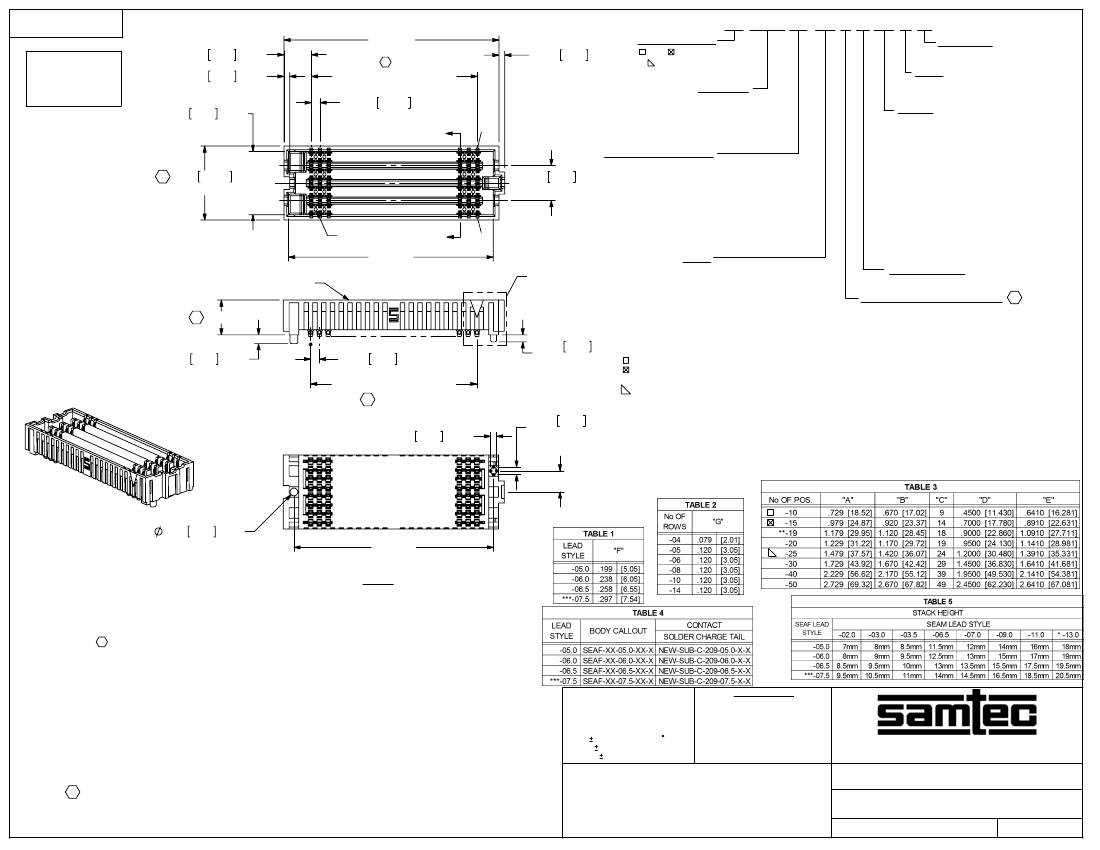

-08: 8 ROWS (SEE SHT 1, FIG 1)

-10: 10 ROWS (SEE SHT 2, FIG 2)

■

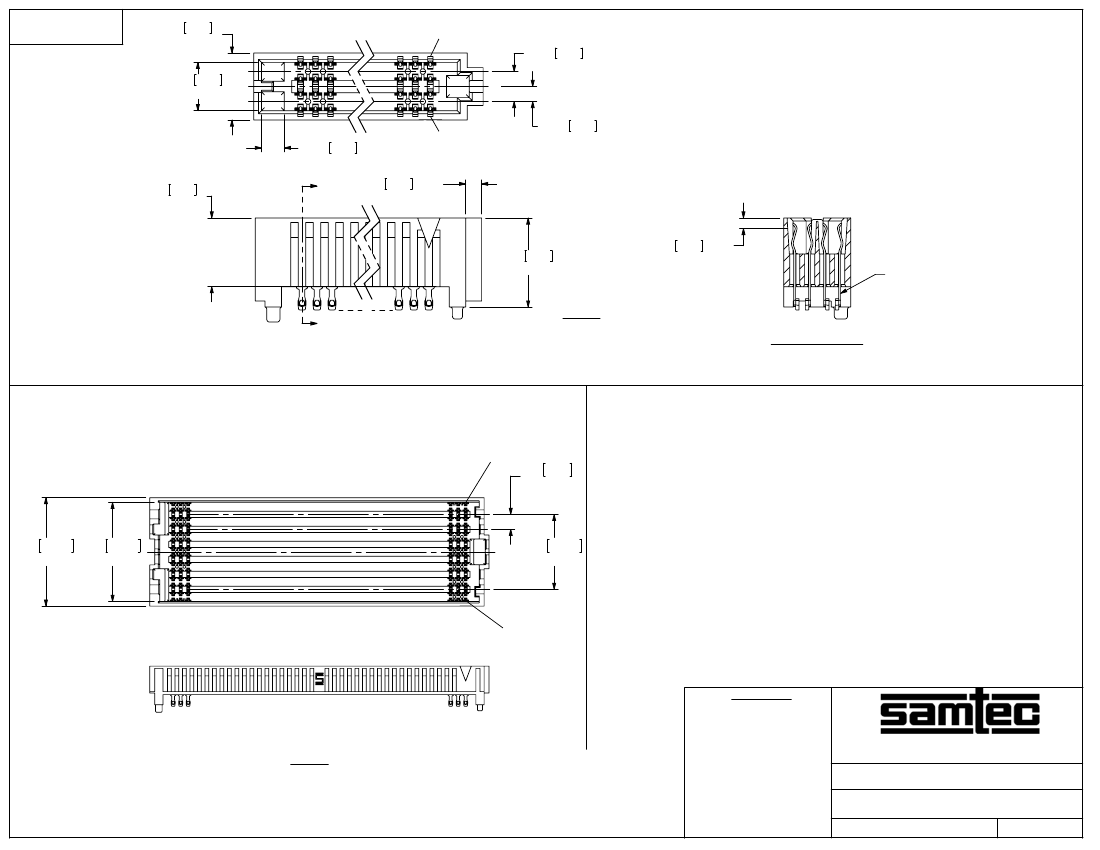

-14: 14 ROWS (SEE SHT 5, FIG 12)

.044 1.12 REF

"E" REF

-08: 8 ROW

(SEAF-20-05.0-XX-08-1-A-XX-K-TR SHOWN)

(SOME CENTER FEATURES REMOVED FOR CLARITY)

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PUSHOUT FORCE: 0.50 LBS.

3. NOTE DELETED.

4. 5 ROW SOLDER TAILS ARE NOT SYMMETRICAL WITH BODY WIDTH - DIM .321 [8.15], (SEE SHEET 3, FIG. 5).

5. WHEN APPLICABLE, DIMENSION C12 MUST BE MEASURED USING INSPECTION FIXTURE AT-1817-836-1

FOR -04 ROW, OR AT-1817-836-2 FOR -06, -08 & -10 ROW. USE CO-AU-WI-2003-M FOR PROCESS.

6. WITHOUT -A AVAILABLE FOR EXISTING CUSTOMERS ONLY AS OF REVISION Y.

7. K-DOT WILL BE SUPPLIED WHETHER OR NOT -K IS SPECIFIED.

8. TAPE & REEL WILL BE SUPPLIED WHETHER OR NOT -TR IS SPECIFIED.

9. FOR QUANTITIES UP TO 49 PIECES, NO LEADER, TRAILER, OR REEL WILL BE SUPPLIED.

FOR QUANTITIES OF 50 - 124 PIECES, NO LEADER OR TRAILER WILL BE SUPPLIED.

SPLICES MAY BE PRESENT.

10. ATTACH LABEL "SEAX-0001" TO EACH TAPE & REEL PACKAGE.

11. SOLDER CHARGE VOLUME IS .00000891 CUBIC INCHES (REF).

12. NOTE DELETED.

13. SLOT ORIENTATION MUST BE AS SHOWN.

14. A-PINS STANDARD ON ALL BODIES, EXCEPT 6 x 19, SEE SHEET 1, FIG. 1

A-PINS ARE OPTIONAL ON 6 x 19, SEE SHEET 4, FIG. 7

15. MAXIMUM ROW TO ROW VARIATION .003[0.08], MEASURED FIRST & LAST POSITIONS ONLY, ALL ROWS.

16. NOTE DELETED.

17. NON-FUNCTIONAL VOIDING IN PLASTIC BODY TO BE AT SAMTEC'S DISCRETION.

18. THESE OPTIONS AVAILABLE AS ASO (APPLICATION SPECIFIC OPTIONS) ONLY. PLEASE CONTACT SAMTEC

FOR MORE INFORMATION.

FIG 1

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

ANGLES

.XX: .01[0.3]

.XXX: .005[0.13]

.XXXX: .0020[0.051]

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

PROPRIETARY NOTE

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

INSULATOR: LCP, COLOR: BLACK

CONTACT : COPPER ALLOY

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

.050 PITCH SOCKET ARRAY ASSEMBLY

SHEET

SEAF-XX-XX.X-XX-XX-X-A-XX-K-TR

F:\DWG\MISC\MKTG\SEAF-XX-XX.X-XX-XX-X-A-XX-K-TR-MKT.SLDDRW

BY:

BRATCHER 05/27/2004
