FT2000KB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FT2000KB

Preview

FT2000KB: DescriptionFAST RECOVERY RECTIFIERS; CategoryDiscrete semiconductor diode; File Size101KB，2 Pages; ManufacturerEIC [EIC discrete Semiconductors]; Environmental Compliance

Download Datasheet Parametric Compare View All

FT2000KB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FT2000KB	-	-	View	Buy Now

FT2000KB Overview

FAST RECOVERY RECTIFIERS

FT2000KB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EIC [EIC discrete Semiconductors]
Reach Compliance Code	compli
Other features	HIGH RELIABILITY
application	FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.96 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	390 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-50 °C
Maximum output current	20 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Guideline	TS 16949
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	25 µA
Maximum reverse recovery time	0.2 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

TH97/10561QM

TW00/17276EM

IATF 0060636

SGS TH07/1033

FT2000AA ~FT2000KG

PRV : 50 ~ 400 Volts

Io : 20 Ampere

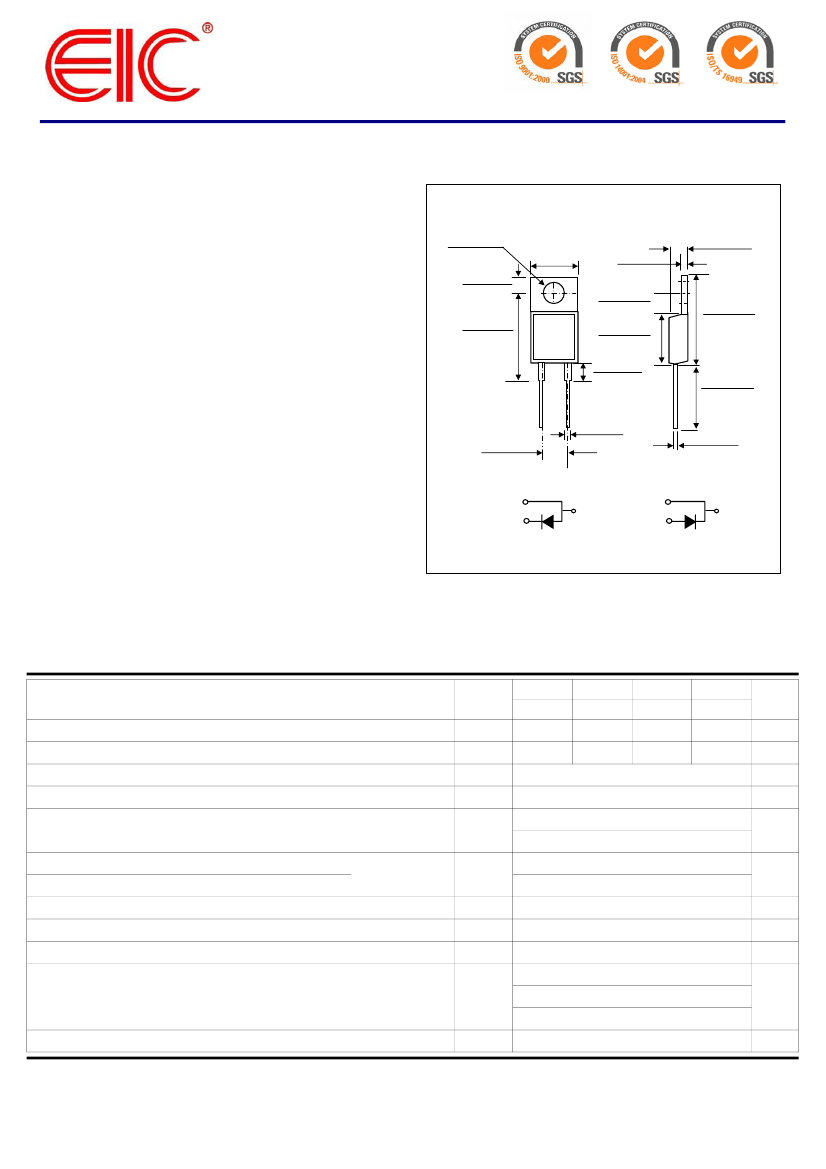

FEATURES :

*

High current capability

High surge current capability

High reliability

Low reverse current

Low forward voltage drop

Pb / RoHS Free

FAST RECOVERY RECTIFIERS

TO-220AC

0.154(3.91)DIA.

0.415(10.54)MAX.

0.148(3.74)

0.113(2.87)

0.103(2.62)

0.635(16.13)

0.625(15.87)

1

2

0.055(1.39)

0.045(1.14)

0.185(4.70)

0.175(4.44)

0.145(3.68)

0.135(3.43)

0.350(8.89)

0.330(8.39)

0.160(4.06)

0.140(3.56)

0.603(15.32)

0.573(14.55)

0.560(14.22)

0.530(13.46)

MECHANICAL DATA :

* Case : Epoxy, Molded

* Lead Temperature for Soldering Purposes:

260°C Max. for 10 Seconds

* Mounting Position: Any

* Weight : 2.24 grams (Approximately)

* Polarity: As marked , K

K

(Standard) is p/n FT2000KA, FT2000KB, …, KG

A

(Reverse) is p/n FT2000AA, FT2000AB, …, AG

0.205(520)

0.195(4.95)

0.037(0.94)

0.027(0.68)

0.022(0.56)

0.014(0.36)

A

PIN 1

PIN 2

CASE

PIN 1

PIN 2

K

CASE

Dimensions in inches and ( millimeters )

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25

°

C ambient temperature unless otherwise specified.

FT2000KA FT2000KB FT2000KD FT2000KG

FT2000AA FT2000AB FT2000AD FT2000AG

RATING

Maximum Repetitive Peak Reverse Voltage

Maximum Surge Peak Reverse Voltage

Maximum Average Forward Current, R-load, T

C

= 100 °C

Maximum Peak Rectified Forward Current, f > 15 Hz (Note 1)

Maximum Peak Forward Surge Current, 50 Hz half sine wave

60 Hz half sine wave

Maximum Forward Voltage

I

F

= 5 A, Tj = 25°C

I

F

= 20 A, Tj = 25°C

Maximum Reverse Current, V

R

= V

RRM

, Tj = 25 °C

Maximum Reverse Recovery Time, (I

F

= 0.5A, I

R

= 1A ; Irr = 0.25 A)

Maximum Thermal Resistance, Junction to Case

Junction Temperature Range, at reduced reverse voltage, V

R

≤

80% V

RRM

V

R

≤

20% V

RRM

in DC forward mode

Storage Temperature Range

Note :

(1) Max. temperature of the case T

C

= 100 °C.

SYMBOL

V

RRM

V

RSM

I

F(AV)

I

FRM

I

FSM

V

F

I

R

Trr

R

ӨJC

T

J

T

STG

UNIT

V

A

V

μA

ns

K/W

°C

50

100

20

80

375

390

0.84

0.96

25

200

1.5

200

400

- 50 to + 150

- 50 to + 200

- 50 to + 175

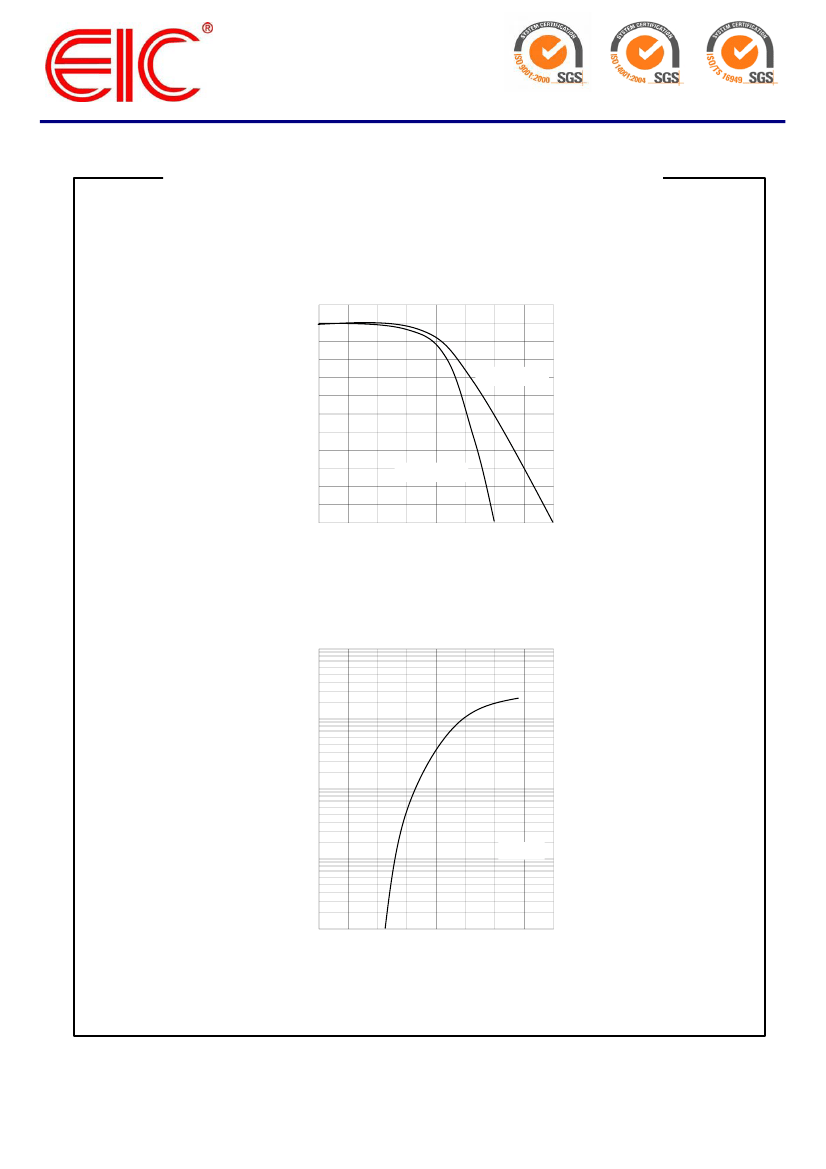

Page 1 of 2

Rev. 00 : March 10, 2008

FT2000KB Related Products

	FT2000KB	FT2000KG	FT2000KD	FT2000AA	FT2000AD	FT2000AB	FT2000KA	FT2000AG
Description	FAST RECOVERY RECTIFIERS	FAST RECOVERY RECTIFIERS	FAST RECOVERY RECTIFIERS	FAST RECOVERY RECTIFIERS	FAST RECOVERY RECTIFIERS	FAST RECOVERY RECTIFIERS	FAST RECOVERY RECTIFIERS	FAST RECOVERY RECTIFIERS
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]	EIC [EIC discrete Semiconductors]
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	ANODE	ANODE	ANODE	CATHODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.96 V	0.96 V	0.96 V	0.96 V	0.96 V	0.96 V	0.96 V	0.96 V
JEDEC-95 code	TO-220AC	TO-220AC	TO-220AC	TO-220AC	TO-220AC	TO-220AC	TO-220AC	TO-220AC
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	390 A	390 A	390 A	390 A	390 A	390 A	390 A	390 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	20 A	20 A	20 A	20 A	20 A	20 A	20 A	20 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Guideline	TS 16949	TS 16949	TS 16949	TS 16949	TS 16949	TS 16949	TS 16949	TS 16949
Maximum repetitive peak reverse voltage	100 V	400 V	200 V	50 V	200 V	100 V	50 V	400 V
Maximum reverse current	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA
Maximum reverse recovery time	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
