CBW322513U121T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> CBW322513U121T

CBW322513U121T: DescriptionFerrite Bead, 1 Function(s), 3A, EIA STD PACKAGE SIZE 3225, SMD, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size464KB，13 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric View All

CBW322513U121T Overview

Ferrite Bead, 1 Function(s), 3A, EIA STD PACKAGE SIZE 3225, SMD, 2 PIN

CBW322513U121T Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.
package instruction	1210
Reach Compliance Code	unknown
ECCN code	EAR99
shell code	1210
structure	Chip Bead
Maximum DC resistance	0.1 Ω
filter type	FERRITE BEAD
maximum frequency	100 MHz
minimum frequency	100 MHz
high	1.3 mm
length	3.2 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance	120 OHM Ω
method of packing	TAPE AND REEL
physical size	L3.2XB2.5XH1.3 (mm)/L0.126XB0.098XH0.051 (inch)
Rated current	3 A
width	2.5 mm

Preview

Download Datasheet

View All

GUANGDONG ZHAOQING YINGDA INDUCTOR CO。

，LTD

SMD COMPONENTS

High current type beads

OPEARATING TEMP.

1005 :-55½125℃

1608

:-40½+85℃

2012

ＦＥＡＴＵＲＥＳ

・A

unique terminal electrode structure ensures permissible current 6.0A(max).

・High

impedance and EMI suppression effective over a wide frequency range.

・Suitable

reflow and wave soldering.

ＡＰＰＬＩＣＡＴＩＯＮＳ

・Digital

videos、communication equipment

、OA

equipment and others.

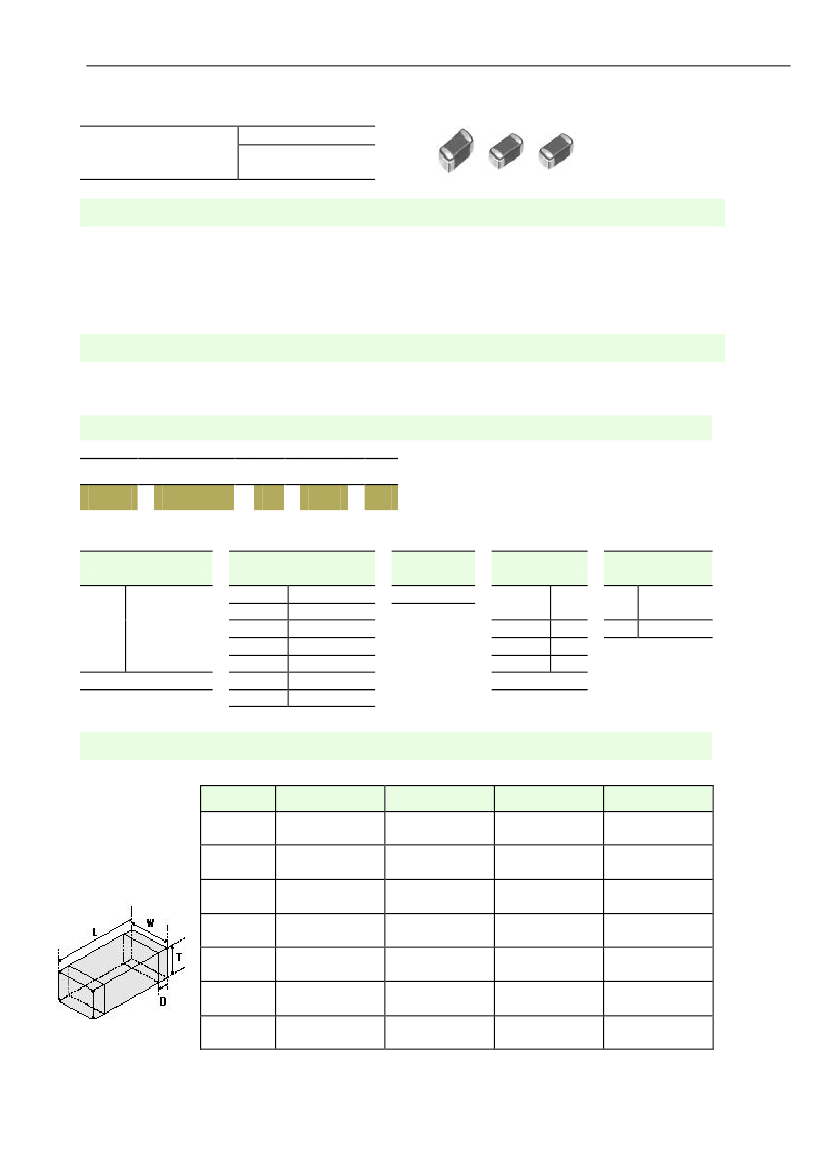

ＯＲＤＥＲＩＮＧ　ＣＯＤＥ　

CBW

①

Product Code

100505

CBW

MULTILAYER

CHIP POWER

BEADS

160808

201209

321609

322513

451616

453215

201209

②

③

121

④

⑤

③

④

Impedance (Ω）　

⑤

Packaging Style

1000

Tape & Reel

Bulk

Dimensions (L

×W×T)

(mm)

1.0×0.5×0.5

1.6×0.8×0.8

2.0×1.2×0.9

3.2×1.6×0.9

3.2×2.5×1.3

4.5×1.6×1.6

4.5×3.2×1.5

Material Code

Example

110

300

102

ＳＨＡＰＥ　ＡＮＤ　ＤＩＭＥＮＳＩＯＮＳ　

Part No.

100505

(0402)

160808

(0603)

201209

(0805)

321609

(1206)

322513

(1210)

451616

(1806)

453215

(1812)

1.0±0.15

(0.040±0.006)

1.6±0.2

(0.063±0.008)

2.0±0.2

(0.079±0.008)

3.2±0.2

(0.126±0.008)

3.2±0.2

(0.126±0.008)

4.5±0.2

(0.186±0.008)

4.5±0.2

(0.180±0.008)

0.5±0.15

(0.020±0.006)

0.8±0.2

(0.031±0.008)

1.2±0.2

(0.047±0.008)

1.6±0.2

(0.063±0.008)

2.5±0.2

(0.098±0.008)

1.6±0.2

(0.063±0.008)

3.2±0.2

(0.126±0.008)

0.5±0.15

(0.020±0.006)

0.8±0.2

(0.031±0.008)

0.9±0.2

(0.035±0.008)

0.9±0.2

(0.035±0.008)

1.3±0.2

(0.051±0.008)

1.6±0.2

(0.063±0.008)

1.5±0.2

(0.060±0.008)

0.25±0.10

(0.010±0.004)

0.3±0.2

(0.01±0.008)

0.5±0.3

(0.020±0.012)

0.5±0.3

(0.020±0.012)

0.5±0.3

(0.020±0.012)

0.5±0.3

(0.020±0.012)

0.5±0.3

(0.020±0.012)
