LH543601M30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH543601M30

LH543601M30: DescriptionFIFO, 256X36, Synchronous, CMOS, PQFP144, 20 X 20 MM, PLASTIC, TQFP-144; Categorystorage storage; File Size1MB，43 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH543601M30 Overview

FIFO, 256X36, Synchronous, CMOS, PQFP144, 20 X 20 MM, PLASTIC, TQFP-144

LH543601M30 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	20 X 20 MM, PLASTIC, TQFP-144
Reach Compliance Code	unknown
period time	30 ns
JESD-30 code	S-PQFP-G144
JESD-609 code	e0
length	20 mm
memory density	9216 bit
memory width	36
Number of functions	2
Number of terminals	144
word count	256 words
character code	256
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256X36
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	20 mm

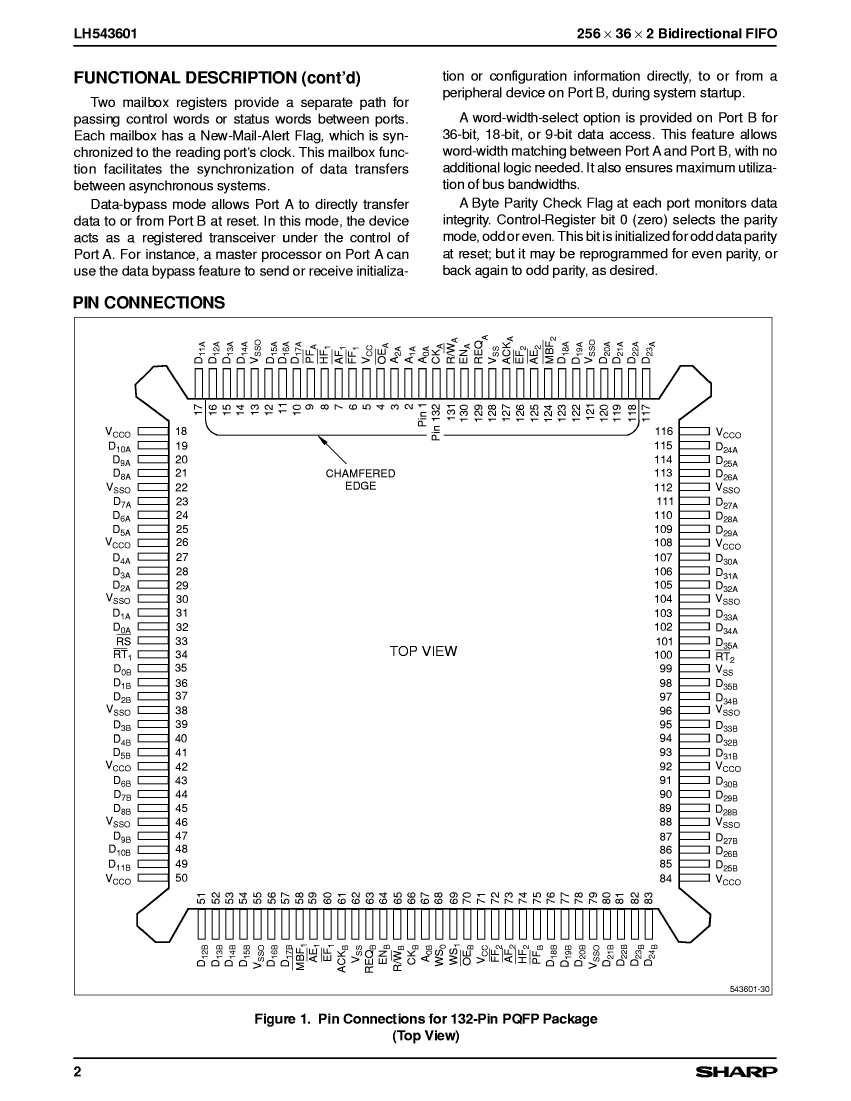

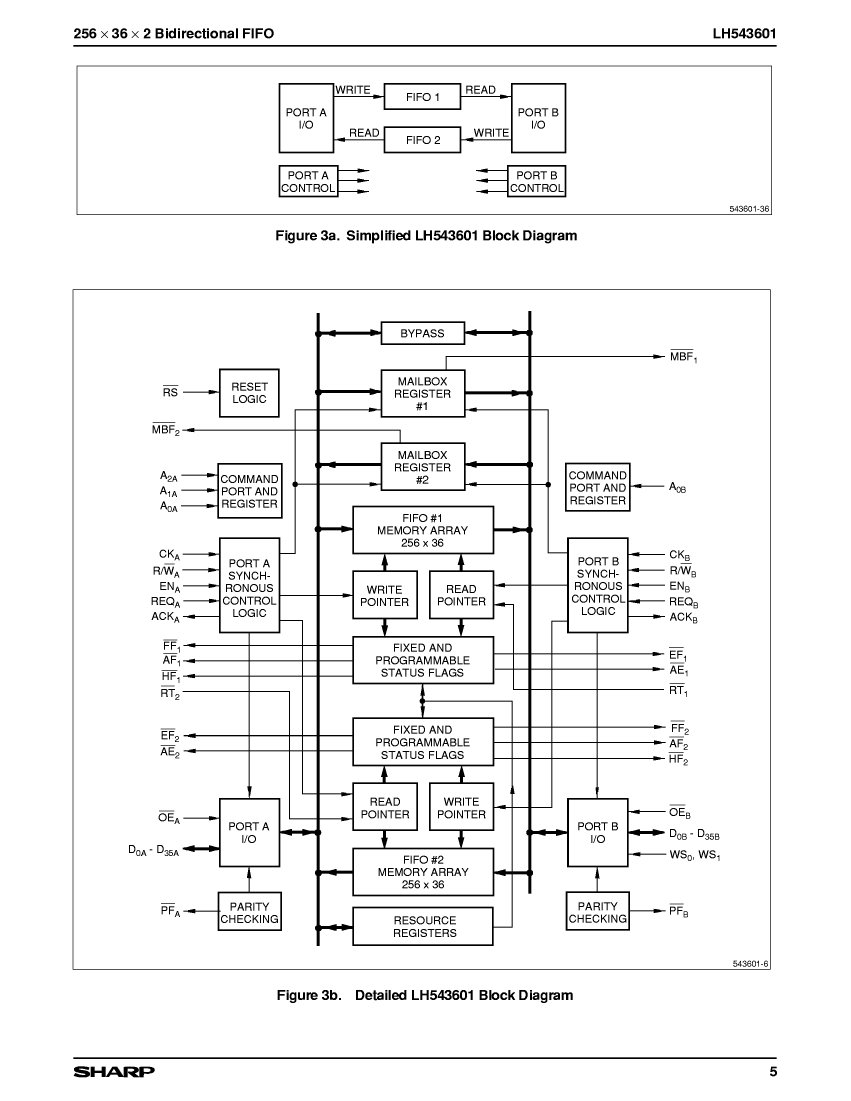

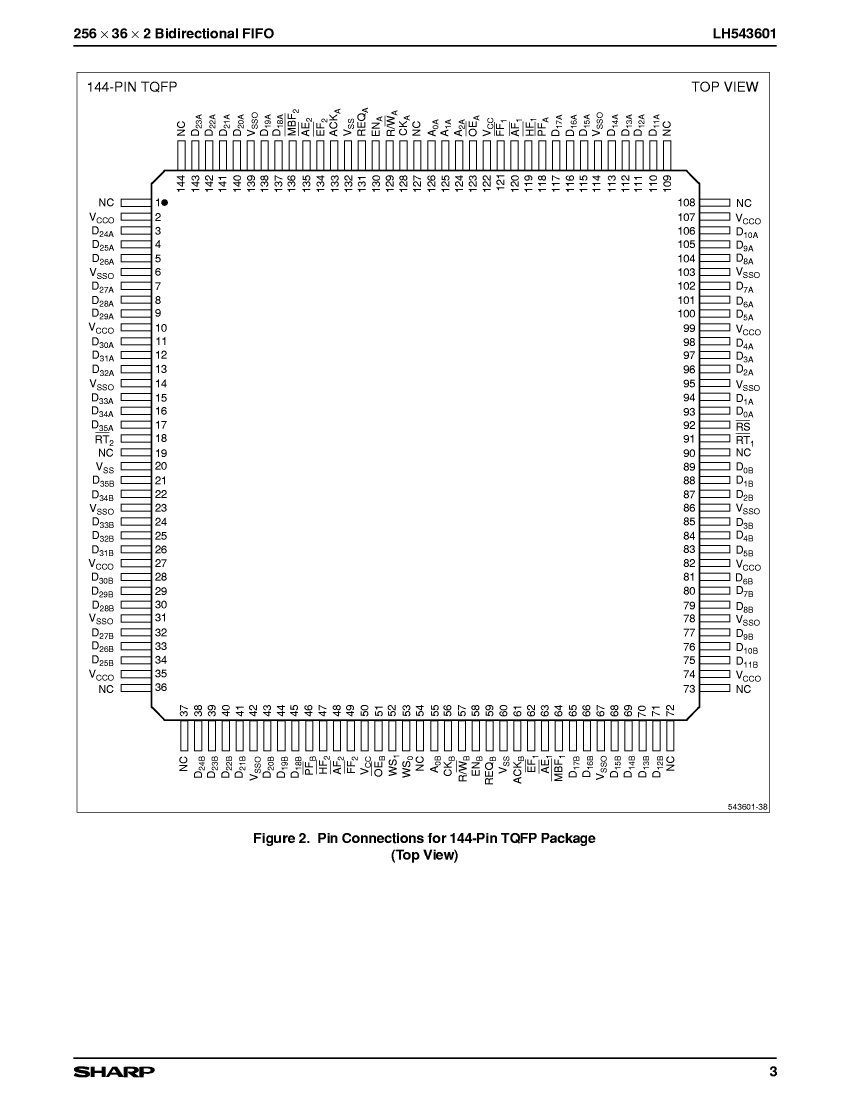

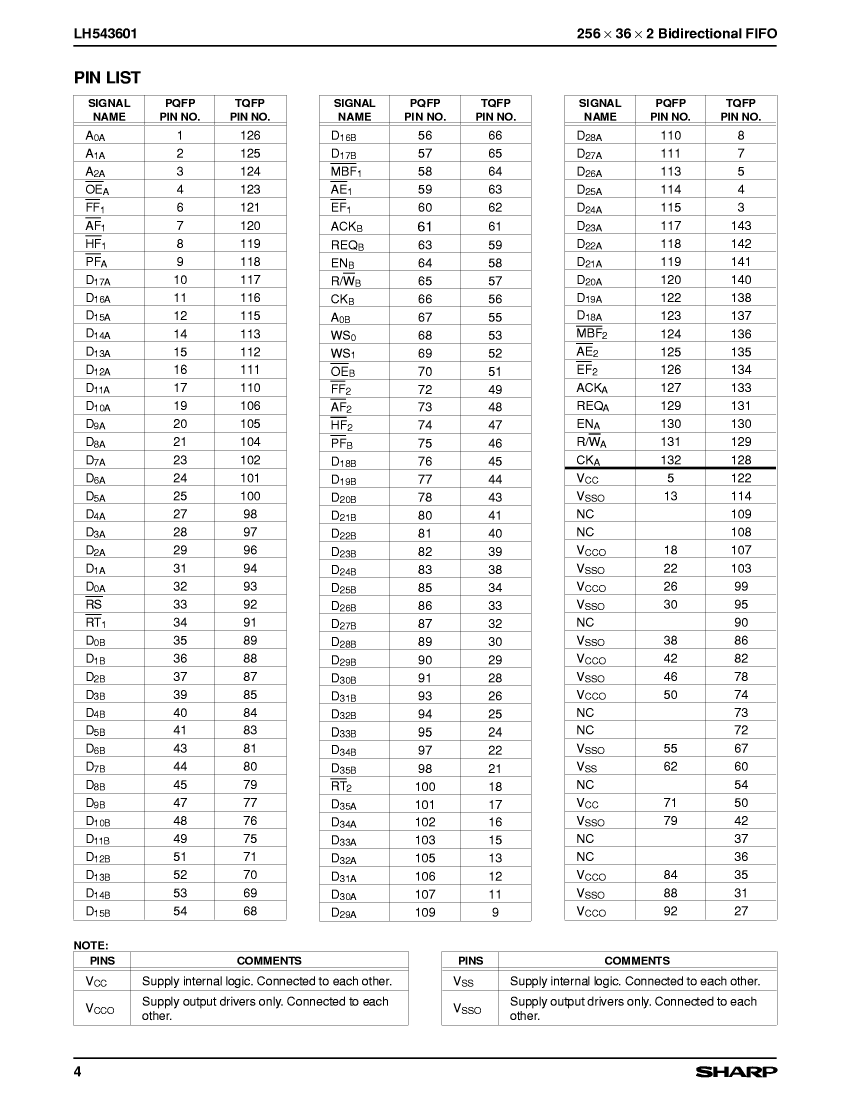

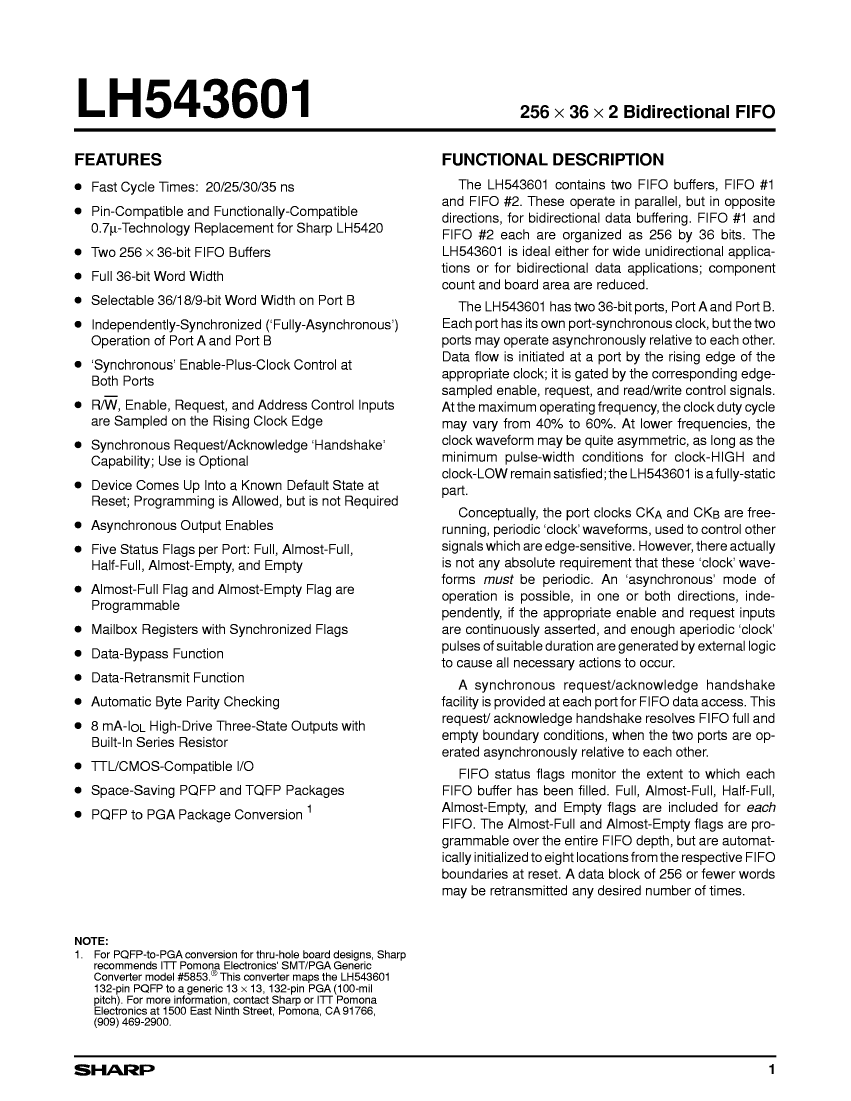

Preview

Download Datasheet

View All

LH543601M30 Related Products

	LH543601M30	LH543601M20	LH543601P20	LH543601P25	LH543601M35	LH543601P35	LH543601P30	LH543601M25
Description	FIFO, 256X36, Synchronous, CMOS, PQFP144, 20 X 20 MM, PLASTIC, TQFP-144	FIFO, 256X36, Synchronous, CMOS, PQFP144, 20 X 20 MM, PLASTIC, TQFP-144	FIFO, 256X36, Synchronous, CMOS, PQFP132, 0.950 INCH, PLASTIC, QFP-132	FIFO, 256X36, Synchronous, CMOS, PQFP132, 0.950 INCH, PLASTIC, QFP-132	FIFO, 256X36, Synchronous, CMOS, PQFP144, 20 X 20 MM, PLASTIC, TQFP-144	FIFO, 256X36, Synchronous, CMOS, PQFP132, 0.950 INCH, PLASTIC, QFP-132	FIFO, 256X36, Synchronous, CMOS, PQFP132, 0.950 INCH, PLASTIC, QFP-132	FIFO, 256X36, Synchronous, CMOS, PQFP144, 20 X 20 MM, PLASTIC, TQFP-144
package instruction	20 X 20 MM, PLASTIC, TQFP-144	20 X 20 MM, PLASTIC, TQFP-144	BQFP,	BQFP,	20 X 20 MM, PLASTIC, TQFP-144	BQFP,	BQFP,	20 X 20 MM, PLASTIC, TQFP-144
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
period time	30 ns	20 ns	20 ns	25 ns	35 ns	35 ns	30 ns	25 ns
JESD-30 code	S-PQFP-G144	S-PQFP-G144	S-PQFP-G132	S-PQFP-G132	S-PQFP-G144	S-PQFP-G132	S-PQFP-G132	S-PQFP-G144
length	20 mm	20 mm	24.13 mm	24.13 mm	20 mm	24.13 mm	24.13 mm	20 mm
memory density	9216 bit	9216 bit	9216 bit	9216 bit	9216 bit	9216 bit	9216 bit	9216 bit
memory width	36	36	36	36	36	36	36	36
Number of functions	2	2	2	2	2	2	2	2
Number of terminals	144	144	132	132	144	132	132	144
word count	256 words	256 words	256 words	256 words	256 words	256 words	256 words	256 words
character code	256	256	256	256	256	256	256	256
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256X36	256X36	256X36	256X36	256X36	256X36	256X36	256X36
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP	BQFP	BQFP	LFQFP	BQFP	BQFP	LFQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, LOW PROFILE, FINE PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	4.57 mm	4.57 mm	1.6 mm	4.57 mm	4.57 mm	1.6 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.635 mm	0.635 mm	0.5 mm	0.635 mm	0.635 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	20 mm	20 mm	24.13 mm	24.13 mm	20 mm	24.13 mm	24.13 mm	20 mm
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	-	incompatible
JESD-609 code	e0	e0	e0	-	e0	e0	-	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Is Samacsys	-	N	N	N	N	N	N	N
Base Number Matches	-	1	1	1	1	1	1	1
