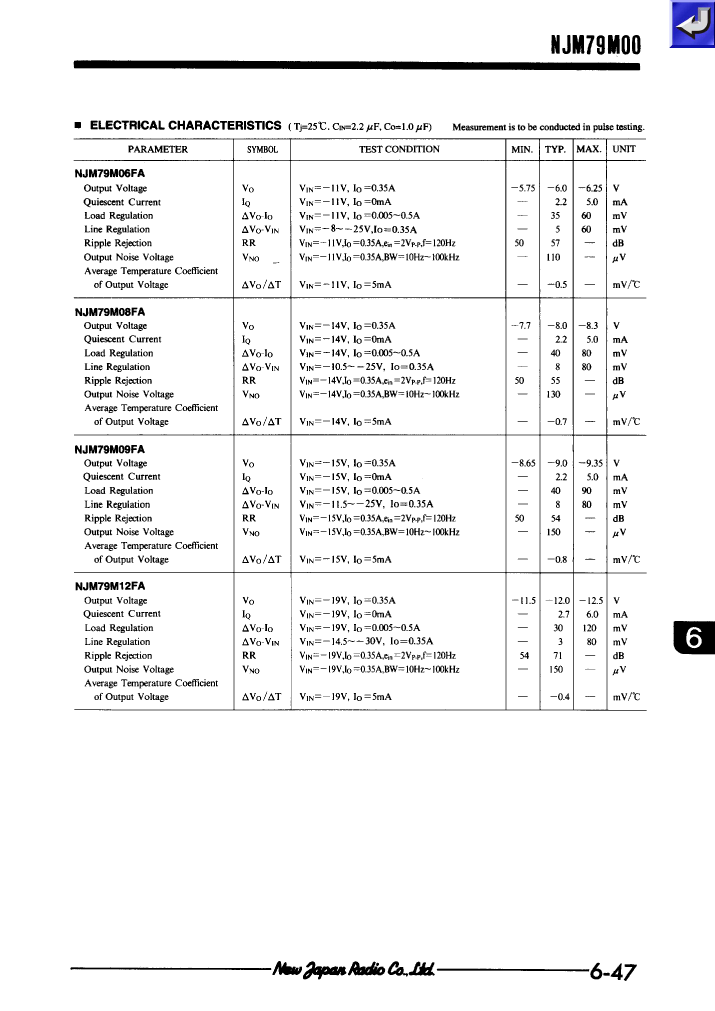

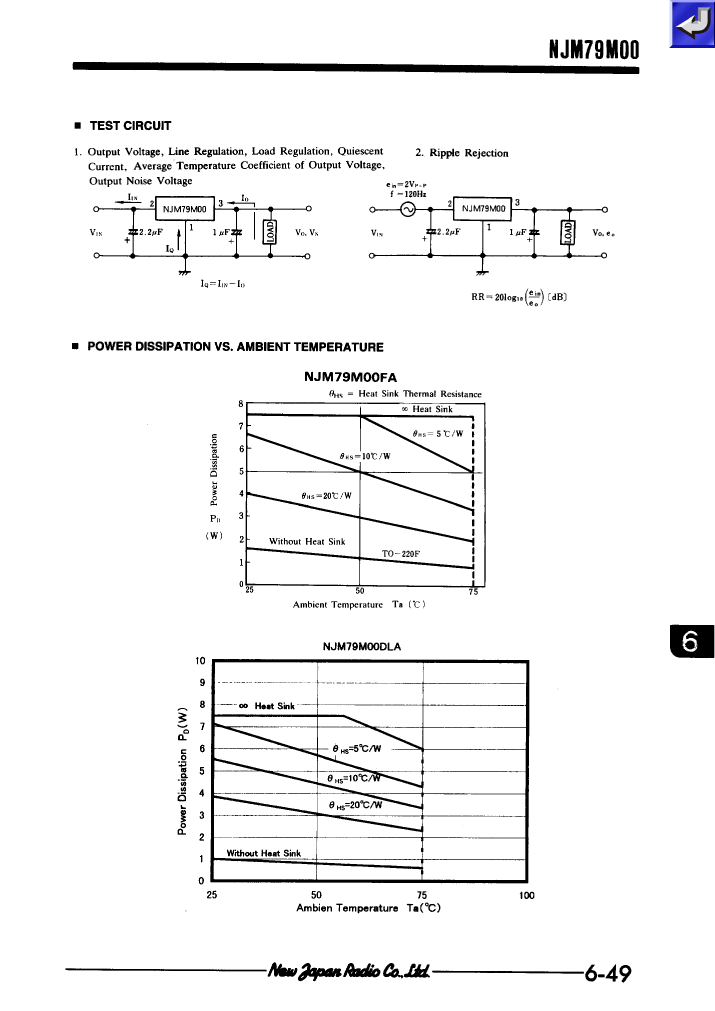

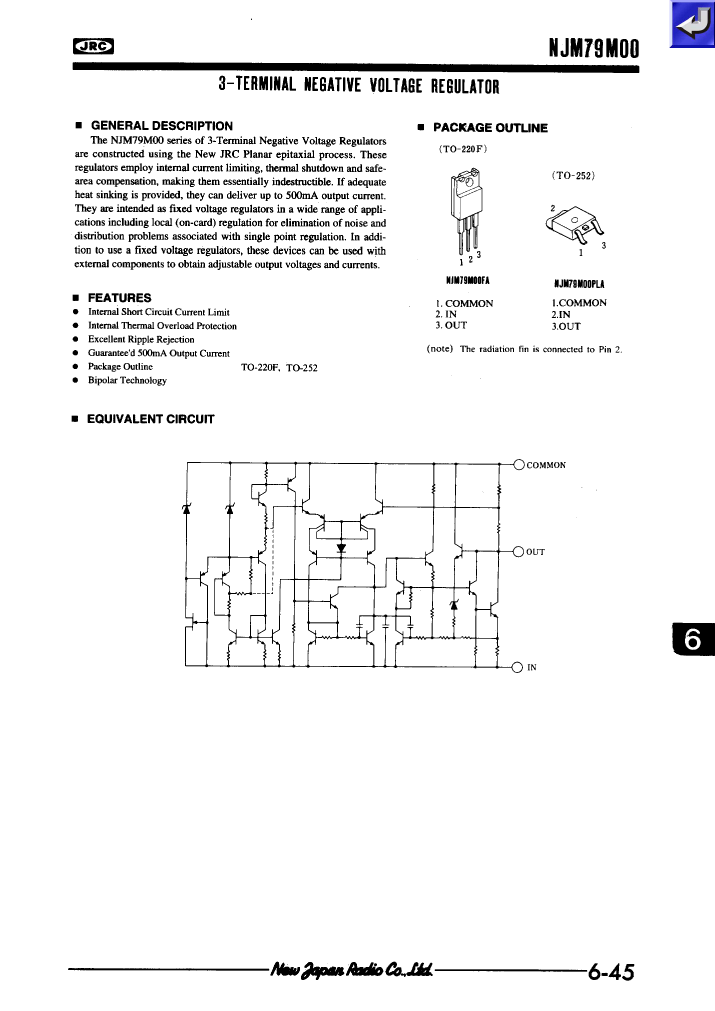

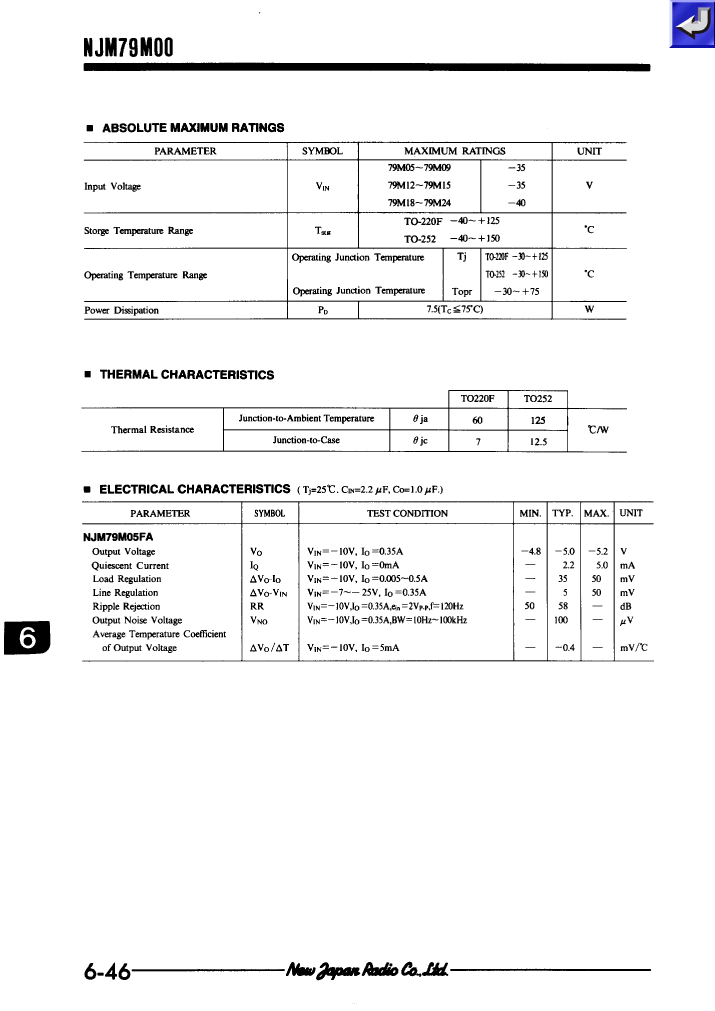

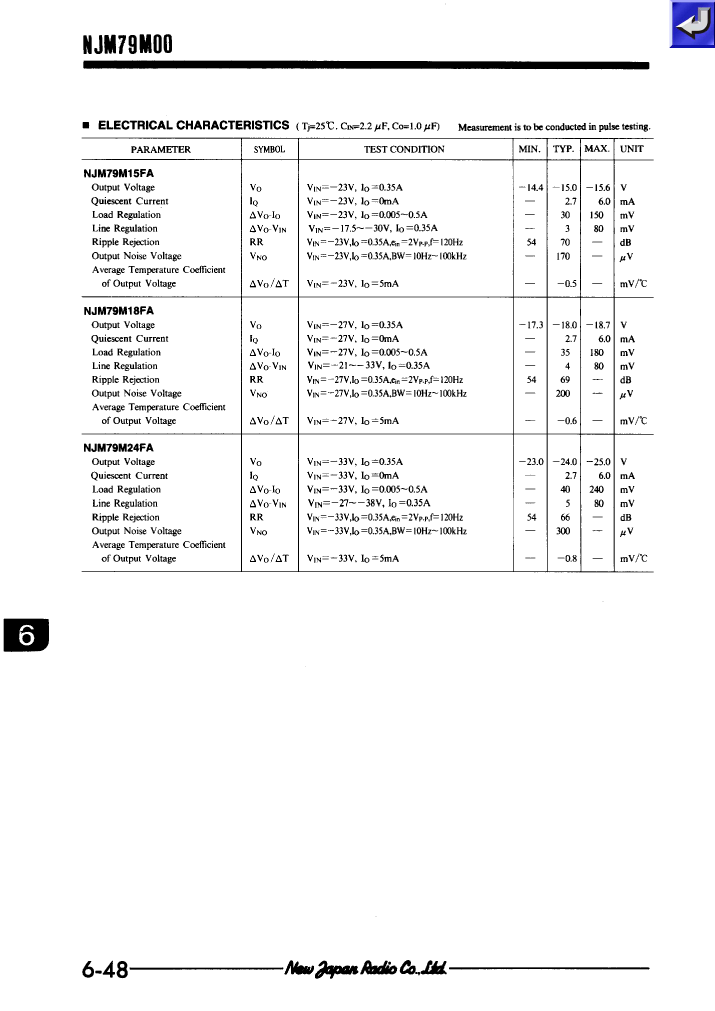

Preview

NJM79M12PLA: DescriptionFixed Negative Standard Regulator, PSSO2, TO-252, 3 PIN; CategoryPower/power management The power supply circuit; File Size187KB，7 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric Compare View All

NJM79M12PLA Overview

Fixed Negative Standard Regulator, PSSO2, TO-252, 3 PIN

NJM79M12PLA Parametric

Parameter Name	Attribute value
Maker	New Japan Radio Co., Ltd..
Parts packaging code	TO-252
package instruction	TO-252,
Contacts	4
Reach Compliance Code	compliant
JESD-30 code	R-PSSO-G2
JESD-609 code	e6
Number of terminals	2
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	YES
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal location	SINGLE

Preview

Download Datasheet

View All

NJM79M12PLA Related Products

	NJM79M12PLA	NJM79M05PLA	NJM79M09PLA	NJM79M18PLA	NJM79M24PLA	NJM79M15PLA	NJM79M06PLA	NJM79M08PLA
Description	Fixed Negative Standard Regulator, PSSO2, TO-252, 3 PIN	Fixed Negative Standard Regulator, PSSO2, TO-252, 3 PIN	Fixed Negative Standard Regulator, PSSO2, TO-252, 3 PIN	Fixed Negative Standard Regulator, PSSO2, TO-252, 3 PIN	Fixed Negative Standard Regulator, PSSO2, TO-252, 3 PIN	Fixed Negative Standard Regulator, PSSO2, TO-252, 3 PIN	Fixed Negative Standard Regulator, PSSO2, TO-252, 3 PIN	Fixed Negative Standard Regulator, PSSO2, TO-252, 3 PIN
Parts packaging code	TO-252	TO-252	TO-252	TO-252	TO-252	TO-252	TO-252	TO-252
package instruction	TO-252,	TO-252,	TO-252,	TO-252,	TO-252,	TO-252,	TO-252,	TO-252,
Contacts	4	4	4	4	4	4	4	4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e6	e6	e6	e6	e6	e6	e6	e6
Number of terminals	2	2	2	2	2	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-252	TO-252	TO-252	TO-252	TO-252	TO-252	TO-252	TO-252
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
