EH11
Series
• RoHS Compliant (Pb-free)
• HCMOS/TTL Output
• 5.0V Supply Voltage
• 8 Pin DIP Package
• Stability to 20ppm
• Custom Lead Length and
Gull Wing Options Available
EH11
H 5.6
L 13.2
W 13.2
OSCILLATOR
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
DD
)
Input Current
Frequency Tolerance / Stability
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year
Aging at 25°C, Shock, and Vibration
Output Voltage Logic High (V
OH
)
w/TTL Load
w/HCMOS Load
Output Voltage Logic Low (V
OL
)
Duty Cycle (V
DD
=5.0V
DC
)
w/TTL Load
w/HCMOS Load
at 1.4V
DC
w/TTL Load; at 50% of waveform w/HCMOS
Load (≤70.000MHz)
at 50% of waveform w/ TTL Load or w/HCMOS
Load (>70.000MHz)
at 50% of waveform w/TTL Load or w/HCMOS Load
Rise Time / Fall Time
0.8V
DC
to 2.0V
DC
w/TTL Load or 20% to 80%
of Waveform w/HCMOS Load (≤70.000MHz)
0.8V
DC
to 2.0V
DC
w/TTL Load or 20% to 80%
of Waveform w/HCMOS Load (>70.000MHz)
Tri-State Input Voltage
V
IH
:No Connection
V
IH
:≥2.2V
DC
V
IL
:≤0.8V
DC
Aging (at 25°C)
Start Up Time
Load Drive Capability
Period Jitter: Absolute
Period Jitter: One Sigma
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
1.000MHz to 155.520MHz
0°C to 70°C or -40°C to 85°C
-55°C to 125°C
5.0V
DC
±10%
50mA Maximum (Unloaded)
±100ppm, ±50ppm, ±25ppm, or
±20ppm Maximum
2.4V
DC
Minimum
V
DD
-0.4V
DC
Minimum
0.4V
DC
Maximum
0.5V
DC
Maximum
50 ±10(%) (Standard)
50 ±10(%) (Standard)
50 ±5(%) (Optional)
6 nSeconds Maximum
4 nSeconds Maximum
Enables Output
Enables Output
I
OH
=-16mA
I
OH
=-16mA
I
OL
=+16mA
I
OL
=+16mA
Disables Output: High Impedance
±5ppm / year Maximum
10 mSeconds Maximum
≤70.000MHz
>70.000MHz
10TTL Load or 50pF HCMOS Load Maximum
5TTL Load or 15pF HCMOS Load Maximum
±250pSec Maximum, ±100pSec Typical
±50pSec Maximum, ±30pSec Typical
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EH11
8 Pin DIP
5.0V
OS45
08/05
800-ECLIPTEK www.ecliptek.com for latest revision
62
Specifications subject to change without notice.
PART NUMBERING GUIDE
EH11 00 HS ET T TS - 70.000M - G TR
FREQUENCY TOLERANCE / STABILITY
00=±100ppm Max.(Standard), 45=±50ppm Max.
25=±25ppm Max., 20=±20ppm Max.
PACKAGE
HS=Half Size 8 Pin DIP
OPERATING TEMP. RANGE
Blank=0°C to 70°C (Standard), ET=-40°C to 85°C
DUTY CYCLE
Blank=50 ±10(%) (Standard), T=50 ±5(%)
PACKAGING OPTIONS
Blank=Bulk (Standard),
TR= Tape & Reel (only offered with
Half Size G and Half Size G2 Options)
AVAILABLE OPTIONS
Blank=None (Standard)
CLXXX=Custom Lead Length (See Page 133)
G=Half Size Gull Wing (See Page 132)
G2=Half Size Gull Wing (See Page 132)
FREQUENCY
OUTPUT CONTROL FUNCTION
TS=Tri-State Enable High

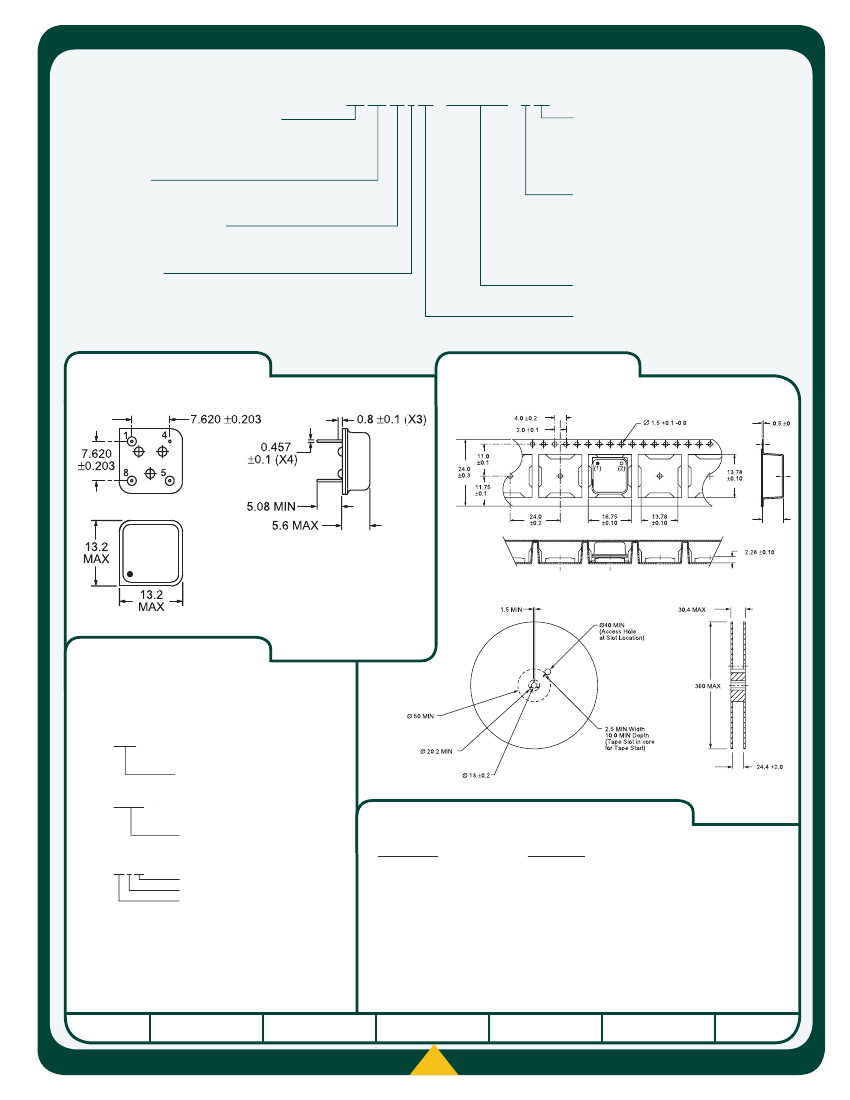

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1 Locator for Gull Wing
(1) For “G” Option
Ø
Pin 1: Tri-State
Pin 4: Case Ground
Pin 5: Output
Pin 8: Supply Voltage
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Line 2: EH11 TS
Series Designator
Line 3: XX.XXX M
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Frequency in MHz
(5 Digits Maximum + Decimal)
700 Pieces Per Reel
Compliant to EIA-481A
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Lead Integrity
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2004
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-883, Method 210
MIL-STD-883, Method 215
Line 4: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
Note: Pin 1 shall be designated with a dot
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EH11
8 pin DIP
5.0V
OS45
08/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
