ACLM-4537C36 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ACLM-4537C36

ACLM-4537C36: DescriptionLimiter, 2000MHz Min, 18000MHz Max, CASE C36; CategoryWireless rf/communication Radio frequency and microwave; File Size293KB，2 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

ACLM-4537C36 Overview

Limiter, 2000MHz Min, 18000MHz Max, CASE C36

ACLM-4537C36 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM
Adjustability	FIXED
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	LIMITER
Maximum voltage standing wave ratio	1.9

Preview

Download Datasheet

View All

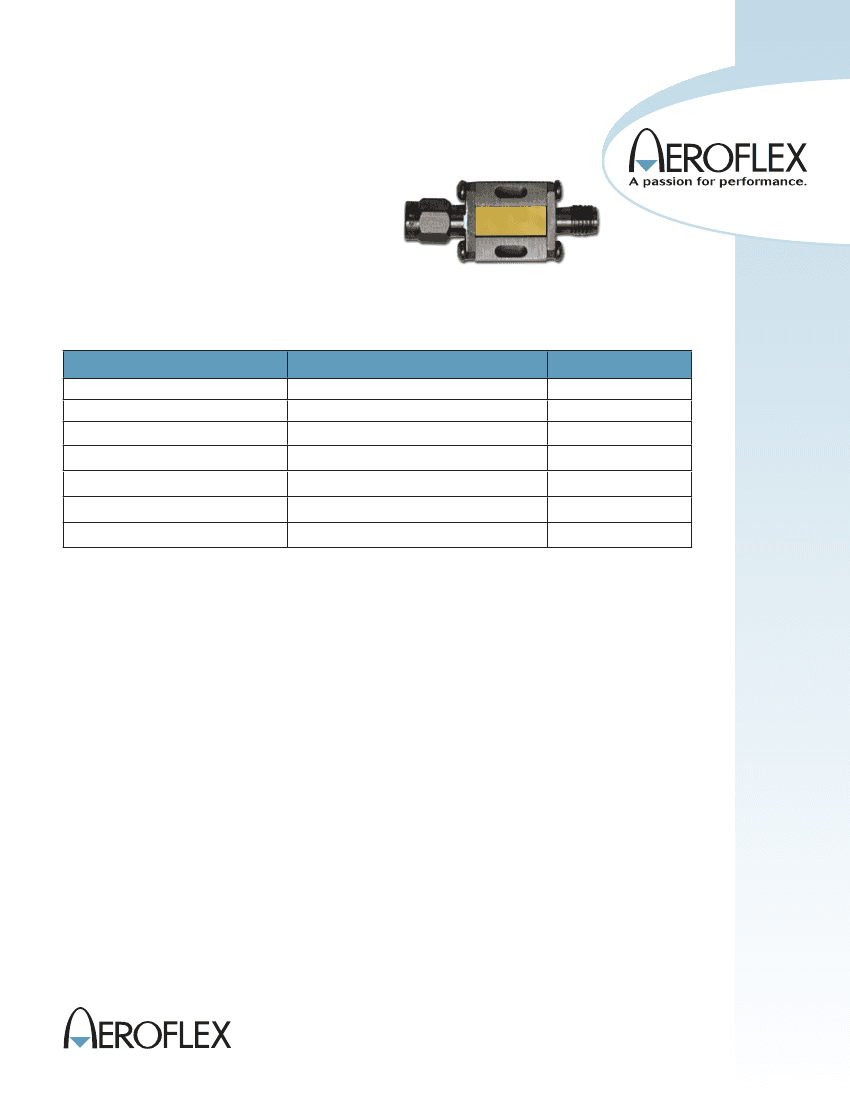

ACLM-4537

Pin Diode Limiter

Features:

•

Built to protect sensitive circuit elements such as

receiver front ends or detectors.

Reduce high power inputs to a low level that can be

tolerated by the next component.

Custom models with higher power handling are

available.

Specifications:

Parameter

Frequency Range (min)

Peak Input Power (max)

CW Input Power (max)

Peak Flat Leakage (max)

CW Flat Leakage (max)

Insertion Loss (max)

VSWR (max)

Specification

2 – 18

100

1.8

1.9:1

Units

GHz

dBm

ratio

Notes:

CW Leakage is measured at 1W input

Up to 1KW peak power handling is available.

Insertion loss and VSWR will degrade slightly.

Power handling is linearly derated from full power at

25˚C to zero power at +150˚C

SCREENING:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65°C to +100°C, 10 cycles

Environmental Specifications:

Designed to meet:

MIL-E-5400, MIL-STD-202, MIL-E-16400

Operating Temp: -55°C to +125°C

Storage Temp: -65°C to +150°C

Humidity: MIL-STD-202F, M103, Cond B

Shock: MIL-STD-202F, M213, Cond B

Altitude: MIL-STD-202F, M105, Cond B

Vibration: MIL-STD-202F, M204, Cond B

Thermal Shock: MIL-STD-202F, M107, Cond A

Temperature Cycle: MIL-STD-202F, M105C, Cond D

OPTIONAL HIGH-REL SCREENING

(Ref MIL-PRF-38534):

Stabilization Bake per MIL-STD-883, Method 1008

Temperature Cycle per MIL-STD-883, Method 1010

Constant Acceleration per MIL-STD-883, Method

2001

Burn-in per MIL-STD-883, Method 1015

Leak Test per MIL-STD-883, Method 1014

External Visual per MIL-STD-883, Method 2009

SIGNAL & CONTROL SOLUTIONS

Revision Date: 9/23/2013

40 Industrial Way East, Eatontown , NJ 07724 [USA]

Phone: (732) 460-0212, Fax: (732) 460-0214

www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com

ACLM-4537C36 Related Products

	ACLM-4537C36	ACLM-4537C36R1K-RC	ACLM-4537C36R	ACLM-4537C36R1K
Description	Limiter, 2000MHz Min, 18000MHz Max, CASE C36	Limiter, 2000MHz Min, 18000MHz Max, ROHS COMPLIANT, CASE C36	Limiter, 2000MHz Min, 18000MHz Max, CASE C36	Limiter, 2000MHz Min, 18000MHz Max, CASE C36
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible
Maker	Cobham PLC	Cobham PLC	Cobham PLC	Cobham PLC
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM	SMA-F; SMA-M, I/P POWER-MAX (PEAK)=50DBM
Adjustability	FIXED	FIXED	FIXED	FIXED
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm
Maximum operating frequency	18000 MHz	18000 MHz	18000 MHz	18000 MHz
Minimum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	LIMITER	LIMITER	LIMITER	LIMITER
Maximum voltage standing wave ratio	1.9	1.9	1.9	1.9
