Part Number

Search

LL5986B

Description
Zener Diode, 2.7V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA,
CategoryDiscrete semiconductor    diode
File Size109KB,2 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric View All

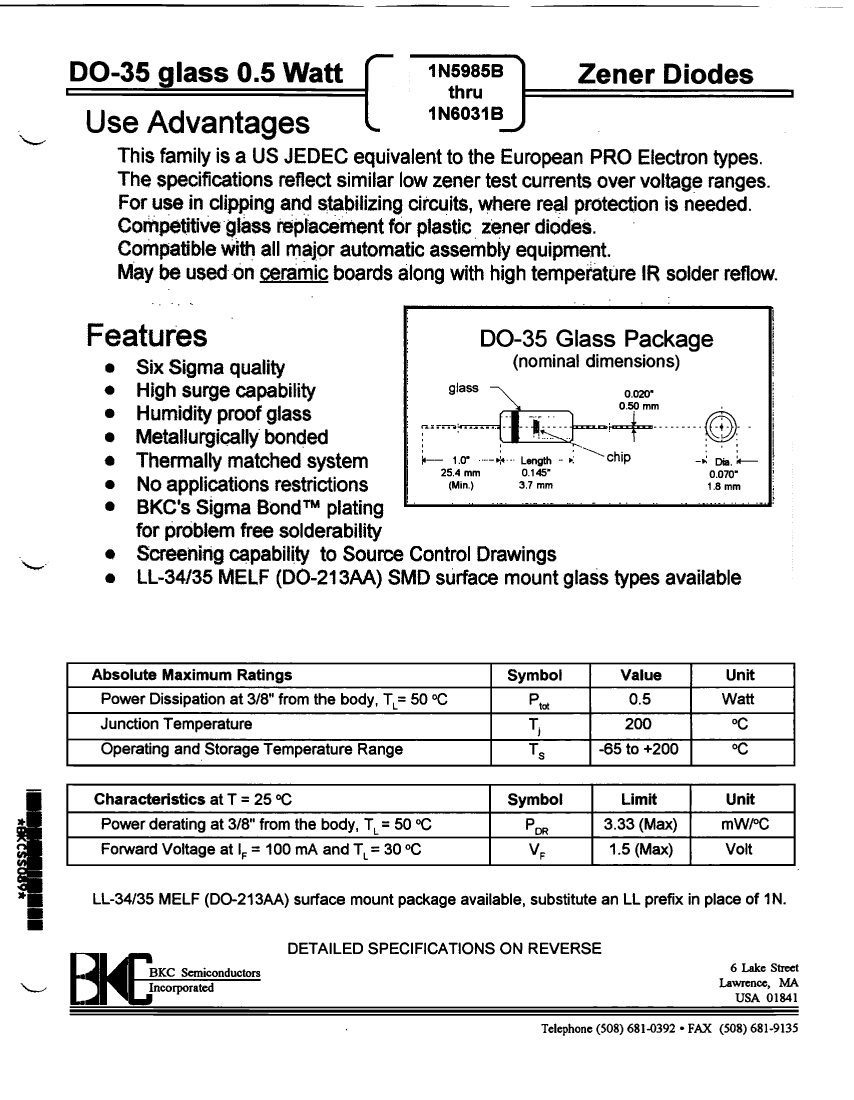

LL5986B Overview

Zener Diode, 2.7V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA,

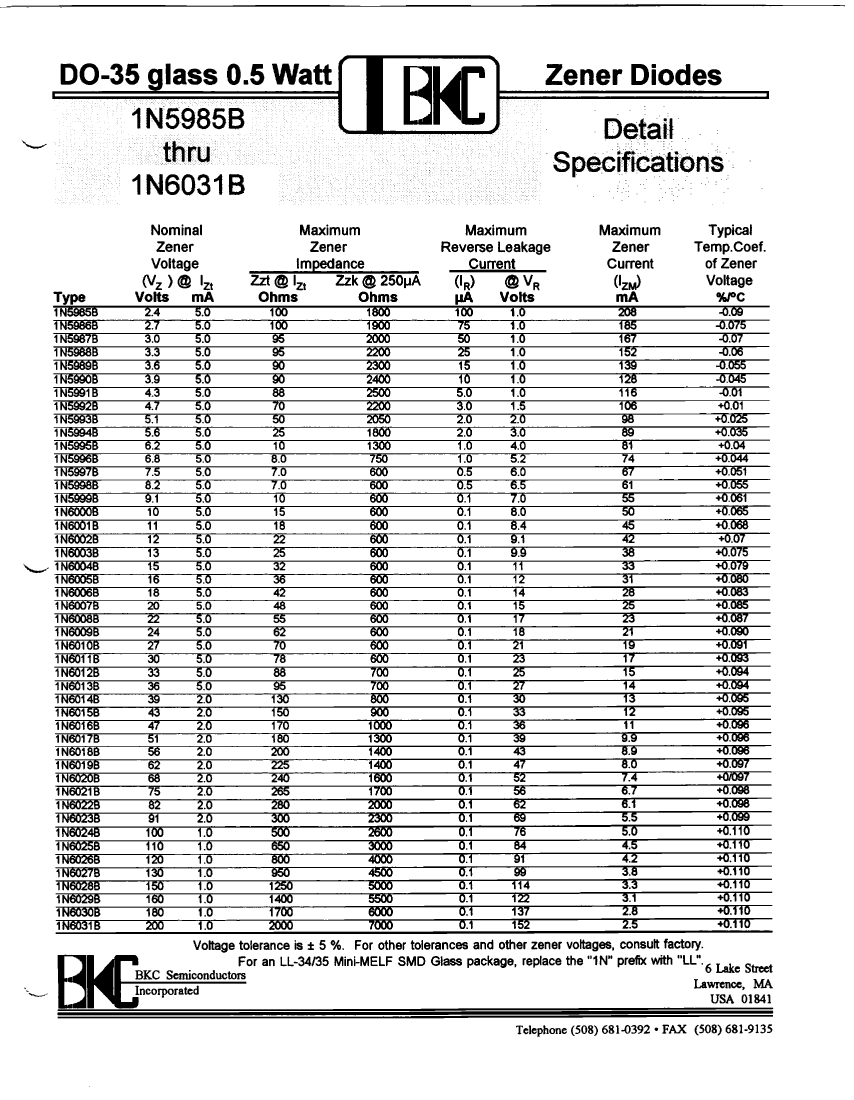

LL5986B Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMicrosemi
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresHIGH SURGE CAPABILITY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
Maximum dynamic impedance100 Ω
JEDEC-95 codeDO-213AA
JESD-30 codeO-LELF-R2
JESD-609 codee0
Number of components1
Number of terminals2
Maximum operating temperature200 °C
Package body materialGLASS
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation0.5 W
Certification statusNot Qualified
Nominal reference voltage2.7 V
surface mountYES
technologyZENER
Terminal surfaceTIN LEAD
Terminal formWRAP AROUND
Terminal locationEND
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance5%
Working test current5 mA
