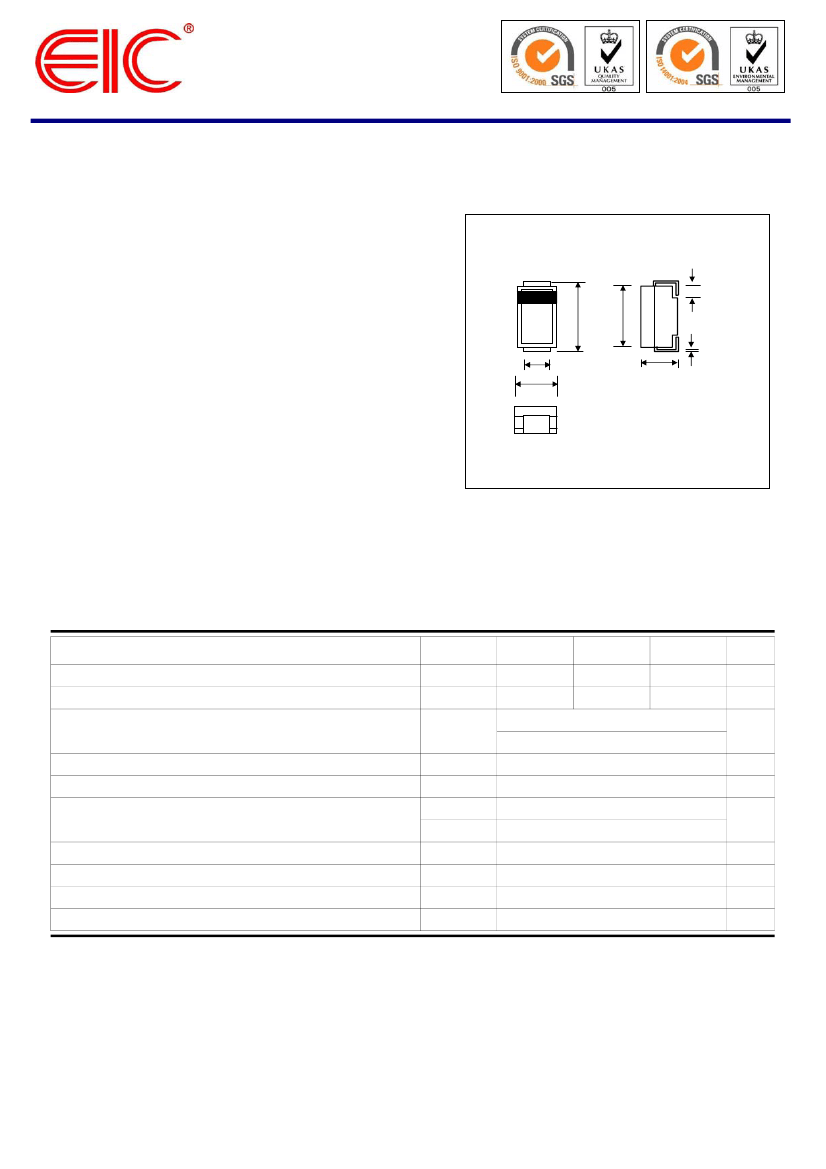

1N5807US - 1N5811US
PRV : 50 - 150 Volts
Io : 6.0 Amperes
FEATURES :
*
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Ultrafast recovery time
Pb / RoHS Free
ULTRAFAST RECOVERY
RECTIFIER DIODES
SMB (DO-214AA)
1.1
±
0.3
5.4
±
0.15
4.8
±
0.15
2.0
±
0.1
3.6
±
0.15
2.3
±
0.2
0.22
±
0.07
MECHANICAL DATA :
* Case : SMB Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead Formed for Surface Mount
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.1079 gram
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified.
RATING
Maximum Working Peak Reverse Voltage
Minimum Breakdown Voltage @ 100µA
Maximum Average Forward Current
Maximum Forward Surge Current
(3)
Maximum Peak Forward Voltage at I
F
= 4.0 A.
Maximum Reverse Current at V
RWM
Maximum Reverse Recovery Time
(4)
Thermal Resistance, Junction to Lead
Junction Temperature Range
Storage Temperature Range
Ta = 25 °C
Ta = 100 °C
SYMBOL
V
RWM
V
BR(Min)
I
F(AV)
I
FSM
V
F
I
R
I
R(H)
Trr
R
ӨJL
T
J
T
STG
1N5807US
50
60
1N5809US 1N5811US
100
110
6.0
(1)
3.0
(2)
125
0.875
5.0
150
30
22
- 65 to + 175
- 65 to + 175
150
160
UNIT
V
V
A
A
V
μA
ns
°C/W
°C
°C
Notes :
(1) Rated at T
L
=75
°C
at 3/8 inc lead length. Derate at 60 mA/°C for T
L
above 75
°C.
(2) Derate linearly at 25 mA/°C above Ta = 55 °C. This rating is typical for PC boards where thermal resistance from mounting
point to ambient is sufficiently controlled where T
J(max)
dose not exceed 175 °C.
(3) Ta = 25 °C @ I
F(AV)
= 3A and V
RWM
for ten 8.3 ms surges at 1 minute intervals.
(4) I
F
= 1A, I
RM
= 1A, I
R(REC)
= 0.1 A and di/dt = 10 A/μs min.
Page 1 of
2
Rev. 00 : April 4, 2007
Certificate
:
TH97/10561QM
Certificate :
TW00/17276EM

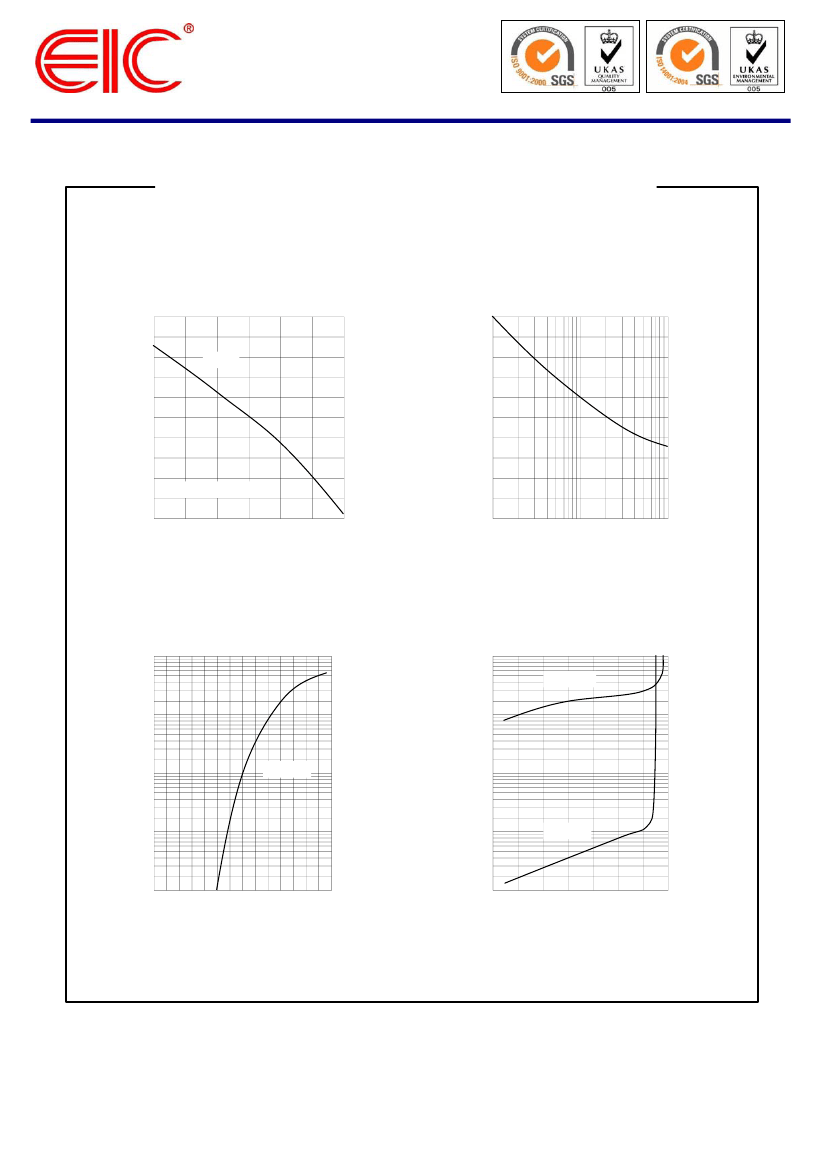

RATING AND CHARACTERISTIC CURVES ( 1N5807US - 1N5811US )
FIG. 1 - OUTPUT CURRENT VS.
LEAD TEMPERATURE
FIG.2 - MULTIPLE SURGE CURRENT
VS. DURATION
AVERAGE RECTIFIED CURRENT, (A)
8
PERCENT OF SURGE RATING, (%)
10
100
L = 3/8"
80
6
60
4
40
2
L = Lead length from body
0
25
50
75
100
125
150
175
20
0
1
10
100
LEAD TEMPERATURE, (°C)
CYCLES AT 60 HZ SINE WAVE
FIG.3 - TYPICAL FORWARD CHARACTERISTICS
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
100
1000
Ta = 100 °C
FORWARD CURRENT, (A)
10
REVERSE CURRENT, (μA)
100
1.0
Ta = 25 °C
10
0.1
1
Ta = 25 °C
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
0.1
0
20
40
60
80
100
120
140
FORWARD VOLTAGE, (V)
PERCENT OF RATED REVERSE
VOLTAGE, (%)
Page 2 of 2
Rev. 00 : April 4, 2007
