ASPE-V-FREQ-L-K-N100-S-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASPE-V-FREQ-L-K-N100-S-T

ASPE-V-FREQ-L-K-N100-S-T: DescriptionPECL Output Clock Oscillator, 1.544MHz Min, 700MHz Max, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size953KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASPE-V-FREQ-L-K-N100-S-T Overview

PECL Output Clock Oscillator, 1.544MHz Min, 700MHz Max, CERAMIC, SMD, 6 PIN

ASPE-V-FREQ-L-K-N100-S-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRI-STATE FUNCTION
maximum descent time	0.4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	30%
Manufacturer's serial number	ASPE
Installation features	SURFACE MOUNT
Maximum operating frequency	700 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Oscillator type	PECL
Output load	50 OHM
physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	0.4 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

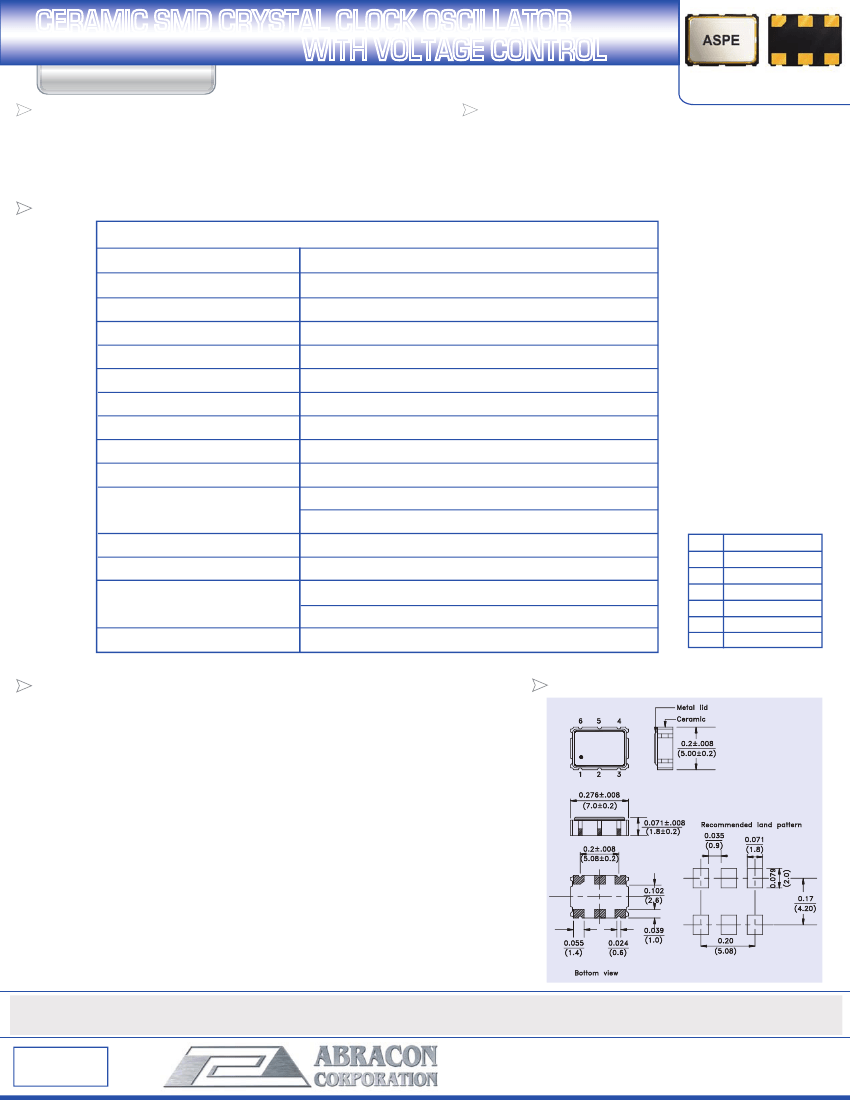

CERAMIC SMD CRYSTAL CLOCK OSCILLATOR

WITH VOLTAGE CONTROL

ASPE SERIES

FEATURES:

• Complimentary PECL Outputs • Suitable for high density SMT.,

• Compact and low in height

Reflow capable

• Tri state function

• Tight stability option

• 2.5Vdc Supply Voltage Option

APPLICATIONS:

• Telecommunications Equipment

• High speed switching devices

• Routing devices

7.0 x 5.08 x 1.8mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

Frequency Range

Operating Temperature

Storage Temperature

Overall Frequency Stability

Supply Voltage (Vdd)

Input Current

Symmetry

Rise and Fall Time (Tr/Tf)

Output Load

Output Type

Output Voltage

Pullability

Start-up Time

Tristate Function

Jitter (12KHz - 20MHz)

1.544 MHz to 700 MHz

0°C to + 70°C

- 55°C to + 125°C

± 100 ppm max.

3.3 Vdc ± 5%

80mA (for Fo < 160MHz), 120mA (for Fo>160MHz)

40/60 % max. (see options)

400pS max

Ω

PECL

VOH = 2.35V Typ (3.3Vdd), 1.55V Typ (2.5Vdd)

VOL = 1.6V Typ (3.3Vdd), 0.8V Typ (2.5Vdd)

± 70 ppm min. (see options)

10mS max

"1" (VIH >= 0.7* Vdd) or open: Oscillation

"0" (VIL < 0.3* Vdd) : No oscillation/Hi Z

3.5pS RMS max

FUNCTION

Voltage Control

Tri-state

GND/Case

Output

Vdd

Note: Decoupling capacitor shall be connected between Vdd and GND for best performance and stability.

OPTIONS AND PART IDENTIFICATION (Left blank if standard):

ASPE - Supply Voltage - Frequency - Temperature - Frequency Stability -

Pullability - Symmetry - Packaging

Supply Voltage options:

for 3.3V±5%

for 2.5V±5%

Stability options:

for ± 25 ppm

for ± 30 ppm

for ± 35 ppm

for ± 50 ppm

Temperature options:

for -10°C to +60°C

for -40°C to +70°C

Pullability option:

N100

for ±100 ppm min

Symmetry option:

for 45/55% at 1/2Vdd

OUTLINE DRAWING:

Packaging option:

T for Tape and Reel

(1,000pcs/reel)

Dimensions: inch (mm)

ATTENTION:

Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military,

Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme

operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.

ABRACON IS

ISO 9001:2008

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Recommended Resources

Capacitive Neutral Leakage Protection Circuit

Power supply coupler-thyristor interface circuit a

Frequency sensitive rheostat automatic forward and reverse starting circuit

Contact sensor signal receiving circuit
