3M
™
MetPak
™
2-FB Inverse Socket
2 mm 5-Row, Vertical, Solder or Press-Fit Tail
MP2 Series
• Guiding alignment feature eliminates bent pins on
backplane
• Footprint compatible with standard Futurebus+
®
• Ideal for hot swapping
• End-to-end stackable
• Vertical socket on backplane
• Offset dual-beam contact minimizes insertion force
• Mates with MP2-P and MP2-PS Series
• Rear plug-up tails for midplane applications
• See the Regulatory Information Appendix (RIA)
in the “RoHS compliance” section of
www.3Mconnectors.com for compliance
information (RIA E1 & C1 apply)
Date Modified: September 17, 2013
TS-1121-C
Sheet 1 of 4
Physical
Insulation:
Material: High Temp LCP
Flammability: UL 94V-0
Color: Beige
Contact:
Material: Copper Alloy
Plating:
Underplating: 50 µ" [1.27 µm) Nickel
Wiping Area: See Ordering Information
Solder Tails: See Ordering Information
Electrical
Current Rating:
Signal: 1.5 A – All contacts simultaneously
Insulation Resistance:
10
3
MΩ
Withstanding Voltage:
1000 V
AC
Environmental
Temperature Rating:
-55°C to +125°C
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
MetPak is a trademark of 3M Company.
Futurebus+ is a registered trademark of the Institute of Electrical and Electronic Engineers, Inc. (IEEE)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Inverse Socket
2 mm 5-Row, Vertical, Solder or Press-Fit Tail
C
L
MP2 Series

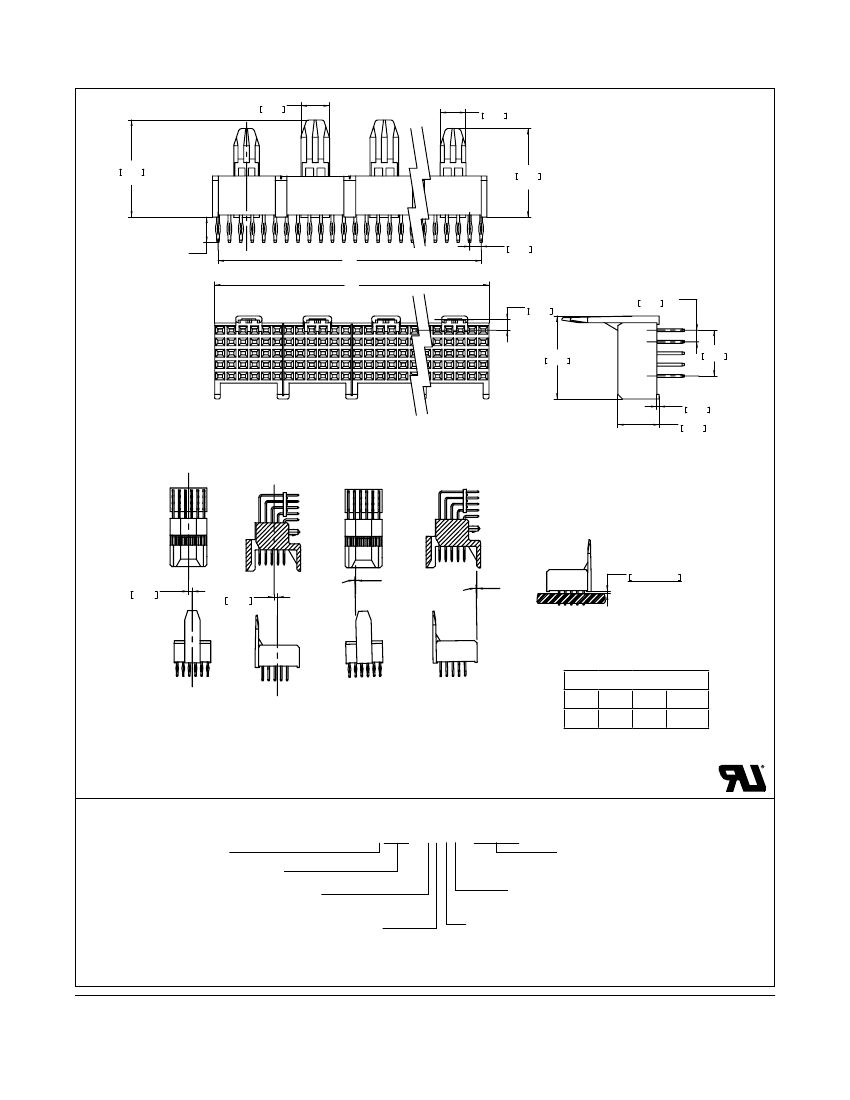

4.48
.176
4.98
.196
17.00
.669
TYP. INTERIOR GUIDE
15.50
.610
TYP. EXTERIOR GUIDE
"C" TAIL LENGTH
"B"
"A"
2.00
.079
TYP.
ROW
E
D
C
B
A
1.90
.075
2.00
.079
4X
14.50
.571
8.00
.315
POSITION 1 2
POSITION X
0.38
.015
7.20
.283
1.25
.049
1.5°
1.00
.039
1°
0.08 ±.08
.003 ±.003
POST TERMINATION
mm
[inch]
Tolerance Unless Noted
INITIAL ALLOWED
INCLINATION
Notes:
1. For special contact loading pattern, contact 3M.
2. Refer to IEC 61076-4-104 Futurebus+
®
global standard.
3. “Press Fit” describes a contact tail having a compliant section designed to make a reliable electrical connection with a
plated through-hole (PTH) in a printed circuit board, typically a “back plane.”
INITIAL ALLOWED
OFFSET
0
mm
±3
0.0
±0.3
0.00
±0.13
[ ] Dimensions for Reference
Only
Ordering Information
MP2 - RXXX - 5XXX - XXXXX
R = Inverse Socket
Contact Count
(See Table 1)
Plating Options
(See Table 3)
Rows
5 = 5 Rows
Loading Pattern
1 = All rows filled
2 = Rows A, B, C and D filled,
Row E omitted
Tail Length
(See Table 2)
Termination Style
P = Press-Fit
S = Solder Tail
TS-1121-C
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Inverse Socket
2 mm 5-Row, Vertical, Solder or Press-Fit Tail
MP2 Series
Table 1 - Connector & Row Lengths
Pin Count
030
060
090
120
150
180
210
240
270
300
Dim. “A”
mm [inch]
11.95 [0.471]
23.95 [0.943]
35.95 [1.415]
47.95 [1.889]
59.95 [2.36]
71.95 [2.833]
83.95 [3.305]
95.95 [3.778]
107.95 [4.251]
119.95 [4.722]
Dim “B”
mm [inch]
10.00 [0.394]
22.00 [0.866]
34.00 [1.339]
46.00 [1.811]
58.00 [2.283]
70.00 [2.756]
82.00 [3.228]
94.00 [3.701]
106.00 [4.173]
118.00 [4.646
Rows
5
5
5
5
5
5
5
5
5
5
Block
Count
1
2
3
4
5
6
7
8
9
10
Table 2 - Tail Length
Contact-to-PC Board Tail
Termination Option No.
Solder
1
*Compliant-Pin Tail
Press-Fit*
1
4.35 [0.171]
Dim. “C”
Table 3 - Plating & Regulatory
Plating Suffix
KR
Press-Fit Tails*
RIA E1 & C1 apply
Solder Tails
RIA E1 & C1 apply
Plating Composition
0.76 µm [30 µ"] Min. Au Contact Area
2.54 µm [100 µ"] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ"] Min. Ni all over
0.08 µm [3 µ"] Min. Au Contact Area
0.67 µm [27 µ"] Min. PdNi Contact Area
2.54 µm [100 µ"] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ"] Min. Ni all over
LR
RIA E1 & C1 apply
RIA E1 & C1 apply
*Compliant-Pin Tail
TS-1121-C
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Inverse Socket
2 mm 5-Row, Vertical, Solder or Press-Fit Tail
MP2 Series
2.00
.079
TYP.
8.00
.315
“D” PLATED THROUGH-HOLE
"D" PLATED THRU HOLE
l O
0.10
A1
mm
[inch]
Tolerance Unless Noted
"B"
0.0
mm
±0.3
0.00
±0.25
[ ] Dimensions for
Reference Only
2.00
.079
4x
18.00
.709
MINIMUM

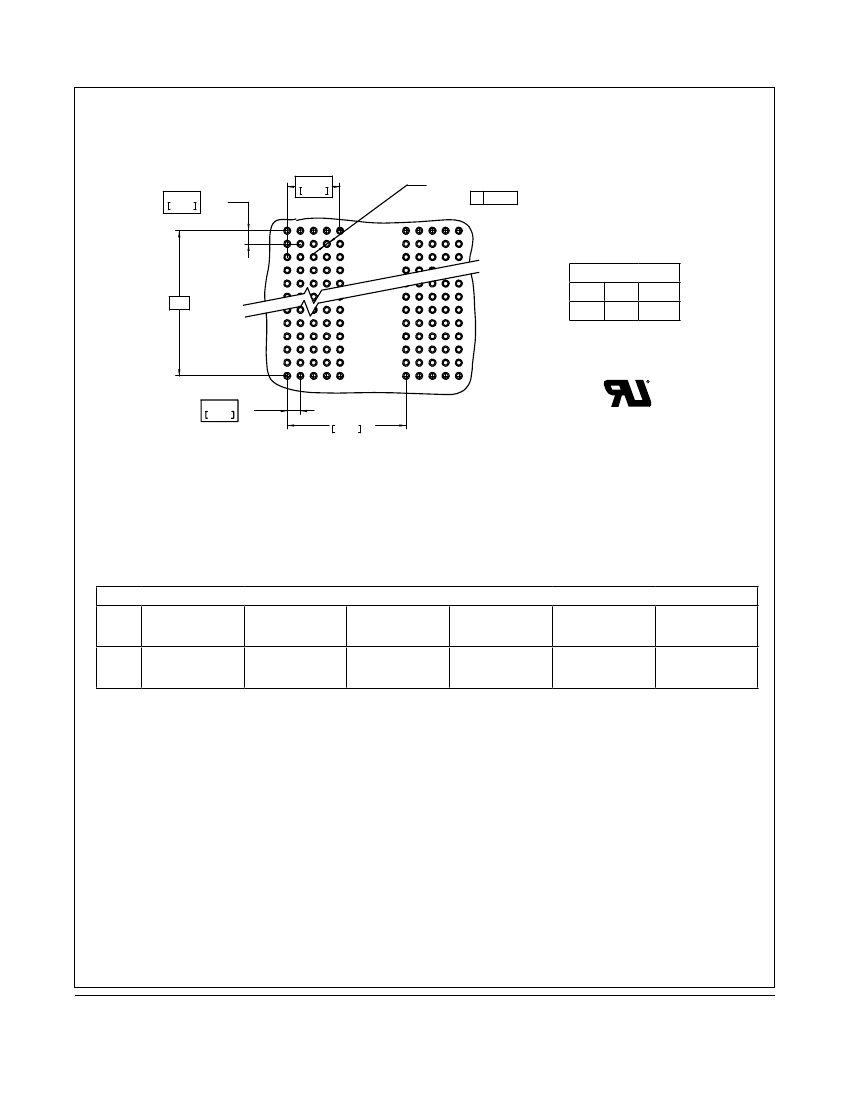

RECOMMENDED PRESS-FIT AND SOLDER
TAIL PCB HOLE MOUNTING PATTERN
Table 4 - HOLE PLATING FINISHES
HOLE
Finished Dia.
MM [in]
0.700-0.800
[.0276-.0315]
Cu Thickness [mm
[in]
0.025-0.045
[0.001-0.002]
Immersion Matte
Sn Thickness
microns [µ”]
0.5 - 2.5
[20 - 100]
Electrolytic Au
Thickness
microns [µ"]
0.1 - 0.5
[4 - 20]
OSP ENTEK
Thickness
microns [µ”]
0.2 - 0.5
[8 - 20]
Drilled Hole
Dia. mm [in]
0.830-0.860 [.0330-
.0340] or 0.85 mm
[#66] TWIST DRILL
“D”
TS-1121-C
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M is a trademark of 3M Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for
your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are
not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect
unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES
NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s
option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will
not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
the legal theory asserted.
