BM20B-ZPDSS-TF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BM20B-ZPDSS-TF

BM20B-ZPDSS-TF: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size126KB，2 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

BM20B-ZPDSS-TF Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

BM20B-ZPDSS-TF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

ZPD

CONNECTOR

Emboss Tape

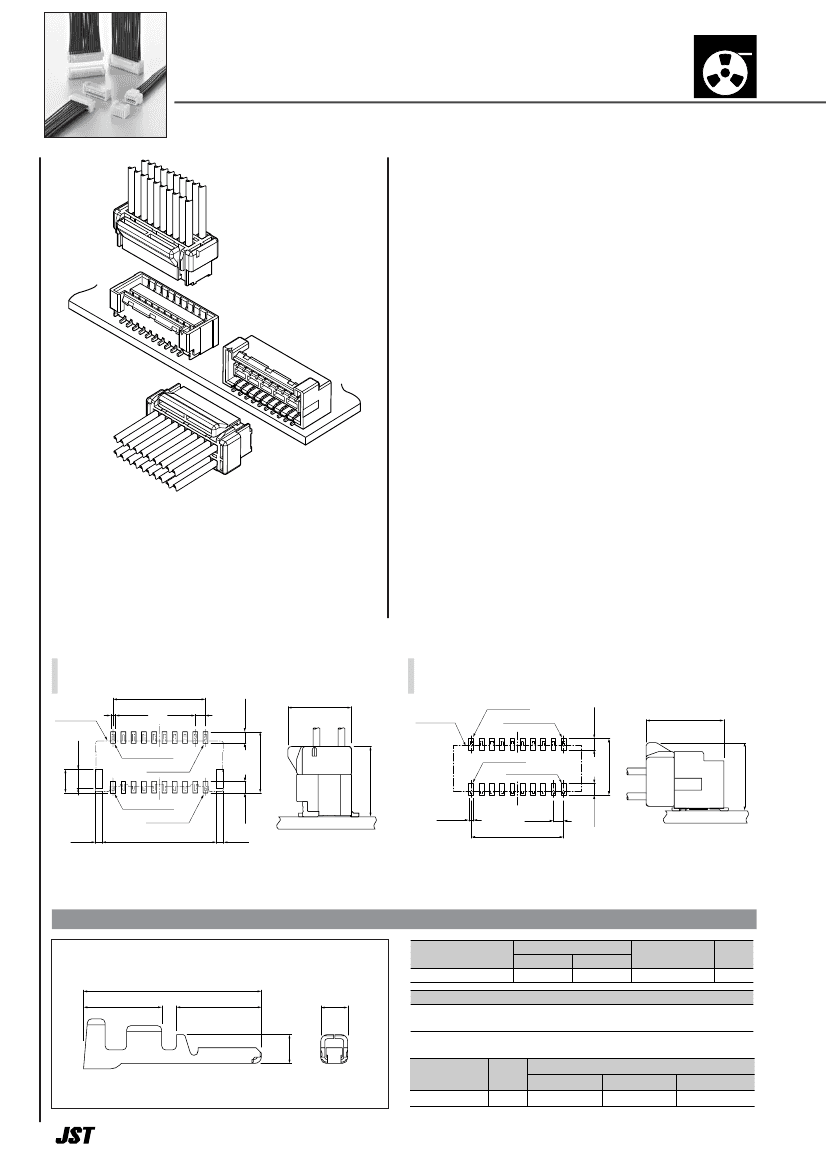

1.5mm pitch/Disconnectable Crimp style connectors

• Secure locking structure

• Low insertion force

• Suction area for picking up

• Improvement of engagement with prying

Specifications –––––––––––––––––––

• Current rating: 2A AC, DC (AWG #24)

• Voltage rating: 100V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/ 30m

Ω

max.

After environmental testing/ 60m

Ω

max.

• Insulation resistance: 500M

Ω

min.

• Withstanding voltage: 500V AC/minute

• Applicable wire: Conductor size/ AWG #28 to #24

Insulation O.D./ 0.8 to 1.2mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

In order to correspond to the high-density

PC board designing, this ZPD connector is

designed as 1.5mm pitch double row type

connector with secure locking device.

Low insertion force is realized and good

mating feeling is also prepared, and these

provide the certain mating operation.

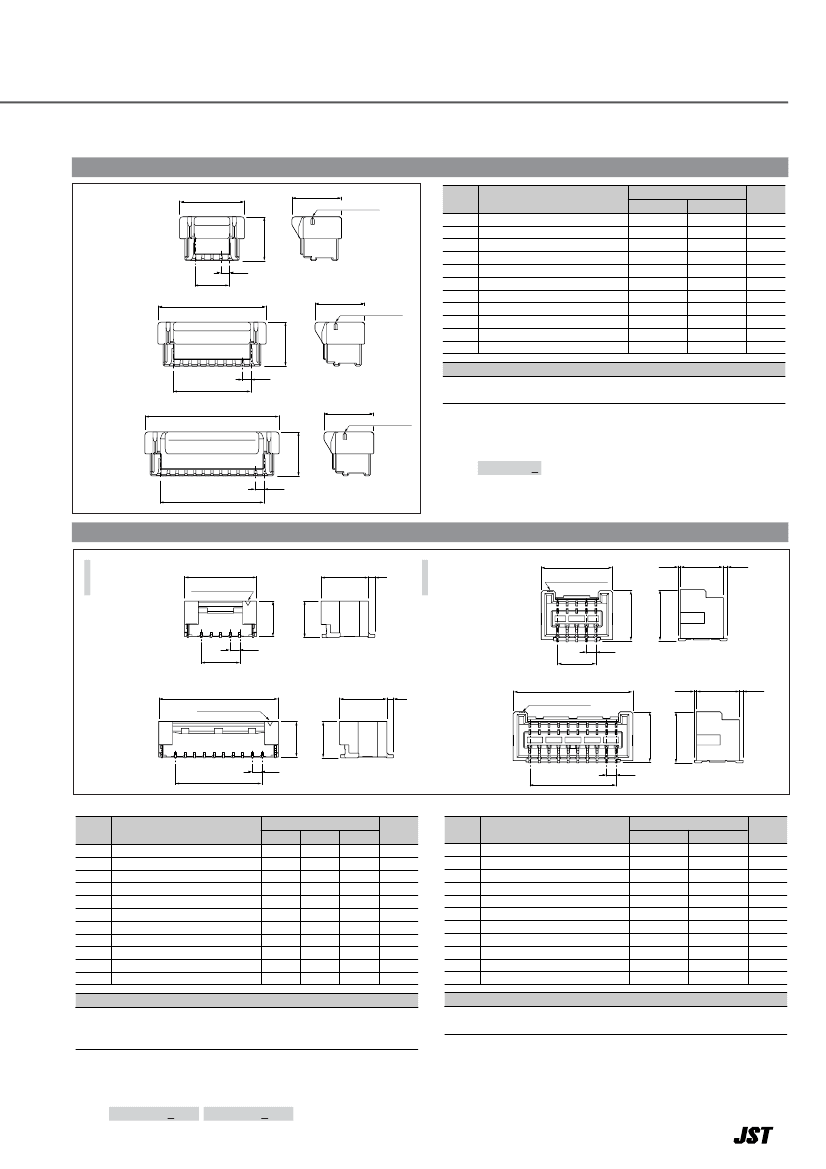

Top entry type

Connector

outline

0.7

±0.05

Side entry type

(8.6)

Connector

outline

Circuit No.1

Circuit No.N-1

±0.05

1.7

1.5

±0.05

(10.5)

±0.1

2.8

3.5

1.7

Circuit No.1

±0.1

±0.05

Note: 1. The above figure is the figure viewed from the connector mounting side.

2. Tolerances are non-cumulative:

0.05mm for all centers.

3. The dimensions above should serve as a guideline. Contact JST for details.

Contact

Model No.

SZPD-002T-P0.3

6.6

2.9

3.15

Applicable wire

AWG#

0.08∼0.21

28∼24

1.7

0.7

±0.05

1.5

±0.05

Circuit No.N-1

±0.05

(9.5)

Insulation O.D.

(mm)

0.8∼1.2

Q´ty /

reel

16,000

Material and Finish

Copper alloy, tin-plated (reflow treatment)

1.07

RoHS compliance

Crimping

machine

Crimp applicator

MKS-L

Contact

Applicator

Dies

MK/SZE-002-03

Crimp applicator with dies

APLMK SZE002-03

SZPD-002T-P0.3

AP-K2N

(9.2)

±0.05

Circuit No.N

8.3

Circuit No.2

8.95

±0.1

Circuit No.N

±0.1

Circuit No.2

1.7

BM20B-ZPDSS-TF Related Products

	BM20B-ZPDSS-TF	BM10B-ZPDSS-TF	BM12B-ZPDSS-TF	BM16B-ZPDSS-TF	BM18B-ZPDSS-TF	BM22B-ZPDSS-TF	BM24B-ZPDSS-TF	BM26B-ZPDSS-TF	BM28B-ZPDSS-TF	BM30B-ZPDSS-TF
Description	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	JST	JST	JST	JST	JST	JST	JST	JST	JST	JST
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED	COMPATIBLE CONTACT: SZPD-002T-P0.3, SHROUDED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	20	10	12	16	18	22	24	26	28	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
