Features
Cinch’s PWF family of connectors meet or exceed the requirements of MIL-C-26482
Series I Crimp and are listed in the U.S. Department of Defense Qualified Parts List.
These connectors are available in 9 shell sizes and 24 insert arrangements, all inter-mateable and interchangeable
with connectors produced in accordance with MIL-C-26482 Series I and Series II. Standard contact termination is by
crimping using stan-dard crimp tools: either automated wire stripping and crimping machines or manually with the
use of hand crimping tools. Contact insertion and extraction is also accom-plished with the use of standard tools.
Designed for wire sizes AWG 16 through 24, these highly durable connectors are used in wide variety of applications
including aerospace, military equipment, machine tools, robotics, communications, medical equipment, automation
equipment, and industrial sensors to name just a few.
Shells and hardware are made of high strength aluminum alloys and are available with a variety of plated or anodized
finishes. Contacts are machined from solid cop-per alloy and gold plated in accordance with MIL-G-45204 type
II. With a standard operating temperature range of -55ºC to +125ºC available with a variety of acces-sories and
features, Cinch’s PWF series is widely called out by design engineers and specifiers seeking reliability and durability
throughout a broad range of environmental requirements.
Cinch Connectivity Solutions produces high quality products. These products are intended to be used in accordance
with the specifications described in this catalog. Any use or application that devi-ates from the stated operating
specifications is not recommended and may be unsafe. A limited warranty is applicable. Except for obligations
assumed by Cinch Connectivity Solutions under
warranty, Cinch will be not be liable for any loss, damage, repairs, incidental or consequential damages of any
kind, whether or not based upon expressed or implied warranty, contract, negligence, or liability arising from the
application or manufacture or repair of these products. This catalog is not a contractual offering; it is for informational
purposes only.
Product Data
Electrical
Contact Termination
Number of Contacts
Wire Size, AWG
Wire Range Accomodations
Contact SizeAWG Wire Size
20
16
24, 22 and 20
20, 18 and 16
Rated Amps
7.5
13.0
(PWF) Crimp
3 to 61
16 to 24
Insulation O.D. Limits
Min.
.066 (1.52)
.066 (1.68)
Test current
7.5
13.0
Test Voltage
AC(rms)
1500
2300
375
500
DC
2100
3200
535
770
Max.
.083 (2.11)
.109 (2.77)
Max. Millivolt Drop
55
49
Max. Working Voltage
AC(rms)
600
1000
300
450
DC
850
1400
510
740
Standard Material and Finishes
Shell (Mil-Std)
Insulator
Grommet and Seal
Contacts
Temperature Range
Aluminum alloy, conductive olivedrab
chromate over cadmiumfinish per
QQ-P-416. (Consult Factory for
Commercial options.)
Synthetic Rubber
Synthetic Rubber
Cooper alloy, gold plate per MIL-
G-45204 type II.
-55ºC to +125ºC
Contact Rating
Contact Size
20
16

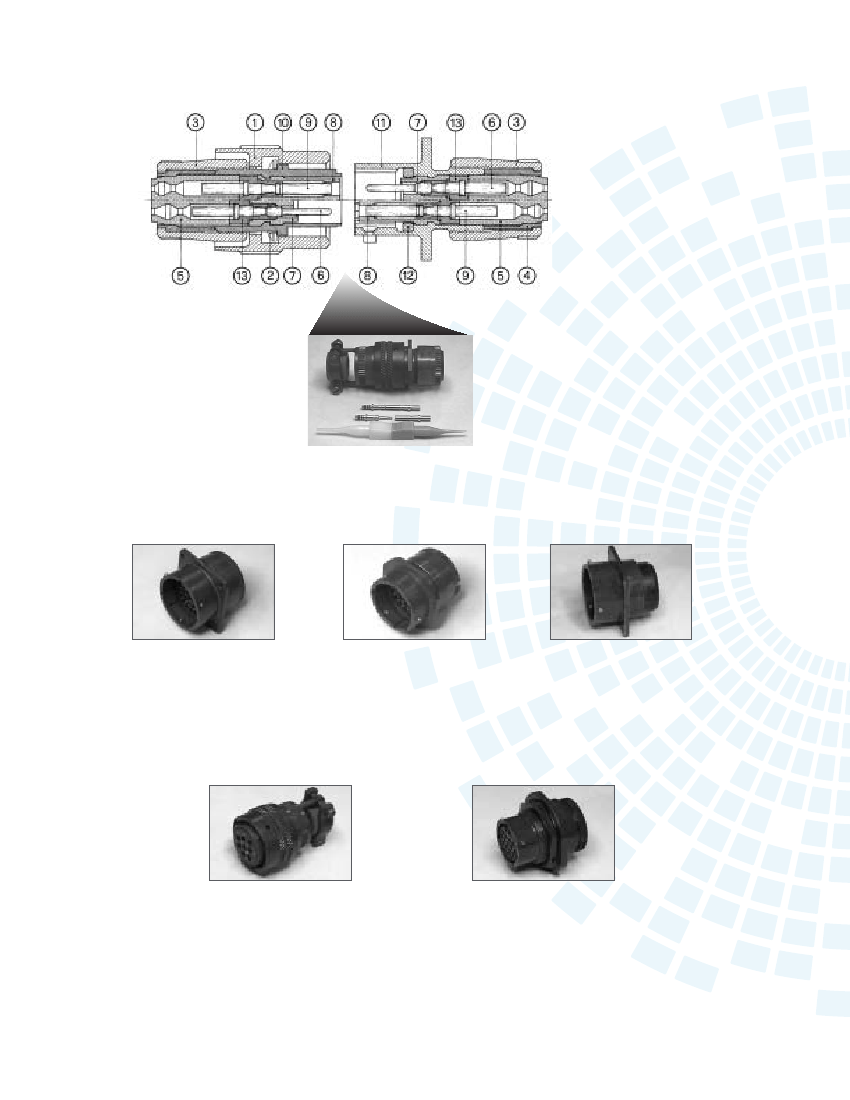

Mechanical
Shell Styles
00 - Wall mounting receptacle01
- Cable in line receptacle02 - Box
mounting receptacle06 - Straight
plug07 - Jam nut receptacle08 - 90º
Angle plug
8 thru 24
Five keyway/three point bayonet
locking.
E - Grommet seal
F - Grommet seal with strain relief
N - No back end, no termination
hardware
P- Potted
Voltage Rating
Altitude
Sea Level
1
2
1
2
Service
Rating
Shell Size
Polarization/Coupling
70,000 ft.
Service
Classes
Engaging Face-
Pin Inserts
Polarization

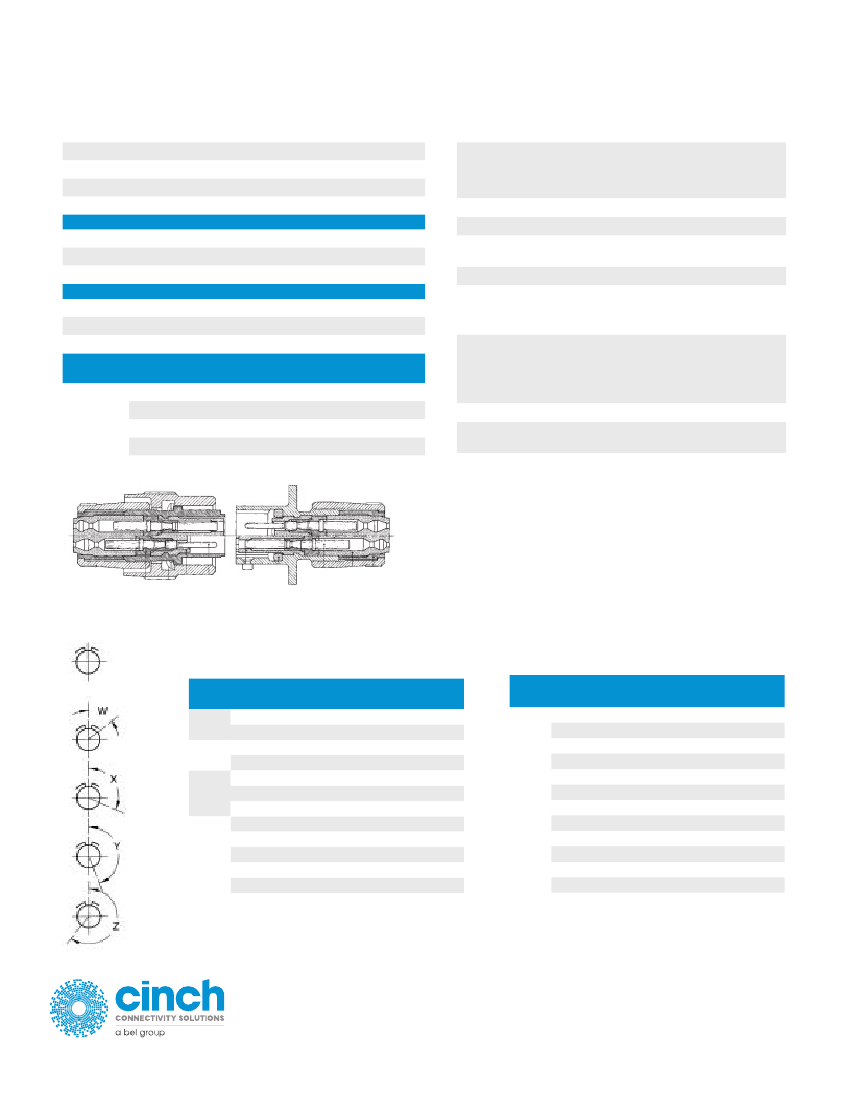

The diagrams indicate alternate insert positions. The five positions (W, X, Y, Z and Normal) differ in degree of rotation for various size and
layouts. The exact angle of rotation for the combinations are listed in the table below.
Position N
(Normal)
Shell
Size
8
10
12
Layout
3A
33
6
7
3
8
10
5
12
15
18
19
14
W
60º
90º
90º
90º
-
90º
60º
40º
43º
17º
15º
30º
Position
X
Y
-
-
-
-
-
-
-
-
-
180º
112º
203º
155º
270º
92º
184º
90º
-
110º
155º
90º
180º
165º
315º
Z
-
-
-
-
-
292º
295º
273º
-
234º
270º
-
Shell
Size
16
18
20
Layout
8
23
26
11
32
16
39
41
21
41
55
61
Position
W
54º
158º
60º
62º
85º
238º
63º
45º
16º
39º
30º
90º
X
152º
270º
-
119º
138º
318º
144º
126º
135º
135º
142º
180º
Y
180º
-
275º
241º
222º
333º
252º
225º
175º
264º
226º
270º
Z
331º
-
338º
340º
265º
347º
333º
-
349º
-
314º
324º
22
24
Note: for polarization data for the other contact arragements,
consult factory.
4
Nomenclature Guide
Example
#1
#2
#3
PWF
PWF
MS
06
*6
3126
E
E
E
22-
22-
22-
55
55
55
P
P
P
Y
Y
Y
K001**
SERIES
PREFIX
PWF = Cinch
MS = MILITARY
SHELL SIZE
00 = wall receptacle
01 = in-line receptacle
02 = box mount receptacle
06 = straight plug
07 = jam nut mount receptacle
08 = 90º
plug
SERVICE TYPE (Class)
E = grommet seal
F = same as E with strain relief
P= potting shell
N = no back end, threaded with no cable
termination hardware
SHELL SIZE
0 thru 24 available
CONTACT ARRANGE-
MENT
(See page 5)
MODIFICATION CODES
A602 = Black Anodize Plating
A610 = Aluminate Plating
A611 = Nickel Plating
A612 = Electroless Nickel Plating
A617 = Tin Plating
F602 = Clinch Nuts
M901 = Stainless Steel Construction
** For modification codes not listed,
consult
factory
POLARIZATION
(See Chart, page 3)
CONTACT TYPE
P= pins
S = sockets
A= pin less contacts
B = socket less contacts
*NOTE: When modification to a standard plug or receptacle is required, delete the “0” between the PWF and the “6” as in example #2.
Cross Reference
MIL SPEC PART NOs.
MS3120E*
MS3120F*
MS3120P*
MS3121E*
MS3121F*
MS3121P*
MS3122E*
MS3124E*
MS3124F*
MS3124P*
MS3126E*
MS3126F*
MS3126P*
~~~~~
~~~~~
MS3127E*
Box Mount, Special
Large Flange (Special)
MS3128E*
Wall Mount, Special
Wide Flange (Special)
LEADING SUPPLIERS’ COMMERCIAL EQUIVALENT
Cinch
PWF00E*
PWF00F*
PWF00P*
PWF01E*
PWF01F*
PWF01P*
PWF02E*
PWF07E*
PWF07F*
PWF07P*
PWF06E*
PWF06F*
PWF06P*
PWF08*
90o Cable Entry Plug
PWF**N*
No rear accessories
PWF05*
AMPHENOL-BENDIX
PT00SE*
PT00SE*(SR)
PT00SP*
PT01SE*
PT01SE*(SR)
PT01SP*
PT02SE*
PT07SE*
PT07SE*(SR)
PT07SP*
PT06SE*
PT06SE*(SR)
PT06SP*
CANNON
KPSE00E*
KPSE00F*
KPSE00P*
KPSE01E*
KPSE01F*
KPSE01P*
KPSE02E*
KPSE07E*
KPSE07F*
KPSE07P*
KPSE06E*
KPSE06F*
KPSE07P*
FCI/BURNDY
L*TE*O*A
L*TF*O*A
L*TP*0*A
L*TE*1*A
L*TF*1*A
L*TP*1*A
L*TE*2*A
L*TE*4*A
L*TF*4*A
L*TP*4*A
L*TE*6*A
L*TF*6*A
L*TP*6*A
SOURIAU
851-00R*50*
851-00RC*50
851-00RP*50
851-01R*50
851-01RC*50
851-01RP*50
851-02R*50
851-07R*50
851-07RC*50
851-07RP*50
851-06R*50
851-06RC*50
851-06RP*50
851-08RP*50
VEAM
VPT00SE*
VPT00SE*(SR)
VPT00SP*
VPT01SE*
VPT01SE*(SR)
VPT01SP*
VPT02SE*
VPT07SE*
VPT07SE*(SR)
VPT07SP*
VPT06SE*
VPT06SE*(SR)
VPT06SP*
VPT08SE*
PT08SE*
(No MS drawing.
PT03/4/5SE*
KPSE08*
Do not confuse with MS3128)
KPSE03/4/5*
(Commercial part numbering only)
MF02S*
KP27E*
L*TE*7*A
PWF04*
MF00SE*
KP28E*
L*TE*8*A
NOTES:
1. Souriau is “commercial only”. Not on QPL.
2. For MS connectors “without contacts”, include “less contacts” after the complete connector MS number. The MS number does not change.
3. Connectors per MS have spare contacts and sealing plugs. Connectors per supplier’s commercial part number do not have these additional parts.
